Summary of Contents for A-MAX Technology NAPA DAV311

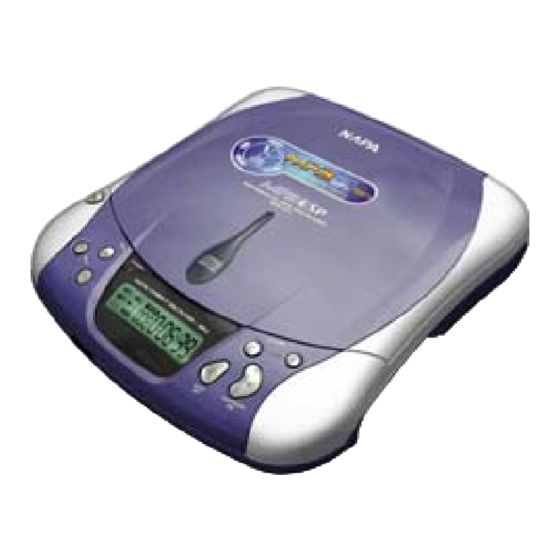

- Page 1 NAPA DAV311 MP3/VIDEO CD PLAYER DAV311 MP3/VIDEO CD Player User’s Manual A-MAX Technology Co. Ltd 12/F, Remington Centre, 23 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
- Page 2 In the interest of continued product development, A-MAX Technology reserves the right to make improvements in this manual and the products it describes at any time, without notice or obligation. Copyright ® 2000, A-MAX Technology Co. Ltd. 12/F, Remington Centre, 23 Hung To Road, Kwun Tong, Kowloon, Hong Kong.
-
Page 3: Table Of Contents
Table of Contents 1. PRODUCT OVERVIEW........................3 2. ADVANCED PLAYBACK FUNCTIONALITY ................4 3. POWER OPERATION INSTRUCTIONS..................6 4. USING “DAV311” ..........................7 5. REMOTE CONTROLLER ......................12 6. CONNECT “DAV311” TO OTHER DEVICES................123 7. UNDERSTANDING “DAV311” PLAYBACK FUNCTIONALITY..........14 8. HANDLING INSTRUCTIONS.......................18 9. TROUBLESHOOTING........................20 10. TECHNICAL SPECIFICATIONS ....................21... -
Page 4: Product Overview
1. Product Overview Manufactured by the latest and advanced technology, DAV311 is undoubtedly the best choice of portable audio/video player for those who pursue fantastic audio/visual enjoyment. DAV311 is the next-generation digital audio/video player, which plays audio CDs, video CDs, as well as the latest MP3 CDs. In contrast to other portable CD players, DAV311 is relatively lightweight and is much convenient to be carried anywhere you want to go. -
Page 5: Advanced Playback Functionality
2. Advanced Playback Functionality Compatible: In addition to playing the new MP3 CD, DAV311 is capable of playing other type of disc including VCD and CDDA; and it is absolutely VCD 1.0, 2.0 compliant. Your All-In-One Digital Audio/Video Player – DAV311 MP3/VCD Portable Player CDR/CDRW Readable DAV311 is capable of recognizing CDR and most CDRW discs. - Page 6 Contents of DAV311 Package Your DAV311 package includes all the contents shown below: □ DAV311 MP3/VCD Portable Player □ 2 x 2A Ni-MH Battery □ DC Power Supply Connector □ Infra-red Remote Control (battery included) □ Video / Audio Cables □...
-
Page 7: Power Operation Instructions
3. Power Operation Instructions NAPA DAV311 comes with a DC transformer in the package (as shown below). Plug the power cord into an A/C socket, and the other end into the DC input jack of the player. Attention: The DC transformer accompanies with the package is given according to the local voltage supply of different areas. -
Page 8: Using "Dav311
progress. Please be advised that even when the charging is completed, the will still be on. However, you are advised to turn the player off while the charging is still in progress, as this will shorten the overall charging time of the battery. - Page 9 5, To stop playing, press “STOP” once. SELECTIVE PLAYBACK MODE 1, Press down SKIP “NEXT” or “PREV” to move forward or backward along the tracks to select the one you want to play. For instance, if the 8 track is the one you want to listen, just keep on pressing SKIP “NEXT”...
- Page 10 Attention: Sound Mode control “R/L” key is not available when playing MP3 and CD-DA disc. PLAYBACK CONTROL (PBC) If the disc playing is VCD 2.0 compliant, without pressing any button, the playback will start automatically after a while. For disc of VCD 2.0 compliant, press “PBC”...
- Page 11 1, REPEAT (r) Press “MODE” once to activate REPEAT function. Press “NEXT” once, REPT ONE, to repeat the current track. Press “NEXT” twice, REPT ALL, to repeat all the tracks. Press “NEXT” the third time, RANDOM, to playback all the tracks at random. Press “NEXT”...
- Page 12 4, ESP (Electronic Skip Protection) On/Off (E) When ESP function is turned on, you can see “ESP ON” is displayed at the top right corner of the LCD. The ESP function for MP3 is automatically activated whenever the player is used for playing MP3 disc. However, the ESP function for CD-DA is activated as the following sequence: ESP: on on (CD-DA only)
-
Page 13: Remote Controller
5. REMOTE CONTROLLER Remote Control Operation 30˚ 30˚ 30 度 30 度 Use the remote control within 7 meters from the REMOTE SENSOR, about 60 degree when facing the player. Operating distance may vary according to different intensity of light in the room. Attention Do not expose the REMOTE SENSOR under strong intensity of light. - Page 14 6. Connect “DAV311” to Other Devices Power on DAV311 player by connecting with the DC power supply connector or using the Ni-MH battery. How to connect DAV311 to your audio system and TV set? 1, Connect DAV311 player to the TV set by using a video cable. One end with 3.5 MONO PLUG has to plug into the video-out jack of the player.
-
Page 15: Understanding "Dav311" Playback Functionality
7. Understanding “DAV311” Playback Functionality The following example is illustrated by using MP3 disc. DAV311 can output video signal when it is properly connected with the DC power supply connector. Preparation: 1. After connecting with cables, switch on the TV. 2. - Page 16 When playing MP3 disc, you may select your favorite tracks to play by: Move forward or backward along the tracks of the disc. Enter the track number(s) by using the remote controller. After the selection is made, the current track played (if any) will stop, and the selected track(s) will start playing by pressing “PLAY”.
- Page 17 1, DIGEST (9-Screen) While playing VCD, press “DIGEST” on the remote controller and the screen on TV will be segmented into 9 individual screens. Each screen represents a portion of the program showing at different time interval. For karaoke VCD, there will be 9 different song titles showing on 9 individual screen.
- Page 18 6, SLOW (Slow Motion) Press “SLOW” once to activate SLOW 1/2 slow motion playback. Press “SLOW” twice to activate SLOW 1/4 slow motion playback. Press “SLOW” by the third time to activate SLOW 1/8 slow motion playback. Press “SLOW” again to restore normal playback – NRM PLAY. 7, PBC (Playback Control) When watching VCD, press “PBC”...
-
Page 19: Handling Instructions
8. HANDLING INSTRUCTIONS Moist Due to sudden change of outdoor temperature and humidity, any component of the player which in contact with warm air Moist form within the player may cause moist to form. In this case, the player may not be able to function properly. - Page 20 Safety Instructions • Hold firmly whenever plug-in or pull-out the DC plug from the socket. • The DC power cord should keep a distance from electric heater. • Never place any heavy objects above the DC power cord. • Do not attempt to repair or re-construct the DC power cord.
-
Page 21: Troubleshooting
9. TROUBLESHOOTING The following information may be useful should you encounter the situations listed below: * The player does not operate Check if the power is switched on. Check if there is any disc in the player. Check if the disc is loaded at the wrong side Check if the disc is damaged or unclean. -
Page 22: Technical Specifications
10. TECHNICAL SPECIFICATIONS Power DC or 2 x 2A Ni-MH battery Power Consumption: 3.5W(normal value) General Specifications Dimensions: approx. 164.7mm x 146mm x 31mm (W x D x H) Operating Temperature +5°C – 35°C 5 – 90% (without moist) Operating Humidity Nature: Semi-Conductor Laser Laser MP3, VCD, CDDA...
