Sony DSC-W530 Service Manual

Hide thumbs Also See for DSC-W530:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
SERVICE MANUAL
Ver. 1.0 2010.11
Internal memory
Internal memory
ON BOARD
ON BOARD
SERVICE NOTE (Check the following note before the service.)
– ENGLISH –
1-1. PRECAUTION ON REPLACING THE SY-285 BOARD
1-2. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
1-3. HOW TO WRITE DATA TO INTERNAL MEMORY
1-4. POWER SUPPLY ON REPAIRING
1-5. SELF-DIAGNOSIS FUNCTION
1-6. PROCESS AFTER FIXING FLASH ERROR
1-7. Dedicated A/V cable (optional accessory)
1-8. ORNAMENTAL RING A OR BARRIER ASSY REPLACING METHOD
1-9. OPTICAL STEPING MOTOR (F1380) REPLACING METHOD
1-10. DC MOTOR WORM A ASSY REPLACING METHOD
1-11. CAM TUBE BLOCK ASSY AND STRAIGHT TUBE LUBRICATED ASSY AND
1 GROUP FRAME REPLACING METHOD
1-12. FINAL INSPECTION
The components identified by
Les composants identifiés par
mark 0 or dotted line with mark
une marque 0 sont critiques pour
0 are critical for safety.
la sécurité.
Replace only with part number
Ne les remplacer que par une piè-
specified.
ce portant le numéro spécifié.
DSC-W530_L2
9-834-542-31
DSC-W530
Canadian Model
AEP Model
Australian Model
Hong Kong Model
Chinese Model
Korea Model
Argentine Model
Brazilian Model

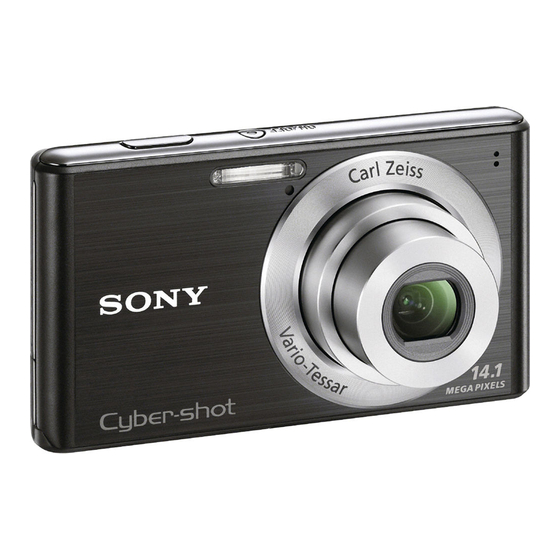

Photo: Black
Japanese Model
Tourist Model
DIGITAL STILL CAMERA
Ver.
Date
2
LEVEL
1.0
2010.11
Official Release
US Model
UK Model
E Model
Sony Corporation

Revision History

History
Contents
—
983454231.pdf
S.M. Rev.
issued
—
2010K08-1
© 2010.11
Published by Sony Techno Create Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony DSC-W530

Summary of Contents for Sony DSC-W530

  • Page 1: Revision History

    0 sont critiques pour 0 are critical for safety. la sécurité. Replace only with part number Ne les remplacer que par une piè- specified. ce portant le numéro spécifié. 2010K08-1 DSC-W530_L2 © 2010.11 Sony Corporation 9-834-542-31 Published by Sony Techno Create Corporation...

  • Page 2: Specifications

    – ENGLISH – – JAPANESE – SPECIFICATIONS Camera [Input and Output connectors] BC-CSN/BC-CSNB battery (USB)/A/V OUT jack 6.7 cm 2.7 charger [System] 230 400 960 240 Video output Power requirements: AC 100 V to 7.76 mm 1/2.3 Image device: 7.76 mm (1/2.3 type) DC 4.2 V Audio output (Monaural) 240 V, 50/60 Hz, 2 W...

  • Page 3: Safety Check-Out

    ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPO- CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REM- NENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS PLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES...

  • Page 4: Service Note

    1. SERVICE NOTE – ENGLISH – 1-1. PRECAUTION ON REPLACING THE SY-285 BOARD 1-2. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY DESTINATION DATA The data can be copied/erased by the operations on the HOME screen. (When erasing the data, execute formatting the internal memory.) When you replace to the repairing board, the written destination data of repairing board also might be changed to original setting.

  • Page 5: How To Write Data To Internal Memory

    – ENGLISH – 1-3. HOW TO WRITE DATA TO INTERNAL MEMORY 1-5. SELF-DIAGNOSIS FUNCTION 1-5-2. Self-diagnosis Display Usually, the camera has been set so as to disable the data writing from the PC to the internal memory of the camera. 1-5-1.

  • Page 6: Process After Fixing Flash Error

    – ENGLISH – 1-5-3. Self-diagnosis Code Table 1-6. PROCESS AFTER FIXING FLASH ERROR Self-diagnosis Code When “FLASH error” (Self-diagnosis Code E : 91 : 01) occurs, to prevent any abnormal situation caused by high voltage, setting of the flash is changed automatically to disabling charge and flash setting.
  • Page 7 – JAPANESE – DSC-W530_L2...
  • Page 8 – JAPANESE – DSC-W530_L2...
  • Page 9 – JAPANESE – DSC-W530_L2...

  • Page 10: Ornamental Ring A Or Barrier Assy Replacing Method

    1-8. ORNAMENTAL RING A OR BARRIER ASSY REPLACING METHOD 1-9. OPTICAL STEPPING MOTOR (F1380) REPLACING METHOD Removal Removal 1 Turn on the power switch and extend the lens. 1 Remove four screws, and remove the Rear Mirror Plate. 2 Detach the battery. 2 Remove one screw.

  • Page 11: Dc Motor Worm A Assy Replacing Method

    1-10. DC MOTOR WORM A ASSY REPLACING METHOD 1-11. CAM TUBE BLOCK ASSY AND STRAIGHT TUBE LUBRICATED ASSY AND 1 GROUP FRAME REPLACING METHOD Removal 1 Remove four screws, and remove the Rear Mirror Plate. Removal 2 Remove the Naruto Gear Lubricated Assy and Warm B Lubricated Assy. 1 Remove four screws, and remove the Rear Mirror Plate.
  • Page 12 6 Rotate the Naruto Gear and the lens is drawn out. qs Remove the 1 Group Assy. 7 Pass the Flexible Board through the hole of the Fixed Stationary Tube. qd Rotate (about 120 degree) Straight Tube Lubricated Assy and align the two points of ditches of the Straight Tube Lubricated Assy with ditchies of the Cam Tube Block Assy, then remove the Straight Tube Lubricated Assy from the Cam Tube BlockAssy.
  • Page 13 Installation 8 Install the Straight Tube Lubricated to the Cam Tube Block Assy. 9 Rotate (about 120 degree) Straight Tube Lubricated Assy and align two points of ditches of the Straight Tube Lubricated Assy with 1 Install the 1 Group Lens Assy to the 1 Group Frame. ditches of the Cam Tube BlockAssy.
  • Page 14 qs Match three ditches of the Fixed Stationary Tube Block to three convex parts of the Straight Tube Lubricated Assy and install it. qj Install the Warm B Lubricated Assy. qk Connect the Iris Flexible Board from connector of 2 Frame Assy. Eyepiece Side View Warm B Lubricated Assy...

  • Page 15: Final Inspection

    1-12. FINAL INSPECTION 1-12-2. Inspection When Cam Tube Block Assy Or Straight Tube Lubricated Assy Is Replaced Focus check 1 Preparation 1-12-1. Confirm There Is No Fault In Actual Motion/Actual Screen • Camera installed re-assemble lens. Inspect it as follows when you exchange parts in the lens block. •...

  • Page 16: Repair Parts List

    2. REPAIR PARTS LIST IDENTIFYING PARTS (ENGLISH) The components identified by mark 0 NOTE: or dotted line with mark 0 are critical for Follow the disassembly in the numerical order given. safety. • -XX, -X mean standardized parts, so they may have some differences from the original Replace only with part number specified.

  • Page 17: Note For Repair

    – ENGLISH – – JAPANESE – NOTE FOR REPAIR Cut and remove the part of gilt Cut and remove the part of gilt which comes off at the point. which comes off at the point. • Make sure that the flat cable and flexible board are not cracked of bent at (Be careful or some (Be careful or some the terminal.
  • Page 18 2-1. EXPLODED VIEWS DISASSEMBLY 2-1-1. REAR SECTION 1. Remove to numerical order ( ) in the left figure. #209/#210 X 5 Bottom View Left View Right View #209 #210 #209 #209 (Note 1) #210 #210 (Note 3) #209 (Claw) #210 #209 #210 (Note 1)
  • Page 19 DISASSEMBLY 2-1-2. FRONT/TOP SECTION 1. Remove to numerical order ( ) in the left figure. #209 #209 X 1 (Claws) #209/#210 X 1 Bottom View Back View 4 -3 #209 (Claw) 4 -2 #209 #210 (4-1) Tape (A) → (4-2) ST Sheet 1 (700) → (4-3) ST Sheet 2 (700) MIC901 (Note 3) 4 -1...

  • Page 20: Main Section

    DISASSEMBLY 2-1-3. MAIN SECTION 1. Remove to numerical order ( ) in the left figure. 2. The meaning of the sign in left figure is as follows. Be careful when it removes. -X: Solder Note Note 1: PRECAUTIONS WHEN HOLDING THE LENS BLOCK Hold the Lens Block at the Do not hold the following part.

  • Page 21: Lens Block Section

    DISASSEMBLY 2-1-4. LENS BLOCK SECTION 1. The meaning of the sign in left figure is as follows. Be careful when it removes. -X: Solder ns : not supplied (including IC001 Screw (CCD imager)) (Note 3) #176: M1.2 X 2.0 #30: M1.2 X 3.5 (Tapping) (Silver) (White) 3-947-504-31...
  • Page 22 Checking supplied accessories. Note2: Dedicated A/V cable (optional accessory) Note1 : This item is supplied with the unit as an accessory, but is Dedicated A/V cable is not supplied with this model. not prepared as a service part. If you need dedicated A/V cable, order 1-834-312-4 or VMC-15CSR1.
  • Page 23 3. ASSEMBLY Assembly-1: Installation Method of Battery Terminal Board Assembly-2: Insulating Sheet (670) Putting Position Assembly-4: Precaution During of Cabinet (Rear) Assy Assembly-5: Attaching Method of LCD Cushion (700), Installation. LCD Window (670) Insulating Sheet (670) Remove the battery terminal board by Align the slide switch at the camera mode, Apply LCD cushion (700).
