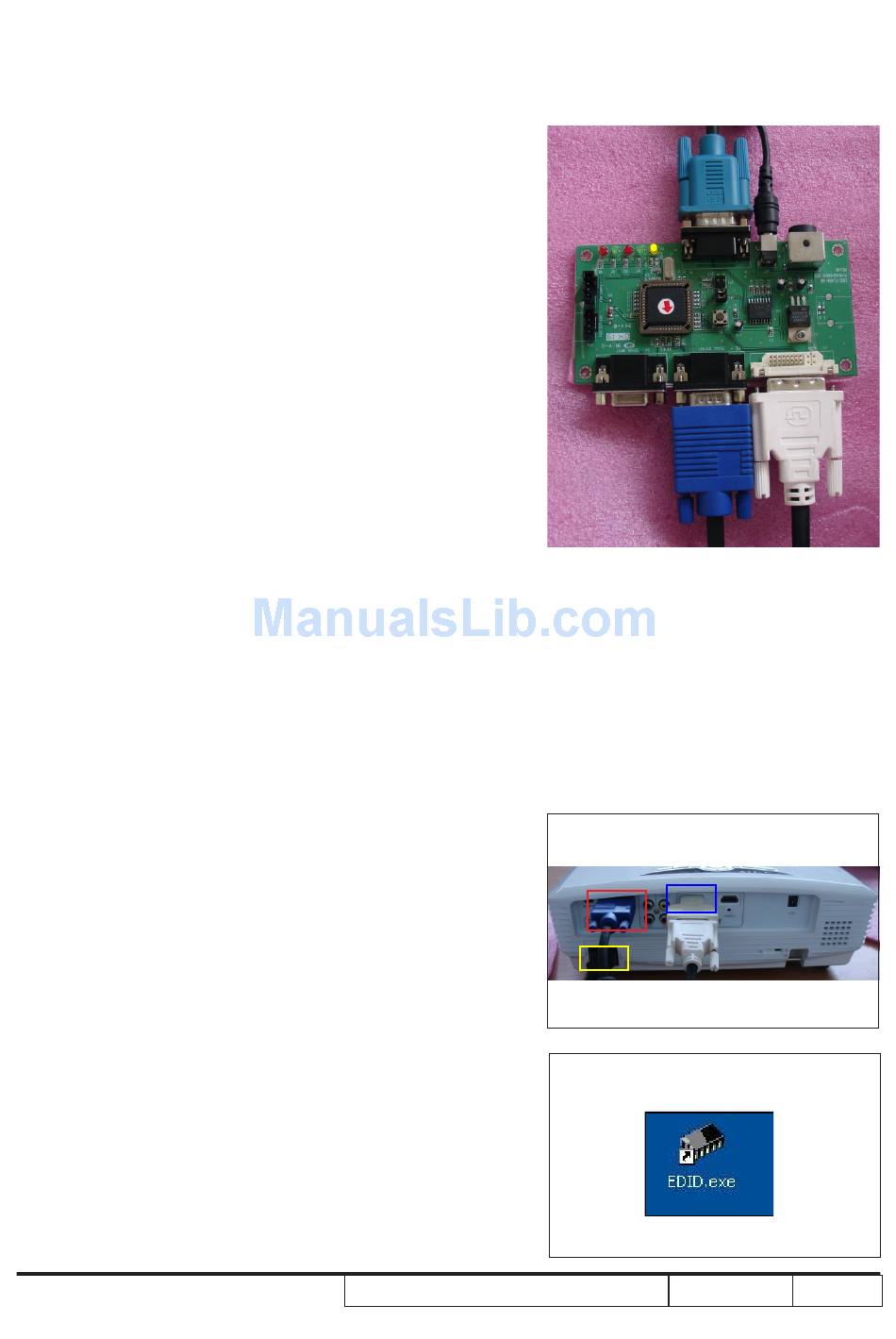

6-3 Setup Procedure
Connect all ports
1.
- Power adapter to fixture JP2
- Fixture P1 to PC COM Port
- Fixture P2 to Projector VGA
- Fixture P3 to Projector HDMI
- Power on fixture
- Plug in power cord to unit
Note: Confirm JP3 is in "Close" status.
6-4 DDC Key-In Procedure
(VGA, HDMI 1, HDMI 2
Interface)
1. Plug VGA cable in VGA port and DVI-HDMI in
HDMI1 port.
2. Click on "EDID.exe" to execute EDID program.
HD20/HD200X/HD2200/HD20LV
P
RS232 Cable
P2
VGA-VGA Cable
VGA
HDMI1
Power
2
Confidential
Adapter
JP2
P3
DVI-DVI Cable
6-3
