HAI 59A00-1 Installation And Operating Instructions

For the following Models:
59A00-1 HAI 300W Lamp Module
READ THESE INSTRUCTIONS BEFORE INSTALLING DEVICE
This HAI UPB™ Lamp Module is intended for installation in accordance with the National Electrical Code and local codes and
regulations. Retain these instructions for reference.
The HAI UPB™ Lamp Module is for use with incandescent or tungsten loads only.
To reduce the risk of overheating and possible damage to other equipment, when configured as dimming-capable, do not use to control
a receptacle, a motor-operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance.
This product is for indoor use only.
HAI UPB™ Lamp Module Overview
The HAI UPB™ Lamp Module (Figure 1) is a plug-in dimmer that incorporates the UPB™ two-way powerline communication
technology, which gives it the ability to be remotely controlled by UPB™ compatible controllers. The Lamp Module has one UPB™
controllable outlet that can sense the lamp's local on/off switch to turn the lamp on even after it was turned off using UPB™ control.
The HAI UPB™ Lamp Module is also capable of transmitting UPB™ messages (including current light level) when the local lamp
switch is used to turn the lamp on.
Each lamp module can be configured to custom fit an individual's lifestyle and desires. The HAI Lamp Module is capable of storing
up to 16 preset light levels and fade rates to create powerful lighting scenes. The HAI Lamp Module is capable of being set to a non-
dimming mode in order to control such loads as fluorescent lights.
HAI UPB™ Lamp Module
Installation and Operating Instructions
Pushbutton
UPB Controlled
Outlet

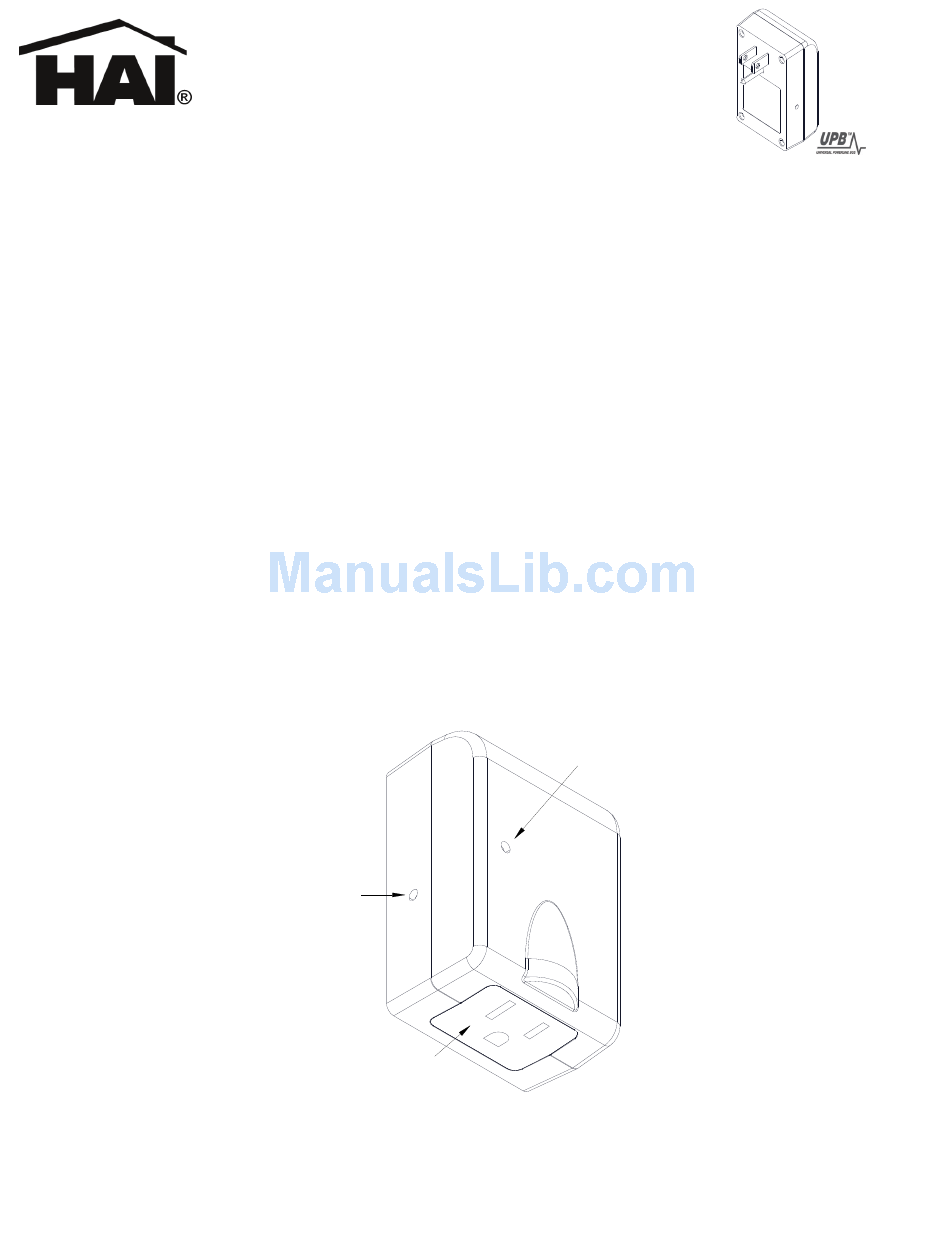

Figure 1 - HAI UPB™ Lamp Module
LED
59I00-1, Rev A
