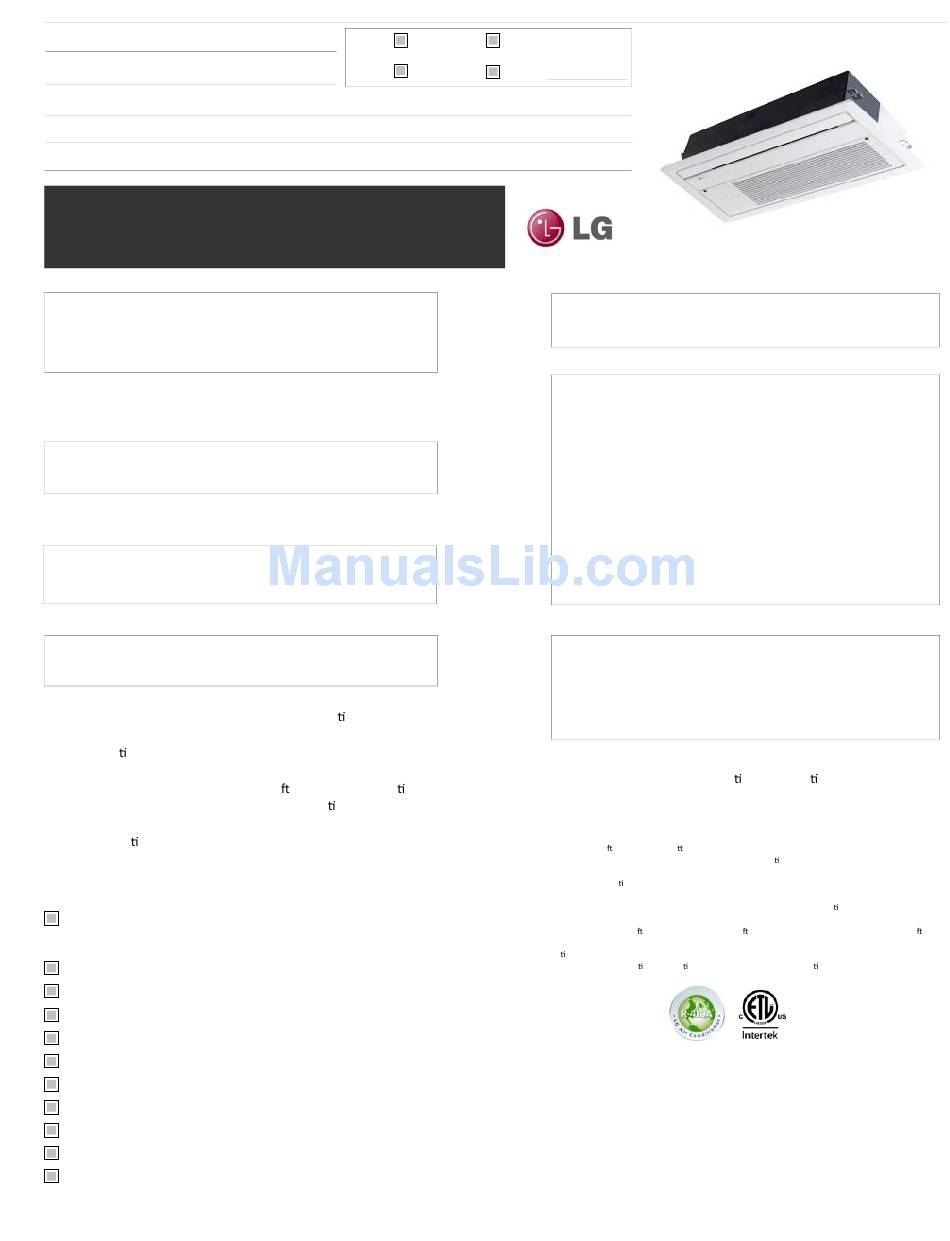

LG ARNU123TJC2 Quick Manual

Job Name/Location:
Date:
PO No.:
Architect:
Engr:
Rep:
(Company)
ARNU123TJC2

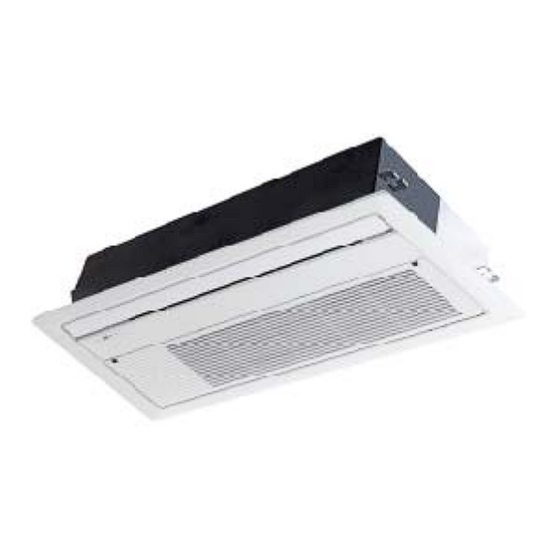

Multi V™ 1‐Way Ceiling Cassette
10,900 Btu/h Indoor Unit
Performance:
Total Cooling Capacity (Btu/h)
Heating Capacity (Btu/h)
Power Input¹ (W)
Cooling Nominal Test Conditions:
Indoor: 80°F DB/67°F WB
Outdoor 95°F DB
:
Electrical:
Power Supply (V/Hz/Ø)
Rated Amps (A)
Piping:
Refrigerant:
Liquid Line (in, OD)
Vapor Line (in, OD)
Condensate:
Condensate Line (in, OD)
Factory Pump Installed²
Controls Features:
•Auto changeover
(Heat Recovery Only)
•Auto opera on
•Auto restart
•Child lock
•Dual thermistor control
•Group control
•Forced opera on
•High ceiling
•Hot start
Required Accessories:
Grille Kit (PT‐HJC1)
Optional Accessories:
Wireless Handheld Remote Controller ‐ PQWRHDF0
7‐Day Programmable Controller (Black) ‐ PQRCVSL0
7‐Day Programmable Controller (White) ‐ PQRCVSL0QW
Simple Controller with Mode (Black) ‐ PQRCVCL0Q
Simple Controller with Mode (White) ‐ PQRCVCL0QW
Simple Controller without Mode (Black) PQRCHCA0Q
Simple Controller without Mode (White) ‐ PQRCHCA0QW
Dry Contact Unit ‐ PQDSB1
Dry Contact Unit ‐ PQDSBC
Wall Mounted Temperature Sensor ‐ PQRSTA0
For continual product development, LG reserves the right to change specifications without notice.
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. "LG Life's Good" is a registered trademark of LG Corp. /www.lg‐vrf.com
For:
File
Approval
GC:
Mech:
(Project Manager)
10,900
13,600
40
Heating Nominal Test Conditions:
Indoor: 70°F DB
Outdoor 47°F DB/43°F WB
:
208‐230/60/1
0.18
1/4 Flare
1/2 Flare
1
Yes
•Self diagnos cs
•Sleep mode
•Timer (on/off)
•Weekly schedule
•So dry (dehumidifica on)
•Auto direc on/swing (up/down)
•Fan speed control
•Chaos wind (random fan speed)
•Jet cool (fast cooling)
Tag #:
Resubmit
Other
Entering Mixed Air:
Cooling Max³ (°F WB)
Heating Min (°F DB)
Unit Data:
Refrigerant Type
Refrigerant Control
Sound Pressure⁴ dB(A) (H/M/L)
Primary Filter
Secondary Filter
Net Unit Weight (lbs)
Shipping Weight (lbs)
Grille Weight (lbs)
Grille Shipping Weight (lbs)
Fan:
Type
Quantity
Motor/Drive
Airflow Rate H/M/L (CFM)
Standard Features:
•Limited Warranty with LG Cer fied Installa on
•Two Year Functional Parts Warranty
Notes:
1.The Power Input is rated at high speed.
2.Maximum li is 27 in from bo om of unit.
3.See Engineering Manual for sensible and latent capaci es.
4.Sound Pressure levels are tested in an anechoic chamber under ISO Standard 1996.
5.All communica on cable to be minimum 18 AWG, 2‐conductor, stranded, shielded and must
comply with applicable local and national code.
6.Power wiring cable size must comply with the applicable local and na onal code.
7.This unit comes with a dry nitrogen charge.
8.This data is rated 0 above sea level, with 25 of refrigerant line per indoor unit and a 0
level difference between outdoor and indoor units. All capacities are net with a combination
ra o between 95 – 105%.
9.Must follow installa on instruc ons in the applicable LG installa on manual.
R410A
40/38/37
Washable pre‐filter
Plasma
Cross Flow
Brushless Digitally Controlled/Direct
283/247/212
VRF‐SB‐DC‐003‐US 012B09 Page 1 of 2
76
59
EEV
25
34
3
8
1
