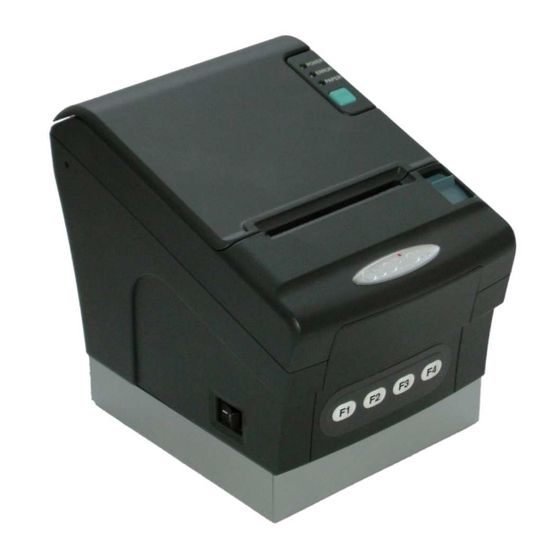

QUORION LK-T21 User Manual

Thermal printer
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

QPrint FM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LK-T21 and is the answer not in the manual?

Questions and answers

Summary of Contents for QUORION LK-T21

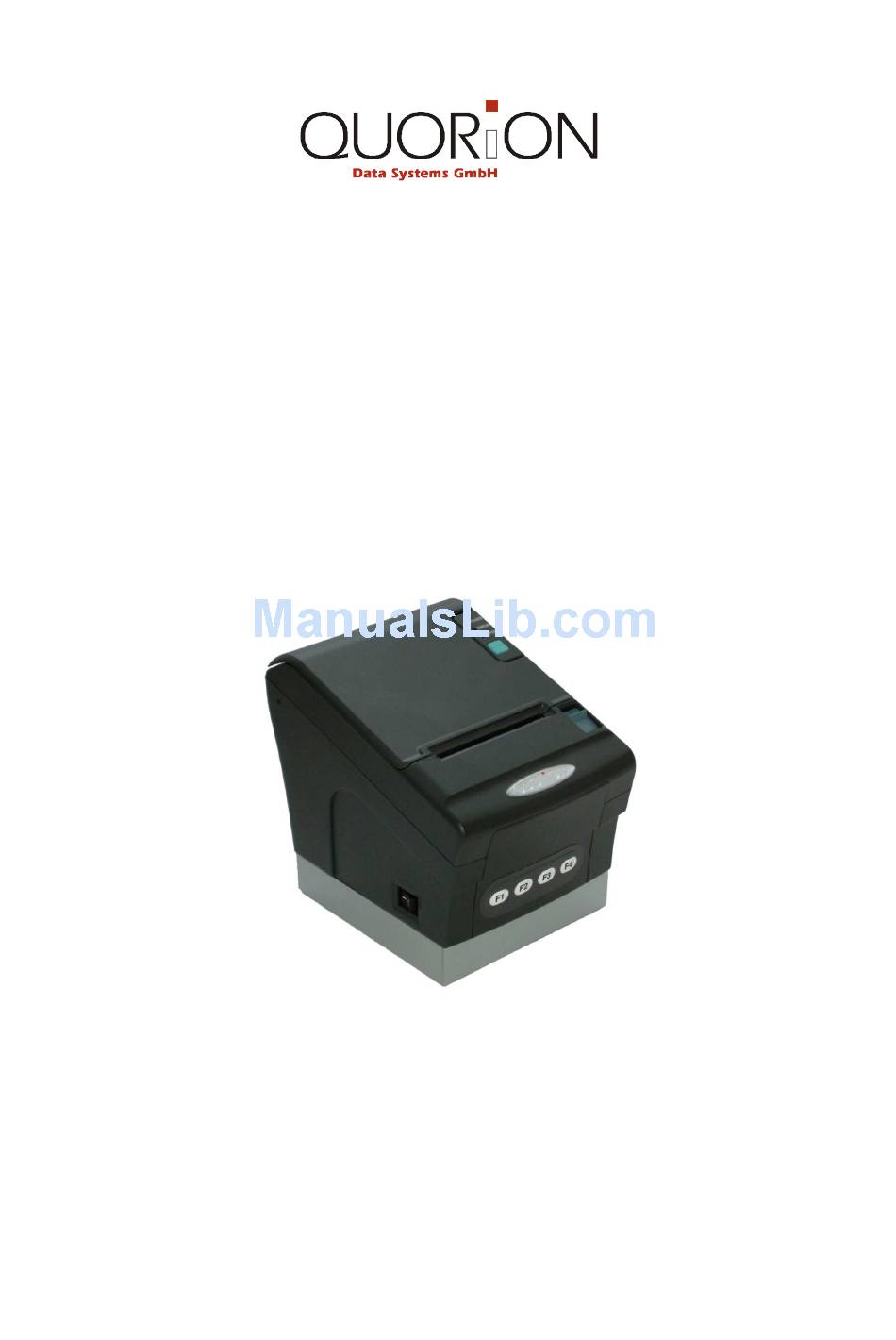

  • Page 1: User Manual

    User Manual QPrint FM...
  • Page 2 Dear valued customer! On behalf of our proud company we wish to welcome you to the QUORION family of fine business machines. We sincerely hope you will appreciate the many benefits of being associated with a distinguished product name that represents both quality and commitment to customer satisfaction It is therefore with great pride that we look forward to continuing our close collaboration with our customers.

  • Page 3: Table Of Contents

    Index 1. Safety Precautions .................. 4 2. General information ................. 5 2.1 Technical data ........................5 2.2 Components .......................... 6 2.3 Control panel ......................... 7 2.4 Function keys ........................7 2.5 Interfaces ..........................7 3. Getting started ..................9 3.1 Unpacking ..........................9 3.2 Loading the paper roll ......................

  • Page 4: Safety Precautions

    1. Safety Precautions This section presents important information intended to ensure safe and effective use of the QPrint FM. Please read this section carefully and store it in an accessible location. Be sure the voltage of your main power net corresponds to the input voltage printed on the rating plate of the system.

  • Page 5: General Information

    2. General information 2.1 Technical data Technical Data of Printer: Print principle: Thermal Printer Model „LK-T21“ Print width: 72mm Paper width: 80mm Print speed: 200mm/sec. Sheet feeder: drop in Life time: 100km MCBF: 70 mill. lines Cutter: Guillotine cutter Max. Number o cuts: 1, 5 mills.

  • Page 6: Components

    2.2 Components Control panel Printer cover Cover open lever Function keys Power switch Fiscal seal Interfaces Power connector Control panel: LED’s to indicate printer status and paper feed key. Printer cover: Open this cover to load or replace the paper roll. Cover open lever: Pull down this lever to open the printer cover.

  • Page 7: Control Panel

    2.3 Control panel You can control the basic paper feeding operations of the printer with the button on the control panel. Press the FEED button once to advance paper one line. If you hold down POWER the FEED button the paper will be feed continuously. ERROR PAPER The indicator lights help you to monitor the printer status.
  • Page 8 7: RTS 8: CTS 1: TX+ 2: TX- 3: RX+ 6: RX- USB device 1: VCC 2: USB N1 3: USB P1 4: GND Adapter cables from the QPrint FM to peripheral devices you may order from your local QUORION dealer.

  • Page 9: Getting Started

    3. Getting started 3.1 Unpacking Your printer box should include these items. If any items are damaged or missing, please contact your dealer for assistance. Printer User manual Paper roll Interface cables Power supply Place the QPrint FM on a stable and even surface. Use it only within the operation temperature range (see technical data) and protect it from splash and high air humidity.

  • Page 10: Self Test

    6. Pull out a small amount of paper as shown below. Then close the cover. 7. Tear off the paper as shown. 3.3 Self test The self-test lets you know if your printer is operating properly. It checks the control circuits, printer mechanisms, print quality, ROM version and DIP switch settings.

  • Page 11: Application For Countries With Fiscal Law

    Application for countries with fiscal law 4.1 Topology 4.2 Programming The firmware, default configuration, character set or grapfic logo of the QPrint FM can be programmed with QFlash, similarly to the QMP cash register series. It is necessary to start the Boot-mode of QPrint: - Switching On the QPrint holding key “F1”...

  • Page 12: Operation With Qprog

    4.4 Operation with QProg Use Q Driver-Commands about the interface (see „Q Driver Manual“) - Use „OPOS“-Driver of the PC (communicate with the Q Print about the IF). - Direct communication with the NO-Fiscal-CR (Concerto, Q Touch, ..). All reports can be started about the „Q Prog“(see „Q Prog Manual“) or „Q Driver“-Commands (see „Q Driver Manual“) or direct about the extern keyboard 4.5 Operation with function keys All main functions of the QPrint FM can be operated using the four function keys at the front side.
  • Page 13 FM Dump by Z QPrint FM starts the FM Dump. In the external display the start-Z-number appears, for instance: 0001 Use the keys F1 to select the last position (shift to right) and quit the menu F2 to move the cursor to the left (blink) F3 to move the cursor to the right (blink) F4 to confirm the setting and select the next cursor position (shift to left) If finished, the start-Z-Number is confirmed and in the display appears the end-Z-number, for...

  • Page 14: Information On The Electromagnetic Compatibility And Safety

    5. Information on the Electromagnetic Compatibility and Safety CE Conformance This QUORiON cash register conforms to the European Community’s EMV 2004/108 directive. The cash register fulfills the following technical European requirements: EN 55022 – „Norm values and measuring procedures for radio interference properties- characteristics of information technology devices“...
  • Page 15 For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. 1.50.417298 BA-englisch GB Qprint Fiscal QUORION CE (Stand: 03.02.09)
