RDD-06 Digital to Analog Converter
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RDD-06 and is the answer not in the manual?

Questions and answers

Related Manuals for Rotel RDD-06

Summary of Contents for Rotel RDD-06

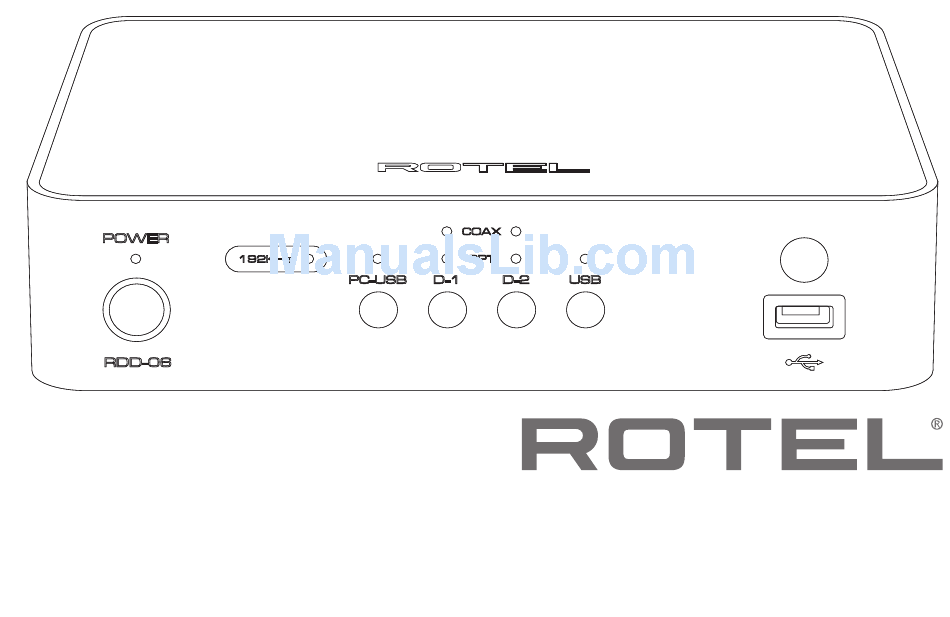

  • Page 1 RDD-06 Digital to Analog Converter Owner’s Manual...

  • Page 2: Table Of Contents

    About Rotel . . . . . . . . . . . . . . . . . . .

  • Page 3: Important Safety Instructions

    Important Safety Instructions WARNING: There are no user serviceable parts inside. Refer all servicing to qualified service personnel. WARNING: To reduce the risk of fire or electric shock, do not expose the unit to moisture or water. Do not expose the unit to dripping or splashing. Do not place objects filled with liquids, such as vases, on the unit.
  • Page 4 • Objects have fallen or liquid has been spilled into the unit • The unit has been exposed to rain • The unit shows signs of improper operation • The unit has been dropped or damaged in any way Rotel products are designed to comply with international directives on the Restriction of Hazardous Substances (RoHS) in electrical and electronic equipment and the disposal of Please use the correct plug for your region Waste Electrical and Electronic Equipment (WEEE).

  • Page 5: Figure 1: Front And Rear Panel

    Figure 1: Front and Rear Panel COAX POWER 192KHz PC-USB RDD-06 DIGITAL INPUT DC IN RIGHT LEFT COAX COAX OUTPUT DIGITAL-1 DIGITAL-2 PC-USB...

  • Page 6: Figure 2: Remote Control

    Figure 2: Remote Control Power On/Off Button. Input selectors D-1 and D-2 toggles between Coaxial and Optical. Playback buttons. Used to control USB device connected to the front USB. RR-DD06 Note: Remove protective battery sheet before use...

  • Page 7: Figure 3: Digital Inputs And Analog Outputs & Power Adaptor

    Figure 3: Digital Inputs and Analog Outputs & Power Adaptor DIGITAL INPUT DC IN RIGHT LEFT COAX COAX OUTPUT DIGITAL-1 DIGITAL-2 PC-USB (Supplied) PROCESSOR/PREAMP CD PLAYER RSP-1572 STANDBY STANDBY RIGHT LEFT FREQ PL x VIDEO1 VIDEO2 VIDEO3 VIDEO4 VIDEO5 VIDEO6 MODE ANALOG COAXIAL...

  • Page 8: Figure 4: Front Usb Input

    Figure 4: Front USB Input COAX POWER 192KHz PC-USB RDD-06 USB Memory or Bluetooth Dongle...

  • Page 9: Figure 5: Rear Usb Input

    Figure 5: Rear USB Input DIGITAL INPUT DC IN RIGHT LEFT COAX COAX OUTPUT DIGITAL-1 DIGITAL-2 PC-USB Computer (Supplied)

  • Page 10: Important Notes

    Important Notes When making connections be sure to: Turn off all the components in the system before hooking up any components, including loudspeakers. Turn off all components in the system before changing any of the connections to the system. It is also recommended that you: Turn the volume control of the amplifier all the way down before the amplifier is turned on or off.
  • Page 11 Bij het maken van de verbindingen: Zorg dat niet alleen de RDD-06 maar de gehele installatie uitstaat, als nog niet alle verbindingen gemaakt zijn. Zorg dat niet alleen de RDD-06, maar de gehele installatie ook uitstaat, als u verbindingen gaat wijzigen.

  • Page 12: About Rotel

    At Rotel, we are proud to do our part. We have reduced the lead content in our electronics by using special ROHS solder, while our new Class D (not digital) amplifiers are up to five times more efficient than our legacy designs and still deliver power and performance.

  • Page 13: Getting Started

    Fill out and send in the owner’s registration card packed with the RDD-06. Also be sure to keep the original sales receipt. It is your best record of the date of purchase, which you will need in the event warranty service is ever required.

  • Page 14: Placement

    Do not modify the supplied adaptor. Do not use an extension cord. If you are going to be away from home for an extended period of time, it is a sensible precaution to unplug the Rotel unit from the wall socket.

  • Page 15: Front Input Indicators

    Connect this input using the supplied USB cable to the USB socket of your computer. (See Figure 5) Note: You will need to install the USB driver supplied with the CD-Rom of the RDD-06 into your computer to allow it to send audio signal via USB to...

  • Page 16: Bluetooth Connection

    The front USB can also be connected to a bluetooth dongle (supplied) To use the Bluetooth feature, insert the dongle into the front USB and turn on your Bluetooth device. Look for “Rotel Bluetooth” and connect. You can now start to stream music from your device to the RDD-06.(See Figure 3) Note: Bluetooth connection is normally automatic, but depending on the brand and make of the device it may prompt you to enter a password.

  • Page 17: Troubleshooting

    Power Indicator Is Not Lit No main power to the RDD-06. Check AC power connections at the unit and the DC connection on the rear. Make sure the AC socket is not connected to a switched outlet that is turned OFF.

  • Page 18: Specifications

    125dB 200 x 46 x 155 mm Input Sensitivity/Impedance 0 dBfs/75 ohms All specifications are accurate at the time of printing. Rotel reserves the right to make Preamp Output Level/Output Impedance improvements without notice 2.0V/100 ohms Rotel and the Rotel Hifi logo are registered trademarks of The Rotel Co., Ltd. Tokyo, Decodable front USB/iPod Digital Input Signals Japan.
  • Page 19 The Rotel Co. Ltd. Endo TN Building 2F., 6-12-21, Meguro-Honcho, Meguro-Ku, Tokyo 152-0002 Japan Rotel of America 54 Concord Street North Reading, MA 01864-2699 Phone: +1 978-664-3820 Fax: +1 978-664-4109 Rotel Europe Dale Road Worthing, West Sussex BN11 2BH England...
