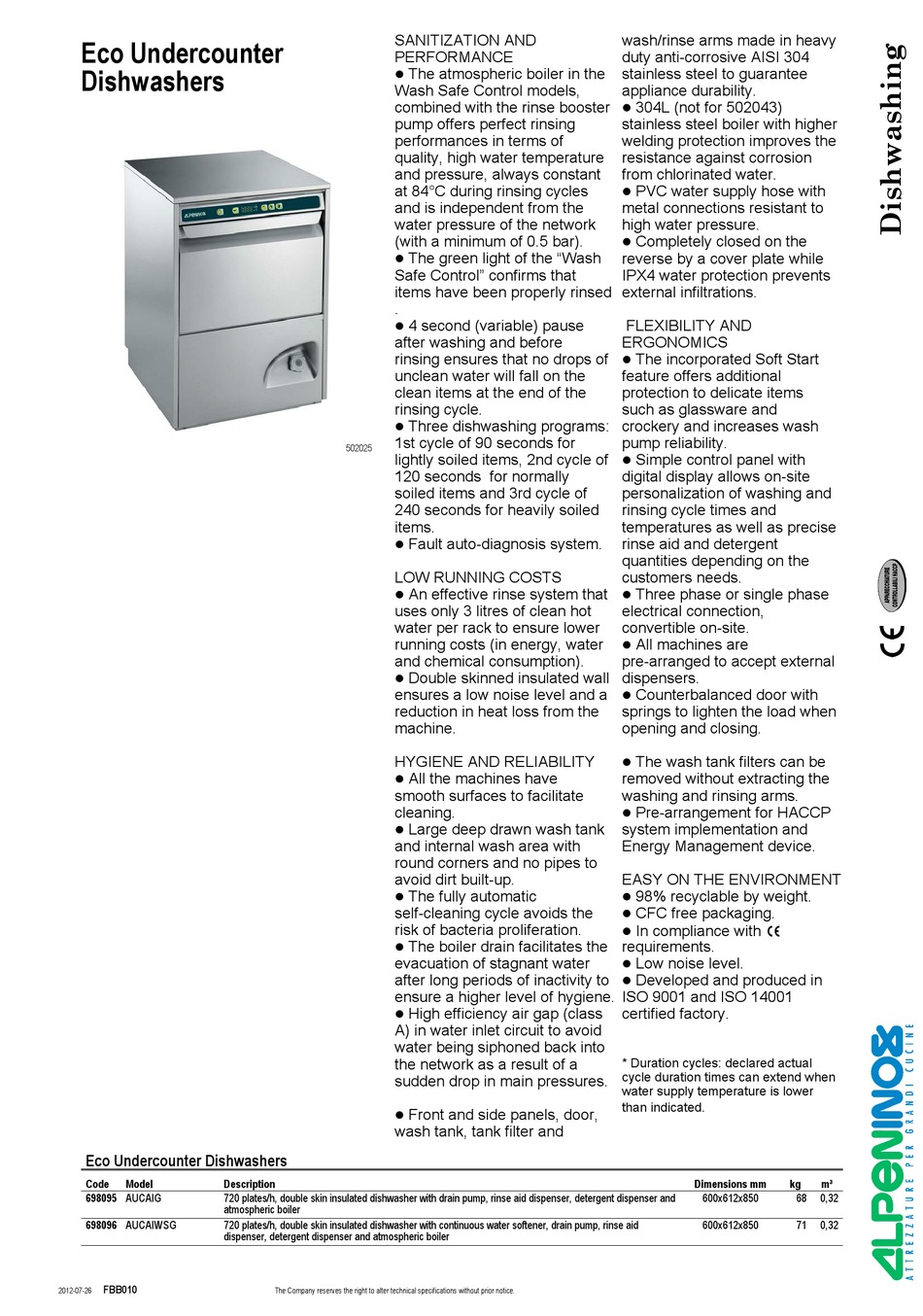

Alpeninox AUCAIG Specifications

Eco Undercounter
Dishwashers

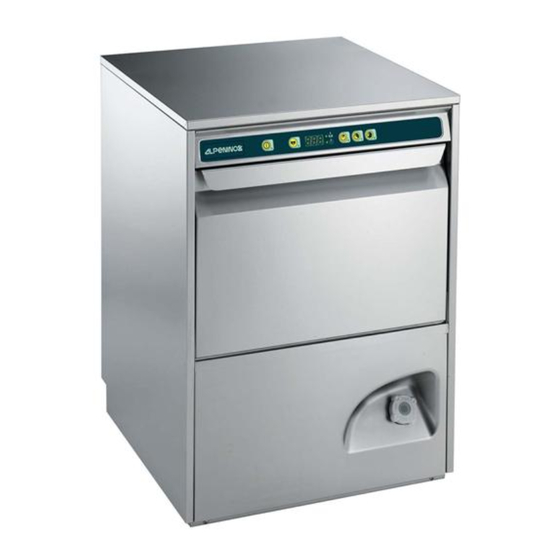

Eco Undercounter Dishwashers
Code Model Description
698095 AUCAIG 720 plates/h, double skin insulated dishwasher with drain pump, rinse aid dispenser, detergent dispenser and
atmospheric boiler
698096 AUCAIWSG 720 plates/h, double skin insulated dishwasher with continuous water softener, drain pump, rinse aid
dispenser, detergent dispenser and atmospheric boiler
FBB010
2012-07-26
SANITIZATION AND
PERFORMANCE
The atmospheric boiler in the
�
Wash Safe Control models,
combined with the rinse booster
pump offers perfect rinsing
performances in terms of
quality, high water temperature
and pressure, always constant
at 84°C during rinsing cycles
and is independent from the
water pressure of the network
(with a minimum of 0.5 bar).
The green light of the "Wash
�
Safe Control" confirms that
items have been properly rinsed
.
4 second (variable) pause
�
after washing and before
rinsing ensures that no drops of
unclean water will fall on the
clean items at the end of the
rinsing cycle.
Three dishwashing programs:
�
1st cycle of 90 seconds for
502025
lightly soiled items, 2nd cycle of
120 seconds for normally
soiled items and 3rd cycle of
240 seconds for heavily soiled
items.
Fault auto-diagnosis system.
�
LOW RUNNING COSTS
An effective rinse system that
�
uses only 3 litres of clean hot
water per rack to ensure lower
running costs (in energy, water
and chemical consumption).
Double skinned insulated wall
�
ensures a low noise level and a
reduction in heat loss from the
machine.
HYGIENE AND RELIABILITY
All the machines have
�
smooth surfaces to facilitate
cleaning.
Large deep drawn wash tank
�
and internal wash area with
round corners and no pipes to
avoid dirt built-up.
The fully automatic
�
self-cleaning cycle avoids the
risk of bacteria proliferation.
The boiler drain facilitates the
�
evacuation of stagnant water
after long periods of inactivity to
ensure a higher level of hygiene.
High efficiency air gap (class
�
A) in water inlet circuit to avoid
water being siphoned back into
the network as a result of a
sudden drop in main pressures.
Front and side panels, door,
�
wash tank, tank filter and
The Company reserves the right to alter technical specifications without prior notice.
wash/rinse arms made in heavy
duty anti-corrosive AISI 304
stainless steel to guarantee
appliance durability.
304L (not for 502043)
�
stainless steel boiler with higher
welding protection improves the
resistance against corrosion
from chlorinated water.
PVC water supply hose with
�
metal connections resistant to
high water pressure.
Completely closed on the
�
reverse by a cover plate while
IPX4 water protection prevents
external infiltrations.
FLEXIBILITY AND
ERGONOMICS
The incorporated Soft Start
�
feature offers additional
protection to delicate items
such as glassware and
crockery and increases wash
pump reliability.
Simple control panel with
�
digital display allows on-site
personalization of washing and
rinsing cycle times and
temperatures as well as precise
rinse aid and detergent
quantities depending on the
customers needs.
Three phase or single phase
�
electrical connection,
convertible on-site.
All machines are
�
pre-arranged to accept external
dispensers.
Counterbalanced door with
�
springs to lighten the load when
opening and closing.
The wash tank filters can be
�
removed without extracting the
washing and rinsing arms.
Pre-arrangement for HACCP
�
system implementation and
Energy Management device.
EASY ON THE ENVIRONMENT
98% recyclable by weight.
�
CFC free packaging.
�
In compliance with H
�
requirements.
Low noise level.
�
Developed and produced in
�
ISO 9001 and ISO 14001
certified factory.
* Duration cycles: declared actual
cycle duration times can extend when
water supply temperature is lower
than indicated.
Dimensions mm kg
600x612x850
600x612x850
m³
68 0,32
71 0,32
