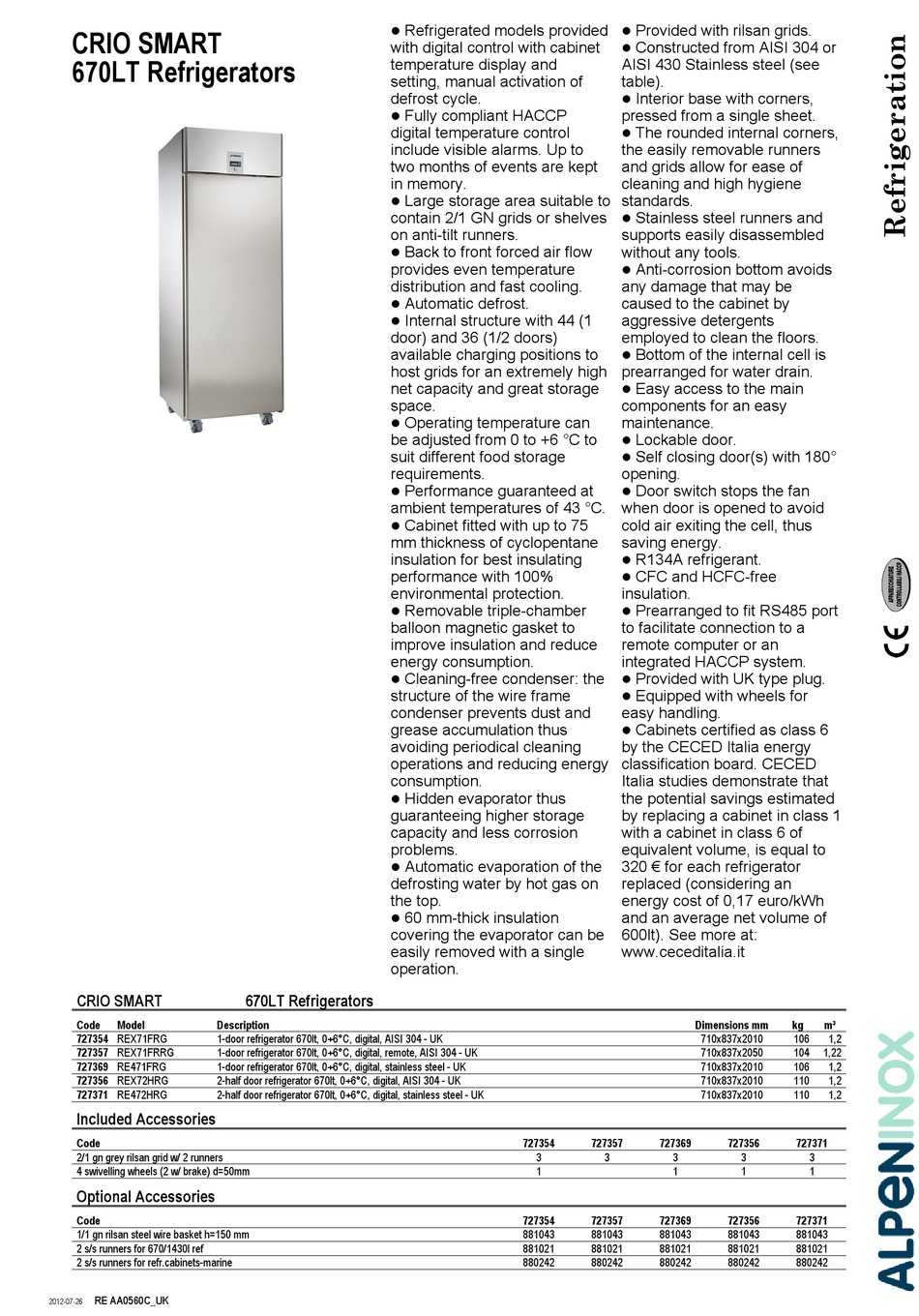

Alpeninox CRIO SMART Specifications

CRIO SMART
670LT Refrigerators
CRIO SMART
Code Model Description
727354 REX71FRG 1-door refrigerator 670lt, 0+6°C, digital, AISI 304 - UK
727357 REX71FRRG 1-door refrigerator 670lt, 0+6°C, digital, remote, AISI 304 - UK
727369 RE471FRG 1-door refrigerator 670lt, 0+6°C, digital, stainless steel - UK
727356 REX72HRG 2-half door refrigerator 670lt, 0+6°C, digital, AISI 304 - UK
727371 RE472HRG 2-half door refrigerator 670lt, 0+6°C, digital, stainless steel - UK
Included Accessories
Code
2/1 gn grey rilsan grid w/ 2 runners
4 swivelling wheels (2 w/ brake) d=50mm
Optional Accessories
Code
1/1 gn rilsan steel wire basket h=150 mm
2 s/s runners for 670/1430l ref
2 s/s runners for refr.cabinets-marine
RE AA0560C_UK
2012-07-26
Refrigerated models provided
�
with digital control with cabinet
temperature display and
setting, manual activation of
defrost cycle.
Fully compliant HACCP
�
digital temperature control
include visible alarms. Up to
two months of events are kept
in memory.
Large storage area suitable to
�
contain 2/1 GN grids or shelves
on anti-tilt runners.
Back to front forced air flow
�
provides even temperature
distribution and fast cooling.
Automatic defrost.
�
Internal structure with 44 (1
�
door) and 36 (1/2 doors)
available charging positions to
host grids for an extremely high
net capacity and great storage
space.
Operating temperature can
�
be adjusted from 0 to +6 °C to
suit different food storage
requirements.
Performance guaranteed at
�
ambient temperatures of 43 °C.
Cabinet fitted with up to 75
�
mm thickness of cyclopentane
insulation for best insulating
performance with 100%
environmental protection.
Removable triple-chamber
�
balloon magnetic gasket to
improve insulation and reduce
energy consumption.
Cleaning-free condenser: the
�
structure of the wire frame
condenser prevents dust and
grease accumulation thus
avoiding periodical cleaning
operations and reducing energy
consumption.
Hidden evaporator thus
�
guaranteeing higher storage
capacity and less corrosion
problems.
Automatic evaporation of the
�
defrosting water by hot gas on
the top.
60 mm-thick insulation
�
covering the evaporator can be
easily removed with a single
operation.
670LT Refrigerators
Provided with rilsan grids.
�
Constructed from AISI 304 or
�
AISI 430 Stainless steel (see
table).
Interior base with corners,
�
pressed from a single sheet.
The rounded internal corners,
�
the easily removable runners
and grids allow for ease of
cleaning and high hygiene
standards.
Stainless steel runners and
�
supports easily disassembled
without any tools.
Anti-corrosion bottom avoids
�
any damage that may be
caused to the cabinet by
aggressive detergents
employed to clean the floors.
Bottom of the internal cell is
�
prearranged for water drain.
Easy access to the main
�
components for an easy
maintenance.
Lockable door.
�
Self closing door(s) with 180°
�
opening.
Door switch stops the fan
�
when door is opened to avoid
cold air exiting the cell, thus
saving energy.
R134A refrigerant.
�
CFC and HCFC-free
�
insulation.
Prearranged to fit RS485 port
�
to facilitate connection to a
remote computer or an
integrated HACCP system.
Provided with UK type plug.
�
Equipped with wheels for
�
easy handling.
Cabinets certified as class 6
�
by the CECED Italia energy
classification board. CECED
Italia studies demonstrate that
the potential savings estimated
by replacing a cabinet in class 1
with a cabinet in class 6 of
equivalent volume, is equal to
320 € for each refrigerator
replaced (considering an
energy cost of 0,17 euro/kWh
and an average net volume of
600lt). See more at:
www.ceceditalia.it
Dimensions mm
727354 727357 727369
3 3 3
1 1
727354 727357 727369
881043 881043 881043
881021 881021 881021
880242 880242 880242
kg m³
710x837x2010 106 1,2
710x837x2050 104 1,22
710x837x2010 106 1,2
710x837x2010 110 1,2
710x837x2010 110 1,2
727356 727371
3 3
1 1
727356 727371
881043 881043
881021 881021
880242 880242
