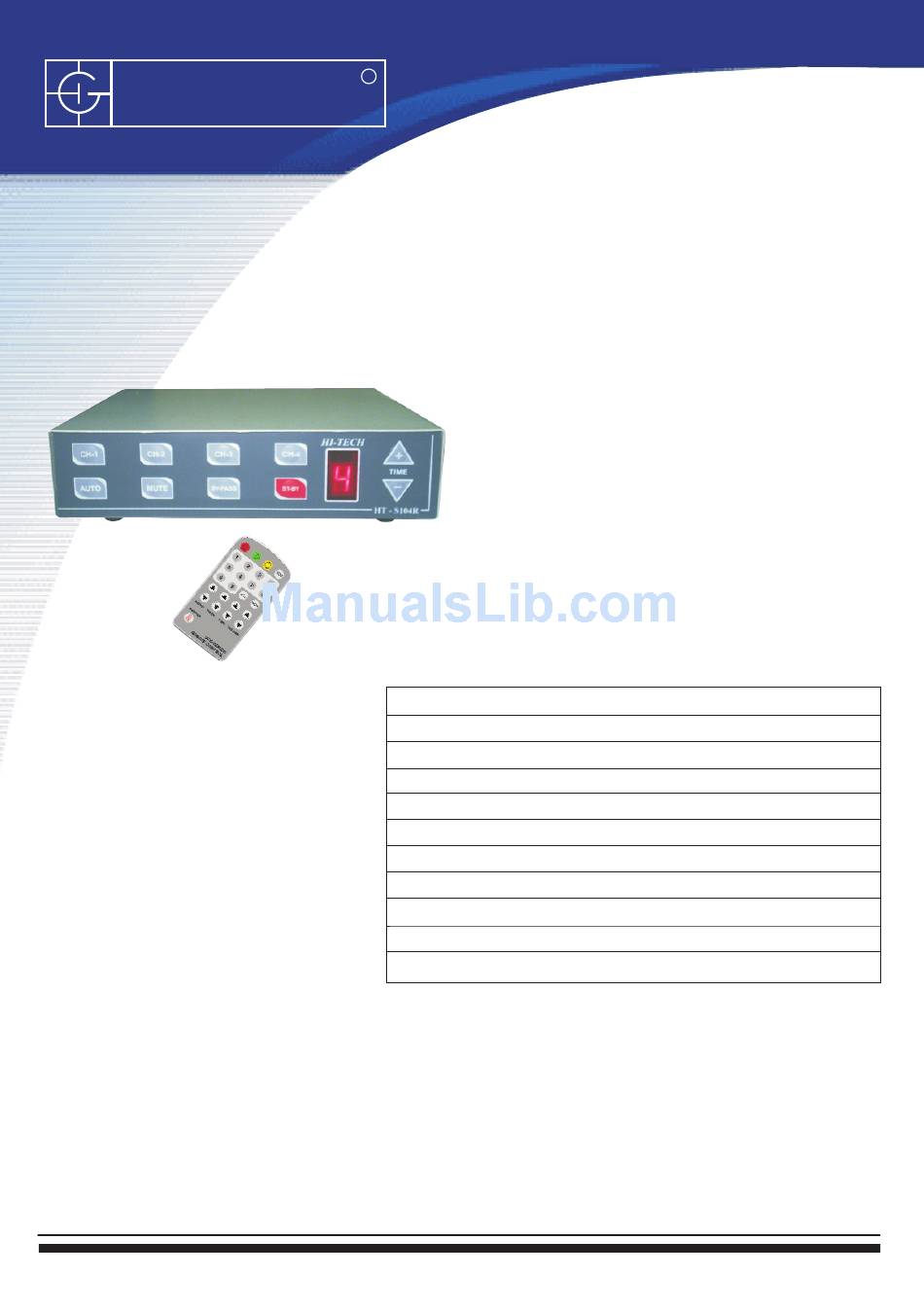

Electrosec VCS-4 User Manual

4 channel video & audio switcher
Hide thumbs
1
2
3
4
Table of Contents

Advertisement

Quick Links

Download this manual
electrosec
PHYSICAL LIFE:
7 years

MAINTENANCE:

Keep the device dry, If your device
does get wet, dry immediately.
Liquids contain harmful ingredients
for electronic devices.
Keep in normal temperature,heat
changes shortens physical life,
damages plastic parts.

USAGE FAULT

Voltage changes or faulty electric network, problems caused by usage in different voltages
other than mentioned on product label, usage other than mentioned in users manul are out
of warranty.

CARRYING INSTRUCTIONS:

Device should be fixed on a flat ground, do not keep in humid or wet places.
2008-2 electrosec
R
VIDEO & AUDIO SWITCHER

SPECIFICATIONS

* 4 Camera Inputs and Audio
* Optional Remote Control
* 4 BNC video & 4 RCA voice connector input
* 1 BNC video & 1 RCA audio output
* 240 Sec. digital control for each channel
* Digital BY-PASS Control
* Automatic and Manuel Display
* Matrix touchmatic keypad
* Microprocessor Controlled
* Compatible with color and S/B cameras

TECHNICAL SPECIFICATIONS

Input Voltage
Power Consumption
Operating Temperature
Video Input
Monitor Video Output
Video Bandwith
Video Connector Type
Audio Connector Type
Audio Input
Audio Output
Dimensions
4 CHANNEL
VCS-4
USER MANUAL
: AC 220V ±%20
: 12V. / 1,5 Watt
: 0°C to +60°C
: 1.0 Vp-p / 75 R
: 1.1 Vp-p / 75 R
: 2.0 Mhz. ± 3db.
: BNC
: RCA Socket
: <200Mv.
: 8R/4W
: 220x60x190 mm
Page 1/4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCS-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrosec VCS-4

  • Page 1: Specifications

    4 CHANNEL VCS-4 VIDEO & AUDIO SWITCHER USER MANUAL SPECIFICATIONS * 4 Camera Inputs and Audio * Optional Remote Control * 4 BNC video & 4 RCA voice connector input * 1 BNC video & 1 RCA audio output * 240 Sec.

  • Page 2: Important Notice

    VCS-4 User Manual SWITCHER CONNECTIONS VIDEO INPUT MONITOR OUTPUT VIDEO 220 VAC INPUT AUDIO MONITOR OUTPUT AUDIO INPUT IMPORTANT NOTICE 1-) Video inputs are BNC type. Connection cables from cameras to video inputs should be coaxial type Attach outer connector inside live cable. Incorrect connection may cause interference on video signal.

  • Page 3: Key Functions

    VCS-4 User Manual FUNCTIONS and PROGRAMMING KEY FUNCTIONS SELECT CHANNEL KEYS 1 DIGIT SCREEN PROGRAM KEYS Select Channel Keys 1/4-) CH-1/Ch-4 keys are used to select cameras . Pressing the key displays related camera. PROGRAM KEYS 5-) AUTO Pressing this key appears on screen and video and audio channels start to display.

  • Page 4: Remote Control

    VCS-4 User Manual 8-) ST-BY Press this button to switch to Stand-By status. Press channel keys to restart. sign appears on screen. 9-) TIME+ Use this key to increase digits, each press increases one and last no appears on screen. Pressing for more than 1 second activates automatic increase. Adjustable between 1-240 seconds.
