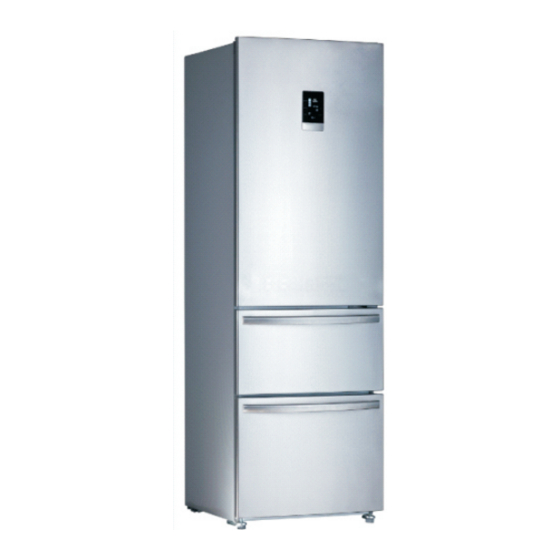

Instruction manual for fridge freezer
Model code:RFF60

Advertisement

Table of Contents
loading

Related Manuals for Caple RFF60

Summary of Contents for Caple RFF60

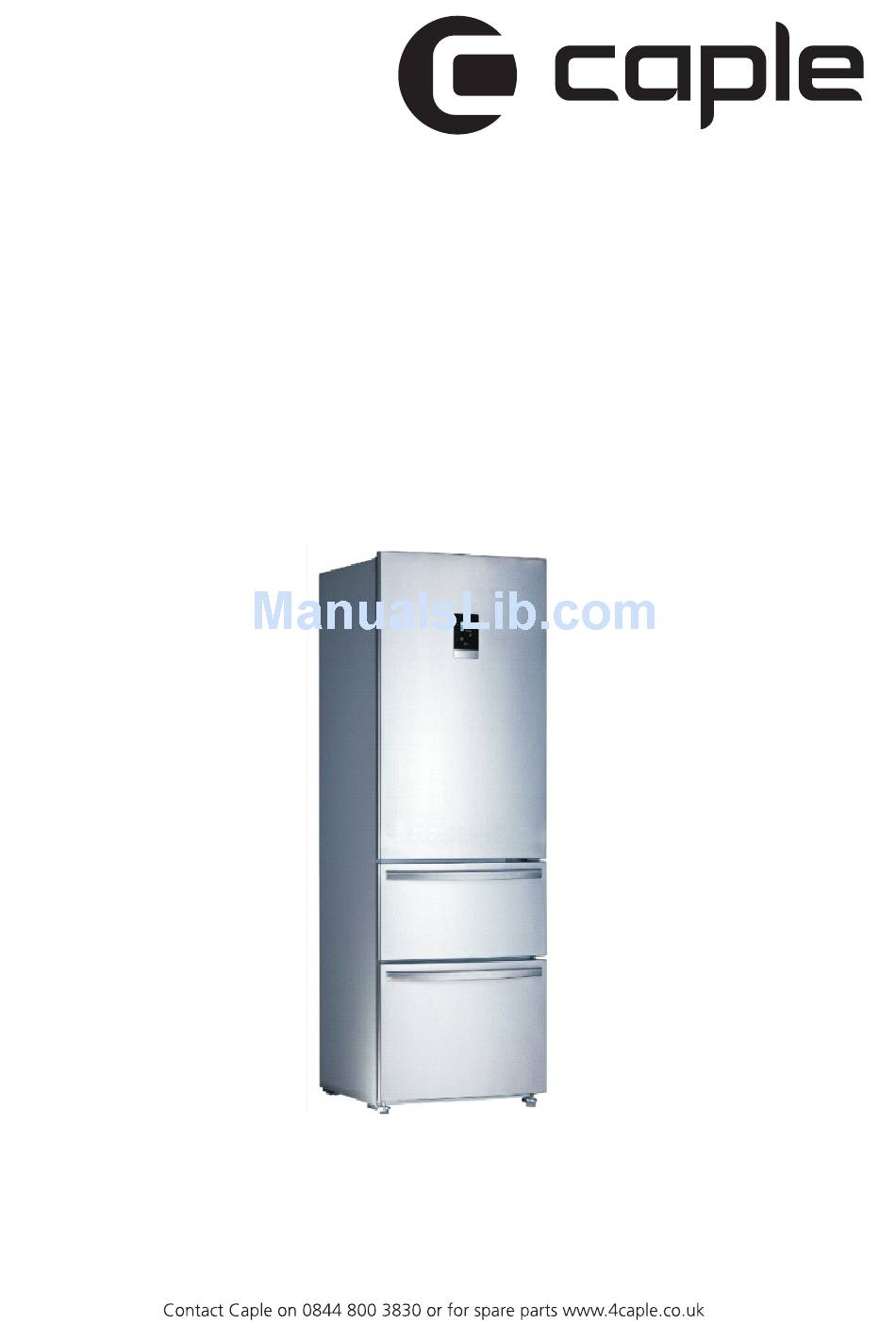

  • Page 1 Instruction manual for fridge freezer Model code:RFF60...
  • Page 2 Thank you for purchasing our Caple fridge freezer. Please note: Before using, please pay attention to the Precautions for safe use. Please keep the User Manual for future reference. As we are continuously improving our products, your actual product may vary slightly to what is shown in the manual.
  • Page 3 Name of Each Constructional Element Due to continued product development some features and parts of your refrigerator may be different from this diagram. The packing list enclosed with your refrigerator will be correct. We apologise for inconvenience caused. Lamp switch Large Bottle Frame I Glass Rack Large Bottle shelf II...

  • Page 4: Preparation Before Using

    Fault prompt functions, to allow for easy maintenance. Warning DO NOT use any other equipment to speed the defrosting process other than what has been suggested by Caple. No other electrical equipment can be used in the food storage compartments except those the manufacturer suggests.
  • Page 5 Preparation before Using Transportation and placement of the fridge Transportation Keep the appliance upright and avoid squeezing or vibration during transporta- tion. Avoid a slant angle over 45 degree during handling. Avoid the door or top cap from being under excessive stress when moving otherwise, it may become deformed Placement The fridge should be placed in a well ventilated place.
  • Page 6 Correct Use of the Fridge 3.Adding food to the fridge Suggestion: Allow the fridge to reach the set temperature or when the compres- sor stops working for the first time before adding food. This will help cool the food faster retaining the freshness. NOTE: The interior temperature may require a certain period of time to reach balance if the setting temperature is changed or other food is put into the refrigerator.

  • Page 7: Function Information

    Correct Use of the Fridge Freezer Drawers The drawers should be used to store food that needs to be frozen. Large pieces of meat should be cut to ready to eat size prior to freezing. Take care when taking food out of the drawers. Notice: Please properly close the drawer after using the freezer.
  • Page 8 Correct Use of the Fridge 3. Lock / Unlock Unlock state, a continued press of the Lock/Unlock button (F button) for three seconds will enter into lock state, and the lock icon (icon 10) will be was illumi- nated , under the lock state, press the Lock/Unlock button (F button) for three seconds will enter into unlock state, and the lock icon (icon 10) will extinguish.
  • Page 9 Function Information Setting the temperature of the Chill Compartment chamber Press warm zone button (button A), switch to temperature-changing chamber signal chamber icon (icon 1)will flash, temperature viewing area will display the temperature changing chamber's set temperature, press the temperature adjustment button ?(button D)and temperature adjustment button ?(button E)to set the temperature, set temperature will flash, set the temperature range from -2 to 3C;...
  • Page 10 Function Information 7. Setting of the Fridge's Running Mode Intellectual mode: under intellectual mode, the fridge will automatically set the refrigerator's temperature as 5C, freezer's temperature as -18C, keep temperature-changing chamber invariant. “intelligent” mode is illuminated Power saving mode: when choosing the power saving mode, the fridge will automatically set the refrigerator's temperature at 7C,freezer's temperature at -15C, and keep the temperature-changing chamber invariant .
  • Page 11 Function Information 9. High temperature freezer alarm When the freezer's temperature goes above -8˚C for over 6 hours the high temperature alarm will sound, it will buzz twice every second. It may sound for 10 seconds every 30 minutes until the temperature drops to below -12˚C. The temperature display area will flash displaying fault code (E9).
  • Page 12 Please use the standard three pin repairs to this product power socket above 10Amp. Ensure yourself. Contact your local the socket is correctly earthed. Caple Service Agent. Please don't put inflammable, explosive, Please don't use volatile and strong corrosive things in the ignitable dissolvent...

  • Page 13: Care And Maintenance

    If oil or seasoning is spilt, please wipe it up quickly to avoid damage. It is possible it may lead to cracking of the plastic. Changing the fridge light If there is a fault with the refrigerator sidelight, please contact Caple Service to arrange for a qualified engineer to visit. STOP If the fridge will not be used for a long period：...
  • Page 14 Care and Maintenance Handle Installation Sketch Map Firstly, take the handle set bolts out from the refrigerator, use a cross head screwdriver to set the bolt on the door. Fix it tight with all the screw thread twisted through the hole, as shown in the diagram. After the first step is completed, take the Cold storage door handle out from the box, place it as per the direction shown in the diagram (Note: i.e.
  • Page 15 Simple Fault Analysis and Elimination If the condition has not been improved after checking the above items, please contact our after-sales service department. If the power cord has been damaged, to avoid danger, it must been renewed by our pointed maintenance personnel. Normal phenomena not regarded as malfunctioning The refrigerating fluid in the capillary tube of the fridge is of high flow velocity, and some times it will contain a few bubbles, so it will produce a...

  • Page 16: Packing List

    Packing List Packing List Accessory Name RFF60 User’s Manual Glass shelf Cover Plate of Fruit & Vegetable Box Fruit & Vegetable Box Freezer Upper Drawer Freezer Lower Drawer chill compartment drawer Tray Drawer Large Bottle shelf I Large Bottle shelf II...
  • Page 17 Energy saving tips and notices Energy Saving Tips The appliance should be located in the coolest area of the room,away from heat producing appliances or heating ducts, and out of the direct sunlight. Let hot foods cool to room temperature before placing them in the appliance. Overloading the appliance forces the compressor to run longer.
