Mobility Holdings BioLogic ReeCharge Owner's Manual

Case for iphone
Hide thumbs

Advertisement

Quick Links

Download this manual
BioLogic
ReeCharge
Case for iPhone
™
™
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BioLogic ReeCharge and is the answer not in the manual?

Questions and answers

Summary of Contents for Mobility Holdings BioLogic ReeCharge

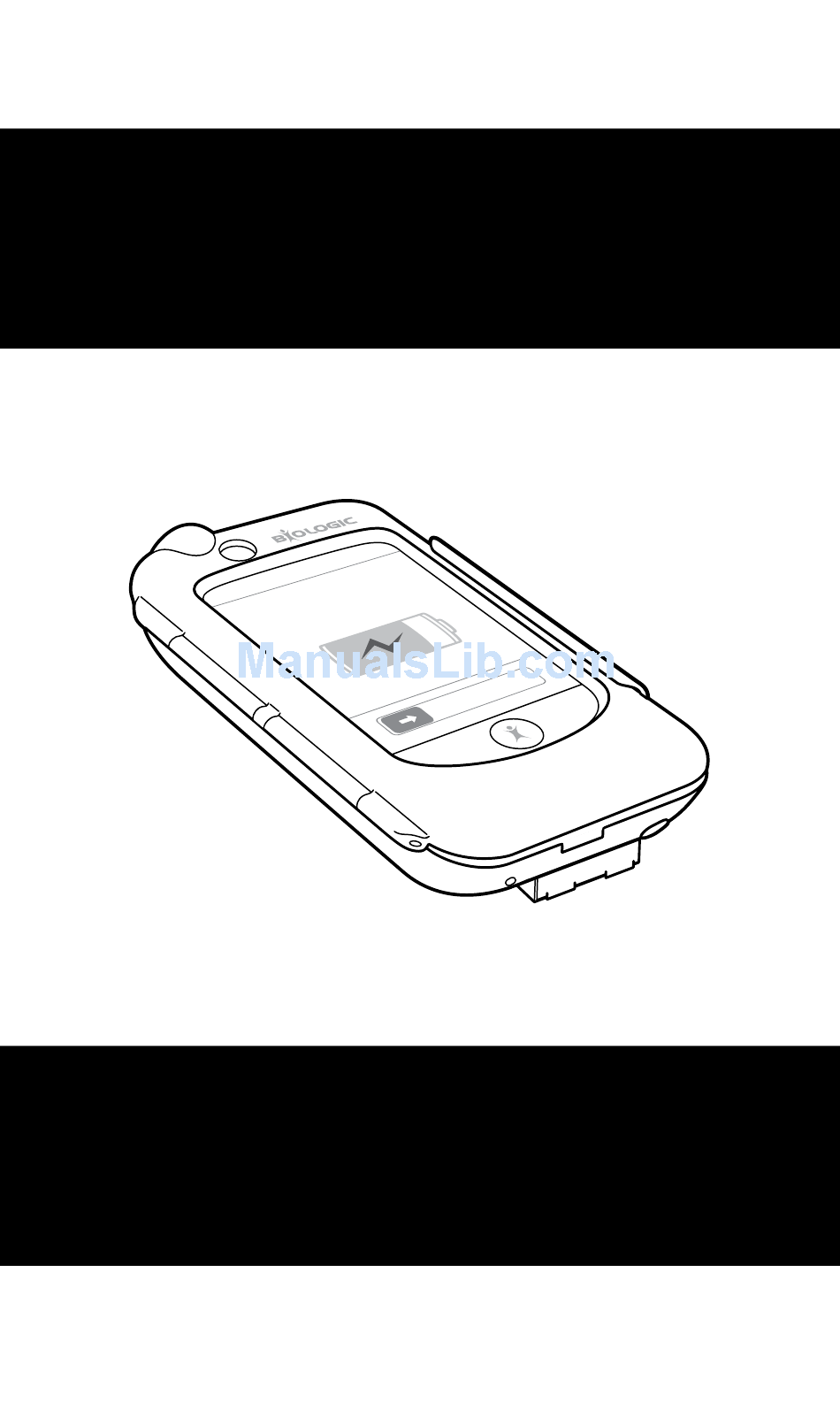

  • Page 1 BioLogic ReeCharge Case for iPhone ™ ™ Owner’s Manual...
  • Page 2 CAUTION Please read the safety instructions for all products and accessories before using them with the ReeCharge case. Carrying the ReeCharge case The ReeCharge case contains delicate components so do not bend, drop, or crush it. Using connectors Never force a connector into a port. Make sure that the connector matches the port and it is correctly oriented to the port.
  • Page 3 Avoid submerging in water Do not submerge the ReeCharge case in water. The ReeCharge case is weatherproof, but not water resistant. Do not attempt to dry the ReeCharge case device with an external heat source such as a hair dryer, radiator, or oven.
  • Page 4 LIMITED PRODUCT WARRANTY INFORMATION: This product comes with a ONE (1) YEAR Limited Warranty from the date of the retail purchase by the original end-user. If a material or workmanship defect arises and a valid claim is received within the Warranty Period, the case will be replaced.
  • Page 6 Overview...
  • Page 7 1. Mounting shoe 2. Latch 3. Contacts 4. iPhone Power button 5. Headphone cover 6. Lens cover 7. Home button 8. Charging Button 9. Indicator light 10. Input socket (micro USB) 11. Output socket (mini USB) 12. Silicon liner 13. Spring 14.
  • Page 8 Mounting your iPhone The BioLogic ReeCharge case is compatible with iPhone 4, iPhone 3GS, and iPhone 3G. To mount your phone, lift the connector and plug the iPhone socket into it before pressing the iPhone into the silicon liner. Then, close the cover ensuring the...
  • Page 10 Mounting the ReeCharge Case to a bicycle Requires: BioLogic Reecharge bracket...
  • Page 11 Overview 1. Lip 2. Release tab 3. Contacts 4. DC-jack Follow the instructions on the ReeCharge bracket packaging to fix the ReeCharge bracket firmly. To mount your phone, ensure the mounting shoe of the ReeCharge case has engaged the lip of bracket, then press the ReeCharge case toward the bracket.
  • Page 12 Connecting the ReeCharge Bracket to a Dynamo Hub Requires: Dyamno hub, BioLogic ReeCharge bracket, and BioLogic ReeCharge dynamo kit Overview 1. Dynamo plug 2. Dynamo connector 3. Dynamo wires 4. Reecharge dynamo kit wires 1. Remove the dynamo connector from the dynamo then remove the outer casing of the dynamo con- nector.
  • Page 13 2. Twist the dynamo wires together with the dynamo kit wires, then insert through the dynamo connector and bend over before reaffixing the outer casing. WARNING: Ensure that the two groups of wires do not contact each other. If the wires touch, it will form a short-circuit which may damage connected devices.

  • Page 14: Indicator Light

    Indicator Light The indicator light changes color depending on charge level. Red indicates less than 30%, amber indicates 30~50%, and green indicates that more than 50% bat- tery power remains. Without an iPhone mounted, press the power switch for two seconds to check available power. When charging the ReeCharge case, the indicator light will flash red, amber, or green to indicate charge level until fully charged, when it will stay green continuously.
  • Page 15 Charging the ReeCharge Case - Dynamo Hub Requires: Dynamo hub (1), ReeCharge dynamo kit (2), ReeCharge bracket (3)
  • Page 16 Charging the ReeCharge Case – USB Port Requires: Computer (1a) or wall-mounted charger (1b) with USB port, and USB to micro USB cable (2)
  • Page 17 Charging your Device – iPhone Before charging, the iPhone must be fully inserted, then press the power switch once to start charging. The indicator light will steadily shine while charging. Press the power switch again to stop charging. Charging and Synchronizing Connect the micro-USB cable to your computer and the ReeCharge case.
  • Page 18 Charging your Device – External devices Requires: Mini-USB to device cable (1), external device (2) If an iPhone is mounted in the ReeCharge case, con- nect the external device to the power out port using a cable. To charge, press and hold the power switch for four seconds, the indicator light will flash green and red, alternately.

  • Page 19: Technical Specifications

    Technical Specifications Length: 142.3 mm Width: 81.4 mm Depth: 30.0 mm Weight: 165.8g Battery: 1400mAh Lithium Ion Output power: 5 V | 500 mA Input current: 5 V | <1000 mA Type of power inputs: • Bicycle dynamo hub (input voltage and current var- ies with different cycling speed and battery loading conditions) •...
  • Page 20 © 2011 Mobility Holdings, Ltd. ReeCharge, ReeCharge case, ReeCharge bracket, BikeBrain and BioLogic are all tradenames or registered trademarks of Mobility Holdings, Ltd. Mobility Holdings, Ltd. +886-2-2999-5623 P.O. Box 3-116 Sanchong 241 New Taipei City Taiwan...
