Summary of Contents for Ssl SMC75

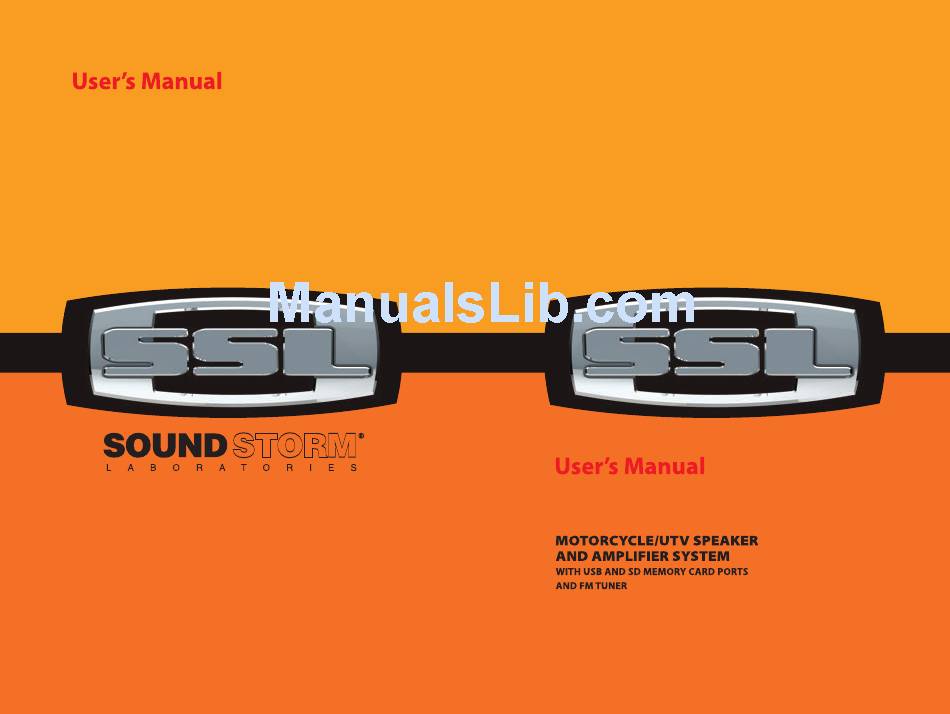

- Page 1 SMC75 SMC75...
- Page 2 Features Detachable amplifier Congratulations on your purchase of a SSL Weatherproof loudspeakers with cable wire harness Laminated LCD display Audio Systems Off-road amplified speaker Built in FM radio with electronic auto-scan tuning system. It has been designed, engineered and USB interface:support USB flash memory SD slot: support 128MB,256MB,512MB,1GB,2GB/4GB SD card manufactured to bringyou the highest level of Automatically playing function:play the music automatically...
-
Page 3: Connection Diagram
Specifications Connection Diagram Operation Voltage ----------------------------------10~16V Max Power ---------------------------------------------------600W THD------------------------------------------------------<0.1% S/N------------------------------------------------------>50dB Channel Separation----------------------------------->50dB Channel Balance-----------------------------------<2dB Frequency Response----------------------------0Hz-20kHz Audio Cable FM Frequency Range--------------------------8 7.5-108.0MHz To output of audio devlce FM Sensitivity-------------------------10 V@S/N 30dB USB Port------------------------------------Support USB 2.0 SD Slot-----------------Support 128MB,256MB,512MB,1GB,2GB/4GB Fuse( Not Included) Loudspeaker Mounting Diagram... -
Page 4: Remote Control
Remote Control Operation Instruction Plug in the female connector loudspeakers to the male connector at amplifier Connect an external source to the 3.5mm stereo input plug at loudspeaker wire harness Connect the power cable to12VDC power supply 2 seconds 2 seconds LCD Display 2 seconds at any... -
Page 5: Mute Function
Mute Function FM Radio Operation 2 seconds state. disable 2 seconds. The letters 'ST' will be displayed on the LCD screen when tuned into a stereo station. is inserted AUX Mode Operation SOUND STORM LAB AUDIO ACCESSORIES CAR AUDIO ACCESSORIES...
