Summary of Contents for Tivizen VTV-T12

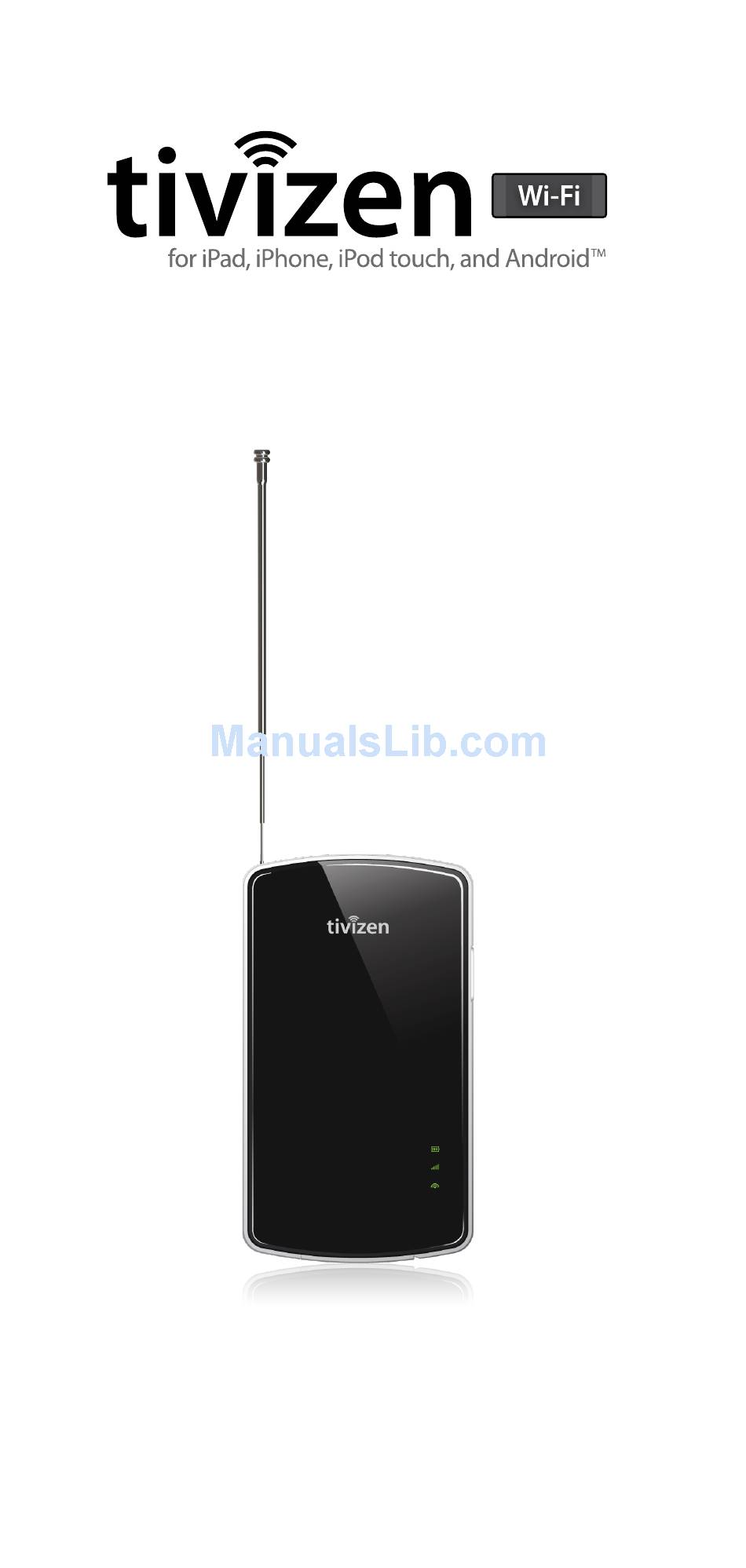

- Page 1 User Manual Thank you for purchasing tivizen! This user manual provides instructions of usage and safety guideline for tivizen as well as the warranty card. ROA-00140F...
-
Page 2: System Requirements
Sometimes the battery of the product will be discharged, even when you purchased the product newly. The battery will also discharge itself, if you do not use the product for a certain period of time. Please make sure that the product has enough remaining battery power. -
Page 3: Product Features
Product Features This product is an accessory for the iPod touch/iPhone/iPad and Phones/Tablets with the Android OS installed and supports the following: * Hereafter, the “iPod touch/iPhone/iPad and Android Phones/Tablets” is referred to as a “phone”, and the product will be referred to as an “accessory”. Watching Live TV Program The product is a mobile TV receiver that enables you to watch Live TV program on your phone. -
Page 4: Led Indication

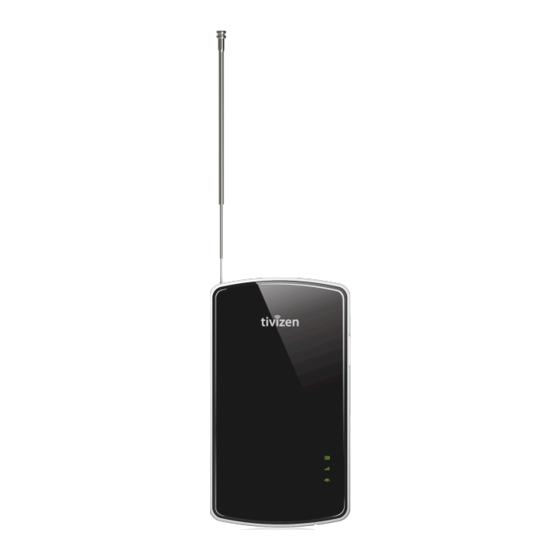

Product at a Glance ① ⑤ 1 Antenna ⑥ Please extend the antenna to ⑦ its full length for better reception. ② ③ 2 POWER Button ④ Turn on or off the accessory. If you want to turn off the power, press and hold it for more than 3 seconds. -
Page 5: Using Battery
LED Indication Description The system is turned off. The accessory is currently booting. When Green the booting is completed, it stays solid. (blinking fast) (this takes about 20 seconds) Green (solid on) The system operates normally. There is bad reception of Live TV signal or Red (solid on) no available Live TV signal in your place. -
Page 6: Step 1) Installing The App
Recharging the Battery ① Insert the battery into the accessory. ② Use the provided charging cable to connect between USB mini B port of the accessory and USB port of the PC. ※ 1 * You can also use USB adaptor for this purpose. -
Page 7: Step 2) Connecting To Accessory
Step 2) Connecting to Accessory iPod touch/iPhone/iPad All the instructions in this User Manual are provided based on the iPhone among all the Apple terminals supported by this product. ① Press the POWER button to turn on the accessory. Wait until the status indicator flashes in green. ②... -
Page 8: Step 3) Launching The App
The SSID is labeled on the rear battery compartment, which you can also locate on the package box. Step 3) Launching the App ① Now your phone connects to the SSID of tivizen network. ② Tap the “tivizen DVB-T Wi-Fi” app icon. ③... -
Page 9: Step 4) Watching Tv
When you exit the app, you may encounter a failure to connect to the Internet as your phone is still connected to the accessory for Wi-Fi communications. Step 4) Watching TV ① Connect your phone with the accessory via Wi-Fi connection and tap the “tivizen DVB-T Wi-Fi”... -
Page 10: Troubleshooting
The tivizen accessory is automatically turned off if you are not using it or not watching TV for certain period of time. You can customize the time to auto- power off in [Settings]-[Auto Power Off]. If you select "Never", the power is not automatically turned off. However, you should be careful since the battery may be used up quickly in this case. -
Page 11: Product Specifications
① For optimal reception of the TV signal, extend the antenna to the end. ② In a poor reception area such as inside of a building, underground area, subway station or tunnel section, the TV reception sensitivity may be deteriorated. Move your position and try again. -
Page 12: Safety Instructions
Safety Instructions The safety instructions are provided for your safety to prevent a possible physical damage from an accident and damage to the product. Please read them through carefully before starting the product, and keep it in a safe place for later use. Warning: Non-compliance with the instruction may cause a severe physical injury, leading to death. - Page 13 - Otherwise, it may affect the electric devices of the hospital or airplane. Do not use the product while walking or driving a vehicle. - Otherwise, it can distract your attention, causing a risk of accident. - On board of a vehicle, do not put the product near the air-bag system. A blown air bag may cause a serious injury.
- Page 14 Keep the product away from dust or heating source. - When cleaning the product, remove the charging cable and dust off the connector pins. - Keep the product away from impurities such as sand, dust, cigarette ash, etc. Do not drop the product. Protect it from an external impact. - Otherwise, it may cause damage to the product, specifically the internal circuit board.
-
Page 15: Product Disposal
Product Disposal You should replace the tivizen battery only with a battery pack designed for tivizen. Caution Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to their instructions. Do not Short circuit, disassemble or expose the battery to fire or water. -
Page 16: Warranty
If you encounter a problem or product failure, carry the purchase receipt and warranty card with you and contact the retailer for service repair. (If this is not available, contact the nearest customer center.) Product Name tivizen Wi-Fi Model Name VTV-T12 Serial No. Purchase Date... - Page 17 the warranty period. 1. Mistake by the customer - If the customer dismantled or modified the product at will, or if the problem is caused by a customer mistake (fall, getting wet, etc) - Intentional or unintentional mistake by the customer - If the problem is caused by a technician who is not certified by the manufacturer or customer center - If the problem is caused by a failure of the connected device...
