- Page 1 Инструкция Gembird GNS-5 Перейти в карточку товара 8 800 775 98 98...
- Page 2 Gigabit switch Plastic 10/100/1000 Mbps N-Way switch...
- Page 3 No part of this manual may be reproduced, transmitted or translated in any language in any form, by any means, without the prior written permission of Gembird Electronics Ltd. Gembird Electronics makes no warranties for damages resulting from corrupted or lost data due to a mistaken operation or malfunction of the product, the software, personal computers or peripheral devices.
- Page 4 Gigabit switch GNS-5(8) User manual Introduction desktop 10/100/1000 Mbps N-Way switch! This manual will help you install and use it properly. The 10/100/1000Mbps gigabit switch provides an excellent solution for expanding your Gigabit network. Gigabit speed is 10 times quicker than 100Mbps Fast Ethernet connection, enabling you to save time transferring bandwidth-intensive music, video, photos, graphic, and data files.
- Page 5 Gigabit switch Features Five/eight 10/100/1000BASE-T Gigabit Ethernet ports (RJ45 connectors) Supports Auto-negotiation for 10/100/1000Mbps and duplex mode Supports Auto-MDI/MDIX for each port Supports Full/Half duplex transfer mode for 10/100Mbps, Full-duplex transfer mode for 1000Mbps Support Store-and-Forward switching method Complies with IEEE 802.3, IEEE 802.3ab Supports Wire-speed and non-blocking performance Supports Hardware-based learning, and aging Supports 8192 MAC addresses...
- Page 6 Gigabit switch Specification Storage temperature: - Storage humidity: 5~90% RH non-condensing Operating humidity: 10~90% RH non-condensing Package contents 10/100/1000Mbps gigabit switch User manual Power adapter 230VAC to 9VDC/1A...

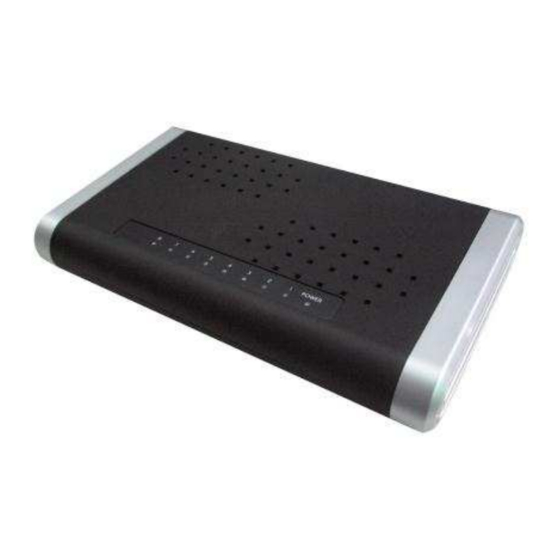

- Page 7 Gigabit switch Front Panel LEDs Power LED - this green indicator illuminates when the Switch is receiving power. 1-5(8) Indicators - this green indicator illuminates steadily when a port is connected to a station successfully, If this green indicator is blinking, it indicates that a port is transmitting or receiving data on the network.
- Page 8 Gigabit switch Connecting Network Devices To connect network devices to the Switch, follow these instructions: Make sure all the devices you will connect to the Switch are powered off Connect a Category 5/5e Ethernet network cable to one of the numbered ports on the Switch Note: Use Category 5e Ethernet network cables for your Gigabit connections.
- Page 9 Gembird GNS-5 Описание...
