AZECA BTT009 Owner's Manual

Stereo bluetooth transceiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Stereo Bluetooth
Transceiver
®
Owner's Manual
Model BTT009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BTT009 and is the answer not in the manual?

Questions and answers

Summary of Contents for AZECA BTT009

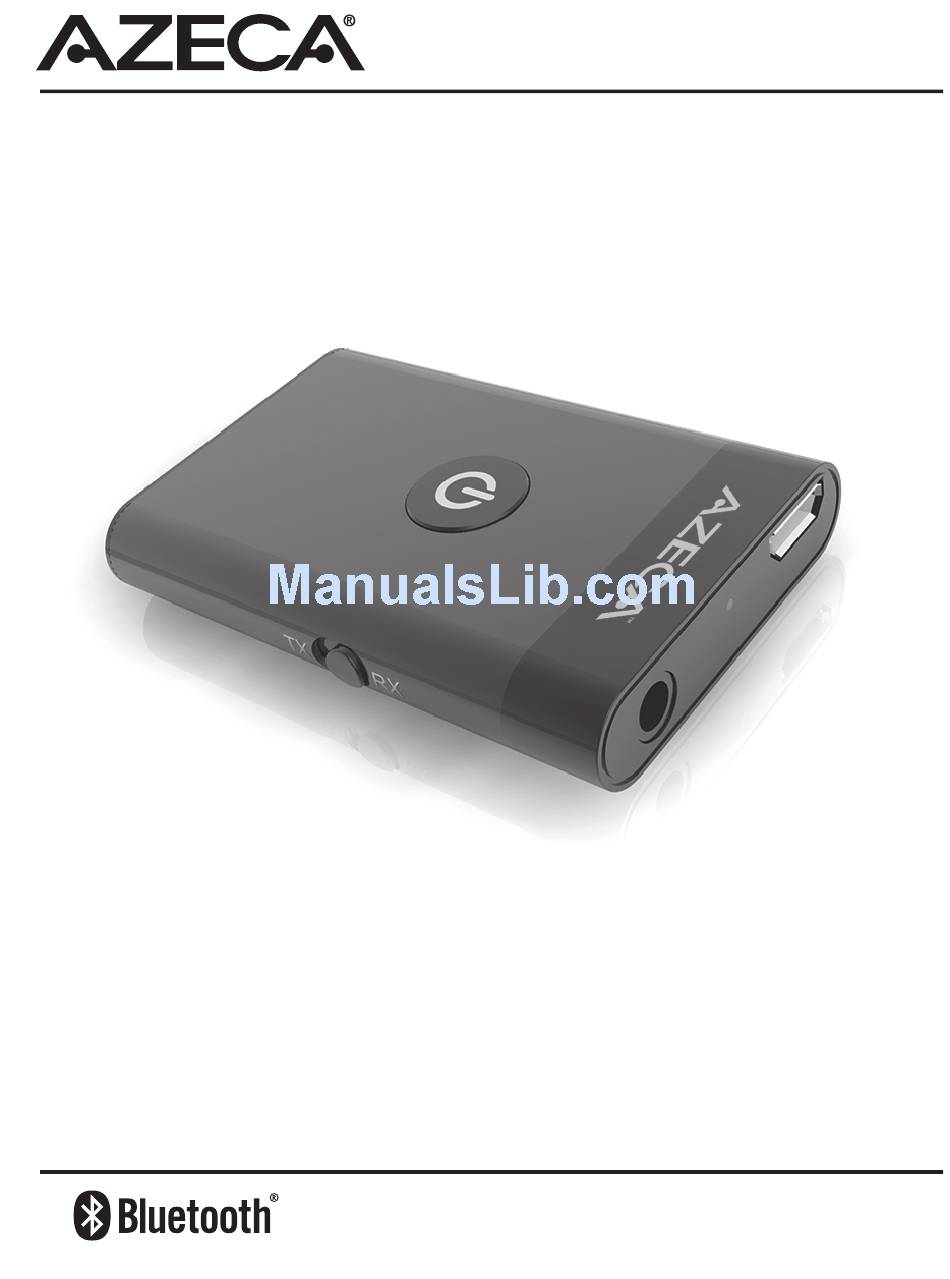

  • Page 1 Stereo Bluetooth Transceiver ® Owner’s Manual Model BTT009...
  • Page 2 Thank you for choosing the Azeca Bluetooth Transceiver ® Model BTT009. Please read this user’s manual carefully before use. Features • Play smartphone music through your home stereo ® • Add stereo Bluetooth to any device with a headphone jack •...
  • Page 3 Getting started Before use About BTT009 BTT009 is a Bluetooth transmitter and receiver. When it is used as a Bluetooth transmitter (TX), it can be connected to your portable music player or PC to wirelessly transmit music to a Bluetooth stereo receiver that uses the A2DP Bluetooth profile (Such as Bluetooth stereo headset or Bluetooth stereo speaker).

  • Page 4: Switching On/Off The Transmitter

    Connect the USB charging cable to an available standard UPS port on a computer or use a USB wall charger. Connect the micro USB end into the charging jack of the BTT009. A red LED is on while charging. It takes about 3 hours to charge the battery fully. When charging is completed, red LED will turn off.
  • Page 5 2. Pairing with Bluetooth devices Connected the BTT009 using the provided jumper cable to a non-wireless device such as an MP3 music player, tablet, PC. Confirm that the receiver device that you are pairing with supports the Bluetooth A2DP profile.

  • Page 6: Clearing Pairing List

    Note: • The pairing mode will last 2 minutes. The transmitter will enter standby mode if no devices can be connected within 2 minutes. • The transmitter can pair with a Bluetooth stereo receiver whose PIN NO.. is “0000”, “1234”or “1111”, “8888”. 3.

  • Page 7: Switching On/Off The Receiver

    RX Mode Selecting mode: Please turn the TX/RX switch to RX mode before switching on BTT009. Note: TX or RX mode cannot be changed after switching on BTT009. 1. Switching on/off the receiver FUNCTION OPERATION LED INDICATOR Switching Blue LED is on for 1 Second...
  • Page 8 3) Active your cell phone’s Bluetooth function and set your cell phone to search for Bluetooth devices within range. After the search is completed, select “BTT009” from the list of devices shown; 4) According to the indication, enter password or PIN No:“0000”;...
  • Page 9 3. Play smartphone music on various devices. When the BTT009 is used as a receiver, you can connect it to a home stereo receiver, non-wireless speaker, or a car sound system auxiliary line-in jack. Use the included dual RCA Y adapter and 3.5mm stereo audio cable to attach the BTT009 to various devices.

  • Page 10: Troubleshooting

    7. LED indicator LED Indicator STATUS OF THE RECEIVER Red and Blue LEDs flash Alternately Pairing mode Blue LED flashes once every 1 second Standby mode and not connected to a device Blue LED flashes once every 4 seconds Connected to a device Red LED flashes Low POWER Care and maintenance...

  • Page 11: Specifications

    I cannot pair the transceiver with a device. • This transceiver will only work with devices that support the following Bluetooth profiles: A2DP. I still cannot get my transceiver to work • Call our Help Desk at 1(888) 992-4639 Specifications Bluetooth version Bluetooth V2.1 A2DP and AVRCP...
  • Page 12 This Class B digital apparatus complies with Canadian ICES-003. European Union Directives Conformance Statement Azeca Corp declares that this product is in compliance with: • The key requirements and relevant provisions of Directive 1999/5/EC • All other key EU Directives...
  • Page 13 Azeca Corp’s option, either (a) repair, or (b) replacement of the product that does not meet this Limited Warranty and which is returned to the Azeca Corp with a copy of Customer’s receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, disassembly, or misapplication.
  • Page 14 Copyright © Azeca Corp. All rights reserved. Made in China The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Azeca Corp is under license. Other trademarks and trade names are those of their respective owners.
  • Page 15 • Answer, redial, mute, or make voice calls • Extra lightweight – just 1.4 ounces • Ear fitting, comfortable design • Easy-to-reach controls • Folds easily into portable travel case Visit www.Azeca.com for more information or call customer service at 1(800) 934-9839...
