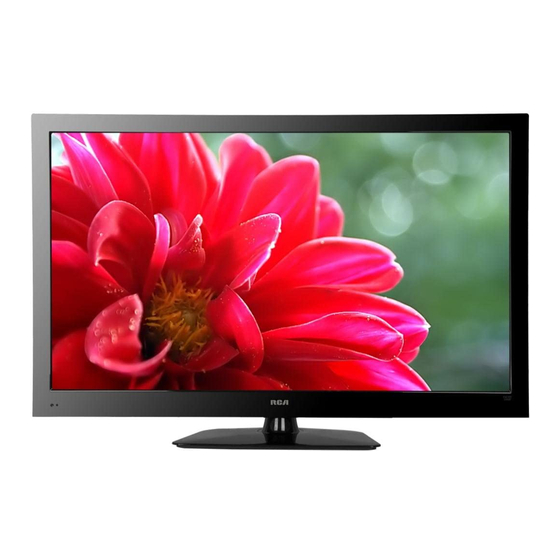

Part No.: RN0346R0114 English LED LCD TV User’s Manual Model Number. LED46A55R120Q www.rca.com Please register your product at Please keep your sales receipt and keep the record of the serial number and the date of purchase in order to receive warranty parts and service.
Child Safety Guide...
Child Safety Guide Use una montura que se ha recomendado por el fabricante de monitor y/o listado por un laboratorio independiente (como UL, CSA, ETL). Siga todas las instrucciones ofrecidas por el fabricante de monitor y montaje de pared.
Table of Contents Child Safety Guide ............................Caution and Warning ........................... FCC Notice ..............................Safety Precautions ............................ Preparation for Your New TV .................................................... Check Accessories ..........................Setup TV Table Stand ............................Select TV Location ..........................Connection and Using TV Stand Installation ............................
Table of Contents OSD Menu Operations .................................................... Adjust the OSD Screen ............................. Picture Menu ............................. Sound Menu ............................Channel Menu ............................Parental Menu ..............................Setup Menu ............................. Others Menu Frequently Asked Questions (FAQs) ...................... Troubleshooting ............................V-Chip Rating Explanations ........................
Caution and Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover or back. No user-serviceable parts inside. Refer servicing to qualiﬁed service personnel. The lightning ﬂash with arrowhead The exclamation point within an symbol, within an equilateral triangle equilateral triangle is intended to...
Safety Precautions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. For example, do not use near a laundry tub, in a wet basement, or near a swimming pool, and the like.
Safety Precautions 23. WARNING: To prevent injury, this apparatus must be securely attached to the ﬂoor/wall in accordance with the installation instructions. 24. To reduce the risk of electric shock, the grounding of center pin of plug must be maintained. 25.
REMOTE CONTROL Below is a list of RCA codes for the most common Cable and Satellite providers. Use the RCA code that is associated with your Cable or Satellite provider (if applicable).
TV Stand Installation TV LED46A55R120Q is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the installation according to the instructions below. Step One Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged.
TV Signal Connection The ﬁrst step in connecting your TV is obtaining the signal. Your TV LED46A55R120Q has a side panel, which allows you to receive analog and/or digital television channels via ANT/CABLE jack. Before connecting your TV, determine using an antenna or a cable service to obtain the signal.
Cable Connections Choose Your Connections TV LED46A55R120Q supports various connections to other devices (such as DVD, VCR, Set-top box, etc.). Please follow the table to choose the cables which adapt to your device. Jacks Cables Further Information Go to page 12...
Side Panel Connections Connecting AV Composite device (Good Video Quality) To connect a composite AV device, such as a DVD player, follow these steps: 1. Connect the VIDEO jack on the back of TV to the video output jacks of device via video cable (yellow). 2.
Side Panel Connections Connecting YPbPr Component device (Better Video Quality) To connect a component device, such as a DVD player, follow these steps: 1. Connect the COMPONENT IN Y/Pb/Pr jack on the side of TV to the video output jacks of device via video cable (green, blue and red).
1. Connect the HDMI 1/DVI, 2, 3, or 4 jack on the back of TV to the DVI port of device via HDMI-DVI cable. 2. Connect the SOUND/DVI jack on the back of TV to the audio output jack of device with audio cable (dual-channel RCA jacks to 3.5mm stereo jack).
2. Connect the SOUND/DVI jack on the back of TV to the audio output jack of computer with audio cable (3.5mm). Note: If you want to use your TV as a monitor, please notice that the maximum resolution for LED46A55R120Q is 1920*1080.
TV Jacks Explanation DIGITAL AUDIO OUT: Connect a coaxial cable for digital audio output. SOUND/DVI: Use to obtain sound when a PC is connected to TV. Use 3.5mm stereo mini-pin cable to connect PC to TV. ANT/CABLE: Connect to receive the signal from your antenna or cable via coaxial cable. PC INPUT VGA: Connect your computer or other device with a VGA output to this jack using a 15-pin, D-sub cable.
Side Keypad and Front Panel Side Keypad Buttons If you cannot locate your remote, you can use the side keypad buttons on your TV to operate many TV features. Displays the Source Select List. INPUT: MENU: Displays the TV Main Menu. CH : Scans up through the channel list.
Remote Control Instructions Inserting Batteries in the Remote • Remove the cover of battery cabin on the back of the remote control by lifting the cover. • Insert two AAA batteries, making sure the polarities (+ and -) are aligned correctly. •...
Learning about Remote Control Remote Control Buttons ): Reduces the TV volume to its minimum level. Press again to restore the volume. MUTE ( CH LIST POWER ( ): Turns the TV on or off. CH.LIST: Displays the channel list. FAV.: Adds the current channel to your favorite list, or erases the current channel from your favorite list (if this channel is a favorite channel already).
Initial Setup If it is the ﬁrst time you turn on your TV, or you have done Clear Channel List option (see page 31), the initial setup menu appears automatically. Menu Language To choose your menu language, press the left/right arrow until the language you need appears. Available languages: English, French and Spanish.
Basic Operations Turning On and Off Connect the AC cord to power the LED LCD TV. At this time the TV will enter standby mode and power indicator will turn red. Use Power button ( ) on the top panel of TV or on the remote control to turn on the TV. After switching off the TV for 5 seconds, you can turn on TV again.
Basic Operations Channel Bar Press the DISPLAY button on the remote control, the channel bar will appear on the right top of screen. It displays the current channel’s information. The following list describes the items on the channel bar. D50 - 1 KOCE-HD English Mono...
OSD Menu Operations Adjust the OSD Screen The OSD (On Screen Display) menu enables you to approach to the TV functions. To use OSD menu system, press MENU button on remote control, then use left/right arrow to highlight an option from PICTURE, SOUND, CHANNEL, PARENTAL, SETUP or OTHERS and press ENTER button.
OSD Menu Operations Screen Size Screen Size PICTURE Picture Settings Screen Size: Select a screen aspect ratio. Screen Size Wide (Available ratio: Wide, Cinema, Zoom, and Normal.) PC Settings Please choose the ratio that applies to your video signal format Color Temperature Normal best.
OSD Menu Operations Dynamic Contrast, Film Mode, Noise Reduction Set dynamic contrast as Off/Low/Medium/High. Set ﬁlm mode on/off. Set noise reduction as Off/Low/Medium/High. MPEG Noise Reduction Set MPEG noise reduction as Off/Low/Medium or High. Note: Noise reduction helps to reduce the picture “static” or any type of interference. This feature is especially useful for providing a clearer picture in weak analog signal conditions.
OSD Menu Operations Sound Menu The Sound Menu lets you adjust audio output. To access the Sound Menu, press MENU on the remote, and then select SOUND from the Main Menu. Press ENTER button to proceed to SOUND menu. SOUND Use up/down to choose the function you need, press Sound Settings ENTER or right arrow to adjust or enter a sub-menu.
OSD Menu Operations Equalizer Settings EQUALIZER SETTINGS The seven-band graphic equalizer allows you to adjust the audio frequency Mode settings. You can select one of the equalizer presets (Off, Pop, Rock, Jazz) or create your own personal preset (User). Press the left or right arrow to select the frequency (100Hz, 250Hz, 500Hz, 1KHz, 2KHz, 4KHz, 10KHz) you want to adjust.
OSD Menu Operations Signal Type Select your TV signal type: Air or Cable. Auto Channel Search Execute an auto channel search (see page 20). Parental Menu The Setup Menu enables you to lock program with special content, panel key board and input source. Press MENU and choose PARENTAL from the Main menu.
OSD Menu Operations Movie Rating MOVIE RATING Use arrow keys to select the rating level you want to block, press ENTER to lock/unlock the rating level. If you have blocked a lower level rating, the higher ratings will be PG-13 blocked too.
OSD Menu Operations Canada V-Chip Press ENTER or right arrow to enter US V-Chip ratings menu, which contains two sub-menus: English Rating and French Rating. English Rating Press ENTER or right arrow to enter English rating menu. ENGLISH RATING Use arrow keys to select the rating level you want to block, press ENTER to lock/unlock the rating level.
OSD Menu Operations Change Password Change the password of parental menu. CHANGE PASSWORD Input the old password. Old PIN Input the new password. New PIN Input the new password again to conﬁrm. Confirm Keypad Lock Select this option to block or unblock the TV’s side keypad so that they can’t be used. Source Lock This option allows you to lock or unlock the input source.
OSD Menu Operations Setup Menu The Setup Menu lets you conﬁg the TV with your preferences. Select SETUP from the Main Menu. Press ENTER button to proceed to SETUP menu. SETUP Use up/down to choose the function you need, press Closed Caption ENTER or right arrow to adjust or enter a sub-menu.
OSD Menu Operations Digital CC Style DIGITAL CC STYLE Select the item you want to adjust in Digital CC Style menu CC Size Default with up/down arrows. CC Font Default CC Opacity Default Text Color Default CC Background Opacity Default CC Background Color Default CLOSE CAPTION...
OSD Menu Operations Others Menu The Others Menu lets you conﬁg the TV with your preferences in other features. Choose OTHERS from the Main Menu. Press ENTER button to proceed to SETUP menu. OTHERS Use up/down to choose the function you need, press Blue Back ENTER or right arrow to adjust or enter a sub-menu.
Frequently Asked Questions (FAQs) What’s the most convenient way to view High Deﬁnition (HD) video? Connect an antenna to the TV Input jack to view free local digital channels. You may need to purchase an antenna. (See page 10 for more information about antenna setup). Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital channels available to you.
Troubleshooting Identifying Problems If there are any problems when using the product, please consult the list below. If the list does not solve the problem, call our Customer Service Center immediately. TV Problems The TV can’t be turned on. • Make sure the AC cord is plugged in. •...
Keep your TV unplugged for about 5 minutes. Then plug in the TV and turn it on. See if the problem is ﬁxed. If the problem remains, then please visit the Customer Support Menu at www.rca.com or updated FAQs...
V-Chip Rating Explanations US V-Chip Rating System TV-MA (Mature Audience Only): Speciﬁcally designed to be viewed by adults and may be unsuitable for children under 17. It contains one or more of the following content themes: crude indecent language (L), explicit sexual activity (S), or graphic violence (V). TV-14 (Parents Strongly Cautioned): Contains some material that many parents would ﬁnd unsuitable for children under 14.
V-Chip Rating Explanations C8+ (Children 8 and older): Programming generally considered acceptable for children 8 years and over to watch on their own. Violence Guidelines: Violence will not be portrayed as the preferred, acceptable, or only way to resolve conﬂict or encourage children to imitate dangerous acts which they may see on television.
Wall Mounting Unit Speciﬁcation Model Unit Dimension (unit:mm) Screw VESA 400 x400 LED46A55R120Q M8 screws, length 10mm 400 mm 400 mm Note: A. The wall mount is not contained in the accessories sold with television. We only provide the installing speciﬁcations but not the wall mount itself.
Do not turn off the TV or disconnect USB storage device while the TV is playing back picture or music. This may result in loss of data or damage to the USB storage device, and RCA is not responsible for any damage to, or loss of, data on the USB...
Operating Humidity: Less than 80% RH (No condensation) Power Supply AC 100-120V, 60Hz RF Input Cable/Antenna x 1 HDMI 3 x 1 + Audio R, L (RCA) Component (Component sound is shared with AV) Connection AV-IN Video + Audio R, L (RCA)
Fo r a perio d o f 1 2 mon t h s fro m d a t e o f pu r chas e o f you r RC A product , w e wil l pa y an authorized RCA service center for the new, or at our option,refurbished LED LCD panel needed to rep a i r a n y de f e c t s in m a t er i al or w o r k m a n s h i p in y o u r t elev i s ion.
THIS W A RRANT Y GIVE S YO U SPEC I FI C LEGA L RIGHT S AN D YO U AL S O MA Y HA V E OTH E R RIGHTS TH A T VARY FROM STATE TO STATE. RCA is a trademark of RCA T rademark Management SAS and used under license by ON Corporatio n...
D u r a n t e u n p e r í...
E l e m en t o s no c ubie r t o s por la g a r a n tía l imit a da Su g arantí a li m ita d a n o cubre los si g ui e n t es tem a s: Un- i n s t a l a c i ó...
10920 Via Frontera, Ste 540 San Diego, CA 92127, U.S.A. 2012 ON Corporation RCA is a trademark of RCA Trademark Management SAS used under license to ON Corporation. RCA es una marcade RCA Trademark Management SAS usada bajo licencia de ON Corporation.
