HDFury 3D Glasses User Manual

Hdfury 3d glasses and emitter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HDfury 3D Glasses and Emitter
User Manual Rev 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3D Glasses and is the answer not in the manual?

Questions and answers

Summary of Contents for HDFury 3D Glasses

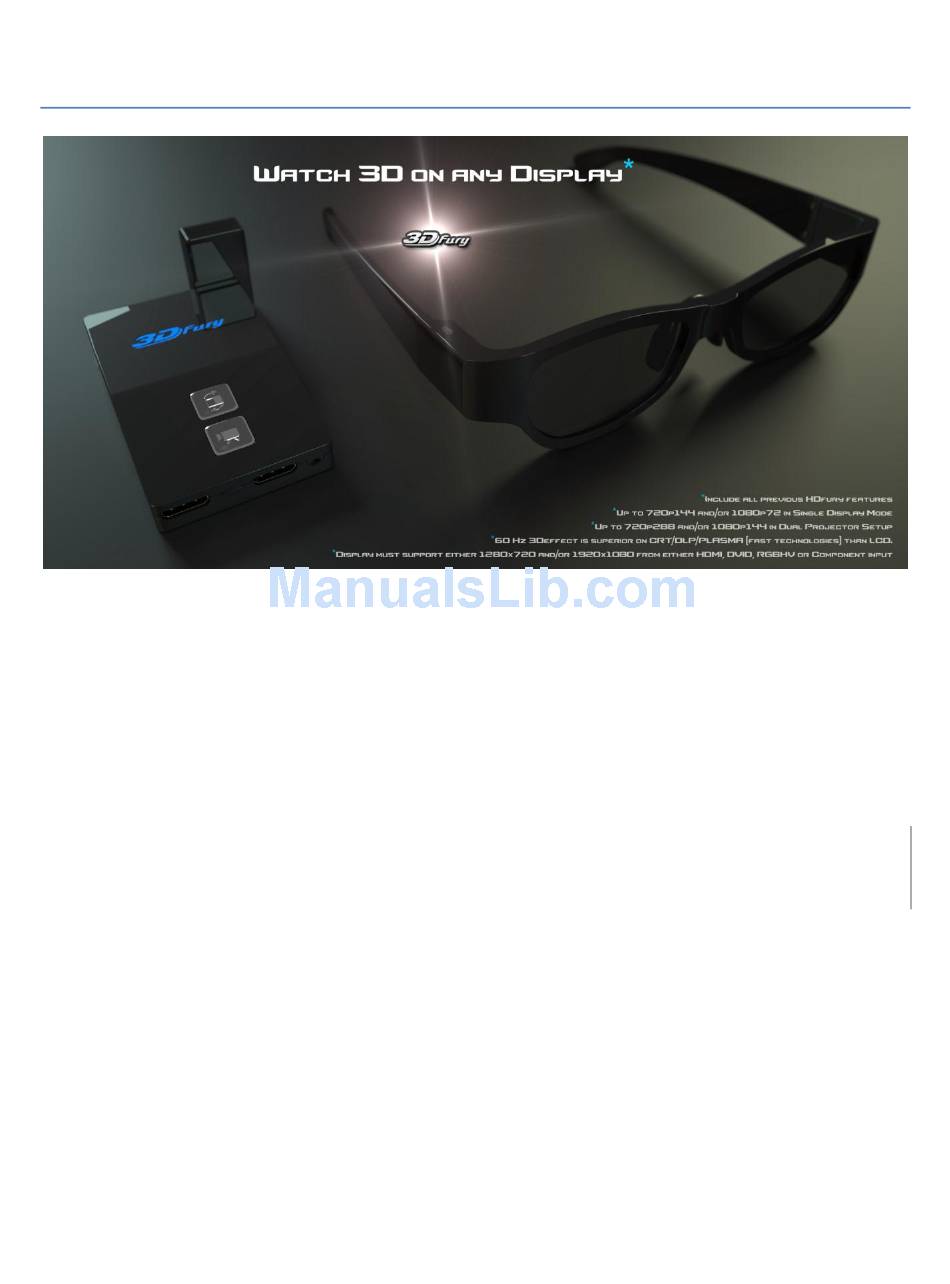

  • Page 1 HDfury 3D Glasses and Emitter User Manual Rev 1.0...

  • Page 2: Table Of Contents

    HDfury 3D Glasses and Emitter – User Manual Table of Contents Table of contents …..................2 Overview …...................... 3 Emitter Overview..................…… 4 3D Glasses OverView..................5 Power 3D Glasses On/Off................5 Adjust 3D Glasses Delay.................. 6 Adjust 3D Glasses Duty..................6 Pair 3D Glasses to Hdfury 4 emitter..............

  • Page 3: Overview

    The HDfury team would like to thank you personally for purchasing the HDfury 3D Glasses and Emitter! These unique 3d glasses and emitter will allow you to view 3D at frame rates from 50Hz all the way up to 144Hz. These are the most powerful glasses ever created and the perfect complement to the HDfury 4.
  • Page 4 To use your Emitter: Please disconnect power from the hdfury 4 and all other cables. Plug the emitter into the HDfury 4’s port labelled emitter and reconnect all cables. Your emitter is now ready for use. When all cables are connected and the emitter is plugged in you should see the pair light on the emitter glowing blue this will let you know the emitter is installed and working correctly.

  • Page 5: Power 3D Glasses On/Off

    Power 3D Glasses On/Off To turn ON the 3D glasses in RF Mode press and hold the Top Button for 1 or 2 seconds and the led will flash once. To turn the 3D glasses OFF press and hold the Top Button for 1 or 2 seconds and the led will flash twice.

  • Page 6: Adjust 3D Glasses Duty

    Reset 3D Glasses to Factory Defaults If you want to set your 3D glasses back to factory defaults press and hold the Top Button to turn the glasses ON. While the glasses are ON Press the Bottom and Top button on the glasses and hold till you will see the led starting to flash then release do this again and the glasses will flash its led twice to let you know it has been set to factory defaults.

  • Page 7: Operate 3D Glasses In Ir Mode

    PlayStation 3D games please setup and pair your 3D glasses to the emitter and operate the glasses in RF mode. You will need to load a SimulView 3D bin EDID file on your Dr.HDMI and hook your PlayStation 3 to the HDfury4 in this manner. First connect the PlayStation 3 to the Dr.HDMI with a HDMI cable then connect a HDMI cable from the...

  • Page 8: Frequently Asked Questions (Faq)

    No as all manufactures use their own protocol and our glasses presently just support Sony’s IR protocol. What type of display and viewing environment does active 3d glasses work best in? We have found in our testing that CRT and plasma displays in a dark room or a room with low lighting works best as the darker the room the less you will notice flicker.

  • Page 9: Specifications

     USB Connector for update and advanced custom settings  2.4G Hopping System 3Dfury IR/RF Glasses Specifications:  World First IR/RF (2in1) 3D Glasses operating from 48 to 144Hz  Most Advanced 3D Glasses  Interference Immunity  Work in RF Mode with all non-3DTVs powered by 3Dfury ...
  • Page 10 HDfury 3D Glasses and Emitter – User Manual Team HDfury thanks you for your support For help visit: http://www.HDfury.com Disclaimer: Viewing in 3D mode may cause disorientation for some viewers. DO NOT place your HDTV near open stairwells, cables, balconies or other objects that may cause you to injure yourself.
