- Page 1 Rocketfish Laptop AC Power Adapter with USB RF-ACU9025/RF-ACU9025-CAM User Guide...
-
Page 2: Table Of Contents

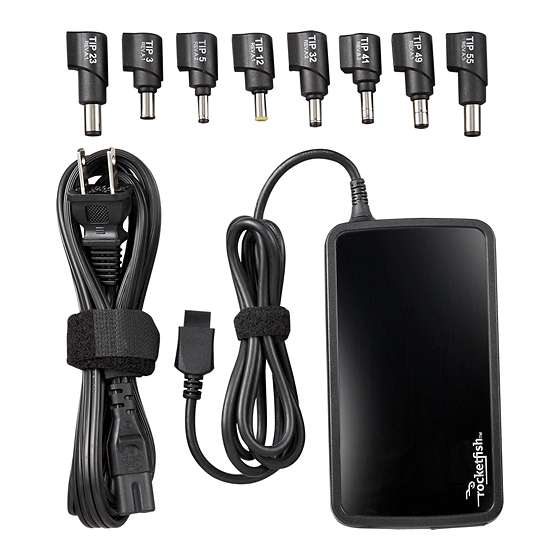

Rocketfish RF-ACU9025/ RF-ACU9025-CAM Laptop AC Power Adapter with USB 2.1A port Contents Introduction................2 Safety information..............4 Features ..................5 Using the AC power adapter..........6 FAQ for Rocketfish Adapters ..........9 Specifications ..............12 Legal notices................ 13 Three-year limited warranty........... 17 Introduction Thank you for purchasing a Rocketfish universal laptop power adapter with USB. - Page 3 RF-ACU9025/RF-ACU9025-CAM This adapter comes with a variety of numbered tips which connect to the output cable of the adapter and control the output voltage. To make sure that the proper voltage is delivered to your laptop, you must always make sure that you are using the correct tip for your specific laptop model.
-
Page 4: Safety Information
Safety information • Do not expose the power adapter to rain, moisture, or excessive dust. It may cause shock hazards. • Do not operate the adapter in direct sunlight. • Operate the adapter in a well ventilated area. Maximum ambient temperature around the power adapter must not exceed 105°... -
Page 5: Features
RF-ACU9025/RF-ACU9025-CAM Features • Provides up to 90 watts of power • Includes over-voltage, over-temperature, and short circuit protection • Powers laptops using a standard AC wall outlet • Includes a 2.1A USB port to charge additional mobile devices, such as MP3 players, tablets, e-readers, and smartphones, as well as more traditional devices, such as cell phones and PDAs. -
Page 6: Using The Ac Power Adapter
1 Locate your laptop manufacturer and model from the Tip Compatibility Guide, or go to www.rocketfishproducts.com and go to RF-ACU9025 to find the Tip Wizard. 2 Identify the correct tip number for your laptop model. CAUTION: The use of an incorrect tip may damage your laptop. - Page 7 RF-ACU9025/RF-ACU9025-CAM contact our toll-free help line for assistance at (800) 620-2790. This AC power adapter is not compatible with Mac computers or laptops requiring more than 90 watts of power. NOTE: If the compatible tip for your laptop is not included in the adapter package, one free tip can be ordered through the Tip Wizard at www.rocketfishproducts.com.
- Page 8 4 Connect the selected tip to the end of the output cable, making sure that the pins on the tip are aligned with the holes in the cable. The ridge on the inside of the tip should align with the groove in the output cable connector. Make sure that the tip is pushed all the way into the output cable's connector.
-
Page 9: Faq For Rocketfish Adapters
RF-ACU9025/RF-ACU9025-CAM To charge additional USB devices: 1 Plug a standard USB cable (not included) into the USB port on the output end of the AC power adapter. 2 Connect the other end of the USB cable to your device. For best results, we recommend that you use the USB cable that came with your device. - Page 10 included in the adapter package, one free tip can be ordered through the Tip Wizard at www.rocketfishproducts.com. Use the Tip Wizard to locate your laptop manufacturer and model and you can order your complimentary tip. If you are unable to locate your laptop in the Tip Wizard please contact Rocketfish customer service at (800) 620-2790.
- Page 11 RF-ACU9025/RF-ACU9025-CAM Will using an incorrect tip damage my laptop? The tips are designed to be used with specific laptops and so you should only use the tip that is designated specifically for your laptop. The correct tip can be identified by using the online Tip Wizard at www.rocketfishproducts.com or by locating your...
-
Page 12: Specifications
I notice that the adapter is warm when I use it. Is this a problem? During standard operation the adapter body may feel warm, and this is normal. The adapter should always be placed in a ventilated area in order to prevent over-heating. How can I use the USB port to charge my other devices? The AC power adapter can charge one device through the USB... -
Page 13: Legal Notices
RF-ACU9025/RF-ACU9025-CAM 5.1 V USB output voltage 2.1 Amps maximum USB output current 90 W maximum (AC) Output power 9.6 oz. (272 g) Weight 5.11 x 2.83 x .86 inches Adapter dimensions (LxWxH) (130 x 72 x 22.5 mm) Legal notices FCC Part 15 This device complies with Part 15 of the FCC Rules. - Page 14 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced technician for help. FCC warning Changes or modifications not expressly approved by the party responsible for compliance with the FCC Rules could void the user’s authority to operate this equipment.
- Page 15 RF-ACU9025/RF-ACU9025-CAM type and its gain should be so chosen that the equivalent isotropic ally radiated power (e.i.r.p.) is not more than that necessary for successful communication. Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé...
-
Page 17: Three-Year Limited Warranty
RF-ACU9025/RF-ACU9025-CAM Three-year limited warranty Rocketfish Products (“Rocketfish”) warrants to you, the original purchaser of this new RF-ACU9025/RF-ACU9025-CAM (“Product”), that the Product shall be free of defects in the original manufacture of the material or workmanship for three (3) years from the purchase of the Product (“Warranty Period”). This Product must be purchased from an authorized dealer of Rocketfish brand products and packaged with this warranty statement. - Page 18 This warranty also does not cover: • Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Rocketfish to service the Product • Products sold as is or with all faults •...
- Page 19 www.rocketfishproducts.com (800) 620-2790 Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2012 BBY Solutions, Inc. All rights reserved. ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. 12-0766 ENGLISH...
