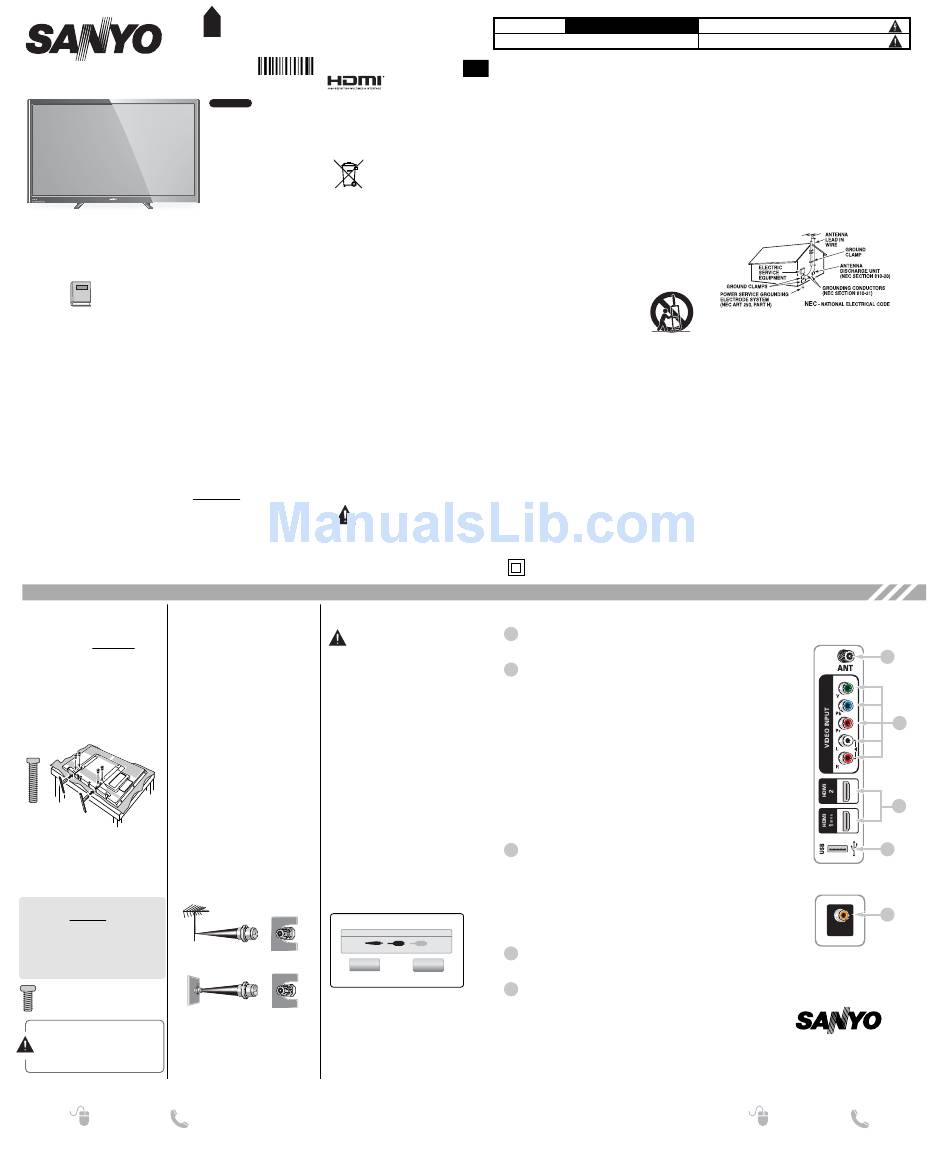

Sanyo DP50843 Owner's Manual

50"
class
(49.5" diagonal)
1080p HDTV LCD 1080p HDTV LCD
Part No.:
1JC0P1P0045 - -
© 2013 Sanyo Manufacturing Corporation
Please read before operating your HDTV!
PROTECTING THE LCD POSITIONING THE HDTV
SCREEN
• Always use a firm and flat surface when
positioning your HDTV.
CAUTION: The screen can be damaged if
it is not maintained properly.
• Do not position the unit in a confined
area.
• Do not use hard objects such as hard
cloth or paper to clean the screen.
• Allow adequate space for proper venti-
lation.
• Do not use excessive pressure when
cleaning the screen; excessive pressure
• Do not position the HDTV where it is
can cause permanent discoloration or
easily reachable by small children and
dark spots.
may present risk of injury.
• NEVER spray liquids on the screen.
• Once HDTV is positioned, remove the
protective film covering front cabinet.
HANDLING PRECAUTIONS
• Handle by the cabinet only.
The American Academy of Pediatrics dis-
courages media use by children younger
• Handling by two or more people is rec-
than two years. For more information,
ommended.
visit www.aap.org.
• Never touch the screen when handling.
• Handling damage is not covered under
warranty.
• Do not remove the protective film
covering the front cabinet while
handling the HDTV.
GETTING STARTED
______
STAND ASSEMBLY BATTERY INSTALLATION
Install two (2) "AAA" batteries in the
NOTE: Skip these steps if using a wall
remote control. (Not included)
mounting kit (not included).
PRECAUTIONS:
1 Place HDTV face down on a
padded or cushioned flat surface
• Replace both batteries at the same
to protect the screen and finish.
time. Do not use a new battery with a
used battery.
2 Carefully insert both foot stands to
the bottom of the HDTV and secure • There's a risk of explosion if a battery
them by inserting two (2) long is replaced by an incorrect type.
screws (M6 6x30) in each one as
• Keep away from moisture.
indicated in the diagram below.
• Be sure to match the "+" and "–"
NOTE: Foot stand screws are located in
signs on the batteries with marks
the literature package. inside the remote control.
• Please properly dispose of used up
batteries.
WARNING: The batteries (or battery
pack) shall not be exposed to excessive
heat such as sunshine, fire or the like.
ANTENNA CONNECTION FOR
OFF-AIR SIGNALS OR CABLE
3 Position the HDTV on a firm and
Hook up your antenna or your cable
flat surface with adequate space
service to the HDTV's ANT terminal
for proper ventilation.
with the use of a 75 OHM coaxial cable.
NOTE: Keep your indoor antenna at
WALL MOUNTING
(OPTIONAL)
Wall mounting of the HDTV must be
performed by a skilled person.
If foot stand disassembly is required:
• Place HDTV face down on a padded or
cushioned flat surface to protect the
screen and finish.
• Remove the two (2) screws securing
the each foot stand. CAUTION: Hold
the stands firmly as you remove the
last screw.
Use the four (4) short screws (M6
6x12) included in the literature
package to secure the HDTV to a
wall mounting kit.
The tuner in this HDTV can receive:
IMPORTANT: Wall mount kit must
•
Digital and Analog off air signals
comply with VESA standard 400 x
from an antenna
400. All four (4) screws must be
threaded to the wall mount and
• Analog or ClearQAM cable channels
HDTV's back cabinet
from a direct Cable TV connection.
Mounting screws measurements:
M6 (6mm) Diameter, Length—12mm
(maximum)
Need help? www.sanyoctv.com 1-800-877-5032
TRADEMARKS
Manufactured under license from Dolby
Laboratories. "Dolby" is a trademark of
Dolby Laboratories.
HDMI, the HDMI Logo and High-Definition
Model No.:
Multimedia Interface are trademarks or regis-
DP50843
tered trademarks of HDMI Licensing LLC in
the United States and other countries.
Owner's
SANYO television customers
should
Manual
Recycling at 888-769-0149 or
visit
(English)
w w w . m r m r e c y c l i n g . c o m
regarding SANYO's waste
management plan.

SPECIFICATIONS

NOTE: Design and specifications are
subject to change without notice.
Power Requirement:
Source: AC 120V, 60Hz
AC Power Consumption: 180 watts
Weight: 43 lbs (w/stand)
Dimensions _________________________
WIDTH
w/stands
w/out stands
NOTE: Dimensions are in inches
CONTAINS MERCURY
LAMPS, DISPOSE OF
PROPERLY
INITIAL CHANNEL SEARCH
Before proceeding, please make
sure to correctly hook up your
antenna or cable connection and
all AV equipment to your HDTV.
1. PLUG IN AC POWER CORD
120V AC, 60Hz
2. TURN ON TV
3. TV SET LOCATION SELECTION:
Select "Home Mode" to set the
HDTV's backlight to a lower energy
consumption level, or select "Store
Mode" to set the backlight to a retail
high brightness display level.
4. CHANNEL AND SIGNAL SEARCH:
Select "Signal Search" and press
ENTER to perform a channel search
from an Antenna or a direct Cable
connection, and a signal search
from devices hooked up to the
HDTV's AV input jacks.
5. SIGNAL SEARCH RESULT SCREEN
The final setup screen displays ana-
log and digital channels found, as
well as AV inputs detected.
Select Finish Setup and press
least 3 ft. away from the televi-
ENTER.
sion set and any other electron-
NOTE: If you wish to repeat the
ic equipment.
process, select Repeat.
ANTENNA
Channel Search Result: Succesfully Completed
Analog Channels 16
Video
ANALOG / DIGITAL
ANTENNA IN Finish Setup
CABLE
If you are having problems, call us toll-free at 1-800-877-5032
AV INPUT SELECTION
Press the INPUT key to select the
correct AV input for the video source
you wish to watch.
NOTE: Unused AV inputs may be dis-
abled with the Input Setting feature.
________
CAUTION
CAUTION: TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance
with the manufacturer's instructions.
contact MRM
8. Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
their website at
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-
type plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit fully into your out-
let, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched par-
ticularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused
for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate nor-
mally, or has been dropped.
HEIGHT DEPTH
FCC INFORMATION
46.4 29.1 10.4
46.4 28.1 4.0
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gen-
erates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harm-
ful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
CAUTION: FCC Regulations state that improper modifications or unauthorized changes to this unit may void the user's authority to
operate the unit.
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require
a safety connection to electrical earth.

HDTV INPUT/OUTPUT REFERENCE ________________________________________

1
ANT Analog / Digital Antenna Input
Hook up your indoor or outdoor digital antenna, or a direct
Cable service (Analog or ClearQAM).
2
VIDEO INPUT (COMPONENT/COMPOSITE combo)
COMPOSITE Connection
A Composite connection is used to hookup your analog
equipment such as a VCR or an older DVD player.
Match the YELLOW connector from your external device to
the GREEN Y-VIDEO jack on the HDTV.
NOTE: Use the WHITE and RED (L and R) jacks for AUDIO signal.
COMPONENT Connection
A Component connection will accept SDTV, EDTV and
HDTV video signals. Use it for great image quality from di-
gital devices such as a DVD player or Video Game system.
Match your digital device's Component output jacks to the
Component input jack set on your HDTV.
NOTE: Use the GREEN (Y), BLUE (Pb) and RED (Pr) jacks for the
VIDEO signal and the WHITE and RED (L and R) jacks for
the AUDIO signal.
3
HDMI (INPUT1 or INPUT2)
Use HDMI INPUT1 & 2 to hookup HD digital devices such as
a Blu-ray player, HD Cable Box, HD Satellite Receiver or
Video-game System.
Connect your digital device's HDMI output to any of the two
(2) HDMI inputs on your HDTV's side panel with the use of
an HDMI cable.
NOTE: A DVI connection is possible via the HDMI (DVI) INPUT1
using an appropriate cable or adapter and connecting the
Digital Channels 26
audio to the L and R (VIDEO INPUT) jacks.
HDMI 1 HDMI 2
4
USB
USB input jack is used to connect a USB mass storage
Repeat
device to watch digital images stored in JPEG format.
5
DIGITAL AUDIO OUTPUT (Coaxial)
Hookup a multichannel receiver with the use of a phono-
type digital audio cable.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING A RISK
RISK OF ELECTRIC SHOCK DO NOT OPEN!
OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING AND MAINTE-
NANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THIS UNIT.
IMPORTANT SAFETY INSTRUCTIONS
15. If an outside antenna is connected to the television equipment,
be sure the antenna system is grounded so as to provide some
protection against voltage surges and built up static charges.
In the U.S. Selection 810-21 of the National Electrical Code pro-
vides information with respect to proper grounding of the mast
and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location
of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrodes.
16. An outside antenna system should not be located in the vicini-
ty of overhead power lines or other electrical light or power
circuits, or where it can fall into such power lines or circuits.
When installing an outside antenna system, extreme care
should be taken to keep from touching such power lines or cir-
cuits as contact with them might be fatal.
EXAMPLE OF ANTENNA GROUNDING ACCORDING
TO NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
"Note to CATV system installer:
This reminder is provided to call the CATV system installer's
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the build-
ing, as close to the point of cable entry as practical."
17. Wall or Ceiling Mounting—The product should be mounted to
a wall or ceiling only as recommended by the manufacturer.
18. Apparatus shall not be exposed to dripping or splashing, and no
objects filled with liquids, such as vases, shall be placed on it.
19. When the MAINS plug is used as the disconnect device, the
disconnect device shall remain readily operable.
________________________________________________
Need help?
HDTV SIDE PANEL
1
(VIDEO)
2
(DVI AUDIO)
3
4
HDTV BACK PANEL
5
DIGITAL
AUDIO OUT
Sanyo Manufacturing Corp. 3333
Sanyo Road, Forrest City, AR 72335
Printed in Mexico, February 2013
US3C / 50-Z6WJ / GXHA
www.sanyoctv.com 1-800-877-5032
