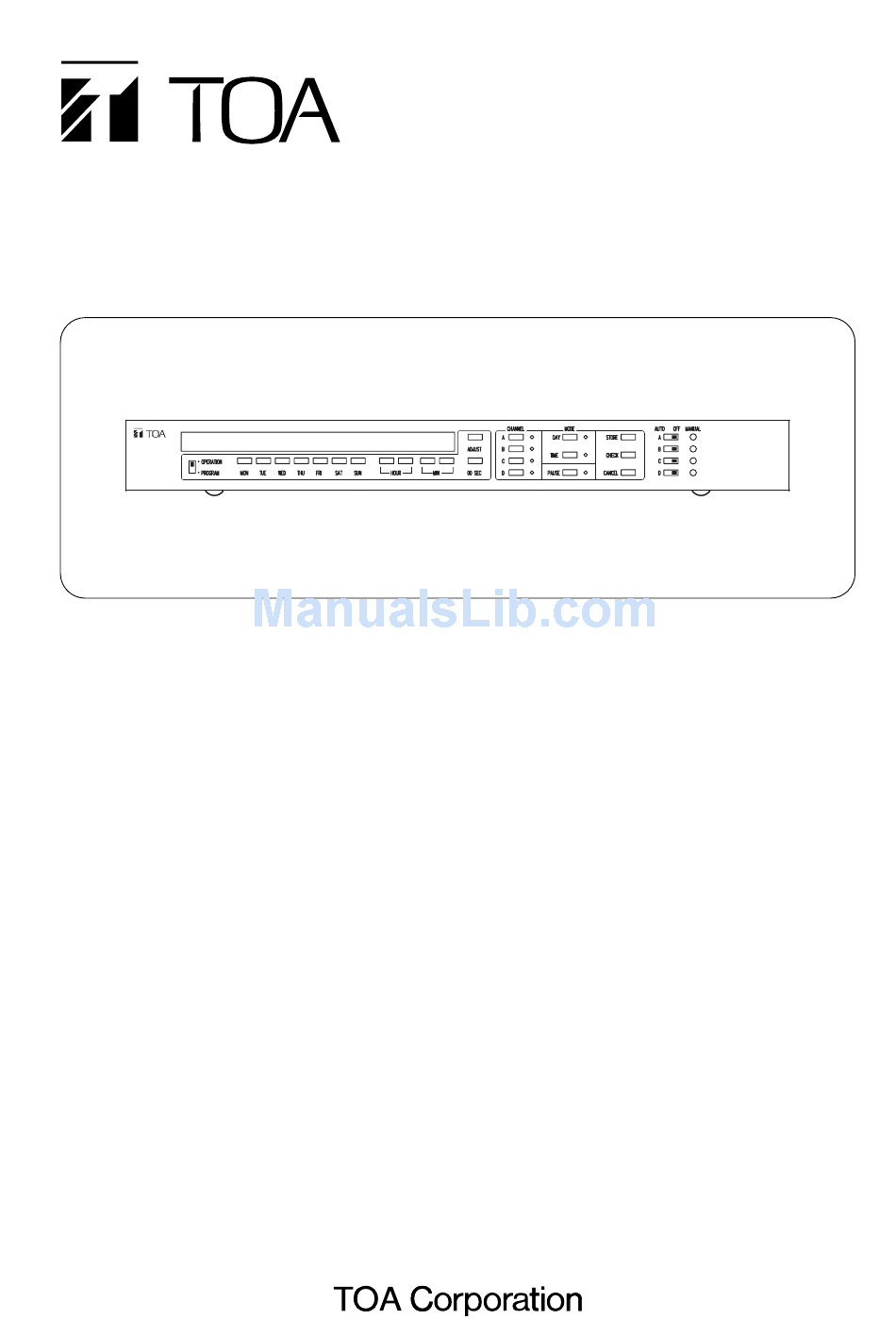

PROGRAM TIMER
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS .............................. 2
2. FEATURES .................................................... 3
3. INSTALLATION PRECAUTIONS ................. 3
[Front] ............................................................. 4
[Rear] ............................................................. 5
5. RACK MOUNTING ........................................ 6
6.1. Setting the Current Time ......................... 7
6.2. Time Correction ....................................... 8
6.3. Program Registration .............................. 8
Correction and Cancellation .................. 10
Thank you for purchasing TOA Program Timer.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
OPERATING INSTRUCTIONS
6.5. Entire Program Cancellation ................. 11
6.6. Program Operation ................................ 11
6.7. Pause Mode .......................................... 11
6.8. Using the AUTO/OFF Switches ............. 12
6.9. Using the MANUAL Keys ...................... 12
Switch .................................................... 13
6.11. Points to Remember .............................. 15
6.12. Output Relay ......................................... 15
7. DIMENSIONAL DIAGRAM .......................... 16
8. SPECIFICATIONS ....................................... 16
TT-104B
Advertisement
Table of Contents
Related Manuals for Toa TT-104B
Summary of Contents for Toa TT-104B
-
Page 1: Table Of Contents
6.2. Time Correction ........8 6.3. Program Registration ......8 6.4. Program Check, Correction and Cancellation ....10 Thank you for purchasing TOA Program Timer. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment. -
Page 2: Safety Precautions
Moving the unit the AC outlet and contact your nearest TOA dealer. with the power cord connected to the outlet may Make no further attempt to operate the unit in this cause damage to the power cord, resulting in fire or condition as this may cause fire or electric shock. -
Page 3: Features
• Avoid installing the unit in humid or dusty locations, • If dust accumulates on the power supply plug or in in locations exposed to the direct sunlight or flame, the wall AC outlet, a fire may result. Clean it near the heaters, or in locations generating sooty periodically. -
Page 4: Nomenclature And Functions [Front]
4. NOMENCLATURE AND FUNCTIONS [Front] Second indicator (colon) Day mode indicator Clock display Channel indicators Time mode indicator Day indicators Pause mode indicator 4 5 6 13 14 1. Program switch 6. CHANNEL keys Set this switch to OPERATION when setting a Use these keys to select the program output. -
Page 5: [Rear]
12. CHECK key 14. MANUAL keys This key checks the day of the week or time for Use these keys to manually deliver the output proper registration. regardless of actual program. Pressing each key The corresponding Day indicator comes on when closes a relay contact for 5 seconds. -
Page 6: Rack Mounting
Use the rack mounting screws that are appropriate for the rack. Note The rack-mounting screws supplied with the MB-15B can be used for the TOA equipment rack only. Illustrated below is a unit mounting method to the TOA rack. Rack... -
Page 7: Operation
6. OPERATION Second indicator (colon) DAY mode key Day mode indicator Clock display ADJUST key Time mode indicator STORE key Day indicators 00 SEC key CHECK key [Front] Program switch Day setting keys Clock setting keys MANUAL keys CHANNEL keys AUTO/OFF switches Channel indicators CANCEL key... -
Page 8: Time Correction
6.3. Program Registration Note The output of the TT-104B is a relay contact that closes for 5 seconds at the programmed time. The relay contact cannot be kept closed or open by programs. Take care that equipment to accept the pulse output are connected to the timer. - Page 9 Step 2. Program registration Register the programs according to the contents written in the program table. 2-1. Set the Program switch to PROGRAM. The Channel indicators (A, B, C, and D) and Pause mode indicator flash. 2-2. Press the A channel key to select the A channel. The A channel indicator comes on, while both the Day mode and Time mode indicators flash.
-
Page 10: Program Check, Correction And Cancellation
6.4. Program Check, Correction and Cancellation After finishing program registrations, check the program contents. Step 1. Set the Program switch to PROGRAM. The Channel indicators (A, B, C, and D) and Pause mode indicator flash. Step 2. Press the A channel key to select the A channel. The A channel indicator comes on, while both the Day mode and Time mode indicators flash. -
Page 11: Entire Program Cancellation
6.5. Entire Program Cancellation It is impossible to simultaneously cancel all the programs registered into all channels. Cancellation is only possible for each channel (A, B, C and D). Follow the procedures below to cancel the A channel time program. Step 1. -
Page 12: Using The Auto/Off Switches
Step 3. Press the Day setting keys (Monday, Tuesday and Wednesday) to designate a day(s) of the week. Each corresponding Day indicator comes on. Note When the wrong Day setting key has been pressed, press that setting key again. The Day indicator goes out. -
Page 13: Using The Channel Assignment Switch
6.10. Using the CHANNEL ASSIGNMENT Switch The CHANNEL ASSIGNMENT switch (rear-mounted) is used to switch over from the B, C or D channel to the A channel. When the B channel switch is set to ON, the B program output is delivered from the A channel, with the A program output delivered from the A channel. - Page 14 6.10.2. Use the CHANNEL ASSIGNMENT switch in such cases as shown below: (1) To allow one single equipment to process four different programs through combined use of the CHANNEL ASSIGNMENT switch (rear-mounted) and the AUTO/OFF switch (front-mounted). When, for example, the school has the Westminster chime and they want to utilize it for the following four different programs.
-
Page 15: Points To Remember
(2) If exceeding per-channel program capacity of 30. When, for example, a frequently-used spot announcing machine needs to be activated 80 times a day. Set the CHANNEL ASSIGNMENT switches (rear-mounted) of both B and C channels to ON. AUTO Set the AUTO/OFF switches (front-mounted) of A, B, and C channels to AUTO and that of D channel to OFF. -
Page 16: Dimensional Diagram
Program table ........... 1 Output identification label ........1 Traceability Information for Europe (EMC directive 2004/108/EC) Manufacturer: Authorized representative: TOA Corporation TOA Electronics Europe GmbH 7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg, Japan Germany URL: http://www.toa.jp/ 133-05-276-5B...
