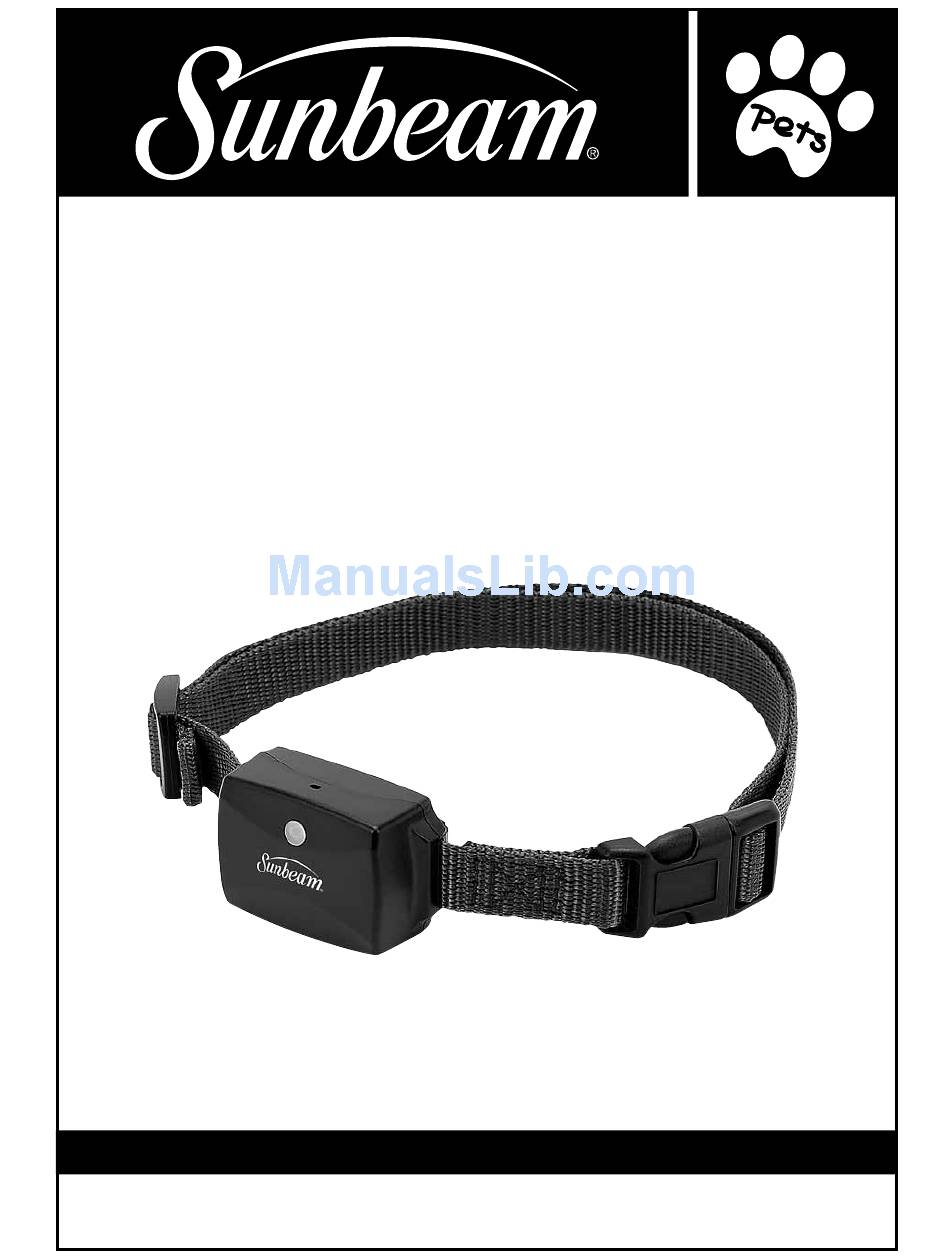

- Page 1 For use only with the Sunbeam® Essential In-Ground Fencing System Model SBFNSS1 STaTIC INSTRUCTION MaNUal...
-
Page 2: Important Safeguards
• T his product is not intended to contain or provide protection against aggressive dogs. • Your dog should be in good health when using this product. • T his product is not to be used on dogs less than 9 lbs. or less than 6 months old. • Always remove the Receiver Collar prior to washing or grooming your dog. • A void leaving the Receiver Collar on the dog for more than 8 continuous hours per day. Prolonged collar use can cause pressure sores which may lead to skin irritation such as contact dermatitis or decubitus ulcers. If a rash is discovered discontinue use until the skin area heals completely. If condition persists for more than 48 hours, contact your veterinarian. • D o not attach a leash to the Sunbeam® Receiver Collar. A separate, non-metallic collar or harness may be used provided it does not interfere with the Sunbeam® Receiver Collar. • W arning: The Receiver Collar uses two Lithium (CR 2032) coin type batteries. Keep the batteries out of reach of children. If swallowed, immediately seek medical help as serious injury may occur. • T he Lithium coin battery(s) used in this product contains perchlorate material. Special handling may apply in California. Go to: www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. • I MPORTANT: Each dog will have its own tolerance level, behavioral characteristics and individual environments; therefore, there is no way of knowing whether or how your dog will react to this product. If your dog has an aggressive temperament or has ever exhibited aggressive behavior, do not use this product until... -
Page 3: Product Overview
PRODUCT OVERVIEW ADJUSTABLE BUCKLE FABRIC MAIN CONTROL COLLAR BUTTON: • On/Off QUICK • Correction RELEASE level adjustment CLASP • LED BATTERY DOOR: STAINLESS STEEL PROBES: Located on bottom of unit for Correction administering system battery installation and removal LONG AND SHORT PLASTIC PROBES STAINLESS STEEL PROBES TwO CR 2032 LITHIUM BATTERIES... -
Page 4: Care And Maintainence
Level Beeps Green LED Light 1 - low 1 short beep 1 flash (repeated 6 times) 2 - medium 2 short beeps 2 flashes (repeated 6 times) 3 - high 3 short beeps 3 flashes (repeated 6 times) Flashing Red: Low battery CARE AND MAINTAINENCE The Sunbeam® Receiver Collar is weatherproof but is NOT submersible so care must be taken when cleaning. • Always remove the battery before cleaning • Use a clean damp cloth, water only • Never use any household or industrial cleaners • Do not submerse the unit in water or any other liquid • K eep the dog’s coat and skin clean in the area where the collar makes contact • Check the fit of the collar several times per day • W ipe the stainless steel probes weekly with a damp cloth while collar is in off position NOTE: The Lithium coin batteries used in this product contain perchlorate material. Special handling may apply in California. Go to: www.dtsc.ca.gov/hazardouswaste/perchlorate for more information. -
Page 5: How It Works
HOW IT WORKS The Sunbeam® Essential In-Ground Fencing System is a training aid that helps train your dog to stay within a defined boundary. The System uses a wire to create a Boundary Zone where your dog will receive a Warning Tone and a Static Correction. Flags are arranged along the Boundary Zone to give your dog a visual aid. The area encompassed by the Boundary Flags is the Safe Zone. The Safe Zone is the area where your dog can roam without receiving a Warning Tone or Static Correction from the Receiver Collar. The Boundary Flags can be removed at the end of the training process. The Sunbeam® Essential In-Ground Fencing System uses the buried wire to broadcast a radio signal. The buried wire acts as an antenna converting the signal into electromagnetic waves. The Base Transmitter controls the range of the signal around the wire. Inside the Sunbeam® Essential Receiver Collar is a small radio receiver. When the dog moves close to the Boundary Zone, the Receiver Collar will release a Warning Tone so your dog knows it is nearing the Boundary Zone. If your dog moves into the Boundary Zone, it will receive a Static Correction. To achieve the best results with the Sunbeam® Essential In-Ground Fencing System, it is important that you complete the training that is included in your Sunbeam® Essential In-Ground Fencing System. You can also obtain this Training Manual at www.sunbeampets.com. The System is not a solid fence and will not contain your pets as well as a solid fence. Do not allow your dog to run free until the training process is complete. Keep your dog on a leash, tied down, or confined to a separate area until training is complete. Proper training is necessary to achieve the best results. -
Page 6: Battery Installation
OPERATING INSTRUCTIONS BATTERY INSTALLATION IMPORTANT: This step is to be completed when the collar is NOT on your dog. • R emove two screws securing the battery compartment using a cross head or Phillips head screwdriver. (fig. 1) • L ift battery compartment from main body of Receiver Collar. (fig. 2) • I nsert two CR2032 Lithium coin batteries into battery compartment. Batteries should be placed with the positive figure 1 side facing down. IMPORTANT: Follow orientation as described on graphics illustrated on battery compartment. (fig. 3) • R eplace battery compartment with two CR2032 Lithium coin batteries back into main body. Note: The battery compartment can only be assembled in one orientation, do not force closed. See markings on the battery door. figure 2 • T ighten the two screws using the cross-head screwdriver, do not over tighten. • T o test the unit turn on by pressing and holding the control button for 4 seconds. You will hear one long beep followed by a sequence of short beeps and flashing green LED indicating which correction level is in use. The Receiver Collar will recall the... -
Page 7: Test The Collar
TEST THE COLLAR In order to make sure the Receiver Collar is working properly you must test it using your pre-installed Sunbeam® Essential In-Ground Fencing System. Do not test the Receiver Collar while it is on your dog. • P lace the Test Light indentation holes directly onto the Receiver Collar stainless steel probes. (fig. 4) • S lowly bring the Receiver Collar near the Boundary Wire at your pet’s neck level with probes facing up (fig. 5). If the system is working correctly you will hear a Warning Tone. Continue toward the Boundary Wire until you see the Test figure 4 Light flash (fig. 6). If you do not hear the Warning Tone or see the flash you should review the previous directions. figure 5 figure 6... -
Page 8: Collar Fitting
COLLAR FITTING Proper fit of the Sunbeam® Receiver Collar is essential to establish a good training foundation and optimal performance. NOTE: Batteries should be installed properly and the Receiver Collar should be in the OFF position before proceeding with fitting the collar to your dog. STEP 1: Ensure dog is in a relaxed position. STEP 2: With the collar clasp open loosen the adjustment buckle figure 7 such that it can reach completely around your dog’s neck. (fig. 7) When buckled, the collar should rest directly behind the dog’s ears (the highest part of the neck). (fig. 8) NOTE: Make sure both stainless steel probes go through the coat completely and make contact with the skin. -
Page 9: Ready To Use
STEP 6: Remove collar from dog and cut the excess collar material, leaving approximately 1 inch. STEP 7: Seal the edge of the collar using a flame. STEP 8: Reattach collar to your dog. Check the fit of the collar severaltimes per day. Wipe the stainless steel probes weekly with a damp cloth while collar is in OFF position. REMINDER: If you choose to use a 2nd collar, leash or harness figure 11 system, make sure it does not interfere with the operation of the Sunbeam® Receiver Collar. READY TO USE NOTE: The BATTERY INSTALLATION and COLLAR FITTING steps must be completed before you are ready to use. STEP 1: Holding the main body of the Sunbeam® Receiver Collar in both hands PRESS and HOLD the Control Button for 4 seconds. NOTE: You will hear one long beep followed by a sequence of short beeps and flashing green LED indicating which correction level is in use. The Receiver Collar will recall the last setting or the default setting (level 1 or low). STEP 2: Set correction level by pressing and holding (approximately 2 seconds) the Control Button. Once the collar is ON press the Control Button once to toggle to the next correction level. You will need to test your dog to see which correction level is appropriate for your dog’s temperament. Always begin training with the Receiver Collar on level 1. If your dog does not respond to the Static Correction on level 1 change the setting to level 2. If there is no response from your dog at level 2 change the setting to level 3. The table on page 3 describes the correction level settings. STEP 3: Attach collar to your dog as you did in the COLLAR FITTING stage. IMPORTANT: Complete the training that is included with the instructions for your Sunbeam® Essential In-Ground Fencing System. You can also obtain this Training Manual at www.sunbeampets.com. - Page 10 SPECIAL OPERATING It is important to read the Training Manual included in you Sunbeam® Essential In-Ground Fencing System. You can also obtain this Training Manual at www.sunbeampets.com. The System is not a solid fence and will not contain your pets as well as a solid fence. Do not allow your dog to run free until the training process is complete. Keep your dog on a leash, tied down, or confined to a separate area until training is complete. Proper training is necessary to achieve the best results. The Sunbeam® Receiver Collar retains the LAST correction level setting and will resume this mode when the unit is turned on. Low Battery Mode: The Receiver Collar LED will flash RED for 5 seconds when the battery needs to be replaced. Reminder Correction: When your dog reaches the Boundary Zone they will receive a Static Correction. If your dog is still in the Boundary Zone when the Static Correction reaches the maximum limit, the Receiver Collar will administrate a Reminder Correction. The Reminder Correction is a very low Static Correction intended to remind the dog to leave the Boundary Zone. Multiple Dogs: If you have multiple dogs additional collars can be added to your system. Contact the retailer from which you purchased the In-Ground Fencing System or call 866-537-2249.
-
Page 11: Fcc Statement
JCS or an authorized Sunbeam® service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.
