MSI H81M-E35 Specification

Motherboard Specification

Processor Support
■ Support Intel Haswell processors for LGA 1150 socket
®
Base Clock
■ 100 MHz
Chipset
■ Intel H81 chipset
®
Memory Support
■ Support 2 DDR3 DIMMs1066/ 1333/ 1600 MHz up to 32GB max
■ Supports Dual-Channel mode
LAN
■ Supports LAN 10/100/1000 Fast Ethernet by Realtek
Audio
■ Chip integrated by Realtek
®
■ Flexible 8-channel audio with jack sensing
■ Compliant with Azalia 1.0 Spec
SATA
■ 2 SATA（SATA1-2）6 Gb/s by Intel
■ 2 SATA（SATA5-6）3Gb/s by Intel
USB 3.0
■ 2USB 3.0 ports by ntel H81
®
■ 4 USB3.0 ports by NEC uPD720202
These specification is subject to change without prior notice.
*

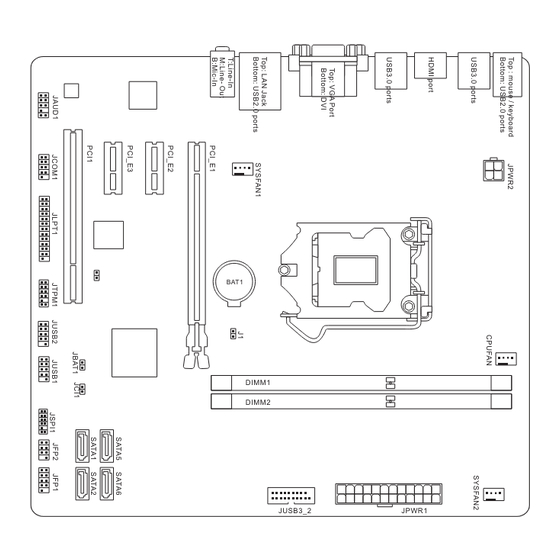

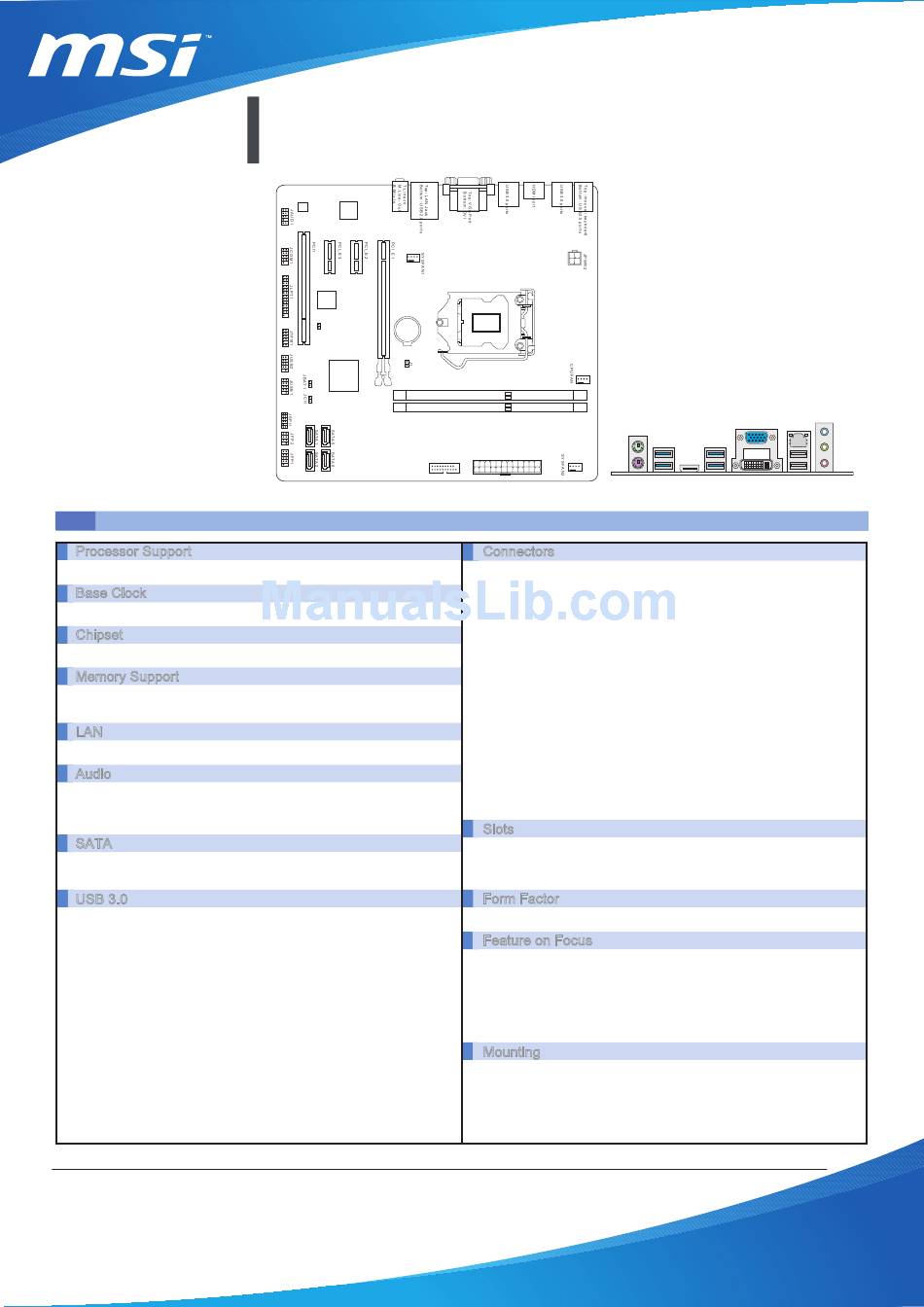

H81M-E35 (MS-7846v3.0) m-ATX Motherboard
Support Intel Haswell processors for LGA 1150 socket
®
BAT1
DIMM1
DIMM2
RTL8111G
®
ALC887
H81
®
H81
®
JUSB3_2 JPWR1
Connectors
■ Back panel
- 1 PS/2 mouse port
- 1 PS/2 keyboard port
- 2 USB 2.0 ports
- 4 USB 3.0 ports
- 1 VGA port
- 1 DVI port
- 1 HDMI port
- 1 LAN port
- 3 flexible audio ports
■ On-Board
- 1 USB 3.0 connector
- 2 USB 2.0 connectors
- 1 Chassis Intrusion connector
- 1 Front Panel Audio connector
- 1 TPM Module connector
- 1 Serial connector
- 1 parallel connector
Slots
■ 1 PCIE x16 slot
■ 2 PCIE x1 slots
■ 1 PCI slot
Form Factor
■ m-ATX (244 x 225 mm)
Feature on Focus
■ All Solid Cap design
■ Click BIOS IV
■ M-Flash
■ Small Business Advantage
■ SATA 6Gb/s
■ USB 3.0
Mounting
■ 6 mounting holes
(MS-7846v3.0)2013/07/23
