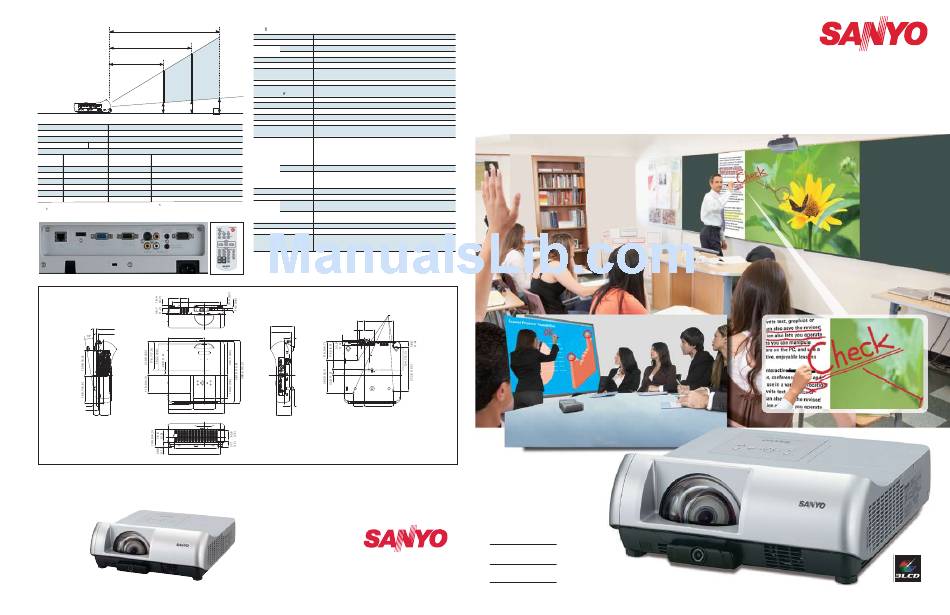

Sanyo PLC-WL2503 Specifications

Throw Distance Table 119.7cm (3.93 ft)
86.1cm (2.83 ft)
63.6cm (2.08 ft) 80"
60"
20.0cm 24,5cm
(0.66 ft) (0.80 ft)
Throw Distance (Aspect ratio 16:10)
Zoom/Focus Fixed/manual
Focal length f (mm/inch) 6.68 / 0.26
F value 1.8
Projection light axis H1:H2 10:-1.68
Throw ratio (Indication) 0.50:1
A: Height from the undersurface of the
inch WxH(m) Distance (cm / ft)
projector to the bottom of the screen (cm / ft)
60 1.3x0.8 63.6 / 2.08 20.0 / 0.66
70 1.5x0.9 74.8 / 2.45 22.3 / 0.73
80 1.7x1.1 86.1 / 2.83 24.5 / 0.80
90 1.9x1.2 97.3 / 3.19 26.8 / 0.88
100 2.2x1.3 108.5 / 3.56 29.1 / 0.96
110 2.4x1.5 119.7 / 3.93 31.3 / 1.03
* Approximate projection distance are calculated based on lens design speci cation. Individual lenses may diverge from
this gure by up to 5% due to slight variations in lens size and shape.
Terminals
External dimensions (unit: mm (inch))
74.1 51.7
(2.9) (2.0)
298.0 (11.7)
17.9 (0.7)
8.7 (0.3)
225.0 (8.9)
140.3 (5.5)
14.0 (0.6)
155.6 (6.1) 138.7 (5.5)
29.0 (1.1)
350.0 (13.8)
37.1 63.8
(1.5) (2.5)
267.8 (10.5)
325.0 (12.8)
PLC-WL2503
WXGA 2500Im
Speci cations
Product Number PLC-WL2503
System RGB liquid crystal shutter projection system
110"
Size 0.59 inch x 3, Aspect Ratio 16:10
LCD panel
Pixel Count 1,024,000 (1280 x 800) x 3 ; Total pixels 3,072,000
Projection Lens Fixed / Manual focus, f=6.68 mm 0.26", F=1.8
Light Source 230 W NSHA lamp
Screen Size
60 inch (min.) - 110 inch (max.) 0.64 m - 1.20 m 2.1" - 3.9" 80 inch: 0.86 m
(Projection Distance)
Brightness * 1
2,500 lumens * 2
Contrast Ratio
500:1 * 3
(Full On / Full O ) * 1
Fan Noize 29 dBA (Lamp mode "Eco")
Uniformity * 1 80 %
31,3cm
A
(1.03 ft)
Color Reproducibility Full color (16.77 million colors)
Audio Output 10 W mono
scanning frequency (Input) Horizontal: 15-100 kHz, Vertical: 50-100 Hz, Dot Clock: 140 MHz or less (Analog)
Resolution
1280 x 800 dots (WUXGA dot resizing possible)
(when using RGB signal)
·Digital input ; HDMI x 1 (Ver. 1.3 compatible)
·Analog RGB input ; Mini D-sub 15 x 2 (can be used for component input
PC Input /
with a component to D-sub cable, sold separately)
Output
·Analog RGB output ; Mini D-sub 15 x 1 (same as analog RGB input terminal)
·Audio input ; Stereo mini jack x 1 (computer/component)
Terminals
Video Input Video input ; RCA x 1, S-Video x 1: Audio input ; RCA x 2 (stereo)
Controller Control port ; D-sub 9 (RS-232C) x 1
Input / Output, Audio output (variable) (for both computer/video) ; Stereo mini jack x 1
and Other Wired LAN terminal ; RJ-45 x 1
Operating Temperature 5 - 35 °C
Power Source AC 100 - 120 V / 200 - 240 V (±10 %), 50/60 Hz
339.2 W / 227.4 W (Lamp mode : Normal / Eco)
100 - 120 V AC
Power 5.94 W / 0.42 W (Standby : Network / Eco)
consumption
316.2 W / 217.3 W (Lamp mode : Normal / Eco)
Remote control 200 - 240 V AC
7.9 W / 0.78 W (Standby : Network / Eco)
Dimensions (mm/inch) 350.0(w) x 129.4(h) x 381.9(d) 13.8"(w) x 5.1"(h) x 15.0"(d) (not including protruding parts)
Weight 4.7 kg (10.3 lbs)
Removable power cord x 1, D-sub 15 cable x 1, PIN code-locking seal,
Owner's manual (Quick Manual & CD-ROM), Remote control x 1,
Main Accessories
AAA battery 2 x 3, Interactive Pen, Interactive Pointer, USB Cable
Replacement Lamp Type No. 610 349 0847
*1 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*2 When Lamp Mode: Normal is selected. *3 When Lamp Mode: Normal, and Image Mode: Dynamic are selected.
* All product names and company names are trademarks or registered trademarks of their respective companies.
* Product appearance and speci cations are subject to change without notice.
42.0 180.0
(1.7) (7.1)
143.4 (5.7)
(with cap 145.3 (5.7)) 62.5
32.4
(1.3) (2.5)
129.4 (5.1)
30.0
14.0 (0.6)
(1.2)
70.0 180.0
14.0
(0.6) (2.8) (7.1)
95.0 (3.7)
SANYO Presentation Technologies
888-337-1215 www.sanyoprojectors.com
Toll free:
©
2011 SANYO North America Corporation.
Ultra Short Mobile Projector
Enable Space Saving Projection & Interactive Function,
Powerful Solution for Classrrom and the Office
4-M4 DIAMETER DEPTH
MAX 12.0mm (0.5inch)
WXGA
2500 lm
PLC-WL2503
