    Congratulations on your purchase of the WS-01 Wireless Station for USB Document Cameras. This User Manual will help you get WS-01 set up right away. Note: This document will refer to the WS-01 Wireless Station for USB Document Cam as simply WS-01. Package Contents...

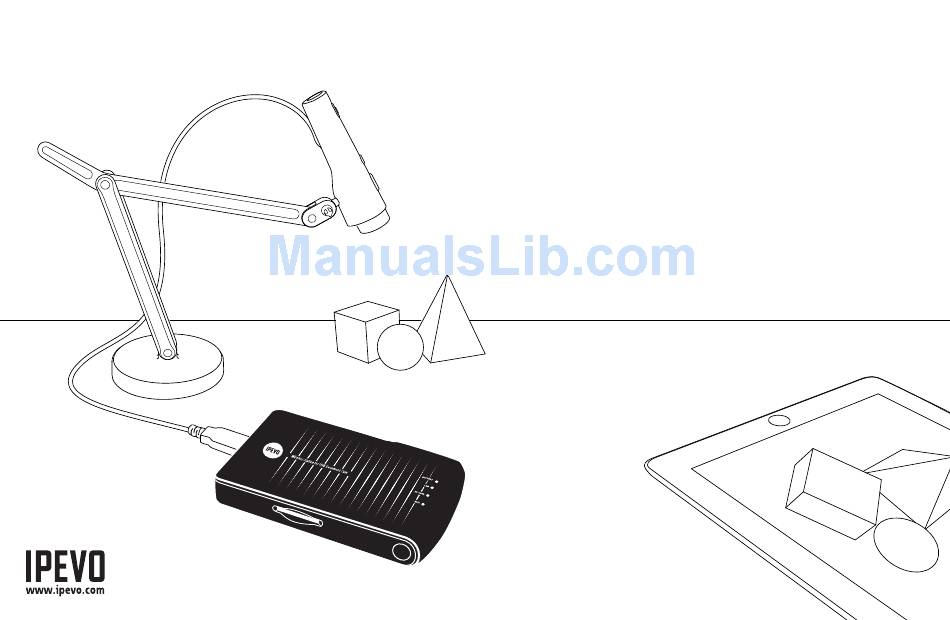

  • Page 3 2. The Basics The WS-01 Wireless Station for USB Document Cam lets your IPEVO document camera —the Point 2 View, Ziggi or Ziggi HD — communicate wirelessly so you can do even more: • Stream live images from Ziggi or P2V to iPad, PC or Mac via Wi-Fi •...
  • Page 4 3. Getting to know your WS-01 USB Charging Connector SD Card Slot USB Port Reset Button LAN Port...
  • Page 5 100 seconds for WS-01 to complete the booting process. SD Card Slot: Insert SD Cards and use WS-01 as a wireless file sharing device. Power Button: Press and hold for 2 seconds then release to turn on WS-01, or press briefly to shut down WS-01.
  • Page 6: Understanding The Led Indicators

    4. Understanding the LED indicators The color (red or blue) and frequency (solid or blinking) of the WS-01's LED indicators will tell you more about the device's status. Indicator Color and Frequency • Blue: Battery is normal with sufficient charge, or charging is complete Battery/Power •...
  • Page 7 5. Charging Your WS-01 Charge WS-01’s built-in battery prior to powering up the device for the first time. This ensures the battery will have sufficient power. 1. Connect the built-in USB connector to the included 2. The battery/power LED indicator will stay red power adapter, then connect the power adapter while charging.
  • Page 8 Battery Tips: • Charging to full will take approximately 6 hours, or more if you are using the WS-01 while charging. • The WS-01's 3300mAh battery will power the device for about 4 hours before requiring a charge. • A blinking red battery/power LED means your battery is low. Please recharge your device if so.
  • Page 9 6. Setting Up Your WS-01 WS-01 is compatible with iPad, PC and Mac, and can be installed following these steps: 1. Press the power button and hold for 2 seconds. The Wi-Fi indicator will flash from red to blue. 2. Connect your Ziggi or P2V Document Camera to the USB port on WS-01.
  • Page 10 WS-01’s features. “IPEVO Whiteboard” app. 2. Hit “Settings” on your iPad and enter “Wi-Fi Settings.” Browse the available connections and connect to WS-01's SSID (SSID can be found on the label located on the bottom of the device). SSID: IPEVO WS-01_3524...
  • Page 11 4. a) Tap the Wireless Station icon and b) Select WS-01 under available wireless stations. The menu bar next to Wireless Station should then expand once WS-01 is selected.
  • Page 12 5. Use the icons on the extended menu to view Live View, access data and settings. Live View: View the live feed from your Document Camera Storage: Access files stored on WS-01 wirelessly Settings: Access the settings page...
  • Page 13 1. Browse your available wireless networks and 2. Launch your browser and connect to the IP connect to WS-01's SSID (SSID can be found on address of WS-01 by typing it into the address the label located on the bottom of the device).
  • Page 14 3. Enter the login password at the prompt, which 4. Click on "Live View" on the Settings page to by default is "admin". access the video stream and related options.
  • Page 15 5. In the top right-hand corner of the video stream window is an icon with 4 arrows. Click this icon to enlarge the video screen.
  • Page 16 8. Using WS-01 for Data Sharing WS-01's SD Card slot and USB port allows you to insert SD cards or USB drives with curriculum to view and share via your browser or the IPEVO Whiteboard App. Additionally, files edited using Whiteboard can be saved to an installed SD card.
  • Page 17 On Mac or PC: Using your Browser to access Data Sharing 1. Click "Wireless Disk" on the Settings Page to access and manage the SD Card’s or USB Drive's data. (See Page 12 for accessing the Settings Page.) 2. Click on the SD Card or USB Drive image. File names, sizes, and last modified dates will be shown.
  • Page 18 3. Use the four icons above the file list to manage the data: Network 2 Home: Return to the root directory Up: Go up one level to the parent directory Delete: Checkmarked files will be deleted Download: Download checkmarked files. This function is disabled when using iPad Note: for Delete and Download functions, click the white check boxes to the left of file names to mark files accordingly.
  • Page 19 9. Connecting to the Internet with WS-01 Your computer/iPad will lose its connection to the internet once you connect to WS-01. However, WS-01 will act as a bridge from your computer/iPad to your interent-enabled network. Generally, your iPad/Computer can access the internet via your Wi-Fi router With IPEVO WS-01, you can view the IPEVO Doc Cam from your iPad/Computer in real time.
  • Page 20 Connecting to the internet with WS-01: 1. Please make sure your iPad, Mac or PC is connected to WS-01. To connect WS-01, please follow the steps starting on Page 8. 2. Tap the Internet Connection icon on the WS-01 Settings Page. (To use the IPEVO Whiteboard App to access the Settings page on iPad, a) tap the Wireless Station Icon, then b) select the Gear icon in the extended menu).
  • Page 21 3. Under “Wireless Connection,” select “On.” If a wired connection is preferred, please select “Off (Ethernet Cable)” and plug an Ethernet cable (not included) into the LAN port. 4. A list of available Wi-Fi networks will appear. Select your network. Wireless 1 Wireless 2...
  • Page 22 Internet through WS-01. Note: • If you are not returned to the WS-01 Settings Page after the 30 second countdown, please reconnect your iPad to WS-01 by going to Settings > Wi-Fi > Select WS-01’s Network.
  • Page 23 To prevent unwanted access of your Live View and files, secure your WS-01 Wi-Fi network by adding a password using the Wireless Password function. 1. To set your Wireless Password, access the WS-01 Settings page (see Page 12). 2. Tap on Wireless Password. The WS-01 network name (SSID) and network password can be changed here.
  • Page 24 Guest users will have access to the SD Card data and Live View, but will not have access to Internet Connection, Admin Password, Wireless Password, or Advanced Settings. 1. To set your Admin Password, access the WS-01 Settings page (see Page 12). 2. On the Settings Page select Admin Password.
  • Page 25 1. Connect your Apple TV device to WS-01. Navigate to Settings > General > Network > Wi-Fi. 2. A list of available wireless networks will appear. Select WS-01's network and enter the password if required. (Steps continue on next page)
  • Page 26 Note: AirPlay is only available when both iPad and AppleTV are connected to WS-01. 5. Turn on the Mirror switch to enable Mirror mode. 6. Launch IPEVO Whiteboard on your iPad. Now Apple TV, WS-01, and your iPad are communicating. Changes you make in Whiteboard will be reflected on Apple TV and its screen.
  • Page 27 • I forgot my network name (SSID) or Admin password. Use a pin or paper clip to press the Reset button on WS-01 to reset the device. WS-01 will reboot after 3-5 seconds. It takes about 100 seconds for WS-01 to complete the booting process. The Default network name (SSID) can be found on the label located on the bottom of the device (see Page 12), and the default password for Admin is "admin".
  • Page 28 • I am looking for more networks settings on WS-01. Follow the steps on Page 12 to access WS-01 settings. Hit "Advanced Settings." You should find more options under Advanced Settings. Please consult your internet administrators for Advanced Settings regarding network connection.
  • Page 29 • Can I charge WS-01 via a computer's USB port? Yes, but charging via a computer's USB port is slower than charging via AC adapter. WS-01's Wi-Fi will be disabled when plugged into a USB port and will turn into an SD card reader.
  • Page 30: Troubleshooting

    • I've followed the steps on Pages 8 to 14 but I cannot connect to WS-01. · Use a pin or paper clip to press the Reset button on WS-01 to reset the device. Wait 3-5 seconds to allow WS-01 to reboot. Try connecting again after the reset.
  • Page 31 · Shut down the device and restart. Search for your network after restarting. · Shut down the device and restart. Search for your network after restarting. • I cannot turn off my WS-01. · Press and hold the power button for 3 seconds then release to force shutdown of WS-01.
  • Page 32: Federal Communication Commission Interference Statement

    15. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 33 Model: WS-01/ FCC ID: WKP-CSAW-02IP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
  • Page 34 Customer Service (USA) Customer Service (International) Email: cs@ipevo.com Email: service@ipevo.com Tel: +1-408-490-3085 Tel: +886-2-5550-8686...
