Summary of Contents for Niles CAM-PB

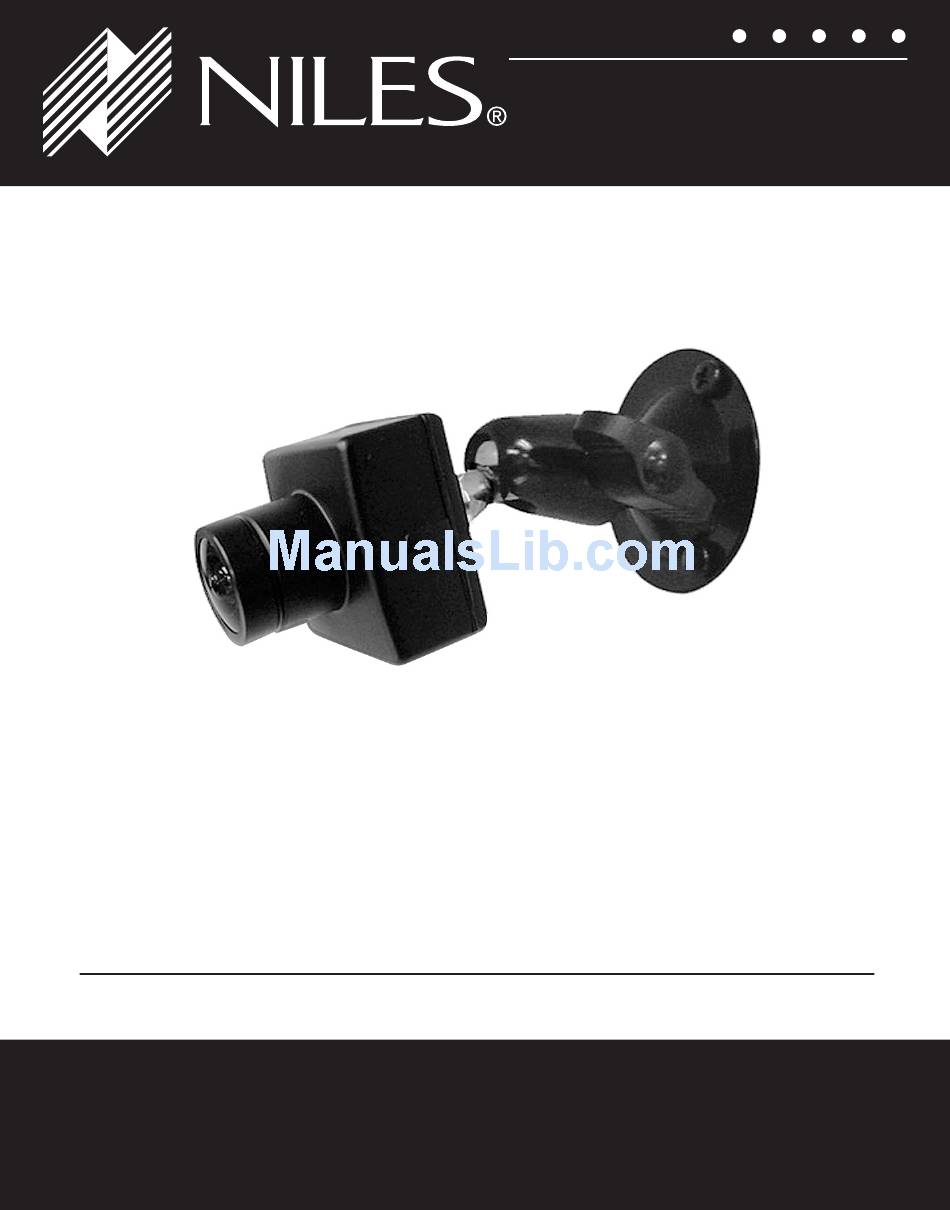

- Page 1 F O R D I S C R E T E S U R V E I L L A N C E U N D E R A N Y C O N D I T I O N MINIATURE HIGH RESOLUTION COLOR CCTV CAMERA WITH PIVOTING BRACKET CAM-PB...
-
Page 3: Table Of Contents
CONGRATULATIONS! Thank you for choosing the CAM-PB Miniature High Resolution Color CCTV Camera from Niles. With proper installation and operation, you should enjoy years of trouble-free use. Niles manufactures the industry’s most complete line of custom installation components and accessories for audio/video systems. To see the complete Niles product assortment, visit us on the Internet at: www.nilesaudio.com. -
Page 4: Introduction
INTRODUCTION The CAM-PB is a miniature weather-resistant CCTV camera with a die-cast aluminum housing and pivoting bracket. The camera can rotate 360 degrees and pivot 90 degrees to enable it to be mounted in virtually any position.The flexible mounting bracket allows the dealer to optimally adjust the viewing angle. -
Page 5: Installation Considerations
(the sun, bright security lighting, etc.) as this will provide poor video quality and could damage the imaging element! Because of its small size, the CAM-PB is ideal for use in applications requiring concealment or unobtrusiveness. Plan mounting locations with this in mind. NILES recommends the use of its CAM-DFMK Dome Camera Mounting Kit for attractive, discrete mounting and installation of the CAM-PB. - Page 6 1. Mount base to mount. tighten w/screws 2. Using the male RCA-to-female F adapter included with the CAM-PB, connect the camera to the Lock w/nut RG-6 or RG-59 coax cable previously run. 3. When remotely powering the CAM-PB: a. Remove the power connector from the power supply (included) and the CAM-PB RG6 or as shown in Figure 2.
-
Page 7: Rear View
Strip back the insulation on the red and black camera power wires and terminate 12VDC them to the 18/2 wire. Be sure to maintain proper polarity on the CAM-PB, the 18/2, and the remotely located power supply (the included power supply’s white striped lead is POSITIVE). - Page 8 NOTES...
- Page 9 NOTES NILES AUDIO CORPORATION – 1-800-BUY-HIFI...
-
Page 10: Limited Warranty
NILES or an authorized NILES dealer. -
