Summary of Contents for Destination Audio QT605

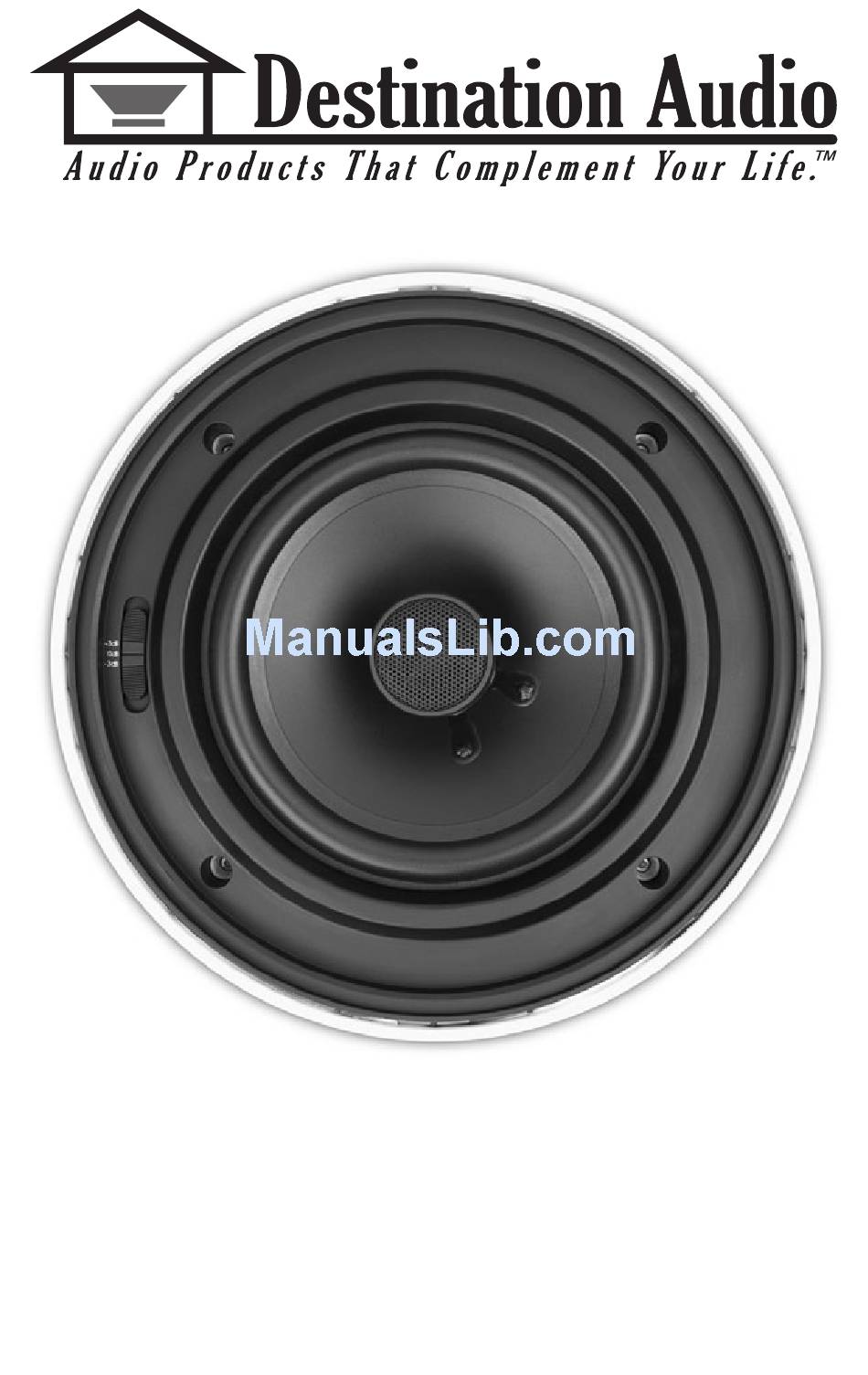

- Page 1 QT605 THIN LINE IN-CEILING QUICK MOUNT 2-WAY SPEAKER I n s t a l l a t i o n & O p e r a t i o n M a n u a l...
-
Page 3: Break-In Period
Introduction Congratulations on your purchase of an Destination Audio QT605 thin line in- ceiling 2-way speaker! Your speaker is the result of many years of research and development dedicated to producing high quality products for home audio and audio/video systems. - Page 4 Painting the Speakers A paint shield is included with your QT605 speaker. This shield can be used to protect the speaker when painting the speaker rim (frame). If you plan to paint your speaker, we recommend that it be done prior to installation.
-
Page 5: Speaker Placement
With nearly endless placement options, careful consideration for placement of the QT605 in-ceiling speaker needs to be considered, as installation requires cutting a hole in your wall or ceiling! When using the QT605 in home theater applications follow the guidelines illustrated below. -
Page 6: Installation
Installation CAUTION: Be certain there are no electrical wires, water pipes, heating ducts or any other obstructions in the planned area of installation before starting to drill or cut into the ceiling or wall. If there is an electrical outlet nearby, turn off the circuit breaker to avoid possible injury. - Page 7 Installation (continued) 8. Using the supplied grille adhesive, apply an ample amount of adhesive around the grille. Gently push the grille onto the speaker securing the grille to the speaker. 9. To remove the speaker, insert the L-shaped tool’s hex-end into the tab hole to engage cam mechanism, turn counterclockwise until cam locks in open position.
-
Page 8: Specifications
Specifications Model: QT605 Series: Builders Thin Line Quick Mount System Type: In-ceiling 2-way Speaker Frequency Response: 56Hz-20kHz ±3dB Sensitivity: 88dB (2.83V/1 meter) Recommended Power: 2-60 Watts Woofer(s): (1) 6½” (165mm) Polypropylene Cone Tweeter(s): (1) 1” (25mm) Swivel Fabric Dome Crossover Frequencies:... -
Page 9: Troubleshooting
Warranty Your QT605 In-ceiling 2-way speaker is covered by a limited warranty against defects in materials and workmanship for a period of 10 years. This warranty is provided by the authorized Destination Audio dealer where the speaker was purchased. - Page 10 This page was left blank intentionally...
- Page 12 382 Marshall Way, Layton, Utah • USA • 84041 Phone: (801) 660-2400 • Fax: (801) 543-3300 www.destinationaudio.com It is Destination Audio policy to continuously incorporate improvements into our products; all specifications are subject to change without notice. Copyright © 2010 Destination Audio. All Rights Reserved.
