Performance
Intelligent Scanner
User Instructions
7/05
American DJ
®
4295 Charter Street
Los Angeles CA. 90058
www.americandj.com

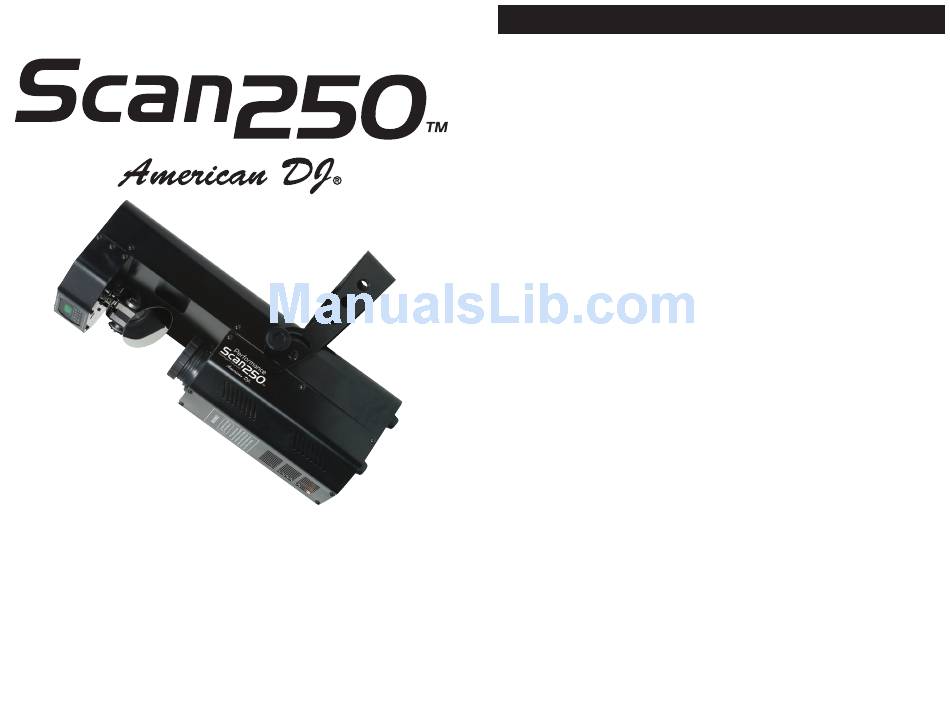

Performance Scan 250™
Unpacking:
Thank you for purchasing the Performance Scan 250™
by American DJ
. Every Performance Scan 250™ has been thoroughly
®
tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your
fixture for any damage and be sure all equipment necessary to oper-
ate the unit has arrived intact. In the event damage has been found
or parts are missing, please contact our toll free customer support
number for further instructions. Please do not return this unit to your
dealer without first contacting customer support.
Introduction:
The Performance Scan 250™ is a six channel DMX
intelligent scanner that uses 11 colors, 7 rotating gobo patterns,
(seperate wheels) and a 250w lamp to create a bright and colorful light
show. This unit can also run as a stand alone, sound-active unit, or
in a Master/Slave configuration. The Performance Scan 250
with several built in programs and is best used in multiples of four. For
best results use fog or special effects smoke to enhance the beams
projections.
Customer Support:
American DJ
support line, to provide help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.americandj.com for any comments or
suggestions. Service Hours are Monday through Friday 9:00 a.m. to
5:00 p.m. Pacific Standard Time.
Voice:
(800) 322-6337
Fax:
(323) 582-2610
E-mail:
support@americandj.com
Warning!
To prevent or reduce the risk of electrical shock or fire, do
not expose this unit to rain or moisture.
Caution!
There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ
.
®
American DJ
- www.americandj.com - Performance Scan 250™ Instruction Manual Page 2
®
General Information
™
comes
provides a toll free customer
®
