CONNECTING EXTERNAL VIDEO SOURCES
CONNECTING EXTERNAL VIDEO SOURCES
The exact arrangement you use to connect the Video Cassette Recorder, Video Disc
Player and Video Camera to your TV set is dependent on the model and features of
each component. Check the Owner's Manual of each component for the location of its
video and audio inputs and outputs. The following connection diagrams are offered as
suggestions. However, you may need to modify them to accommodate your particular
assortment of components and features. For best performance, video and audio cables
should be made from coaxial shielded wire.
Before Operating External Video Source

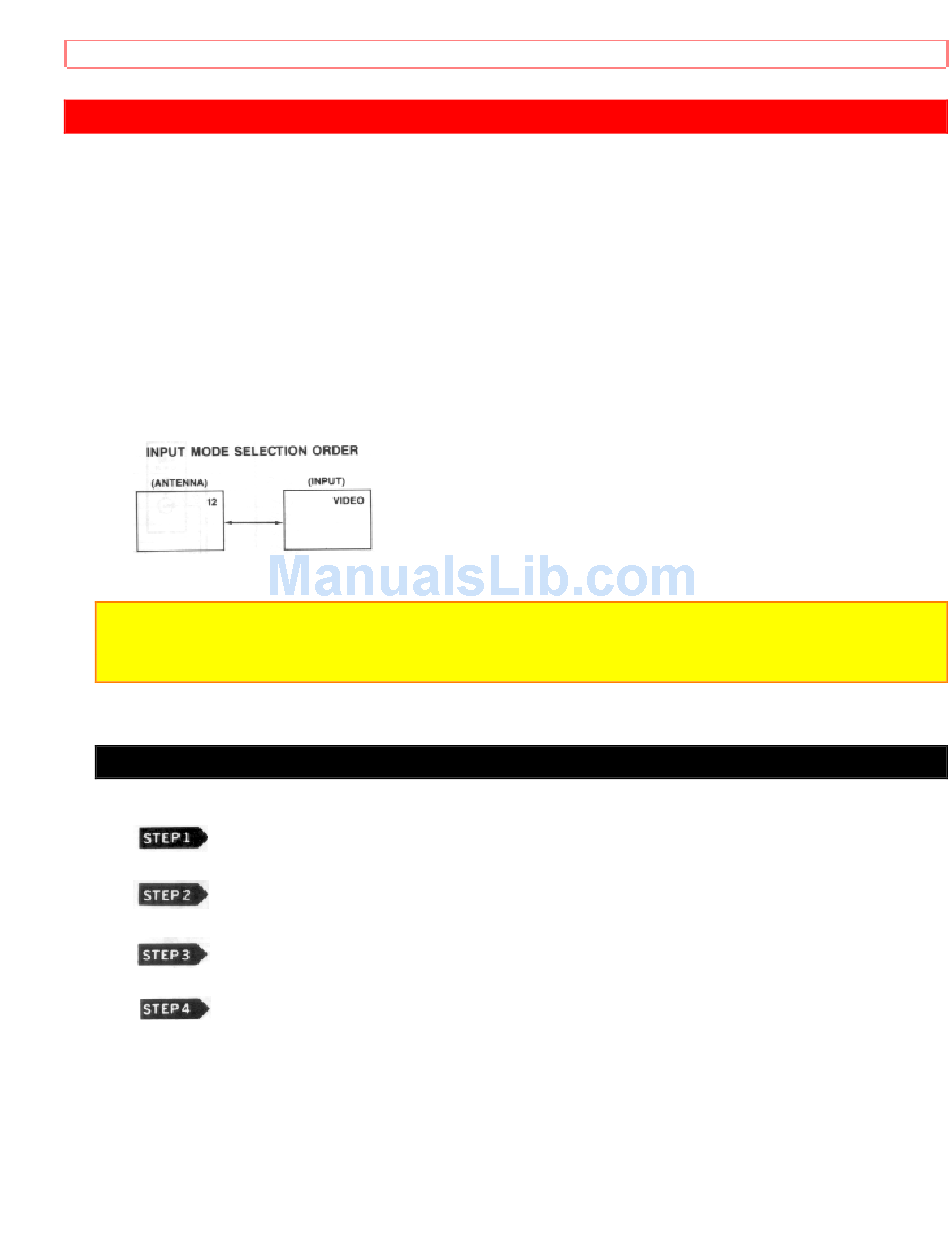

The input mode is changed every time the AVX button is pressed as shown below.
Connect External Video source to the INPUT terminal, then press AVX button as
necessary to view the input source.
NOTE: When the TV is set to "VIDEO" and a video signal is not received from VIDEO
INPUT JACK on the back panel of the TV (i.e., VCR/Video Disc Player, etc. is not
connected or the video input device is OFF), the screen will be blank gray or blue in color.
CONNECTING MONAURAL AUDIO VCR or VIDEO DISC PLAYER
Player to the INPUT (VIDEO) jack on the TV set. (Fig. 1)
(MONO)/L (AUDIO) jack. (Fig. 1)
Player. The video mode "VIDEO" disappears automatically after approx. 8 seconds.
Connect the cable from the VIDEO OUT of the VCR or the Video Disc
Connect the cable from the AUDIO OUT of the VCR to the INPUT
Press the AVX button to view the program from the VCR or the Video Disc
Press the AVX button to return to the previous channel.
31
