Attache PID-100 User Manual

For notebook computers

Hide thumbs

User's Manual

The anytime, anywhere scanner for notebook computers.

Table of Contents

Need help?

Do you have a question about the PID-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Attache PID-100

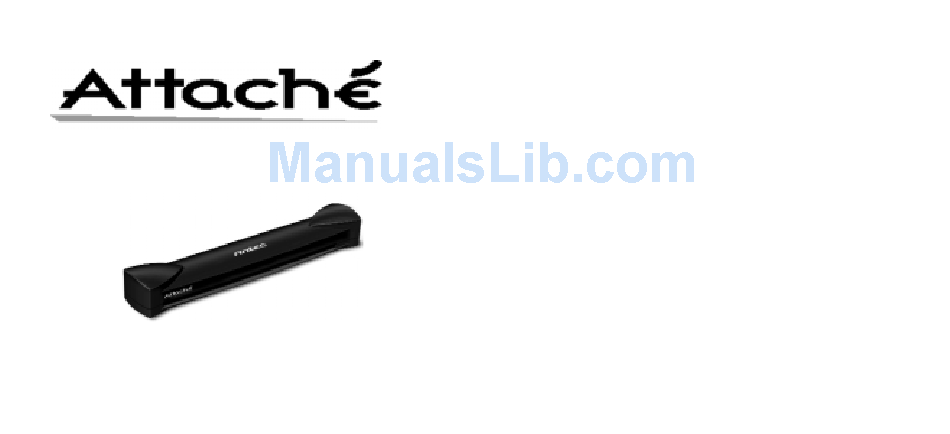

Page 1 User’s Manual The anytime, anywhere scanner for notebook computers.
Page 2 Attaché User's Manual DECLARATION OF CONFORMITY We Antec Incorporated, 47900 Fremont Blvd, Fremont, CA 94538 USA, Telephone: 510-770-1200, declare under our sole responsibility that the produc Trademarks IBM, PC and VGA are registered trademarks of International Business PID - 100 Machines Corporation.
Page 3 Attaché User's Manual Installation and Calibration Trademarks 1. Insert the CD>select CD device>run Setup. IBM, PC and VGA are registered trademarks of International Business 2. Follow the installation instructions. Machines Corporation. 3. Connect the Attaché with the PCMCIA interface card. MMX is a registered trademark of Intel Corporation.
Page 4 Pre-defined Setting 9. Attaché set-up is now complete. You may begin to scan images now. Whenever you click [Acquire] from the pull down menu, the "Pre-defined Setting" window will appear. Insert the document to the side with arrow marks on the Attaché. Attaché...
Page 5 • [Fax] Mode Fax mode is the best choice to scan documents to be faxed. It scans in 200dpi black/white, A4 size {8.3² x 11.7²} • [E-Mail] Mode It scans in 150 dpi gray, A4 size {8.3² x 11.7²} • [OCR] Optical Character Recognition Mode To scan documents to be processed by OCR software and convert them into editable text.
Page 6 Custom Setting • Click on the [Zoom +/-] box to zoom in the image. Click on the [Range] box to exit the zoom mode. To customize your own scan setting, Click on the [Custom Setting] tab to go • Click on the [Unit] button to change the scan size from inches to to the custom setting window.
Page 7 • Brightness: This is for B/W mode only. The brightness value ranges Information Window from -100% to 100%. It changes the highlight value of an image when Useful information related to the Attaché and TWAIN driver software can scanning in B/W mode. be found in this window.
