Operating Instructions & Parts Manual
PLeASe ReAD AnD SAVe tHeSe InStRUCtIOnS.
maintain the product described. Protect yourself and others by observing all safety information. Failure to comply
with instructions could result in personal injury and/or property damage! Retain instructions for future reference.
24" & 30" Quiet Design
Oscillating Wall Mount
Designed for cooling workers in factories, warehouses, manufacturing facilities and garages where
humid and demanding conditions exist. All circulator heads have high efficiency corrosion resistant
propellers with steel blades. Circulator heads utilize a vertical tilt/locking adjustment for directional
flow. Wire guards are black power-coated steel and comply with OSHA Standard 1910.212 (1/2"
maximum opening). All circulator heads are oscillating that sweep through a 45° or 90° arc.
Unpacking
1. Inspect for any damage that may have occurred during transit.
2. Shipping damage claim must be filed with carrier.
3. Check all bolts, screws, setscrews, etc. for looseness that
may have occurred during transit. Retighten as needed.
A

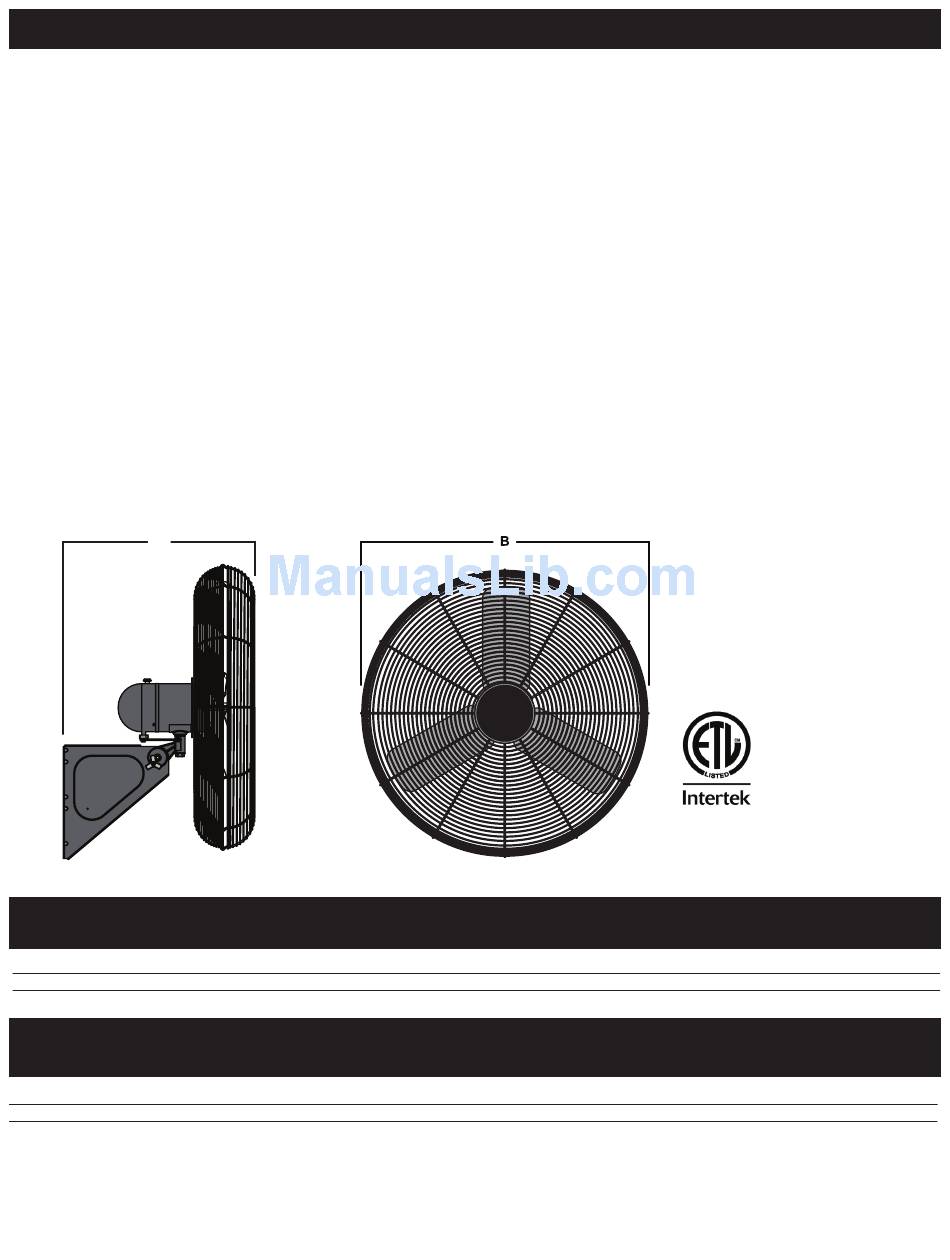

Oscillating Dimensions and Specifications
Prop.
Model
Dia.
99539
24"
99538
30"
Prop.
Motor
Model
Dia.
RPM
99539
24"
1025/880/480
99538
30"
1010/860/530
2
A
B
Volts
20 1/4"
26 3/4"
120
20 1/4"
33 3/8"
120
CFM
HP
High
Med
1/4
5030
4320
1/4
7450
6090
Read carefully before attempting to assemble, install, operate or
Hz
Speeds
60
3
60
3
Air Velocity
Low
@ 20 Ft. (FPM)
2280
500/350/220
3450
700/520/300
Printed in U.S.A.
New 5/11
Models: 99538, 99539
Fan
Blades
Mounting Accessory
3
Wall Mount
3
Wall Mount
Sones @
Operating
0.000SP
Amps
7.7/5.7/1.8
2.3/1.6/0.6
6.7/5.4/2.0
2.3/1.6/0.6
2
Full Load
Amps
3.5
3.7
5085459
