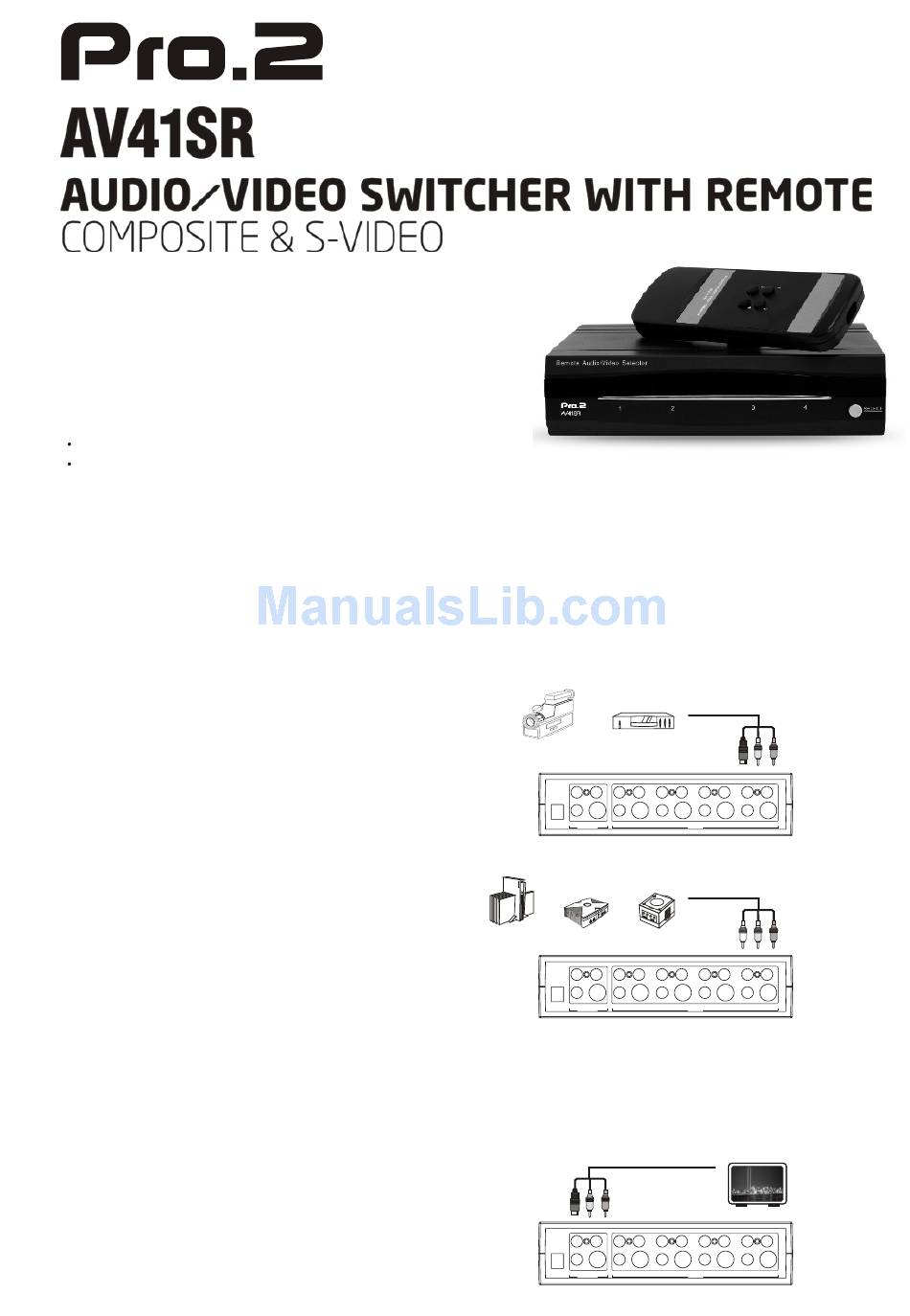

Pro2 AV41SR Quick Manual

GETTING STARTED

Follow these instructions to expand the use of audio/video
in your home.This audio video switch can be your best
companion device.

WHAT YOU WILL NEED

Be sure you have the following items(not included with product)
to connect the Video Switch:
S-Video cable and Audio RL Cable
Stereo AV cable
Note: S-Video and Video is exclusive. It means that you can
only choose S-Video or Video

CONNECTING AV COMPONENT TO AV SWITCH

This switch is S-Video ,Video and Audio switch. the S-Video and Video is exclusive. That it means
you can only use selection between your 4 inputs and 1 output in the same format, i.e. Video IN and Video
OUT. S-Video IN and S-Video Out.

S-Video + Audio RL connection

1.Take a S-Video cable connect from the S-Video Output terminal of video component to one of the
S-Video input terminal of AV switch
Note: S-Video has specialized orientation, please make
sure that you match the orientation. And plug
this S-Video connector gently into S-Video jacket.
Otherwise you will broke the S-Video connector
of your S-Video cable or S-Video jacket.
2.Take a Audio RL cable connect from the Audio Output
terminals of video component to one of the same
Audio input terminals of AV switch in STEP1
3.Repeat STEP 1-2, for each S-Video and audio
component you wish to connect (up to four)

Stereo A/V connection

1.Connect a stereo A/V Cable from the A/V output
jackets of component to one of the input jackets of
the audio and video switch. Making sure to matching
the yellow, red and white plugs and jackets
on each end.
2.Repeat step one for each A/V component you wish
to connect (up to four)

CONNECT AV SWITCHER TO TELEVISION

S-video + Audio RL connection
1.Take a S-Video cable connect from the S-Video Output terminal of AV switch to of the S-Video input
terminal of TV
Note: S-Video has specialized orientation, please make
sure that you match the orientation. And plug
this S-Video connector gently into S-Video jacket.
Otherwise you will broke the S-Video connector
of your S-Video cable or S-Video jacket.
2.Take a Audio RL cable connect from the Audio Output
terminals of AV switch to Audio input terminals of TV
OR
DVD DVD
Camcorder
DVD Player or VCR
AUDIO VIDEO AUDIO VIDEO AUDIO
L L L
R R R
DC 9V A/V OUT S-VIDEO A/V IN4 S-VIDEO A/V IN3
OUTPUT
OR OR
PS2 X-Box GC
AUDIO VIDEO AUDIO VIDEO AUDIO
L L L
R R R
DC 9V A/V OUT S-VIDEO A/V IN4 S-VIDEO A/V IN3
OUTPUT
AUDIO VIDEO AUDIO VIDEO AUDIO
L L L
R R R
DC 9V A/V OUT S-VIDEO A/V IN4 S-VIDEO A/V IN3
OUTPUT
VIDEO AUDIO VIDEO AUDIO VIDEO
L L
R R
S-VIDEO A/V IN2 S-VIDEO A/V IN1 S-VIDEO
INPUT
VIDEO AUDIO VIDEO AUDIO VIDEO
L L
R R
S-VIDEO A/V IN2 S-VIDEO A/V IN1 S-VIDEO
INPUT
TV
VIDEO AUDIO VIDEO AUDIO VIDEO
L L
R R
S-VIDEO A/V IN2 S-VIDEO A/V IN1 S-VIDEO
INPUT
