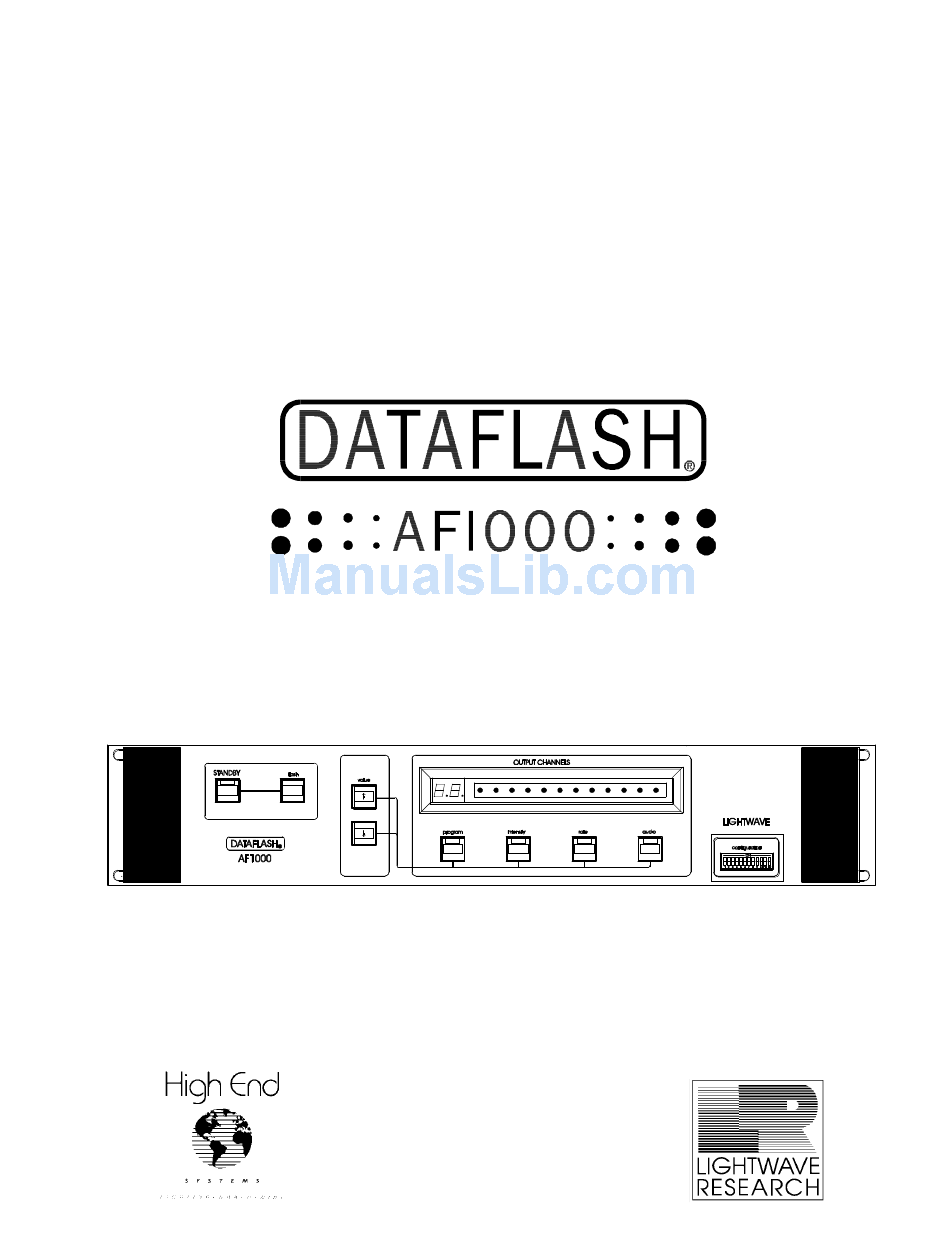

- Page 1 Mini Controller for the Xenon Strobe Fixture User’s Manual ® High End Systems Inc. 2217 West Braker Lane S Y S T E M S Austin, Texas U.S.A.
- Page 2 Trademarks used in this text: DATAFLASH , Lightwave Research , and the Lightwave Research logo are registered trademarks; and High End Systems and the High End Systems Logo are trademarks of High End Systems Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
-
Page 3: Table Of Contents
Save the Shipping Materials ... 1-1 Inspect the Contents... 1-1 Before You Begin ... 1-2 System Configuration and Set Up ... 1-2 AF1000 Switch Settings ... 1-2 Mini Controller Switch Settings ... 1-4 System Set Up and Cabling ... 1-4 Chapter 2 Mini Controller Operation... - Page 4 Audio Mode ... 2-7 Audio Parameters... 2-7 Audio Rate or Intensity Manipulation ... 2-8 Appendix A Troubleshooting and Maintenance... A-1 Support Checklist... A-1 Possible Problems and Solutions ... A-2 Mini Controller Reset ... A-3 Mini Controller ROM Version Number ... A-3 General Maintenance and Cleaning ...
- Page 5 Table ADM.4 Available Programs for Four Fixtures ...ADM-4 Table ADM.5 Available Programs for Five Fixtures...ADM-5 Table ADM.6 Available Programs for Six Fixtures ...ADM-6 Table ADM.7 Available Programs for Seven Fixtures ...ADM-7 Table ADM.8 Available Programs for Eight Fixtures ...ADM-8 Table ADM.9 Available Programs for Nine Fixtures ...ADM-9 Table ADM.10 Available Programs for Ten Fixtures ...ADM-10 Table ADM.11 Available Programs for Eleven Fixtures...ADM-11 Table ADM.12 Available Programs for Twelve Fixtures...ADM-12...
- Page 6 Mini Controller User’s Manual TOC-4...
-
Page 7: Appendix B Warranty Information
Introduction Congratulations and thanks for selecting the Mini Controller for the DATAFLASH® AF1000 Xenon Strobe Fixture from Lightwave Research®. About This Manual This manual provides the means to setup and operate Mini Controller. This manual is organized in the following sections: Introduction—introduces you to this manual, the Mini Controller, provides... -
Page 8: Safety Instructions
Overview The Mini Controller for the DATAFLASH AF1000 strobes is a powerful compact device that can control up to 12 channels of AF1000 strobes through 24 channels of USITT DMX-512 protocol. The intensity levels of the applicable channels are conveniently displayed by 12 LEDs. All programs can be edited for live control of the AF1000 strobes. -
Page 9: Getting Help
Getting Help High End Systems Service provides a help line should you encounter any problems during your installation or initial operation. Currently, service hours are 9 a.m. to 6 p.m. (Central), Monday through Friday. The numbers are: Voice lines: (512) 837-3063 or (800) 890-8989... -
Page 10: Mini Controller Reference
Mini Controller Reference Figure 1. Front and Rear Panels of the Mini Controller Mini Controller User’s Manual Intro-4... - Page 11 1. < > STANDBY 2. < > flash 3. Up/down arrow keys 4. < > program 5. < rate > 6. < intensity > 7. < > audio 8. Value display 9. Program hold indicator LED 10. Audio beat indicator LED 11.
- Page 12 Mini Controller User’s Manual Intro-6...
-
Page 13: Installation And Setup
Chapter 1 Installation and Setup In this chapter you will: unpack the Mini Controller configure AF1000 strobes configure Mini Controller install the controller’s cables Unpacking In this section you unpack your Mini Controller and verify that it arrived complete and without any damage. -
Page 14: Before You Begin
2. Check the label on the back of the controller to ensure that the voltage is correct for your location. 3. Do not place the Mini Controller on the same circuit with the AF1000 strobes, as doing so may result in erratic actions by the controller. -
Page 15: Table 1.2 Dmx Address Switch Setting
Notes: if a DMX channel is accidentally set for an even channel number, the Intensity and Rate functions will be reversed causing the strobe to behave erratically. The Mini Controller can control more than twelve strobes, but additional AF1000 strobes must be set at duplicate addresses with other existing strobes. > and <... -
Page 16: Mini Controller Switch Settings
DIP switches To set the DIP switches, simply turn on the switch that corresponds to the number of available AF1000 strobes. For example, if you have eight strobes, set switch < > to the On position and leave all other switches in the Off position. -
Page 17: Figure 1.3 System Cabling
Connect an XLR cable to the rear of the Mini Controller and run it to the first AF1000. Daisy chain the desired number of fixtures together. Refer to Figure 1.3. Note: fixture termination is not required. Figure 1.3. System Cabling... -
Page 18: Figure 1.5 Connecting The Audio Cable
Caution: Never connect a speaker level signal (cable from an amplifier output) to Note: a built in summing circuit combines the left and right signals together. Apply power to the Mini Controller and AF1000 strobes. Installation and setup is now complete. If you are experiencing any problems, refer to Appendix A for possible solutions. -
Page 19: Mini Controller Operation
Lightning Programs. Each program’s Rate and Intensity may be manipulated to cater to individual needs. Also, audio synchronization functions are available to trigger the ignition of the AF1000 strobes. Complete program layout and explanations are included at the end of this manual in the Addendum. The Addendum will take precedence over program information contained in this Chapter. -
Page 20: Standby Mode
A special feature of the Mini Controller is Flash Mode. Hold the < flash > key down to ignite all AF1000 strobes at full Intensity for .125 seconds (60 Hz) or .15 seconds (50 Hz). The < > key may be pressed repeatedly or until the... -
Page 21: Program Hold
Program Hold Program Hold allows another program to be selected without affecting the current program being run. Program Hold is initiated by holding down the < > key and using the arrow keys to pre-select another program. The program Program Hold Indicator (LED between the 7-segment LEDs in the value display) will illuminate to confirm this mode is active. -
Page 22: Random Function Programs
Random Function Programs Immediately following the Standard Programs are three Random Function Programs. This set of programs is not dependant upon the number of assigned channels. Random Function Programs are annotated by value display. This set of programs perform the following actions: •... -
Page 23: Intensity
Intensity The < intensity > key changes the brightness of the AF1000 strobes. There are three sets of Intensity parameters: Incremental, Program Functions, and Function Advance. Incremental There are 64 Incremental Intensity parameters. These parameters are annotated on the display by through brightest. -
Page 24: Function Advance
Rate The < rate > key allows access to the Rate at which the controller advances steps within every program. There are three sets of Rate parameters: Incremental, Program Functions, Function Advance. Incremental There are 99 Incremental parameters for Rate. These parameters are annotated on the display by fastest Rate. -
Page 25: Function Advance
Audio Mode The Audio feature allows audio triggering and synchronization control of the AF1000 strobes. Press the < audio through the audio parameters. Note: if any of the following parameters are selected, Audio Mode will disable itself ( ) so it will not to conflict with any actions of these parameters: •... -
Page 26: Audio Rate Or Intensity Manipulation
Audio Rate or Intensity Manipulation Within each audio parameter, there are nine functions for Program, Rate and Intensity manipulation. These functions are annotated as the display. Refer to Table 2.3 and the Addendum for the purpose of these functions. Note: Audio Function 9 will override Standby Mode when used with a Lightning Program. -
Page 27: Appendix A Troubleshooting And Maintenance
Troubleshooting and Maintenance This Appendix provides directions for troubleshooting problems that may have occurred from improper setup or configuration of the Mini Controller and the AF1000 strobes. Before calling for technical assistance, follow the recommended procedures in this Appendix to solve many of the common possible problems. -
Page 28: Possible Problems And Solutions
3-channel DMX mode some fixtures are set for 3- channel DMX mode Solution apply power call High End Systems Technical Support for service instructions reset controller to the correct number of DIP switches call High End Systems... -
Page 29: Mini Controller Reset
Volt Ohm meter–replace or repair cable a speaker level signal has contact High End Systems been sent to the audio Technical Support connector audio signal is too strong reduce audio signal >, <... - Page 30 Mini Controller User’s Manual...
-
Page 31: Appendix B Warranty Information
Lamps are covered by the lamp manufacturer's warranty. Any Product unit or parts returned to High End Systems must be packaged in a suitable manner to ensure the protection of such Product unit or parts, and such... - Page 32 CONNECTION WITH ANY PRODUCT OR CAUSED BY PRODUCT DEFECTS OR THE PARTIAL OR TOTAL FAILURE OF ANY PRODUCT REGARDLESS OF THE FORM OF ACTION, WHETHER IN CONTRACT, TORT, (INCLUDING NEGLIGENCE), STRICT LIABILITY, OR OTHERWISE, AND WHETHER OR NOT SUCH DAMAGE WAS FORESEEN OR UNFORESEEN.
-
Page 33: Addendum
Mini Controller. Program Mode This section provides reference tables to view the number of available programs you have available based upon the number of connected AF1000 luminaires. Standard Programs Table ADM.1: Available Programs for One Fixture Display... -
Page 34: Table Adm.2 Available Programs For Two Fixtures
Display ADM-2 Mini Controller User’s Manual Table ADM.2: Available Programs for Two Fixtures Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase maximum duration individual ramp up and down with Intensity incrementing by 4 individual ramp up and down with Intensity incrementing by 2 crossfade between fixtures... -
Page 35: Table Adm.3 Available Programs For Three Fixtures
Table ADM.3: Available Programs for Three Fixtures Display Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down with Intensity incrementing by 4 individual ramp up and down with Intensity... -
Page 36: Table Adm.4 Available Programs For Four Fixtures
Table ADM.4: Available Programs for Four Fixtures Display ADM-4 Mini Controller User’s Manual Steps Description all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down with Intensity incrementing of 4... -
Page 37: Table Adm.5 Available Programs For Five Fixtures
Table ADM.5: Available Programs for Five Fixtures Display Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down with Intensity incrementing of 4 individual ramp up and down with Intensity... -
Page 38: Table Adm.6 Available Programs For Six Fixtures
Display ADM-6 Mini Controller User’s Manual Table ADM.6: Available Programs for Six Fixtures Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction ramp up and down, with Intensity incrementing by 2... -
Page 39: Table Adm.7 Available Programs For Seven Fixtures
Table ADM.7: Available Programs for Seven Fixtures Display Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction individual ramp up and down, Intensity incrementing by... -
Page 40: Table Adm.8 Available Programs For Eight Fixtures
Table ADM.8: Available Programs for Eight Fixtures Display ADM-8 Mini Controller User’s Manual Steps Description all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction... -
Page 41: Table Adm.9 Available Programs For Nine Fixtures
Table ADM.9: Available Programs for Nine Fixtures Display Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction multiple fixtures ramp up and down, Intensity... -
Page 42: Table Adm.10 Available Programs For Ten Fixtures
Table ADM.10: Available Programs for Ten Fixtures Display ADM-10 Mini Controller User’s Manual Steps Description all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction... -
Page 43: Table Adm.11 Available Programs For Eleven Fixtures
Table ADM.11: Available Programs for Eleven Fixtures Display Steps all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction individual ramp up and down, Intensity incrementing by... -
Page 44: Table Adm.12 Available Programs For Twelve Fixtures
Table ADM.12: Available Programs for Twelve Fixtures Display ADM-12 Mini Controller User’s Manual Steps Description all flash minimum duration all flash maximum duration single fixture chase minimum duration single fixture chase minimum duration, reverse direction single fixture chase maximum duration single fixture chase maximum duration, reverse direction individual ramp up and down individual ramp up and down, reverse direction... -
Page 45: Random Function Programs
Random Function Programs Table ADM.13: Random Functions Display multiple fixtures will flash in a random pattern, but only one fixture will flash at maximum Intensity at a time single fixtures will flash in a random pattern and randomly go to full Intensity all fixtures will flash in a random pattern, one fixture at a time (sequentially) at random intensities Advance Programs... -
Page 46: Table Adm.16 Intensity Parameters
Intensity Parameters Use the following table for the descriptions of the parameters available through the < > key. intensity Rate Parameters Use the following table for the descriptions available through the < ADM-14 Mini Controller User’s Manual Table ADM.16: Intensity Parameters Display Description 1 –... -
Page 47: Table Adm.18 Audio Parameters
Audio Parameters Use the following table for the description of the parameters available through the < > key. audio Table ADM.18: Audio Parameters Display – – Audio mode is disabled no program advancement, step advancing on beat no program advancement, four steps advanced per beat no program advancement, beat causes maximum Rate, otherwise Rate is medium no program advancement, beat causes maximum Rate, tapers... - Page 48 ADM-16 Mini Controller User’s Manual Display Description program advancement every four beats, beat causes program to reset to the first step program advancement every beat program advancement every beat, step advancing on beat program advancement every beat, four steps advanced per beat program advancement every beat, beat causes maximum Rate, otherwise Rate is medium...
