Hanna Instruments HI 981404 Instruction Manual

Instruction Manual
(HI 981404N and HI 981405N)
pH & TDS/EC Monitors
These Instruments are in
http://www.hannainst.com
Compliance with the CE Directives
WARRANTY
HI 981404N and HI 981405N are warranted for one year
against defects in workmanship and materials when used for their in-
tended purpose and maintained according to instructions. The probes
are warranted for a period of six months. This warranty is lim-
ited to repair or replacement free of charge.
Damages due to accident, misuse, tampering or lack of prescribed
maintenance are not covered.
If service is required, contact the dealer from whom you purchased the
instrument. If under warranty, report the model number, date of pur-
chase, serial number and the nature of the failure. If the repair is not
covered by the warranty, you will be notified of the charges incurred. If
the instrument is to be returned to Hanna Instruments, first obtain a
Returned Goods Authorization Number from the Customer Service de-
partment and then send it with shipment costs prepaid. When shipping
any instrument, make sure it is properly packaged for complete protec-
tion.
To validate your warranty, fill out and return the enclosed warranty card
within 14 days from the date of purchase.
All rights are reserved. Reproduction in whole or in part is prohibited
without the written consent of the copyright owner, Hanna Instru-
ments Inc., Woonsocket, Rhode Island, 02895 , USA.
Hanna Instruments reserves the right to modify the design, construction
and appearance of its products without advance notice.
Dear Customer,
Thank you for choosing a Hanna product. This manual will
provide you with the necessary information for the correct
operation of the meter. Please read it carefully before using
the meter. If you need additional technical information, do
not hesitate to e-mail us at tech@hannainst.com.
These instruments are in compliance with the directives.
PRELIMINARY EXAMINATION
Remove the instrument from the packing material and
examine it carefully. If any damage has occurred during
shipment, immediately notify your Dealer or the nearest
Hanna Customer Service Center.
The meter is supplied with:
• HI 1286 pH electrode
• HI 1283 grounding probe
• HI 7634 TDS probe (for HI 981404N)
• HI 7632 EC probe (for HI 981405N)
• Calibration screwdriver
• 12 VDC power adapter
Note: Conserve all packing material until the instrument
has been observed to function correctly. Any defective
item must be returned in its original packing.
GENERAL DESCRIPTION
HI 981404N (pH and TDS) and HI 981405N (pH and EC)
are specially designed to meet the needs of simple continuous
monitoring.
You can simply install the meter above the sample to be
tested for continuous measurement.
The HI 1286 gel-filled pH electrode is replaceable and the
BNC connector is protected behind a waterproof sheath. The
unique design of the electrode provides longer life in aggres-
sive solutions.
The meter is equipped with two large LCDs which make easy
to read measurements from distance at any time.
Measurements are accurate and the meter can be cali-
brated at one or two points for pH and at a single point for
TDS and EC.
You no longer need to worry about battery changes either:
the unit runs without interruption on 12 VDC supplied
adapter.

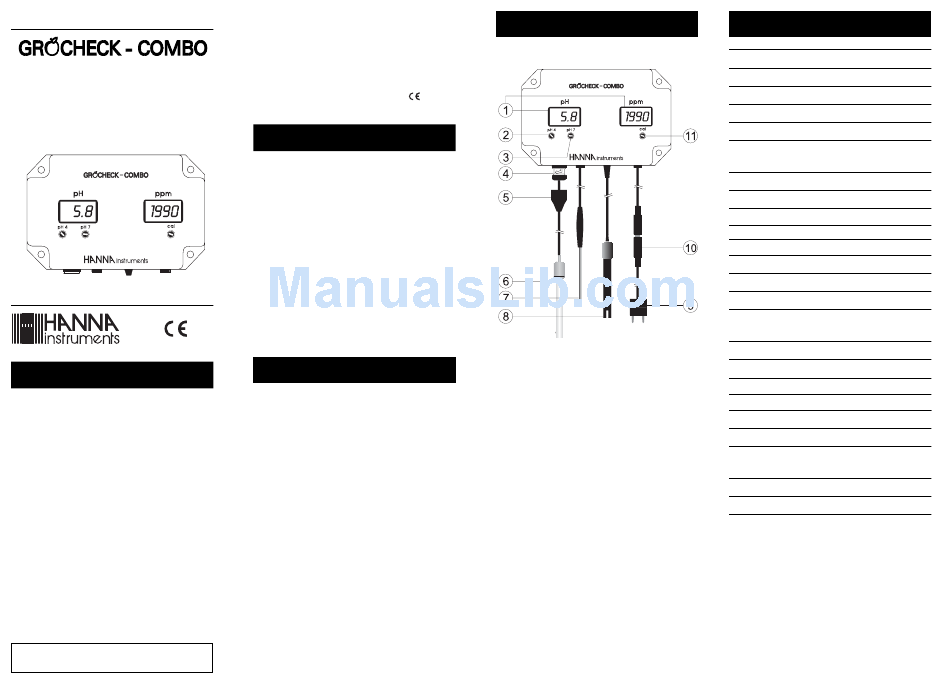

FUNCTIONAL DESCRIPTION
1. Liquid Crystal Displays
2. pH 4.0/10.0 calibration trimmer
3. pH 7.0 calibration trimmer
4. BNC connector
5. Protective sheath
6. HI 1286 pH electrode
7. HI 1283 grounding probe
8. HI 7632 TDS probe or HI 7634 EC probe
9. 12 VDC power adapter
10. Power supply connector
11. EC/TDS calibration trimmer
SPECIFICATIONS
HI 981404 and HI 981405
Range 0.0 to 14.0 pH
Resolution 0.1 pH
Accuracy (@ 25°C/77°F) ±0.2 pH
Calibration Manual at 1 or 2 points
Probes HI 1286 replaceable pH electrode and
HI 1283 grounding probe (included)
Power supply External 12 VDC (adaptor included)
Dimensions 165 x 110 x 35 mm (6.5 x 4.3 x 1.4'')
Weight 300 g (10.6 oz.)
HI 981404 only
Range 0 to 1990 mg/L (ppm)
Resolution 10 mg/L (ppm)
Accuracy ±2% f.s.
(@ 25°C/77°F)
TDS Factor 0.7 ppm = 1 µS/cm
Temp. Compensation Automatic from 5 to 50°C
(41 to 122°F, TDS only)
Calibration Manual at 1 point
Probe HI 7634 TDS probe (included)
HI 981405 only
Range 0.00 to 9.99 mS/cm (EC)
Resolution 0.01 mS/cm (EC)
Accuracy (@ 25°C/77°F) ±2% f.s.
Temp. Compensation Automatic from 5 to 50°C
(41 to 122°F, EC only)
Calibration Manual at 1 point
Probe HI 7632 EC probe (included)
Recommendations for Users
Before using this product, make sure that it is entirely suitable for the environment in
which it is used. Operation of this instrument in residential areas could cause unacceptable
interferences to radio and TV equipment.
The glass bulb at the end of the electrode is sensitive to electrostatic discharges. Avoid touching
the bulb at all times. During operation, ESD wrist straps should be worn to avoid possible damage
to the electrode by electrostatic discharges.
Any variation introduced by the user to the supplied equipment may degrade the instrument's
EMC performance.
To avoid electrical shock, do not use this instrument when voltage at the measurement surface
exceeds 24 VAC or 60 VDC. To avoid damage or burns, do not perform any measurement in
microwave ovens.
