Summary of Contents for Summit SPD1205

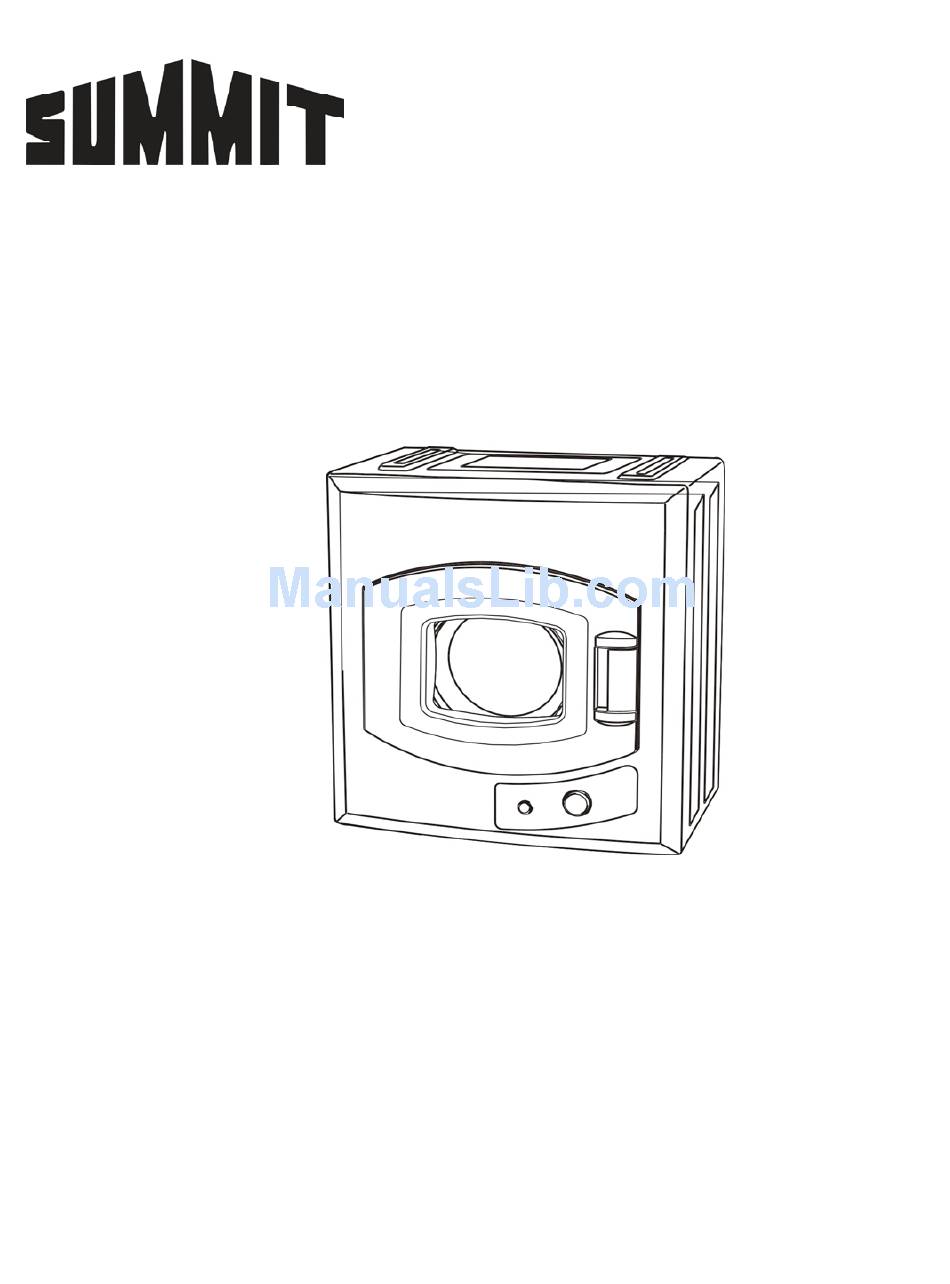

- Page 1 COMPACT ELECTRIC DRYER Model SPD1205 Use & Care Guide Before using this machine, please read and follow all safety rules and operating instructions. Felix Storch, Inc. Summit Appliance Division 770 Garrison Avenue Bronx, New York 10474 www.summitappliance.com...
-
Page 2: Introduction
Congratulations on your purchase of Summit's SPD1205 Compact Electric Dryer. You will find it lives up to the high standards set by Summit for all of its products. To get the most out of your dryer, please read this Use & Care Guide carefully. It will help you to operate and care for this appliance properly and safely. -
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ............... 1 Important Safety Instructions .......... 3 Location of Parts ............... 4 Installation Instructions ..........5 - 7 Before Using Your Appliance ........5 Selecting a Location ..........5 Wall-Mounting Instructions ........6 Connecting the Exhaust Duct ........7 Adjusting the Leveling Legs ........ -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Warning: To reduce the risk of fire, electrical shock or injury when using your appliance, follow these basic precautions: Read all instructions before using the appliance. DANGER: Risk of child entrapment! Child entrapment and suffocation are not problems of the past. Junked or abandoned appliances are still dangerous, even if they will "just sit in the garage for a few days". -
Page 5: Location Of Parts
LOCATION OF PARTS Lint filter (at back of drum) -
Page 6: Installation Instructions
(ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or authorized Summit service center. 8. Make sure the dryer does not stand on its power cord. -
Page 7: Wall-Mounting Instructions
Wall Mounting Instructions We strongly recommend that the following procedure be completed with at least 2 persons. Tools and parts required for installation on plaster or wood: Drill and drill bit Phillips head screw driver 4 wood screws, 2" long Wall-mounting kit (included): 2 brackets 2 hooks... -
Page 8: Connecting The Exhaust Duct
Connecting the Exhaust Duct Only rigid or flexible metal ducting should be used for exhaust ventilation. 1. Place the exhaust fitting over the exhaust vent in the upper right corner of the back of the appliance. See Fig. 3 on the previous page. The opening of the fitting should point down for a downward exhaust, and up for an upward exhaust. -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS Control Panel Timer Selector Knob... -
Page 10: Drying Time Reference Chart
Drying Time Reference Chart Load weights and respective drying times are approximate. Drying Load Drying Times High Heat Low Heat 3 lbs 30 minutes 55 minutes 5 lbs 60 minutes 110 minutes 7 lbs 120 minutes 9 lbs 200 minutes Sorting Fabrics For the best drying results, clothes should be sorted properly. -
Page 11: Shrinkage
Shrinkage Knitted fabrics in particular are liable to shrink. Do not use the Extra Dry program for these materials, and always stretch them out directly after drying. Dryer-Added Fabric Softeners Because some dryer-added fabric softeners may cause damage to automatic dryers, use only ones for which the manufacturers give a written assurance that their softeners can be used safely in your dryer. -
Page 12: Fabric Care Chart
Fabric Care Chart (212°F) (203°F) (140°F) (104°F) (86°F) in cold water (392°F) (302°F) -
Page 13: Care And Maintenance
CARE AND MAINTENANCE Cleaning the Exterior of the Appliance Wipe the dryer surfaces, including the control panel, with a soft cloth and non- abrasive household detergents. Use a soft cloth to dry the surfaces. Do not pour water on the dryer. Cleaning the Filters Unplug the power cord prior to any cleaning. -
Page 14: Troubleshooting
TROUBLESHOOTING You can solve many common appliance problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service provider. Troubleshooting Guide Problem Possible cause / solution Timer knob will not rotate. - Page 15 NOTES...
-
Page 16: Limited Warranty
LIMITED WARRANTY Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is operated and maintained according to instructions attached to or furnished with the product, warrantor will pay for factory-specified parts and repair labor to correct defects in materials or workmanship.
