LE220EM3
22" LCD TV
LE190EM3
19" LCD TV
EN Owner's Manual
ES Manual del Propietario
FR Manuel du Propriétaire
EN Need help?
Please call toll free or visit our web site below
ES ¿Necesita ayuda?
Llame por favor sin costo ó visite nuestro sitio web en
FR Besoin d'aide?
Appelez notre numéro gratuit ou visitez notre site web à l'adresse
1 866 309 8819
www.emersonaudiovideo.com
Advertisement
Table of Contents
Related Manuals for Emerson Emerson LE220EM3
Summary of Contents for Emerson Emerson LE220EM3

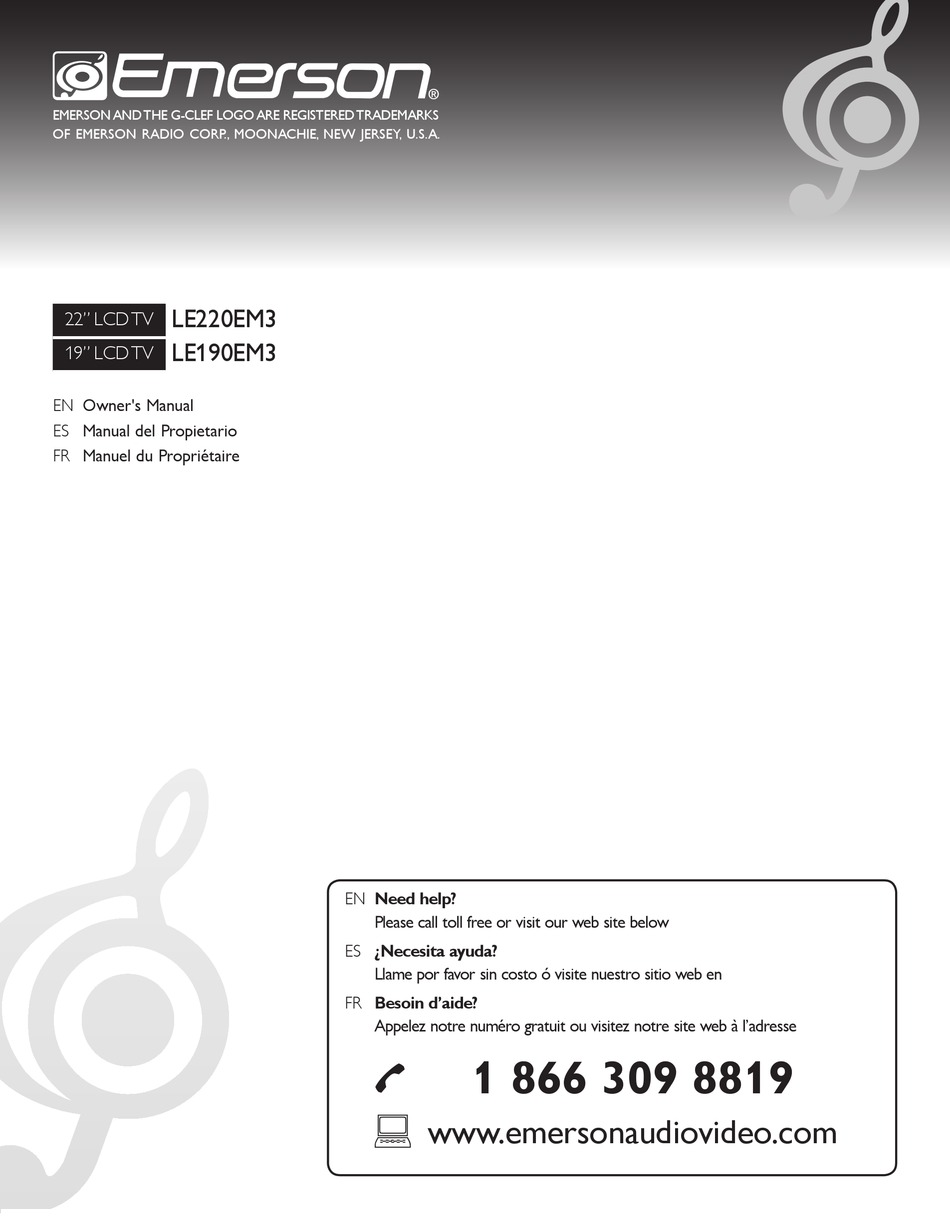

- Page 1 EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A. LE220EM3 22” LCD TV LE190EM3 19” LCD TV EN Owner's Manual ES Manual del Propietario FR Manuel du Propriétaire EN Need help? Please call toll free or visit our web site below ES ¿Necesita ayuda? Llame por favor sin costo ó...
-
Page 2: Table Of Contents
English Contents 1 Notice 6 Upgrade your TV software Checking your current software version 2 Important Upgrading the software Positioning the TV 7 Connecting devices Regulatory notices Environmental care Selecting your connection quality Connecting your devices 3 Get started 8 Useful tips Features Supplied accessories Symbols used in this Owner’s Manual Troubleshooting Attaching the base Mounting the unit on your furniture... - Page 3 English Return your Product Registration Card or visit at www.emersonaudiovideo.com today to get the very most from your purchase. Registering your model with Emerson makes you eligible for all of the valuable benefits listed below, so don't miss out. Complete and return your Product Registration Card at once or visit at www.emersonaudiovideo.com to ensure: *Product Safety Notification *Additional Benefits By registering your product, you'll receive notification -...
-
Page 4: Important Safety Instructions
GROUND CLAMPS POWER SERVICE GROUNDING ELECTRIC SERVICE ELECTRODE SYSTEM EQUIPMENT (NEC ART 250, PART H) Wall Mount Bracket Kit Funai is not liable for these types of accidents or injury noted below. Brand: SANUS • Install the Wall Mount Bracket on a sturdy vertical wall. Model # Screw dimension •... -
Page 5: Notice
EMERSON and the G-CLEF logo are registered trademarks of Emerson The user could lose the authority to operate this apparatus if an Radio Corp. in the U.S. and Canada, used under license by Funai Electric unauthorized change or modification is made. -
Page 6: Important
English 2 Important Environmental care Positioning the TV • Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV. The packaging of this product is intended to be recycled. • Make sure to hold the upper and bottom Contact your local authorities for information about how to recycle the frames of the unit firmly as illustrated. -
Page 7: Get Started
English 3 Get started Supplied accessories Owner’s Manual Quick Start guide Registration card Features Quick Start IMPORTANT • DTV / Analog TV / CATV Y ou can use your remote control to select channels which are broadcast in Digital format and conventional Analog format. Also, cable subscribers can access their cable TV channels. Information display • Y ou can display the title, contents (DTV only) and other information of the Remote Control and TV base and screws current program on the TV screen. -
Page 8: Attaching The Base
English Attaching the base Managing cables You must attach the base to the unit to have it as a table top unit. Route your antenna cable and all other cables through the cable Be sure the front and rear of the base match the proper direction. management tie at the back of the TV. -
Page 9: Remote Control
English (POWER-ON / STANDBY-ON) Remote control P ress to Turn the unit On and go into Standby mode. To completely Turn Off the unit, you must unplug the AC power cord. AUTO MODE C ycles through preset picture and sound settings. FREEZE Press to freeze screen image. 0 − 9 (NUMBER buttons) Press to select channels. • (DOT) Press to shift the subchannel from the main channel. PREV.CH Press to return to the previously viewed channel. CH + / − Press to select channels. D igital Mode (DTV) : Press to select the Audio language. Analog Mode (Analog TV) : Press to select the Audio mode. -
Page 10: Control Panel
English VOL ◄/► Control panel Touch to adjust volume down (◄) / up (►) or to move left (◄) / right (►) when selecting menu items. CH ▲/▼ Touch to select channels or to move up (▲) / down (▼) when selecting menu items. MENU Touch to display the main menu. -
Page 11: Connecting The Antenna Or The Cable
English Connecting a set-top box, Blu-ray disc / DVD recorder Connecting the antenna or the cable via composite connectors and Analog Audio Be sure your antenna or other device is connected properly before Do not place your recorder too close to the screen because some plugging in the AC power cord. recorders can be susceptible to signals. If you connect to an antenna through RF cable cable Any DTV programs that are broadcasted in your area can be received for free through an antenna connection. -
Page 12: Initial Setup
English Use ▲▼ to select the desired location setting, then press OK. These operations are accessible by remote control. Some may also be accessible by control panel on the main unit. Home is ENERGY STAR qualified setting. ® Initial setup Initial setup Retail Location Home is recommended for normal home use Home... -
Page 13: Use Your Tv
English 4 Use your TV Switching channels Switching on your TV and putting it in standby mode To Turn Power On or to Turn Standby On • Touch or press . on the front panel or the remote control. Note • Energy consumption contributes to air and water pollution. When the AC power cord is plugged in, your TV consumes energy. Your TV has very low standby power consumption. -
Page 14: Watching Channels From An External Device
English Watching channels from an external device Sleep timer Switching Each Input Mode can easily switch with the remote control Sleep Timer can set the unit to go into Standby mode after an between TV (DTV or Analog TV) and external devices when they are incremental period of time. connected to the unit. Turn On a set-top box or the connected device. • The picture from your set-top box or the connected device might appear automatically on the TV screen. If the picture does not appear Press SLEEP repeatedly to change the amount of Sleep 120min. time (increases the time by 30 minutes up to 120 minutes). Press SLEEP once to call up the display for checking the remaining time. • To cancel sleep timer, press SLEEP repeatedly until Off is displayed. P ress SOURCE repeatedly to select the set-top box or the connected device and wait a few seconds till the picture appears. e.g.) Source 11.1 HDMI1 HDMI2 Freeze mode HDMI1 DTV / AnalogTV HDMI2 channel... -
Page 15: Switching Audio Mode
English For 16:9 video signal Switching audio mode Normal Movie expand Full can also be selected after Wide if an HDMI device is selected. This picture format similarly displays like Normal. DigitalTVoperation Full Wide Zoom (HDMI device only) Press SAP to display the currently selected 11.1 Normal Original size. -
Page 16: Tv Screen Information
English TV screen information You can display the currently selected channel or other information such as the aspect ratio on the TV screen. In the Digital mode, the detailed broadcasting information for the current off the air channel such as program title and program guides are displayed. -
Page 17: Use More Of Your Tv
English 5 Use more of your TV This section describes the overview of the main menu displayed when you press MENU. The main menu consists of the function setting items below. Displaying the main menu Press MENU to display the main menu. Use ▲▼ to select the desired menu and an item, then press OK or use ▲▼◄► to determine the setting. -
Page 18: Picture
English *You can set a particular about picture quality in Advanced settings. Picture Picture Color alignment Normal Before you begin: Sound Noise reduction You must set Home in Location. p. 26 ➠ Setup Black stretch Otherwise, personalized picture and sound settings will not be Features Dynamic contrast memorized after the unit goes into Standby mode. -
Page 19: Sound
English Sound Setup Before you begin: Before you begin: You must set Home in Location. p. 26 Make sure the unit is connected to antenna or cable. ➠ Otherwise, personalized picture and sound settings will not be Press MENU and use ▲▼ to select Setup, then press OK. memorized after the unit goes into Standby mode. -
Page 20: Channel List
English • When the scanning and memorizing are completed, the lowest Add channels memorized channel will be displayed. Autoprogram This function lets you add the off the air Analog TV or Analog Cable channels that were not added by the autoprogram due to reception Please wait while the system is scanning for channels. -
Page 21: Features
English Analog/CableTVoperation Features Select if you do not want caption service. The primary caption and text services. The CC-1 Press MENU and use ▲▼ to select Features, then press OK. captioning or text is displayed in the same language as the program’s dialog (up to 4 lines of script on the TV screen). -
Page 22: Child And Ratings Lock
English Note Picture Channel lock • Digital caption service that you can switch differs depending on the broadcast Sound US movie ratings lock description. • Caption style will not effect if the User setting is set to Off. Setup US TV ratings lock •... - Page 23 English To set the sub ratings Setting US movie and TV ratings As for TV-Y7, TV-PG, TV-14 or TV-MA, you can further set the sub US movie ratings lock is the rating system created by MPAA. ratings to block specific elements of programming. To set the sub ratings, US TV ratings lock has controlled access to individual programs based follow the step below.
-
Page 24: Pc Settings
English Canadian English or Canadian French ratings PC settings You can select the rating for Canadian English or Canadian French This function lets you adjust the PC screen position, clock and phase broadcasting. during PC Input. Use ▲▼ to select Canadian English rating or Use ◄► to adjust Clock setting to stabilize the PC screen and Phase Canadian French rating, then press OK. -
Page 25: Fun-Link (Hdmi Cec)
English Device list fun-Link (HDMI CEC) This function lets you see the product model number or name of This function allows you to operate the linked functions between our connected devices. brand devices with a fun-Link feature and this unit connecting through Use ▲▼ to select the desired fun-Link devices listed on the TV screen, an HDMI cable. -
Page 26: Setting Your Location To Home
English Setting your location to home Language You can set the location of your TV to Home or Retail. Choosing Home gives you full flexibility to change predefined settings for picture and sound. Press MENU and use ▲▼ to select Language, then press OK. Use ▲▼... -
Page 27: Usb
English Picture (JPEG) Use ▲▼ to select the desired file, then press OK. Your TV is fitted with a USB connection that enables you to view Your USB Picture Picture photos or watch Motion JPEG files stored on a USB Memory Stick. Image1.jpg Picture Connect the USB Memory Stick to the USB terminal on the side of... -
Page 28: Upgrade Your Tv Software
English 6 Upgrade your TV software Warning • When the software upgrade is running, don’t press any buttons. • Do not remove the USB Memory Stick during the software upgrade. • If an error occurs during the upgrade, retry the procedure or for further assistance, Emerson continuously tries to improve its products and we strongly please contact Call Center. -
Page 29: Connecting Devices
English 7 Connecting devices Connecting your devices HDMI Digital connection No supplied cables are used with these connections: HDMI connection offers the highest picture quality. • Please purchase the necessary cables at your local store. HDMI (High-Definition Multimedia Interface) transports high definition Before you connect AC power cord: Digital video and multi-channel Digital Audio through a single cable. - Page 30 English Component Analog Video Connection Digital Audio Output Connection Component Analog Video connection offers better picture quality for If you connect this unit to an external Digital Audio device, you can video devices connected to the unit. enjoy multi-channel audio like 5.1ch Digital broadcasting sound. If you connect to the unit’s Component Video (Y/Pb/Pr) Input jacks, Use a Digital Audio coaxial cable to connect the unit to external Digital connect Analog Audio cables to the Analog Audio (L/R) Input jacks.
- Page 31 English The following video signals can be displayed: PC connection Format Resolution Refresh rate HDMI connection 640 x This unit can be connected to your PC that has a HDMI terminal. Use an HDMI cable for this Digital connection. SVGA 800 x 60Hz 1,024 x 1,280 x...
-
Page 32: Useful Tips
English 8 Useful tips Question Answer My remote control does not • Check the antenna or cable connection to the main unit. work. • Check the batteries of the remote control. What should I do? • Check if there is an obstacle between the infrared sensor window and the remote control. •... - Page 33 English Symptom Remedy Power is ON but no screen • Check whether the connection of the antenna, cable receiver or satellite box is connected correctly. image. • Check whether all the cables to the unit are connected to the correct Output jack of your device like Blu-ray disc / DVD recorder. •...
-
Page 34: Information
English 9 Information Glossary Maintenance Cabinet Cleaning Analog TV (NTSC) Acronym that stands for National Television Systems Committee and the name • Wipe the front panel and other exterior surfaces of the unit with of Analog broadcasting standards. a soft cloth. Off the air Analog TV signals are no longer being sent by major broadcasting •... -
Page 35: Specifications
English 10 Specifications Model # LE220EM3 / LE190EM3 Picture Type WXGA (1366 x 768 pixels 60Hz) Aspect ratio 16:9 Viewing angles 160° (V) by 170° (H) Built-in Digital tuner ATSC / NTSC Sound Mono / Stereo Mono, Stereo, SRS Sound Power Output (RMS watts) 2W x 2 Equalizer... -
Page 36: Warranty
(b) to damage caused by service performed by anyone other than company approved Authorized Service Location, (c) to a product This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province. FUNAI CORPORATION, Inc. 19900 Van Ness Avenue, Torrance, CA 90501... - Page 37 EMERSON AND THE G-CLEF LOGO ARE REGISTERED TRADEMARKS OF EMERSON RADIO CORP., MOONACHIE, NEW JERSEY, U.S.A. FUNAI CORPORATION, Inc. 19900VanNessAvenue, Torrance, CA90501 A2171UT/A21N1UT...
