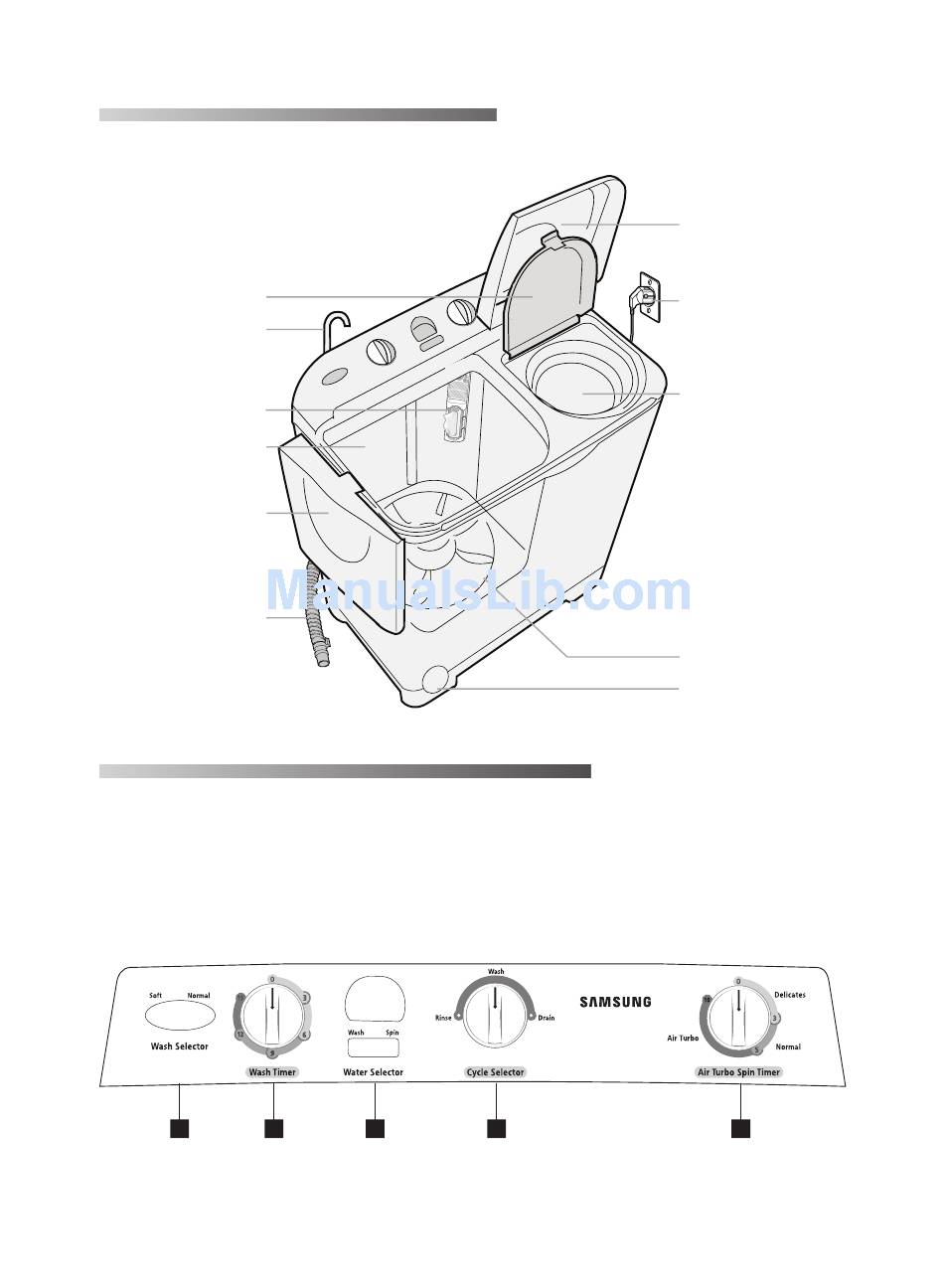

INNER LID
DRAIN HOSE
(WITH PUMP)
LINT FILTER
WASH TUB
WASH TUB LID
Be sure to keep the
lid closed during
washing and
spinning.
WATER DRAIN HOSE
(WITHOUT PUMP)
1. WASH SELECTOR
This is used to select wash action.
2. WASH TIMER
This is used to set the wash time, 1-15 minutes.
3. CYCLE SELECTOR
This is used to select the Washing / Rinsing or
draining.
1
WT80J7-02206A_EN.indd 2
2 5

DESCRIPTION OF PARTS

CONTROL PANEL

4. AIR TURBO SPIN TIMER
This is used to set the spin time, 1-10 minutes.
5. WATER SELECTOR
During washing, WATER SELECTOR KNOB should
be selected to wash. During spin rinsing, WATER
SELECTOR KNOB should be selected to spin.
3
2
SPIN DRYER LID
When you open this
lid while the spin
basket is spinning,
the spinning will be
stopped by brake
system.
POWER CORD
The plug's shape may
not correspond with
this drawing.
SPIN DRYER BASKET
PULSATOR
DRAIN FILTER
(WITH PUMP)
4
