HDD PLAYER
User's Manual
HDP1 Player

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AdView HDP1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Admart AdView HDP1

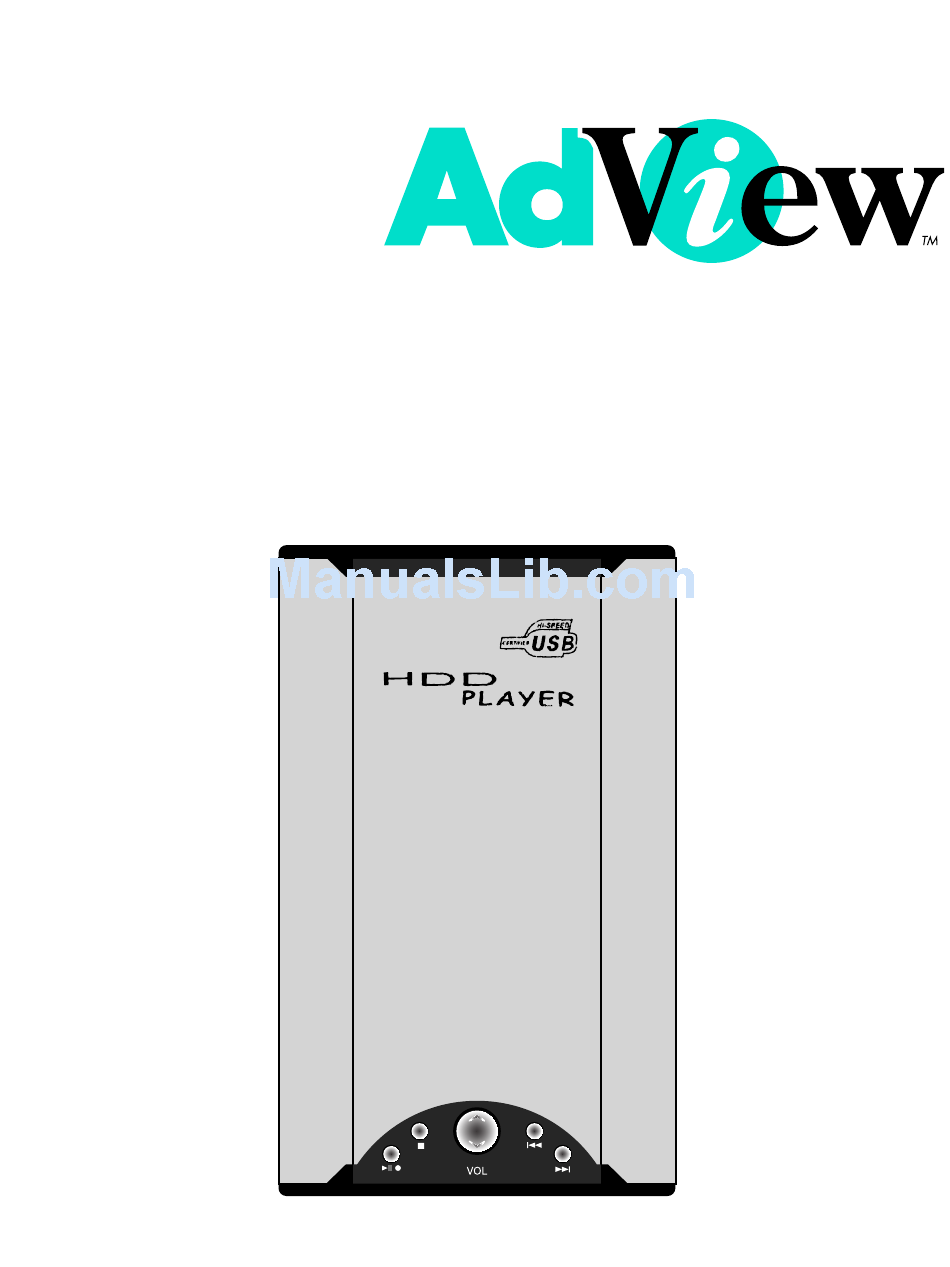

  • Page 1 HDD PLAYER User’s Manual HDP1 Player...

  • Page 2: Table Of Contents

    CONTENTS 1. Introductions ........................3 1.1 HDP1 Player ........................3 2. Warnings and Suggestions ....................3 2.1 Safety Precautions ......................3 2.2 Troubleshooting ......................3 2.3 Warranty ......................... 4 3. System Requirements ......................4 4. Operation Guide ........................4 4.1 Ports and Buttons Overview ................... 4 4.2 Remote Control .......

  • Page 3: Introductions

    1. Introductions This user’s manual covers operational instructions and technical specifications for Adview HDP1 Player. Please read it carefully prior to turning on the unit. 1.1 HDP1 Player This is no ordinary hard disk player. This unit has been custom designed for digital signage and has these special features.

  • Page 4: Warranty

    2.3 Warranty Our warranty does not cover the following: 1. Removed or altered serial number label 2. Damage as a result of natural disasters Disasters such as floods, fires, winds, earthquakes or lightening 3. Misuse or abuse, any modification or alternation Improper installation or maintenance Used with an unauthorized accessory 3.

  • Page 5: Remote Control

    4.2 Remote Control - Please insert two AAA batteries (included) before use. Remote control operation range: Within 23 ft. from front panel , angle <=60 4.3 Remote Control Button Overview HDP1 Player Function 1. POWER ........Turns the unit on or off 2.

  • Page 6: Content Transfer

    4.4 Content Transfer 1. DC Power supply must be unplugged from HDP1 player. 2. Connect USB 2.0 jack into USB Input/Output port on back of HDP1 player. 3. Connect other USB jack into USB port on computer, it may be located in the front or back.

  • Page 7: Display Content Via Vga

    4.6 Display Content via VGA 1. Plug DC Power Supply into outlet and jack into DC Port on HDP1. 2. To display content via VGA, plug VGA Cable Jack from display device into VGA Output Port on HDP1player. 3. If content was previously displayed via AV, press VGA/TV key on remote to switch to VGA Output. 4.

  • Page 8: System Parameters

    5. System Parameters 5.1 Supported File Formats Photo: JPEG (file must have * .jpg extension. If left as * .jpeg it will not play) Music: MP3 ( file must have * .mp3 extension); CD-DA files Video: MPEG 1 (VCD), including MPG & DAT files MPEG 2 (DVD), including MPG &...

  • Page 9: Setup Menu-Tv Type

    5.3.3 SETUP MENU—TV TYPE SETUP MENU—TV TYPE SETUP MENU TV DISPLAY • MULTI. SYSTEM (Supports NTSC and PAL signals) TV TYPE TV TYPE MULTI. SYSTEM • NTSC (Dominant standard in United States) OSD LANG NTSC • PAL (Dominant standard in Europe) EXIT SETUP 5.3.4 SETUP MENU—OSD LANG SETUP MENU...

  • Page 10: Specifications

    7. Specifications HDP1 Power Supply DC 5.6V 800MA Power Consumption Auto/NTSC/PAL Video System 132X80X19mm Dimension 215g Weight MPEG4, DVD, SVCD, VCD, JPEG, MP3, CD-DA Playable Program Formats 1Vp-p +/-0.1 (75ohm) Video Output 2.0 Vrms +/-0.3V Audio Output Frequency Response 20Hz - 22kHz >=90dB (1kHz 0dB) S/N Ratio Dynamic Range...
