Owner's Manual & Safety Instructions
Save This Manual
inspection, maintenance and cleaning procedures. Write the product's serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual and
the receipt in a safe and dry place for future reference.
18 Volt
Cordless
3/8" Drill/Driver
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-800-444-3353 as soon as possible.
©
Copyright
2012 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly and service may not be included.
Keep this manual for the safety warnings and precautions, assembly, operating,
Visit our website at: http://www.harborfreight.com
Email our technical support at: tech@harborfreight.com
®
. All rights reserved.
Read this material before using this product.
Failure to do so can result in serious injury.
SaVE thiS manual.
ITEM 69651
ITEM 69651
Advertisement
Table of Contents
Related Manuals for Drill Master 69651
Summary of Contents for Drill Master 69651
- Page 1 No portion of this manual or any artwork contained herein may be reproduced in Failure to do so can result in serious injury. any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing SaVE thiS manual.
- Page 2 2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes. Page 2 For technical questions, please call 1-800-444-3353. Item 69651...
-
Page 3: Electrical Safety
Power tools are dangerous in the hands of untrained users. Item 69651 For technical questions, please call 1-800-444-3353. Page 3... -
Page 4: Drill Safety Warnings
These carry important safety information. If unreadable or missing, contact 11. People with pacemakers should consult their Harbor Freight Tools for a replacement. physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause 5. Avoid unintentional starting. -
Page 5: Vibration Safety
If any abnormal seek medical advice as soon as possible. vibration occurs, stop use immediately. SaVE thESE inStRuCtiOnS. Item 69651 For technical questions, please call 1-800-444-3353. Page 5... -
Page 6: Extension Cords
WARNING marking concerning Risk Risk of Explosion. of Eye Injury. Wear ANSI-approved Do not puncture, short, or open safety goggles with side shields. battery packs and do not charge damaged battery packs. Page 6 For technical questions, please call 1-800-444-3353. Item 69651... - Page 7 Parts List and Diagram on page 11. Functions Torque Adjustment Ring Direction Switch Work Light Keyless Chuck Trigger Battery Button Red LED Battery Pack Charger Green LED Figure a Item 69651 For technical questions, please call 1-800-444-3353. Page 7...
- Page 8 Chuck counterclockwise, if needed, and place the desired drill bit or screw driver bit into the drill between the Chuck Jaws. Page 8 For technical questions, please call 1-800-444-3353. Item 69651...
-
Page 9: Operating The Drill
9. Remove the Battery Pack. 4. If drilling a hole, hold the Drill above the area to drill. 10. Clean then store the Drill indoors and out of children’s reach. Item 69651 For technical questions, please call 1-800-444-3353. Page 9... -
Page 10: Troubleshooting
NIOSH-approved dust mask/respirator while blowing dust out of motor using compressed air. Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect Battery pack and Charger power supply before service. Page 10 For technical questions, please call 1-800-444-3353. Item 69651... - Page 11 Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts. Item 69651 For technical questions, please call 1-800-444-3353. Page 11...
- Page 12 90 Day Warranty Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase.
Need help?
Do you have a question about the 69651 and is the answer not in the manual?
Questions and answers
Who carries a replacement battery, Harbor Fright doesn't carry them anymore. Master Drill drill,model 69651 Thanks Jeff
You can find a replacement battery for the Drill Master model 69651 from retailers that sell compatible Drill Master batteries, such as those offering 18V lithium-ion battery packs. Make sure the battery matches the voltage and connector type of model 69651.
This answer is automatically generated

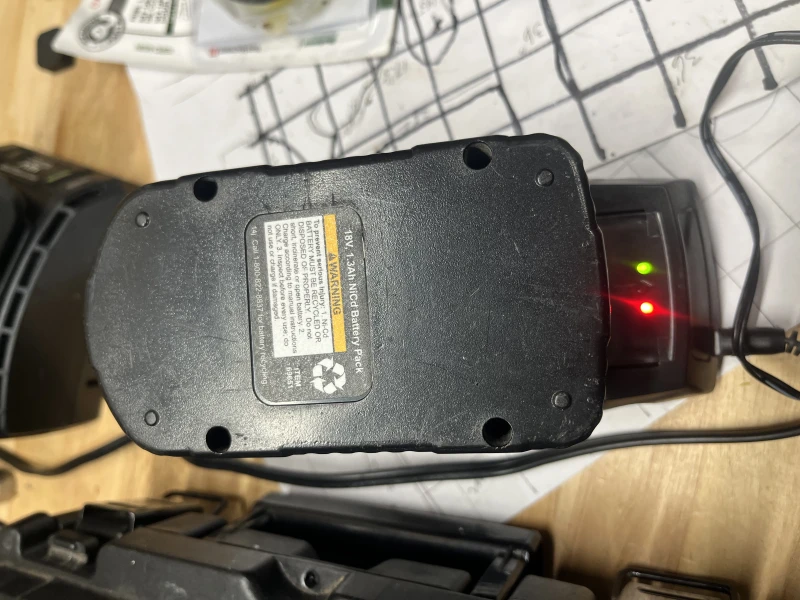

When charging a dead battery both the red and green lights come on solidly but battery isn’t charged. Is this normal? If not what does it mean?
The manual states that the red LED will light continuously when the Battery Pack is charging, and the green LED will light when the battery is fully charged. If the battery is not charging, it may indicate a problem such as a damaged battery pack, incorrect battery type, or improper connection.
This answer is automatically generated
I have a Drill Master electric frill. I am trying to find a replacement battery, Item 69651.
