Summary of Contents for Nady Systems PSS-150

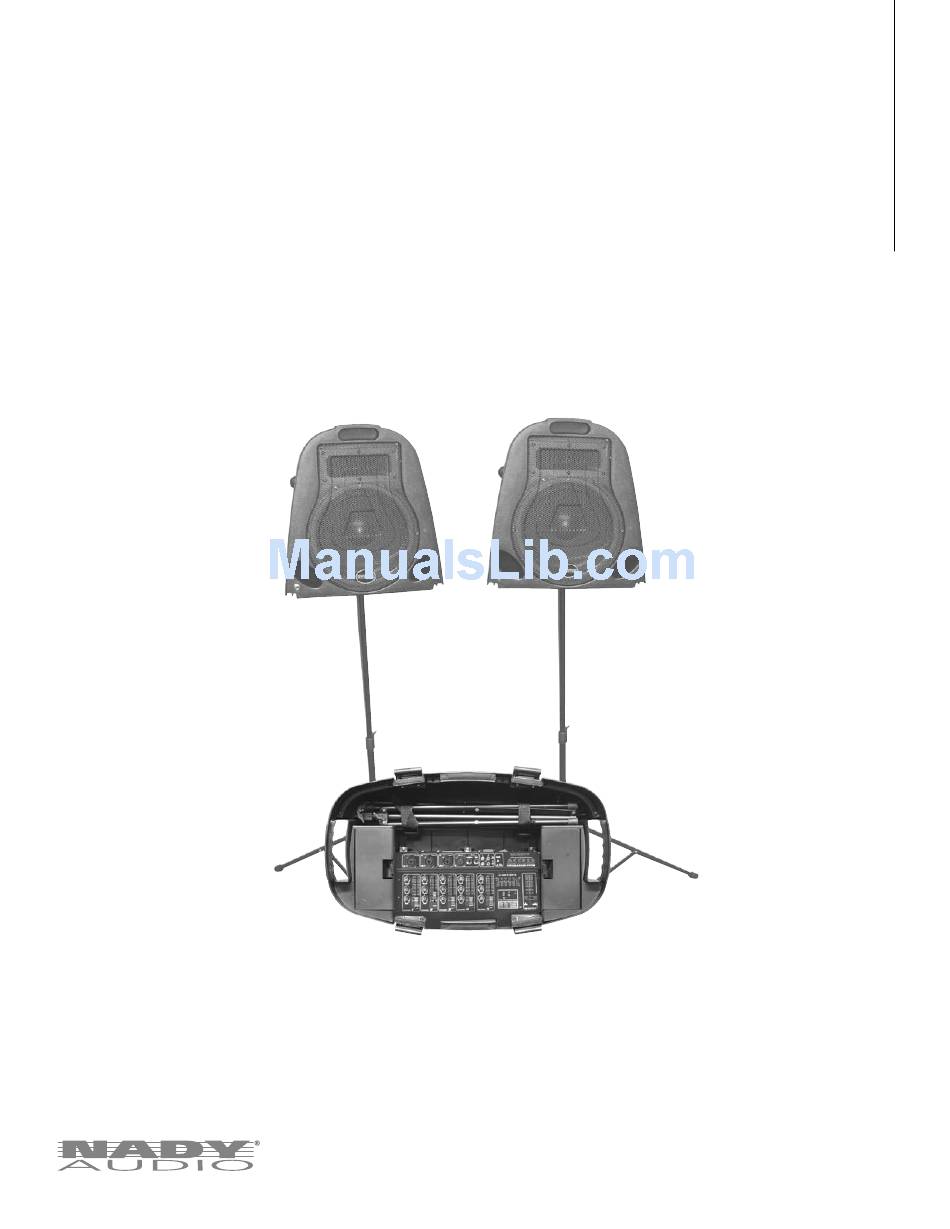

  • Page 1 PSS-150 Portable Sound System Owner’s Manual...
  • Page 2: Table Of Contents

    �ear Panel Controls & Connections Specifications Congratulations on your choice of a portable sound system — you have purchased one of the finest portable sound systems on the market today. This unit was developed using the expertise of professional sound engineers and working musicians. You will find that your new NADY AUDIO portable sound systems has superior performance and greater flexibility than any other portable sound systems in its price range. Please read this manual carefully to get the most out of your new unit. Thanks for selecting NADY AUDIO as your choice in portable sound systems. Features • Convenient portable PA package with luggage-style handle and wheels for easy transport • 5-Channel stereo 150W �MS powered mixer AMA™ (Automatic Maximum Amplitude) limiter speaker protection • Stereo two-way speaker system with 10” woofer and piezoelectric tweeter horn, two speaker cables, and two folding speaker stands •...
  • Page 3: Warning

    Warning When using this electronic device, basic precautions should always be taken, including the following: �ead all instructions before using the product. Do not use this product near water (e.g., near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool, etc.). This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling. This product, in combination with headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist. The product should be positioned so that proper ventilation is maintained. The product should be located away from heat sources such as radiators, heat vents, or other devices (including amplifiers) that produce heat. The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product. Replace the fuse only with one of the specified type, size, and correct rating. The power supply cord should: (1) be undamaged, (2) never share an outlet or extension cord with other devices so that the outlet’s or extension cord’s power rating is exceeded, and (3) never be left plugged into the outlet when not being used for a long period of time. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure’s openings. The product should be serviced by qualified service personnel if: The power supply cord or the plug has been damaged. Objects have fallen into, or liquid has been spilled onto the product. The product has been exposed to rain. The product does not appear to operate normally or exhibits a marked change in performance. The product has been dropped, or the enclosure damaged. Do not attempt to service the product beyond what is described in the user maintenance instructions. All other servicing should be referred to qualified service personnel. An equilateral triangle enclosing a lightning flash/arrowhead symbol is intended to alert the user to the presence of uninsulated “dangerous voltage”...
  • Page 4: Installation

    [Please note: Nady Systems is not responsible for shipping damage. If your unit is damaged, do not return to NADY, but Setup the stands on a flat surface where the speakers will be notify your dealer and the shipping company (if shipped to you) located and not disturbed. Place the speakers on the stands and immediately to make a claim. Such claims must be made by the position them as desired. Note: facing the speakers towards any...
  • Page 5: Front Panel Controls & Connections

    Front Panel Controls & Connections (14) (13) (15) (10) (11) (12) the Right Speaker. When the button is depressed (Stereo mode), (1) CHANNEL 1-3 COMBO XLR / 1/4’ INPUT both L and R RCA input signals are mixed and sent to both The XLR mic inputs are an electronically balanced XLR type speakers.
  • Page 6 Front Panel Controls & Connections (14) (13) (15) (10) (11) (12) frequency response of the L and � Channel bus signal, providing (9) DSP EFFECTS DISPLAY a maximum of ±12dB of cut and boost for each frequency band This is displays the selected effect out of 16 possible effect from the flat position. The faders can be adjusted to easily presets. eliminate feedback from the corresponding FLI™. (10) DSP eFFeCTS SeLeCTOR (13) FeeDBACK LOCATING INDICATORS (FLI™) The UP/DOWN buttons allow fast and easy scrolling in either These LED indicators will light red when there is a high level direction through the 16 effect presets.
  • Page 7: Specifications

    (CAUTION: After checking the AC supply voltage, be sure that the correct to the outputs. fuse is in the fuse holder.) (19) SPeAKeR 1/4” OUTPUT JACKS (17) AC VOLTAGe SeLeCT SWITCH Connect to the left and right PSS-150 speakers. Before plugging in the power cord, check to see that the unit is set for the proper voltage for your area: ~115V (60Hz) or ~230V (50Hz). Specifications OUTPUT POWeR 75 watts �MS per channel into 4 Ohms load OVeRLOAD PROTeCTION AMA™ (Automatic Maximum Amplitude) servo system limits the power amplifier input to...
  • Page 8 Service For Your NADY AUDIO Product (U.S.) Should your NADY AUDIO product require service, please contact the NADY Service Department via telephone at (510) 652-2411, or e-mail at service@nady.com. (International) For service, please contact the NADY AUDIO distributor in your country through the dealer from whom you purchased this product. Do not attempt to service this unit yourself as it can be dangerous and will also void the warranty. NADY SYSTeMS, INC. 6701 Shellmound Street, Emeryville, CA 94608 Tel: 510.652.2411 /Fax: 510.652.5075 www.nady.com...
