INSTALLATION

Estimated Installation Time: 30 minutes
Items needed for installation (not included):
• Phillips and flathead screwdrivers
• Pliers
• Safety glasses
• Ladder
• Black tape
For easy installation, select an existing light operated
by a wall switch for replacement.
IMPORTANT: Avoid mounting light control in an
extremely dark area. This may cause the lights to
stay on all the time.
For best performance, mount the fixture about 8 feet
(2.4 m) above the ground.

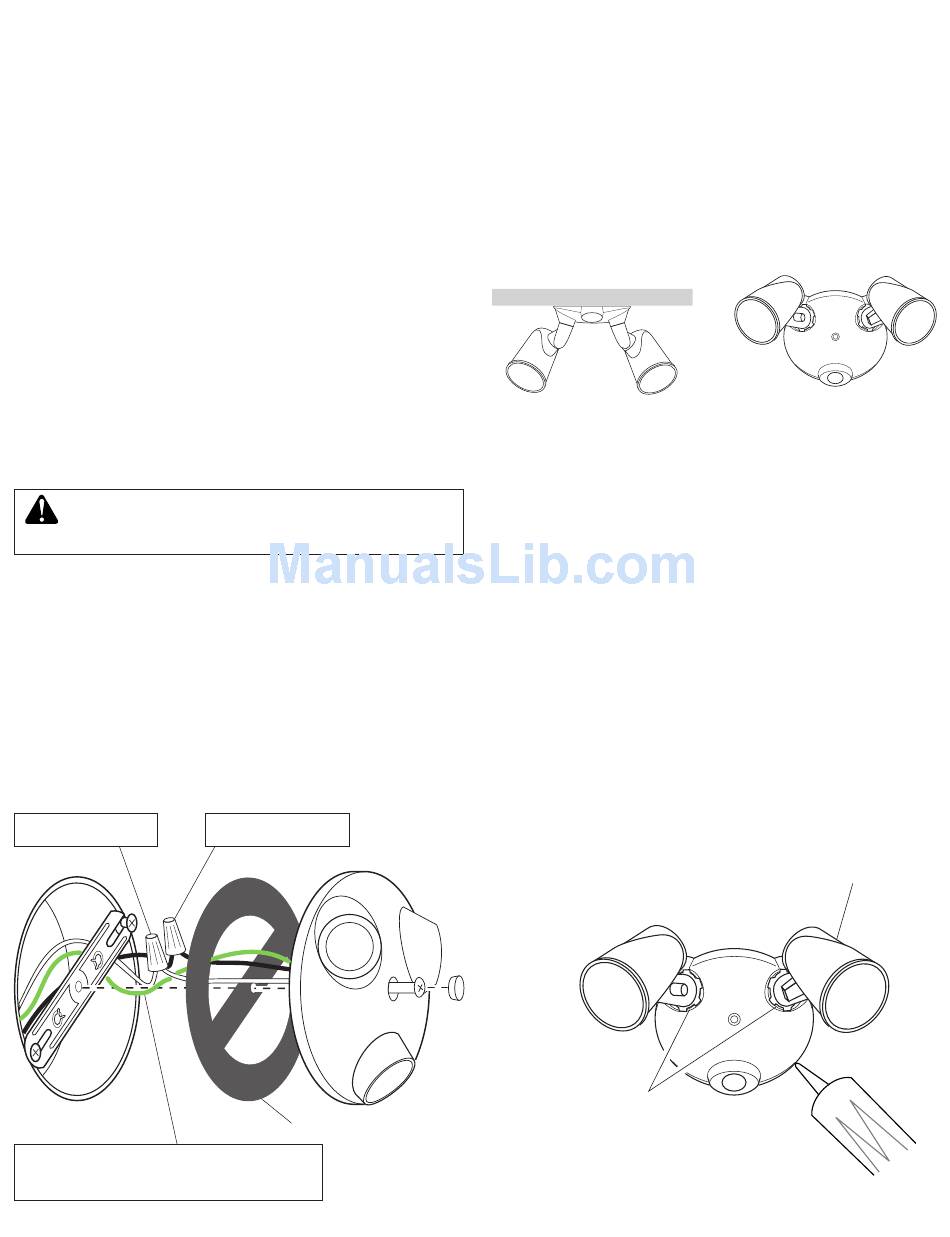

Wire the Light Control
WARNING: Turn power off at the fuse or
circuit breaker.
1. Remove the existing light fixture.
2. Install the mounting strap as shown using two
screws that fit your junction box.
3. The plastic hanger can be used to hold the fixture
while wiring. The small end of the plastic hanger
can be threaded through the hole in the center of
the cover plate. The small end then goes into one
of the slots on the mounting strap.
White to White
Junction box ground wire to
green ground screw on fixture.
• Wire strippers/cutters
• Silicone caulk
• Light bulbs
Black to Black
Gasket
4. Route the light control's wires through the large
gasket hole.
5. Connect the junction box wires to the light control
wires. Twist together and secure with a wire con-
nector.
Mount the Light Control
IMPORTANT: For under eave installation, the
light sensor needs to face toward the changing
light source.
Eave Mount
1. Align the light control cover plate and cover plate
gasket. Secure with the mounting bolt.
2. Align the three slots in the decorative shell with the
bulb holder pins. Push the shell in and then twist
clockwise to lock. Repeat for other shell.
3. Push the Rubber Plug firmly into place.
4. If not installed on a weatherproof box or if an adap-
tor plate (not included) was used, caulk the wall
plate and mounting surface with silicone.
5. Adjust the bulb holders by loosening the lock nuts
but do not rotate the bulb holders more than 180°
from the factory setting. When screwing in the
floodlamps, do not overtighten.
Lock Nuts
2
Wall Mount
Avoid water damage and
electrical shock - keep bulb
holders below horizontal.
598-1299-01
