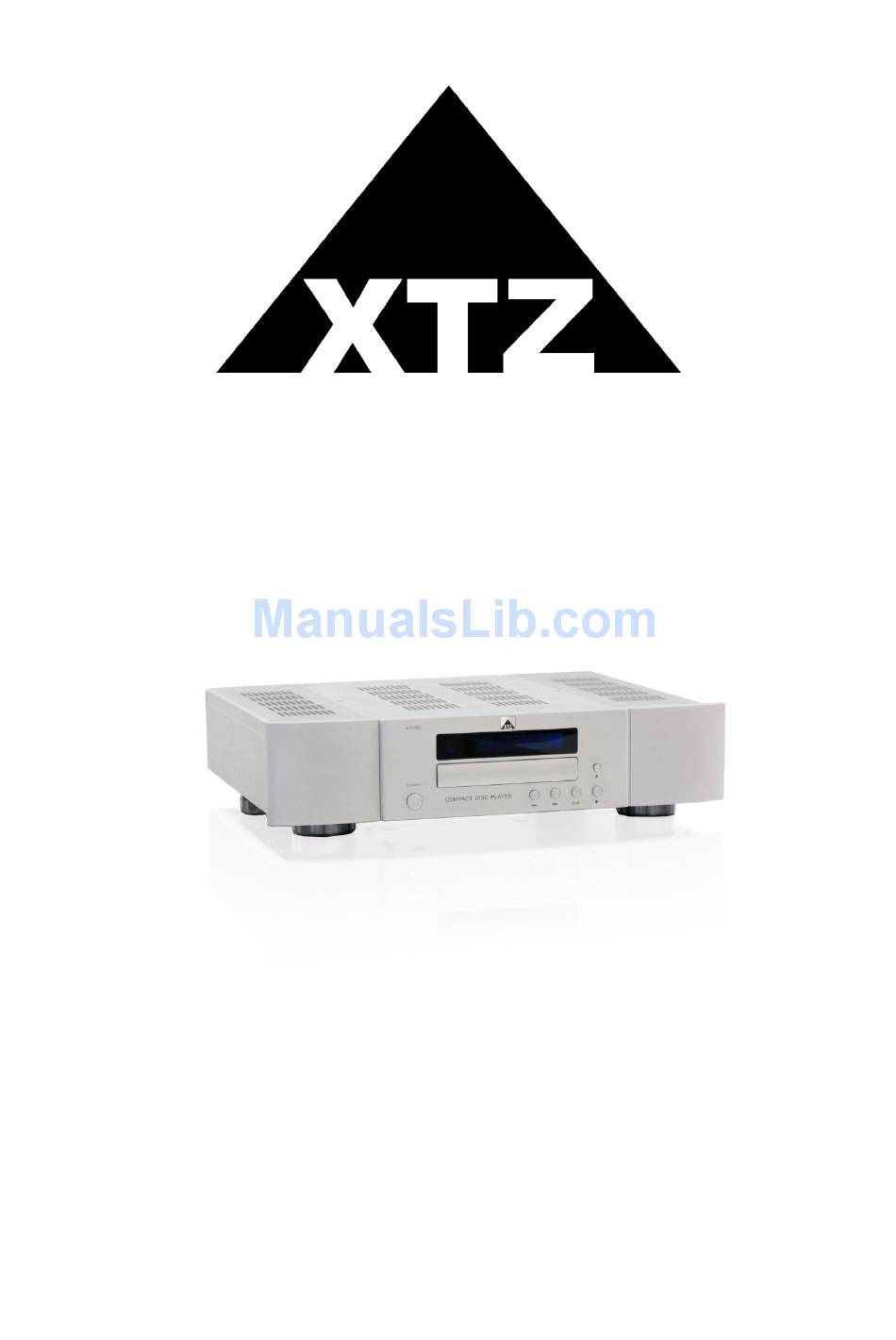

CD-100/11

CD-PLAYER

User manual

Table of Contents

Need help?

Do you have a question about the CD-100/11 and is the answer not in the manual?

Questions and answers

Summary of Contents for XTZ CD-100/11

Page 2: Table Of Contents
Table of contents PAGE: Contents About XTZ Technical presentation Preparations Practice of sound / Installation and placement tips Functional reference Technical specifications Service & Support...
Page 3: Contents
Contents Contents Congratulations of your purchase of the XTZ CD- 100/11. CD-100/11 provides many possibilities, in order to utilize this product in the best way, please read the manual carefully before using the unit. If you have any problems with the installation, please feel free to contact our free support.
Page 4: About Xtz
About XTZ Philosophy Our reference and starting point is to recreate a natural sound, taking into account that acoustics always is a matter of taste. XTZ Goal Our main goal is to provide the best value for money. Our concept: - Cut down the numbers of middlemen.
Page 5: Technical Presentation
CD-100/11 has a newly developed remote control, to adapt to new functions and making the management easier and better. The design of the remote control is the same as for the amplifier XTZ Class A100 D3. Page: 5 / 14...
Page 6: Preparations
Preparations Unpacking Carefully unpack the product, and pay attention so you don't break anything. If possible, save the packing box for future transportations. If there should be damage on the product, please contact your retailer. Check that the mains voltage marking on the back panel matches your local mains voltage.
Page 7: Practice Of Sound / Installation And Placement Tips
Practice of sound / Installation and placement tips This chapter contains common information on This is general rules, so there are exceptions of some rules. loudspeaker placement and installation. In which room do No matter how good the equipment is, in the wrong listening environment it will inevitably sound bad.
Page 8 Cables Try to keep them as short as possible. By its electrical parameters, a long conductor will have a bigger influence on the sound than a short one. It may also work as an antenna and thus receive various signals that may become a constant noise in an active subwoofer.
Page 9: Functional Reference
Functional reference STANDBY 11. RCA OUTPUT 2 2. PREVIOUS 12. RCA OUTPUT 1 3. NEXT 13. TRIGGER INPUT 5~12v 4. PLAY/PAUSE 14. DIGITAL OUTPUT COAXIAL STOP 15. DIGITAL OUTPUT TOSLINK/OPTICAL 6. EJECT 16. DIGITAL OUTPUT BALANCED (AES/EBU) DISPLAY 17. ON/OFF 8.
Page 10 Remote control 21. STANDBY 22. DISPLAY 23. EJECT 24. TRACK 25. PREVIOUS 26. NEXT 27. FAST REWIND 28. FAST FORWARD 29. STOP 30. PLAY/PAUSE 31. REPEAT 32. SINGLE/RDM (RANDOM) 33. A-B 34. DIM (DIMMER) Page: 10 / 14...
Page 11 1 STANDBY To set the product in standby mode, without turning it off. 2 PREVIOUS Step to previous track 3 NEXT Step to next track 4 PLAY/PAUSE To start or to pause the track 5 STOP To stop the track 6 EJECT To open the tray or close it 7 DISPLAY...
Page 12 Remote control 21 STANDBY To set the product in standby mode, without turning it off. 22 DISPLAY Possibility to get different kind of information. 23 EJECT To open or close the tray 24 TRACK Chose of track Track over ”10”. To get to track “17”. Press ”10+”...
Page 13: Technical Specifications
Technical specifications Construction type CD Player Dimensions 112 x 445 x 375 mm (HxWxD) Inc Feet & Terminals Weight 9 kg 13 kg with cardboard box Frequency response 20 Hz- 20kHz (+/- 0.5dB) Channel separation >= 95dB @ 1kHz THD with noise <=0.01% (1kHz) Distortion <...
Page 14: Service & Support
Support Please contact our “free-of-charge” support if you need installation advice, or if any problems occur during the installation. Contact us by e-mail support@xtz.se and include your phone number if you require help, and we will call you back. Warranty...

This manual is also suitable for:

Cd-100 Cd-111
