Oakton 90080-00 Specifications

THERMOMETER-TIMER ALARM
TIMER
THERMO TEMP SET TEMP
TEMP ALERT
HR MIN UP
ON
TEMP SET
CLEAR
START
DOWN
STOP
How to use thermometer
1. Set the desired temperature scale with the °F/°C switch
on bottom of unit.
2. For food use, sterilize probe with appropriate solution.
3. Insert probe into the object you are measuring.
—Observe cautions on other side of this sheet.
—Make sure the probe plug is tightly plugged into
the thermometer/timer.
—The maximum temperature for the probe cable is
392°F (200°C).
4. The temperature measured at the tip of the probe is
shown on the lower left corner of the display under
"THERMO TEMP".

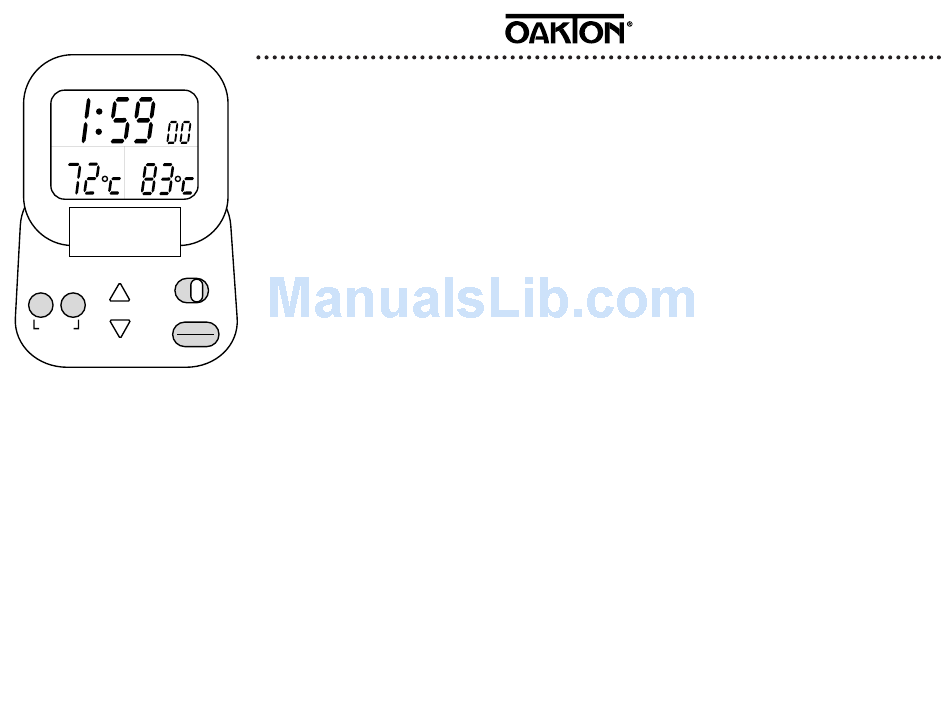

Model 90080-00 —
Introduction
Thank you for selecting
the OAKTON ® thermome-
ter/timer. It is ideal for
food preparation or a
variety of time and tem-
perature measurements.
Use it on a table top or
attach to steel surfaces
with magnets on back.
OFF
The display can be angled
for easy viewing.
Includes stainless steel
probe and AAA battery.
Thermometer/Timer
How to set temperature alarm
1. You can set the thermometer/timer to sound an alarm when
it reaches or passes a preset temperature. Set the tempera-
ture alarm as follows:
a. Slide the TEMP ALERT switch to OFF position.
b. Press the UP or DOWN buttons to select your preset
temperature.
c. The preset temperature can be seen on the lower right
corner of the display under "SET TEMP".
d. Slide the TEMP ALERT switch to ON position.
2. Alarm automatically sounds when the probe reaches
your preset temperature. Alarm will sound continuously
for 5 minutes.
3. Press the START/STOP button and the alarm will stop
temporarily. Alarm will continue to sound once a minute for
5 seconds until you slide the TEMP ALERT switch to OFF.
NOTE: Make sure to sterilize probe again before next usage.
How to set timer and timer alarm
Time remaining on timer is shown across the top of the display.
1. Press and hold the HR button to set timer hours.
2. Press and hold the MIN button to set timer minutes.
3. Press START/STOP button to activate timer count down.
4. After time elapses, alarm chimes for one minute. Timer
counts up from 0:00:00 to indicate elapsed time from set
point. Press the START/STOP button to stop the alarm.
5. Press the HR and MIN button together to clear timer.
