Installation and
Integrator's Guide
SMART Mobile Stand
for Interactive Displays
Models FSSBID 100
and FSSBID 100H

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSSBID 100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart Inventions FSSBID 100

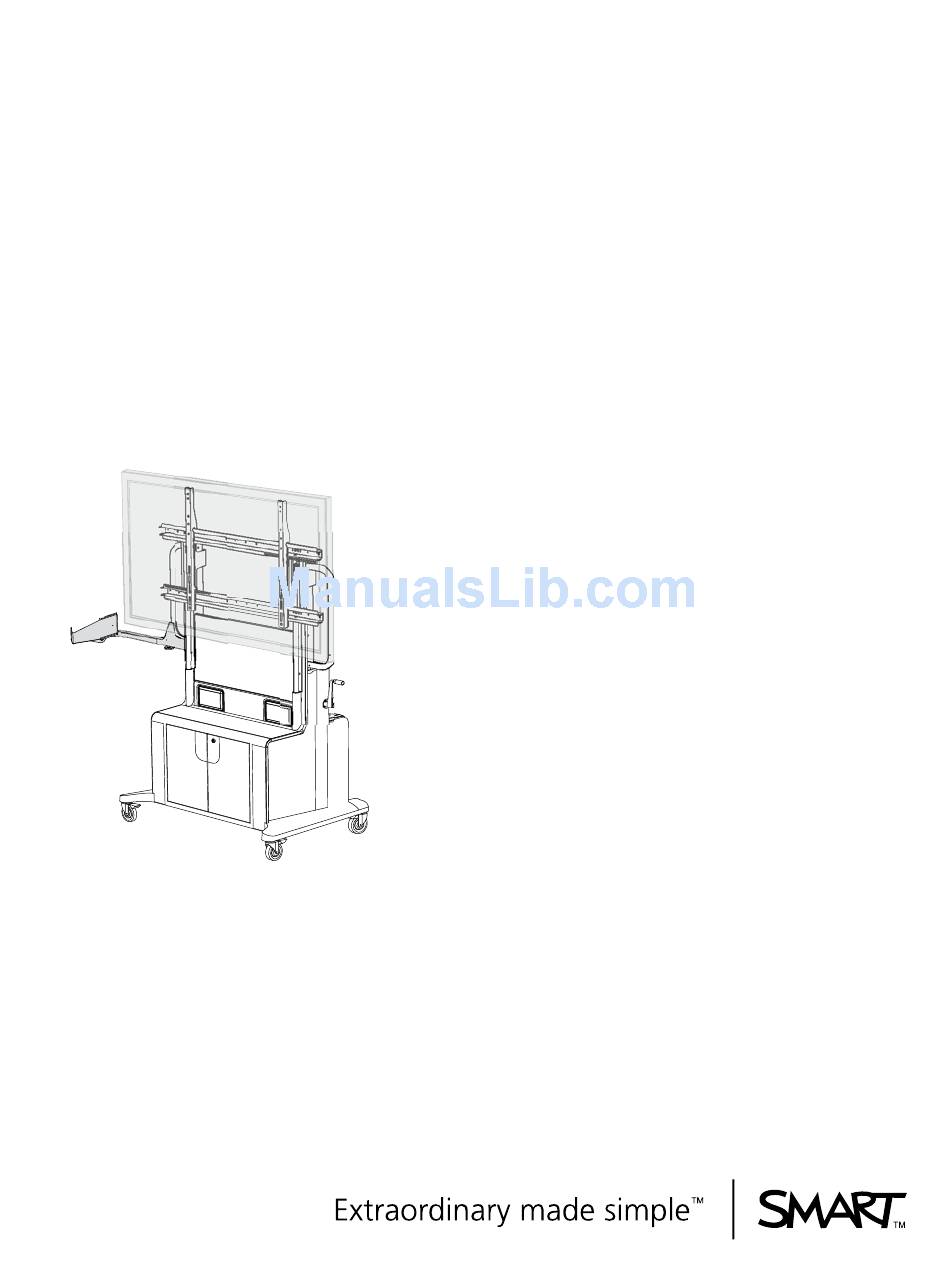

  • Page 1 Installation and Integrator’s Guide SMART Mobile Stand for Interactive Displays Models FSSBID 100 and FSSBID 100H...

  • Page 2: Technical Support

    Product Registration If you register your SMART product, we’ll notify you of new features and software upgrades. Register online at www.smarttech.com/registration. Keep the following information available in case you need to contact SMART Technical Support. Serial Number: ___________________________________________________ Date of Purchase: ___________________________________________________ Trademark Notice SMART Board, smarttech, Senteo and the SMART logo are trademarks or registered trademarks of SMART Technologies...

  • Page 3: Safety Warnings And Cautions

    Important Information Before you install and use your SMART Mobile Stand, read and understand the safety warnings and precautions in this user’s guide and the included warnings document. These safety warnings and precautions describe the safe and correct operation of your SMART Mobile Stand and its accessories, helping you prevent injuries and equipment damage.
  • Page 4 I M P O R T A N T I N F O R M A T I O N • Use the SMART Mobile Stand’s three grab bars to move the unit. Do not press, pull or push on the flat-panel display, interactive overlay or display frame, cabinet, doors, rear access panel plastics or vertical brackets.
  • Page 5 ii i I M P O R T A N T I N F O R M A T I O N CAUTION • Make sure that the weight of your flat-panel display is minimum 80 lb. (36.3 kg) and maximum 160 lb. (72.6 kg). For a list of flat-panel displays supported by your SMART Mobile Stand, see http://www2.smarttech.com/st/en-US/Support/FlatPanel/MobileStandPanels.

  • Page 6: Other Precautions

    I M P O R T A N T I N F O R M A T I O N • Do not block the ventilation slots and openings on your SMART Mobile Stand. Blocking these openings could cause overheating and damage to the unit. •...

  • Page 7: Table Of Contents

    Things to Consider When Assembling Your SMART Mobile Stand ..... 11 Installing Your Flat-Panel Display on Your SMART Mobile Stand................12 Adjusting the Shelves ................... 14 Model FSSBID 100: Connecting Devices Inside Your SMART Mobile Stand’s Cabinet ................17 Connecting Your Flat-Panel Display............. 18 Connecting Your Computer ................21 Connecting Your SMART Hub PE260 ............
  • Page 8 CON T EN TS Model FSSBID 100H: Connecting Devices Inside Your SMART Mobile Stand’s Cabinet ................37 Installing Your SMART Hub SE240 .............. 38 Connecting Your Flat-Panel Display............. 41 Connecting Your SMART Hub SE240 ............43 Connecting Your Computer ................46 Connecting a DVD/Blu-ray Player or VCR............
  • Page 9 vi i | CON T EN TS Covered Electronics Devices................ 86 China’s Electronic Information Products Regulations........86 U.S. Consumer Product Safety Improvement Act ........86 Customer Support ....................87 Online Information and Support..............87 Training......................87 Technical Support..................87 Shipping and Repair Status ................87 General Inquiries ..................
  • Page 10 vi ii | CON T EN TS 99-00962-20 REV C0...

  • Page 11: About Your Smart Mobile Stand

    Optional Laptop Shelf (page 8) – Flat-Panel Display Adapter Kit (page 8) – SMART Board for Flat-Panel Displays Interactive Overlay Adapter Kit (FSSBID 100 Only) (page 8) – Rack Mount Hardware Accessory Kit (page 8) • Standard Replaceable Parts (page 8)

  • Page 12: Smart Mobile Stand Features

    A B O U T Y O U R S M A RT M O B I L E S T A N D SMART Mobile Stand Features Your SMART Mobile Stand is easy to move so that you can share the unit with other users, reconfigure your meeting space or classroom, or quickly add interactive and audiovisual features to a room that might otherwise not have them.
  • Page 13 A B O U T Y O U R S M A RT M O B I L E S T A N D Hydraulic Height Adjustment Handle Optional Laptop Shelf • Mounts on Either Side of Your Stand • Adjustable Tilt Angle High-Quality, •...
  • Page 14 A B O U T Y O U R S M A RT M O B I L E S T A N D Serial Number Location Connection Panel Large, Removable Cabinet Venting Access Panels SMART Mobile Stand from the Rear 99-00962-20 REV C0...
  • Page 15 A B O U T Y O U R S M A RT M O B I L E S T A N D Prominent Grab Bars for Moving Your Unit Supports Integration with a SMART Hub SE240 (Model FSSBID 100H Only) Dedicated Space Adjustable Shelving for a Computer...
  • Page 16 A B O U T Y O U R S M A RT M O B I L E S T A N D SMART Mobile Stand from the Front with Doors Open Showing Rack Mount Configuration 99-00962-20 REV C0...

  • Page 17: Power Specifications

    Determining Your Model of SMART Mobile Stand Your SMART Mobile Stand is either a standard model (FSSBID 100), or one that includes support for a SMART Hub SE240 (FSSBID 100H). You can determine your model of SMART Mobile Stand by referring to its serial number, which is located on the back, right-hand side of your unit’s speaker panel, near the top:...

  • Page 18: Optional Accessories

    IMPORTANT If you intend to use a SMART Board for Flat-Panel Displays interactive overlay with your SMART Mobile Stand model FSSBID 100, you must purchase a USB B to USB A adapter AD09 (Part No. ADP USB AB) from your authorized SMART reseller.

  • Page 19: Assembling Your Smart Mobile Stand

    A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Assembling Your SMART Mobile Stand Your SMART Mobile Stand requires minimal assembly. Consult the SMART Mobile Stand for Interactive Displays Textless Installation Instructions (document 132293...

  • Page 20: Environmental Requirements

    10 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Environmental Requirements Before installing your SMART Mobile Stand, refer to the following environmental requirements.

  • Page 21: Things To Consider When Assembling Your Smart Mobile Stand

    11 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Things to Consider When Assembling Your SMART Mobile Stand WARNING •...

  • Page 22: Installing Your Flat-Panel Display On Your Smart Mobile Stand

    12 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Installing Your Flat-Panel Display on Your SMART Mobile Stand WARNING •...
  • Page 23 13 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Securing the Clevis Pins When Installing a 60" (152 cm) or Larger Flat-Panel Display Follow these instructions if you intend to install a SMART Board for Flat-Panel Displays interactive overlay with a 60"...

  • Page 24: Adjusting The Shelves

    14 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D Adjusting the Shelves Your SMART Mobile Stand includes two vertically adjustable shelves. The spacing of these shelves ranges from 2"...
  • Page 25 15 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D 3. Slide the shelf onto the shelf clips, making sure to position the grooves on the bottom of the shelf so that it snaps in place.
  • Page 26 16 | A S S E M B L I N G Y O U R S M A RT M O B I L E S T A N D 99-00962-20 REV C0...

  • Page 27: Smart Mobile Stand's Cabinet

    SMART Mobile Stand’s Cabinet This chapter explains how to connect your SMART Mobile Stand FSSBID 100’s prewired cable harness to your flat-panel display, computer or SMART Hub PE260, and other devices inside your stand’s cabinet. Your stand’s cable harness provides centralized cable management with strain relief.

  • Page 28: Connecting Your Flat-Panel Display

    S T A N D ’ S C A B IN E T Connecting Your Flat-Panel Display Follow these instructions to connect the correct cables from your FSSBID 100’s prewired cable harness to your flat-panel display’s connection panel. Cable Connections to Your Flat-Panel Display...
  • Page 29 19 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 30 20 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 31: Connecting Your Computer

    21 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 32 22 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 33: Connecting Your Smart Hub Pe260

    23 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 34 24 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 35: Connecting A Dvd/Blu-Ray Player Or Vcr

    25 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 36 26 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 37 27 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 38: Connecting Your Smart Board Interactive Display Frame

    28 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 39 29 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 40 30 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 41 31 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 42: Connecting Your Smart Board For Flat-Panel Displays Interactive Overlay

    32 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 43 33 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 44 34 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 45 35 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...
  • Page 46 36 | M O D E L F S S B I D 1 0 0 : C O N N E C T I N G D E V I C E S I N S I D E Y O U R SM ART MOBI LE S T A N D ’...

  • Page 47: Model Fssbid 100H: Connecting Devices Inside Your

    37 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 48: Installing Your Smart Hub Se240

    38 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 49 39 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 50 40 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 51: Connecting Your Flat-Panel Display

    41 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 52 42 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 53: Connecting Your Smart Hub Se240

    43 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 54 44 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 55 45 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 56: Connecting Your Computer

    46 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 57 47 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 58: Connecting A Dvd/Blu-Ray Player Or Vcr

    48 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 59 49 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 60: Connecting Your Smart Board Interactive Display Frame

    50 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 61 51 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 62 52 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 63 53 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 64 54 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 65: Connecting Your Smart Board For Flat-Panel Displays Interactive Overlay

    55 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...
  • Page 66 56 | M O D E L F S S B I D 1 00 H: C O N N E CT I N G D E V I C E S I N S I D E Y O U R S M A RT M O B I L E S T A N D ’...

  • Page 67: Completing Your Installation And Connecting Other Products To Your Smart Mobile Stand

    57 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Completing Your Installation and Connecting Other...

  • Page 68: Installing The Rear Access Panels On Your Smart Mobile Stand

    58 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Installing the Rear Access Panels on Your SMART Mobile Stand After you connect your computer or SMART Hub, and perhaps your DVD/Blu-ray...

  • Page 69: The Connection Panel

    • Two (FSSBID 100) or three (FSSBID 100H) USB A connections for external devices • One USB A (FSSBID 100 only) and one USB B connection for interactive display control • Cat5e RJ45 network connection point (requires a computer) 99-00962-20 REV C0...
  • Page 70 60 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Your SMART Mobile Stand’s Connection Panel USB A Connection for: •...

  • Page 71: Connecting A Guest Laptop Computer

    61 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Connecting a Guest Laptop Computer You can connect a guest laptop computer to your SMART Mobile Stand by means of your stand’s connection panel.
  • Page 72 62 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D To connect a guest 1.

  • Page 73: Connecting Your Smart Document Camera

    63 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Connecting Your SMART Document Camera Your SMART Mobile Stand’s rear connection panel enables you to easily connect your...

  • Page 74: Connecting Your Smart Response (Formerly Senteo) Interactive Response System Receiver

    64 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Connecting Your SMART Response (formerly Senteo) Interactive Response System Receiver...
  • Page 75 65 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D 2.

  • Page 76: Connecting Other Usb Devices

    66 | COM PLE TI NG YOU R I NS TA LLA TI ON AN D C O N NEC T IN G OT HE R P ROD UC T S T O Y O U R S M A RT M O B I L E S T A N D Connecting Other USB Devices Your SMART Mobile Stand integrates with USB devices, including a keyboard, mouse or USB storage device.

  • Page 77: Maintaining Your Smart Mobile Stand

    67 | M A I NT A I NI NG Y O U R S MA R T M O B I L E S T A N D Maintaining Your SMART Mobile Stand Your SMART Mobile Stand is durable. With proper care, it will provide years of trouble-free service.

  • Page 78: Moving Your Smart Mobile Stand

    The serial number for your SMART Mobile Stand is located on the back, right-hand SMART Mobile Stand’s side of your unit’s speaker panel, near the top. The serial number has a five-digit serial number numeric format, for example, FSSBID1-R2-00000 (for FSSBID 100 models) or FSSBID1H-R2-00000 (for FSSBID 100H models). 99-00962-20 REV C0...

  • Page 79: Configuring A Rack Mount

    Appendix A Configuring a Rack Mount Although your SMART Mobile Stand comes configured for shelving, it can also accommodate an optional 19" (48 cm) rack mount configuration. NOTE If you want to configure your SMART Mobile Stand for a rack mount, you can purchase a hardware accessory kit, which includes 16 rack clips, from your authorized SMART reseller.
  • Page 80 70 | CO N F IG U RI NG A R A C K MO U N T To remove the shelving 1. Remove the four screws in the lower rear panel of your SMART Mobile Stand and rear support tube with the included security TORX key, and then remove the panel.
  • Page 81 71 | CO N F IG U RI NG A R A C K MO U N T 4. Remove the two installed shelves from the cabinet, and then remove the eight shelf clips. 2× 8× 5. Locate the cabinet’s rear support tube, remove the two screws in the flange at the top, and then lift the tube at a slight angle to detach and remove it from the base of the unit.
  • Page 82 72 | CO N F IG U RI NG A R A C K MO U N T To configure a 1. Open the doors of your SMART Mobile Stand’s cabinet. rack mount 2. Locate the left and right front rack rails, and then remove the two screws in the flange at the top of each rail.
  • Page 83 73 | CO N F IG U RI NG A R A C K MO U N T 3. Lift the left rack rail at a slight angle to detach it from the base, rotate it 90° clockwise, and then insert the rail at a slight angle into the rack mount slots further to the left.
  • Page 84 74 | CO N F IG U RI NG A R A C K MO U N T 5. Repeat steps 3 and 4 for the right rack rail, except rotate the rail counter-clockwise before inserting it into the rack mount slots. 6.

  • Page 85: Smart Mobile Stand Running Diagrams

    Appendix B SMART Mobile Stand Running Diagrams FSSBID 100 (North America) 99-00962-00 REV C0...
  • Page 86 76 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S FSSBID 100H (North America) 99-00962-20 REV C0...
  • Page 87 77 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S FSSBID 100 (International) 99-00962-20 REV C0...
  • Page 88 78 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S FSSBID 100H (International) 99-00962-20 REV C0...
  • Page 89 79 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S Cable Descriptions • Used on This Model North American Model International Model Required for Interactive Overlays SMART Cable From Description Length Part No.
  • Page 90 80 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S SMART Cable From Description Length Part No. (100) (100H) (100) (100H) Video • • Connection Flat-Panel VGA Female Chassis 6' (1.8 m) 93-00680-00 Panel Display...
  • Page 91 81 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S SMART Cable From Description Length Part No. (100) (100H) (100) (100H) • • AD05 AC “Y” IEC Male Various to Country Specific Female AD06 Power Bar IEC Male to NEMA...
  • Page 92 82 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S Country-Specific Power Adapters Country SMART Adapter Part No. Australia 93-00587-20 Bahrain 93-00586-20 China 93-00707-20 Finland 93-00584-20 France 93-00584-20 Germany 93-00584-20 Iran 93-00584-20 Iraq 93-00586-20...
  • Page 93 83 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S FSSBID 100 Cable Graphics Cables A02 and A03 Cable A01 Speaker Wires 3.5 mm Stereo Audio Plug (To Your Flat-Panel (To the Connection Panel) Display) 3.5 mm Stereo Audio Plug...
  • Page 94 84 | SMA RT M O BIL E S TA ND R UN NI NG DIA G RAM S FSSBID 100H Cable Graphics Cable N01 Cable A01 Cables A02 and A03 RJ45 Male Connector 3.5 mm Stereo Audio Plug Speaker Wires (To Your SMART Hub SE240) (To Your Flat-Panel Display) (To Your Flat-Panel Display)

  • Page 95: Hardware Environmental Compliance

    Appendix C Hardware Environmental Compliance SMART Technologies supports global efforts to ensure that electronic equipment is manufactured, sold and disposed of in a safe and environmentally friendly manner. Waste Electrical and Electronic Equipment Regulations (WEEE Directive) Waste Electrical and Electronic Equipment regulations apply to all electrical and electronic equipment sold within the European Union.

  • Page 96: Covered Electronics Devices

    86 | HA RD WAR E EN VI RON MEN T AL COM PLI ANC E Covered Electronics Devices Many U.S. states classify monitors as Covered Electronic Devices and regulate their disposal. Applicable SMART Technologies products meet the requirements of the Covered Electronic Devices regulations.

  • Page 97: Customer Support

    Appendix D Customer Support Online Information and Support Visit www.smarttech.com/support to view and download user’s guides, how-to and troubleshooting articles, software and more. Training Visit www.smarttech.com/trainingcenter for training materials and information about our training services. Technical Support If you experience difficulty with your SMART product, please contact your local reseller before contacting SMART Technical Support.

  • Page 98: General Inquiries

    88 | CU ST O ME R S UPP O RT General Inquiries Address SMART Technologies 3636 Research Road NW Calgary, AB T2L 1Y1 CANADA Switchboard +1.403.245.0333 or Toll Free 1.888.42.SMART (U.S./Canada) +1.403.228.2500 E-mail info@smarttech.com Warranty Product warranty is governed by the terms and conditions of SMART’s “Limited Equipment Warranty”...

  • Page 99: Index

    10 installation, 25 , 48 DVD player, 25 , 48 connecting, 26 , 48 installation, 25 , 48 cable graphics model FSSBID 100, 83 model FSSBID 100H, 84 EIP regulations, 86 cable harness, 17 emissions, 10 safety, 12 environment...
  • Page 100 90 | IN DE X flat-panel display 65", 13 network, 7 connections, 17 , 18 , 19 , 41 , 42 flat-panel displays - supported, 1 fluid resistance, 10 online support, 87 general inquiries, 88 packaging, 68 , 85 power management, 2 power specifications, 7 , 60 hardware, 7 product features, 2...
  • Page 101 91 | IN DE X SMART Board for Flat-Panel Displays temperature interactive overlay operating, 10 cable routing (illustration), 33 , 55 storage, 10 connecting, 32 , 55 training, 87 SMART Board for flat-panel displays transporting, 68 interactive overlay troubleshooting articles, 87 adapter, 32 SMART Board for Flat-Panel Displays interactive overlay adapter kit, 8...
  • Page 102 92 | IN DE X 99-00962-20 REV C0...
