Pentamark MSL360FWPB Manual

Motion Sensor
Light Control
Model MSL360FWPB
Meets the ENERGY STAR
when used with 120 W Max bulbs.
Features
• Turns on lighting when motion is detected.
• Automatically turns lighting off.
• Photocell keeps the lighting off during daylight hours.
• LED indicates motion was sensed (day or night).

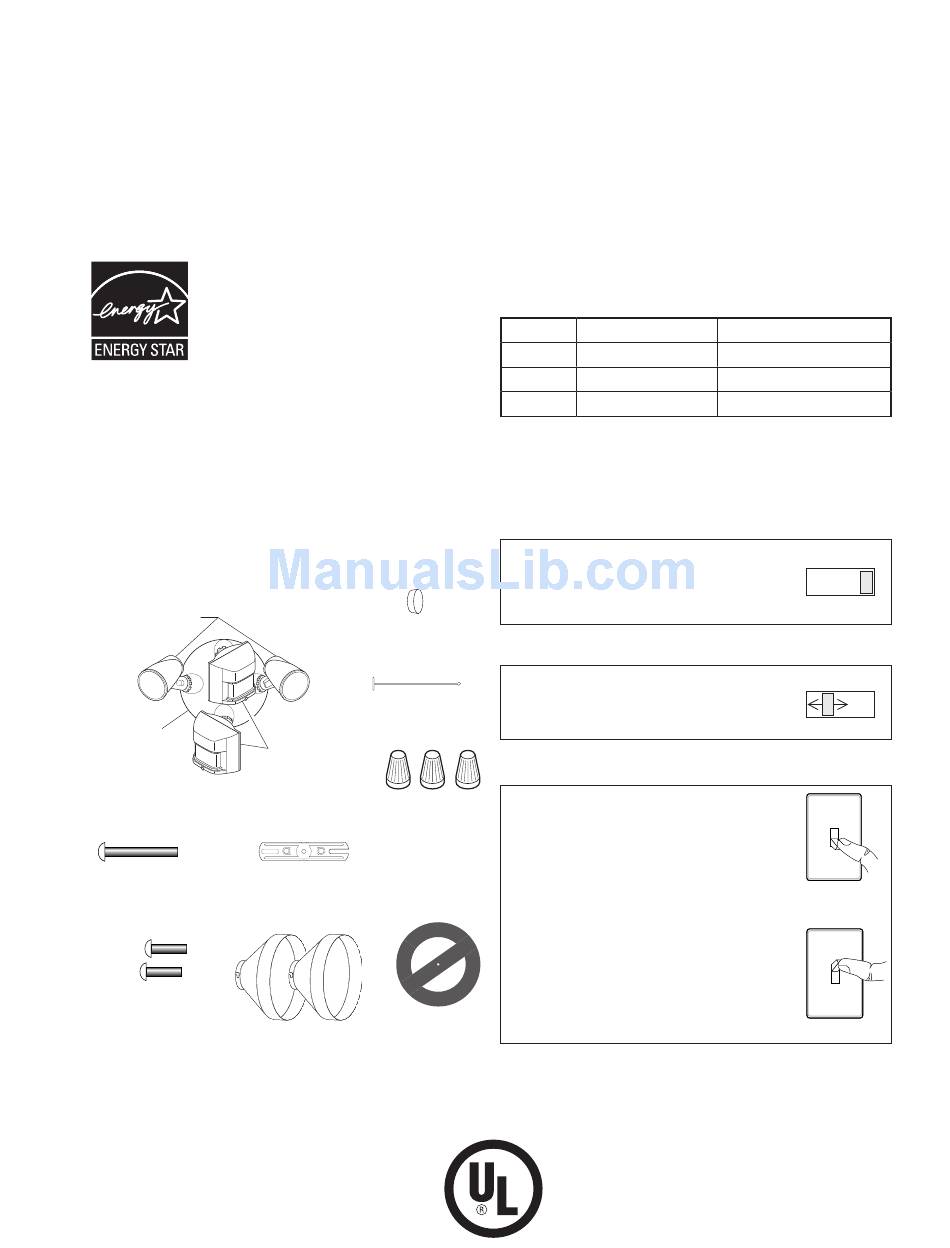

This package includes:
Lamp Holders
Cover
Plate
Light Control
Mounting Strap
Mounting Bolt
6 Screws
(3 sizes included)
Pentamark LLC
guidelines
®
Rubber Plug
Plastic Hanger
Sensors
3 Wire
Connectors
Gasket
2 Shells
Requirements
• The light control requires 120-volts AC.
• If you want to use Manual Mode, the control must be
wired through a switch.
• Some codes require installation by a qualified
electrician.
• This product is intended for use with the enclosed
gasket and with a junction box marked for use in wet
locations.
OPERATION
Mode: On-Time:
Test 5 Seconds
Normal
1, 5, 10 min.
Manual
Until Dawn*
* resets to Auto Mode at dawn.
Note: When first turned on wait about 1
the circuitry to calibrate.
TEST
Put the ON-TIME switch on the
bottom of the sensors in the TEST
position.
AUTO
Put the ON-TIME switch in the
1, 5, or 10 minute position.
MANUAL MODE
Manual mode only works at night
because daylight returns the sen-
sors to AUTO.
Flip the light switch off for one sec-
ond then back on to toggle between
AUTO and MANUAL MODE.
Manual mode works only with the
ON-TIME switch in the 1, 5, or 10
position.
Works: Day Night
x x
x
x
/ minutes for
1
2
ON-TIME
10 5 1 TEST
ON-TIME
10 5 1 TEST
1 Second OFF
then...
... back on.
598-1351-01
