iView Technology HD-116 User Manual

16/8ch dvr
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

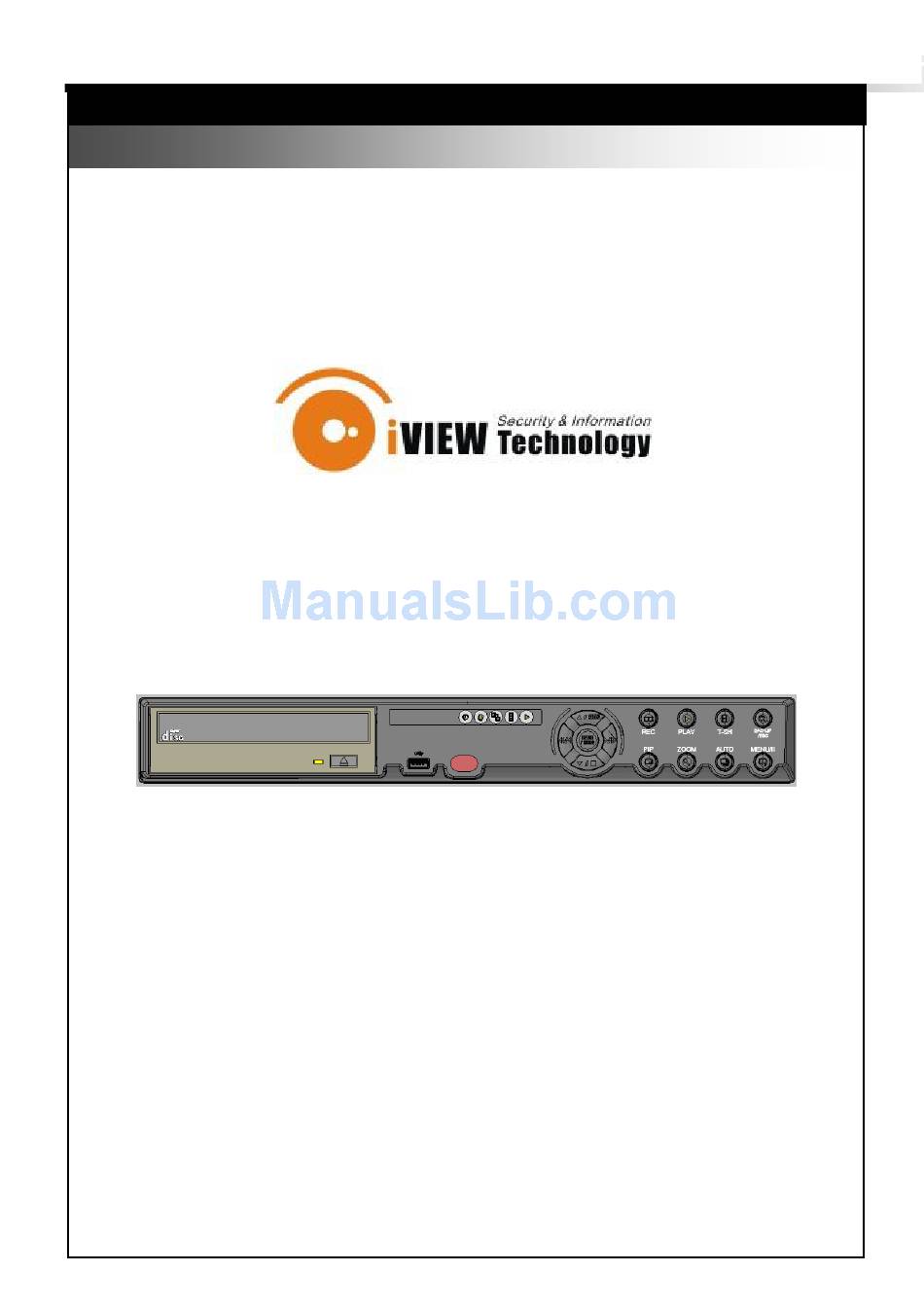

User Manual
HD-116/HD-108 v0.6(N02)
HD-116/HD-108
─ 16/8CH DVR ─
This document contains preliminary information and subject to change without notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for iView Technology HD-116

Summary of Contents for iView Technology HD-116

  • Page 1 User Manual HD-116/HD-108 v0.6(N02) HD-116/HD-108 ─ 16/8CH DVR ─ This document contains preliminary information and subject to change without notice.
  • Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. NOTE: This equipment has been tested and found to comply with the limits for a class digital device, pursuant to part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    4-8.4 SPOT SETUP __________________________________________ 37 4-9 UTILITY SETUP ____________________________________________ 38 4-10 DIAGNOSTIC ______________________________________________ 39 CHAPTER 5 BACKUP & SEARCH ____________________________________ 40 5-1 BACKUP SETUP ____________________________________________ 40 5-2 SEARCH SETUP ____________________________________________ 41 5-2.1 EVENT SEARCH _______________________________________ 41 HD-116/HD-108 User Manual V0.6(N02)
  • Page 4 9-6.7 File Playback __________________________________________ 72 9-6.8 Event Playback ________________________________________ 73 9-6.9 Snapshot Data ________________________________________ 73 9-6.10 Recording Data _______________________________________ 74 APPENDIX I I-DVR.NET REGISTRATION _____________________________ 75 APPENDIX II Remote Monitoring IE ActiveX Control Installation Instruction ___ 77 HD-116/HD-108 User Manual V0.6(N02)

  • Page 5: Chapter 1 Packing Detail And Installation

    3. IR Remote Control 4.Batteries x2 5. CD 6. Hard Disk Mount x2 7.Screws x20 8. Power Adaptor 9. Power Cord 10. SATA Cord 2pcs 11.DB25 Connecter (8CH/16CH only) Note: Standard shipping products include neither HDD nor DVD R/W HD-116/HD-108 User Manual V0.6(N02)

  • Page 6: Hard Disk Installation

    Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference. HD-116/HD-108 User Manual V0.6(N02)

  • Page 7: Dvd-Rw Installation(Only Support Dvd/Rw)

    1-3 DVD-RW Installation(Only support DVD/RW) Step 1) Remove the front cover from DVR. Step 2) Put the DVD-RW into the DVR as indicated by the arrow. HD-116/HD-108 User Manual V0.6(N02)
  • Page 8 Step 3) Screw the bottom of the DVR as indicated to fix the DVD-RW. Step 4) Connect the power and the SATA cables. HD-116/HD-108 User Manual V0.6(N02)

  • Page 9: Chapter 2 Panel Location

    Input sensor for the remote control. IR Sensor Port for USB external devices (USB flash drive devices use, the mouse ⑯ USB 2.0 Port behind the back of the USB ports installed).. ⑰ Optional DVD-RW backup device. DVD Writer HD-116/HD-108 User Manual V0.6(N02)

  • Page 10: 16Ch Rear Panel Connectors

    RCA output port for audio signal. ⑨ USB USB port(Device USB Mouse) ⑩ LAN Network Port ⑪ ON/OFF Power Switch ⑫ DC 12V Socket for a DC 12V input. ⑬ VGA VGA port DB 25 DEFINITION HD-116/HD-108 User Manual V0.6(N02)

  • Page 11: 8Ch Rear Panel Connectors

    Socket for a DC 12V input. ⑨ MAIN monitor BNC port for the main monitor. ⑩ USB USB port (Device USB Mouse) ⑪ EXTERNAL I/O EXTERNAL I/O port (see below for pin definition) DB 25 DEFINITION HD-116/HD-108 User Manual V0.6(N02)

  • Page 12: 4Ch Rear Panel Connectors

    RCA output port for audio signal. ⑨ NTSC／PAL Switch Switch between NTSC and PAL format. ⑩ LAN Network port ⑪ EXTERNAL I/O EXTERNAL I/O port (see below for pin definition) ⑫ USB USB port (Device USB Mouse) HD-116/HD-108 User Manual V0.6(N02)

  • Page 13: Chapter 3 Live, Playback And Ptz Operations

    Enable PTZ control. AUTO In AUTO mode, all available channels will be cycled through in full screen. DVR1,2,3,4 Switch DVR ID1~4 Note：4CH will show quad display; 8 CH will show quad and 9-channel display. HD-116/HD-108 User Manual V0.6(N02)
  • Page 14 ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display. Quad display. 9-channel display. 13-channel display. 16-channel display. Note：4CH will show quad display; 8 CH will show quad display and 9-channel display. HD-116/HD-108 User Manual V0.6(N02)
  • Page 15 (99% mean used 99%, remain 1%) Lower right of each CH will show the current time Icon Description Image quality (High/Low) Full screen Record Snap shot Record and snap shot file saving path setup Enable / Disable Shortcut Toolbar HD-116/HD-108 User Manual V0.6(N02)

  • Page 16: Playback Mode

    Fast rewind. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X. Fast forward. Each press increases the speed to the next level. There are six speeds: 2x, 4X, 8X, 16x, 32X and 64X. Stop playback. HD-116/HD-108 User Manual V0.6(N02)
  • Page 17 「▼ / ■」stop playback Playback channel by channel with snap shot display Full screen display Quad display 9-channel display 16-channel display Zoom-in display Note：4CH will show quad display; 8 CH will show quad display and 9-channel display. HD-116/HD-108 User Manual V0.6(N02)

  • Page 18: Ptz Mode

    Set current PTZ location as the start of line-scan. ＊ Activate auto line-scan. FREEZE Set current PTZ location as the end of line-scan.＊ ZOOM ＊ PTZ communication protocols from different brands aren’t compatible 100% sometimes. Therefore, some of these functions may be unavailable. HD-116/HD-108 User Manual V0.6(N02)
  • Page 19 Please check user manual of your PTZ for more detail. AUX 1~8,「AUTO」Key ＋ Number key「1~8」 「Backup」, Customized function。 ＊ PTZ communication protocols from different brands aren’t compatible 100% sometimes. Therefore, some of these functions may be unavailable. HD-116/HD-108 User Manual V0.6(N02)

  • Page 20: Chapter 4 Main Menu Setup

    Switch between numbers and letters. Press to cancel the setup, and re-choose the login account. Delete the last character. Enter to identify the password. It will enter the set up menu, If the password is verified. Space key HD-116/HD-108 User Manual V0.6(N02)

  • Page 21: Record Setup

    Setup the video preservation period. Recorded video will be Video Preservation deleted automatically after expiry of preservation period. Quality & Frame Rate Setup the quality and frame rate for each channel under normal Setup recording and event recording type. HD-116/HD-108 User Manual V0.6(N02)

  • Page 22: 4-1.1 Quality & Frame Rate Setup

    Select quality: Lowest/ Low/ Normal/ High/ Highest Select recording frame rate. Auto Assign each channel with its maxima accessible fps 4-2 EVENT SETUP Item Description Motion Setup Enter to set up motion detection Sensor Setup Enter to set up sensor detection HD-116/HD-108 User Manual V0.6(N02)

  • Page 23: 4-2.1 Motion Setup

    The motion detection has been divided into 16x12 grids. The default detection area is full screen as it marked in transparent for local DVR and purple for remote access. Areas deselected for motion detection are marked in red for both local and remote site. HD-116/HD-108 User Manual V0.6(N02)

  • Page 24: 4-2.2 Sensor Setup

    High Polarity：Sensor has been triggered. When connected, sensor status will be turned off.. ：Sensor is deactivated, and will not be turned on/off. Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels. HD-116/HD-108 User Manual V0.6(N02)

  • Page 25: Schedule Setup

    View Normal/ Motion / Sensor Setup Sensor Setup 4-3.1 Schedule Record Setup Click on the time on the left side. The setup menu will be displayed. You can have detail setup by dates, Time and event. HD-116/HD-108 User Manual V0.6(N02)

  • Page 26: 4-3.2 Holiday Setup

    ( This function doesn’t support at to 255. The default value is 128. PAL system) Name Set up name of each channel Audio volume for CH1 under LIVE mode and recording mode can be Volume adjusted. HD-116/HD-108 User Manual V0.6(N02)

  • Page 27: Account Setup

    The Account Setup is set to provide individual user (maximum of 4 users) role-based permissions, including access to Setup menu, Network operation, PTZ function, Playback, Utility, Backup, Password expiry date and Mask on specific channels while playing back. HD-116/HD-108 User Manual V0.6(N02)

  • Page 28: 4-5.2 User Picture Setup

    User can select picture wished to be changed to from hard drive. 4-6 NETWORKING SETUP Item Description Connect type Setup mode for network connection: (DHCP、LAN、ADSL). HTTP Setup Enter to set up HTTP DDNS Setup Enter to set up DDNS Mail Setup Enter to set up mail HD-116/HD-108 User Manual V0.6(N02)

  • Page 29: 4-6.1 Networking Setup

    Enter IP address of Subnet Mask provided by ISP Gateway Enter IP address of Gate way provided by ISP Enter DNS address provided by ISP. (Note: The correct DNS address must be entered for DDNS function). HD-116/HD-108 User Manual V0.6(N02)

  • Page 30: 4-6.1.3 Adsl

    Enter a valid port value from 1 up to 65000. The default value is 80. Auto Assign each channel with its maxima accessible fps Chanel number Quality Set up record quality. There are below basic, basic, normal, high, highest Set up record FPS HD-116/HD-108 User Manual V0.6(N02)

  • Page 31: 4-6.3 Ddns Setup

    Enter user name. Password Enter password. ＊ For more detailed I-DVR.NET operation instruction, please refer to appendix I. 4-6.4 Mail Setup When event occurs (VLOSS, MOTION, SENSOR), email will be sent to the receiver account automatically. HD-116/HD-108 User Manual V0.6(N02)

  • Page 32: Ptz & Rs485 Setup

    Enter to set up e-mail addresses for up to 10 receivers individually. 4-7 PTZ & RS485 SETUP The DVR allows users to control PTZ functions of your camera. To enable PTZ function, the 485 cable should be connected to the RS-485 port of DVR. HD-116/HD-108 User Manual V0.6(N02)

  • Page 33: System Setup

    Enter to set up Date/Time Enter to set up Buzzer & Relay Device Setup Enter to set up Spot Spot Setup ＊ Default ID is ID1. If remote control malfunctions, please press, “DVR1” button to renew corresponding DVR ID. HD-116/HD-108 User Manual V0.6(N02)

  • Page 34: 4-8.1 Display Setup

    Turn On / Off date and time display Show Channel Name Turn On / Off channel name display Deflicker(only for CRT monitor) Border Color Set up the color of border in LIVE , PLAYBACK mode.（Red, Green, Blue） 4-8.2 DATE/TIME SETUP HD-116/HD-108 User Manual V0.6(N02)

  • Page 35: 4-8.2.1 Change Date & Time

    Set up time zone and activate Daylight Saving Time function according to user‟s DVR location. Item Description Select Time Zone Enter to modify GMT from GMT- 13 to GMT+ 13 Daylight Saving Time Turn on/ off Daylight Saving Time HD-116/HD-108 User Manual V0.6(N02)

  • Page 36: 4-8.2.3 Internet Time Setup

    Effective by this option selected, DVR will automatically Synchronization synchronize the time upon rebooting or by every 24 hours after booting. Effectively, Date and Time show on DVR will immediately Update Now correspond with those in internet server. 4-8.3 BUZZER & RELAY SETUP HD-116/HD-108 User Manual V0.6(N02)

  • Page 37: 4-8.4 Spot Setup

    SEQUENCE: Auto-sequence for all channels in order. EVENT: Display channels with event occurred. The duration time in seconds for the interval between channels under Interval (Seconds) SPOT mode. Skip Video Loss Whether to skip channels without video signal. Channel HD-116/HD-108 User Manual V0.6(N02)

  • Page 38: Utility Setup

    System will reboot automatically when the upgrade is completed. Notice! DO NOT TURN OFF POWER OR UNPLUG USB DEVICE DURING THE UPGRADE as it may cause incomplete firmware upgrade and damage to the DVR. HD-116/HD-108 User Manual V0.6(N02)

  • Page 39: Diagnostic

    USING means the HDD is being used for recording Status GOOD/BAD means the HDD has a known/unknown format for the DVR. (Note: Please initialize your newly-installed HDD before using it.) Format Time The latest format time of HDD HD-116/HD-108 User Manual V0.6(N02)

  • Page 40: Chapter 5 Backup & Search

    Start backup operation. Start Be sure to calculate the size of backup file BEFORE operating backup. Note! Do not unplug the USB device or turn off the DVR during the backup process to avoid unrecoverable error. HD-116/HD-108 User Manual V0.6(N02)

  • Page 41: Search Setup

    Rest your cursor under the line and press “enter”, or left click your mouse to playback the recording data. P.S. Event Records will still be generated even when hard disk is not installed or the record function is not activated. However, the record can’t be viewed after selecting it. HD-116/HD-108 User Manual V0.6(N02)

  • Page 42: 5-2.1.1 Criteria Setup For Event Search

    “criteria”. Setup “start time” and “end time” for event search, then the search result will be limited to this specific period of time. Only checked events and channels will be sorted in event search. Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels. HD-116/HD-108 User Manual V0.6(N02)

  • Page 43: 5-2.2 Time Search

    (hour/minute/second) or click on a specific time of time bar by mouse then press “ok”. DVR will playback the selected recording data. AP software:「DVR Remote Desktop」can allow you to remotely access and control the DVR from PC. HD-116/HD-108 User Manual V0.6(N02)

  • Page 44: Chapter 6 Remote Software Installation And Setup

    Step Two: Windows as below will show up. Please enter the user name and password. Default user name and password is admin/123456. Other related setup about user account and password, please check “4-5 Account Setup. “ Step Three: Click on the link to start downloading the AP software. HD-116/HD-108 User Manual V0.6(N02)
  • Page 45 DVR: IP, Port, Username and Password, or choose “Play Recorded File” to open backup files in your PC. Step Six: You‟ve logged into the DVR Note：4CH DVR will display 4 channels and 8CH DVR will display 8 channels. HD-116/HD-108 User Manual V0.6(N02)

  • Page 46: How To Do Remote Monitoring Through Ie

    IE view, please refer to next chapter for more information) p.s. There will be IE connection security issue when clicking this link for the first time. Please refer to index II for Remote Monitoring IE ActiveX Control Installation Instruction. HD-116/HD-108 User Manual V0.6(N02)

  • Page 47: Ap Software Operation

    Radeon R700series, Radeon HD 3xxx IGPseries, Mobility Radeonseries (9500 above), Mobility Radeon Xseries, Mobility Radeon HDseries, or FireGL Vseries etc. Or visit: http://en.wikipedia.org/wiki/Comparison_of_ATI_graphics_processing_units SiS: SiS 67Xseries, or SiS 77Xseries etc. Or visit: http://www.sis.com/support/support_compare.htm Intel: 91Xseries, 94Xseries, 96Xseries, G3Xseries, or G4Xseries, etc. Or visit: http://en.wikipedia.org/wiki/Intel_GMA HD-116/HD-108 User Manual V0.6(N02)

  • Page 48: Chapter 7 Specificaitons

    1 RS-485, 16(16CH) / 8(8CH) / 4(4CH) sensor input, External I/O 2 Relay out(16CH), 1 Relay out (8CH/4CH) Ethernet 1 RJ45 connector, 10/100 Mbps 6. ELECTRICAL Power Source DC 12V / 5A 7. ENVIRONMENTAL 5℃ ~ + 40℃ Operation Temperature HD-116/HD-108 User Manual V0.6(N02)
  • Page 49 120fps(16CH) . 60fps (8CH), 60fps (4CH) (Independent 352 x 288 400fps(16CH) . 200fps (8CH), 100fps (4CH) setting for each 704 x 288 200fps(16CH) . 100fps (8CH), 100fps (4CH) channel) 704 x 576 100fps(16CH) . 50fps (8CH), 50fps (4CH) Compression Method H.264 HD-116/HD-108 User Manual V0.6(N02)

  • Page 50: Chapter 8 Mobile Application Installation And Usage

    CD that packed with DVR through Bluetooth or USB cable. Step 2: Install the application software “DVRH264.jar” in your mobile device. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. HD-116/HD-108 User Manual V0.6(N02)

  • Page 51: 8-1.2 Mobile Application Operation

    Network connectivity will take some time. It‟ll be affected by networking environment and bandwidth flow. Live image will show up after a successful connection. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. HD-116/HD-108 User Manual V0.6(N02)

  • Page 52: 8-1.2.3 Modify The Login Information Of Dvr

    “Delete” command can be used to remove the DVR information if it is no longer useful. Select the DVR on the name list then choose “Delete” 8-1.3 Live Monitoring Operation This paragraph describes some operation under the LIVE monitoring mode in your mobile device. HD-116/HD-108 User Manual V0.6(N02)

  • Page 53: 8-1.3.1 Scroll The Image

    Select “Single” under the “Menu”, there will be all channels of your DVR in list for you to choose. PS. The Live can not be displayed in your mobile when the recoding is off in local DVR. HD-116/HD-108 User Manual V0.6(N02)

  • Page 54: 8-1.3.4 Size Of Image

    Motion Detected, Sensor Triggered and Vloss. Graphical icons below will be shown on the status: : Motion detected : Sensor triggered : Video loss Select the “Alarm” under the “Menu” to switch this function on or off. HD-116/HD-108 User Manual V0.6(N02)

  • Page 55: Mobile Application Installation And Operation For Windows Mobile System

    Step 2: Install the application software “Jrviewer.CAB” and “H264Pocket.CAB” in your mobile device, two folders named ”Jrviewer” and “H264Pocket” will be created. It might be installed automatically after downloading; otherwise, select it from the downloading file for installation. HD-116/HD-108 User Manual V0.6(N02)

  • Page 56: 8-2.2 Mobile Application Operation

    Modify Login Choose DVR, press “Modify”, and press”OK” to save change. Modify Delete Login Choose DVR and press ”Delete” to delete the DVR info. Delete HD-116/HD-108 User Manual V0.6(N02)

  • Page 57: 8-2.3 Operation Under The Live Monitoring

    If the channel video with sound input, turn this Sound Sound option to hear the real sound You can choose one channel to display in full Full Screen Full screen display screen by check this function. HD-116/HD-108 User Manual V0.6(N02)

  • Page 58: Chapter 9 Cms Installation And Usage Guide

    4. Select “Next”, and then select “Browse” to change installation path if needed. To check available space on hard disk, please select “Disk Cost” then please select “Next” to the next step. HD-116/HD-108 User Manual V0.6(N02)
  • Page 59 5.”Confirm Installation” window shows. Select „Next’ then the installation starts. 6. Select „Close’ to finish installation when the “Installation Complete” window shows. HD-116/HD-108 User Manual V0.6(N02)

  • Page 60: Instruction For Log-In Failure To Cms After Upgrade

    Step 1: Please enter file manager to enter folder, “Windows” and then folder “Systme32” (ex:C:\Windows\System32) Step 2: Locate file, “iCMS.dat” and delete it. Step 3: Restart CMS. Log-in successfully. HD-116/HD-108 User Manual V0.6(N02)

  • Page 61: Cms Login And Environment

    A set of 10 operations are provided by CMS. See “ 9-6 Operation 安 裝 此 ⑤ Operation Bar Bar” for detail. 軟 體 後，安裝 速 度 會 依 使 用 者 的 網 路 頻 寬 HD-116/HD-108 User Manual V0.6(N02) 大 小 而 有 所 不...

  • Page 62: Dvrs, Groups & Events

    “9-6.3 display. Group Administration” for further information. Left-clicking on a connected DVR will expand/collapse status of its all channels as below: Icon Description Video Loss Motion Detected Sensor Triggered HD-116/HD-108 User Manual V0.6(N02)

  • Page 63: 9-3.2 View Event Logs

    “9-6.6 recording data” for detail. Take snapshot to save in local PC storage. To view all the snapshots you‟ve taken, please go to ” Snapshot” under the Snapshot operation bar. See “9-6.5 Snapshot data” for detail. HD-116/HD-108 User Manual V0.6(N02)

  • Page 64: Main Display

    In live mode, you can turn on/off the audio signal of Ch1~Ch4: 「 」Audio signal is On 「 」Audio signal is Off Turn on/off by clicking on the graphical icon, please note there can allow only one chan nel‟s audio signal to be on at one time. HD-116/HD-108 User Manual V0.6(N02)

  • Page 65: 9-5.2 Emap Display

    If the channel has been set up to use e-MAP, the menu will show all the e-MAP titles that have been entitled to this channel; otherwise, “No eMaps” will be shown. Please check “9-6.4 eMAP administration” for setup information. HD-116/HD-108 User Manual V0.6(N02)

  • Page 66: 9-5.3 Ptz Control

    Adjust the Brightness (Down is +) Adjust the Contrast (Down is +) Adjust the Sharpness (Down is +) ＊PTZ communication protocols from different brands aren‟t compatible 100% sometimes. Therefore, some of these functions may be unavailable. HD-116/HD-108 User Manual V0.6(N02)

  • Page 67: Operation Bar

    Remote Playback. Please see “9-6.5 Remote Play”. HDD Playback. Please see “9-6.6 HDD Play” File Playback. Please see “9-6.7 File Play” Event Playback. Please see “9-6.8 Event Play” Snapshot Data. Please see “9-6.9 Snapshot” Recording Data. Please see “9-6.10 Recording” HD-116/HD-108 User Manual V0.6(N02)

  • Page 68: 9-6.1 User Administration

    For MPEG4 2U Models Address: DVR IP Address Port: DVR Network Port Channel: DVR Camera Number DVR Login Account Password: DVR Login Password Description: Other Description Camera Description: Carera Description From DVR: Load Camera name from DVR HD-116/HD-108 User Manual V0.6(N02)

  • Page 69: 9-6.3 Group Administration

    6. Drag a channel from the lower left panel into the main display to a preferred location. Or, change the channel location in the main display by mouse dragging. 7. You can „Select’ again to add other channels, but the un-saved channel locations will be lost. 8. Click “OK” to save the setup. HD-116/HD-108 User Manual V0.6(N02)

  • Page 70: 9-6.4 Emap Administration

    2. Select a picture, click OK and the picture will show in the right panel. 3. Drag channels in the left lower corner onto the picture to any position. 4. To delete a channel already on the picture, right click the channel and click „Remove‟. 5. Click OK to save. HD-116/HD-108 User Manual V0.6(N02)

  • Page 71: 9-6.5 Remote Play

    Icon Description Start playing. Pause. Fast forward. Fast rewind. Select the clip you want to watch the number of minutes and seconds,Press the right button is set to start playing HD-116/HD-108 User Manual V0.6(N02)

  • Page 72: 9-6.6 Hdd Playback

    You can play the recorded .irf files by “File Play” in CMS. It allows you to change the display mode, forward or rewind the file and drag the time bar. Icon Description Start Playback. Pause. Stop playback. Fast forward. Fast rewind. HD-116/HD-108 User Manual V0.6(N02)

  • Page 73: 9-6.8 Event Playback

    9-6.9 Snapshot Data It can display all the snapshots you‟ve taken in line in “Snapshot Data”. You can review, delete or save as other files here. *Capture images of the date and time will follow the PC-time display HD-116/HD-108 User Manual V0.6(N02)

  • Page 74: 9-6.10 Recording Data

    1. Choose the recording time at upper left corner, it will be played on the main display. 2. You can choose the display mode. 3. Time bar will be shown at right lower corner, please drag the time bar to specify the recording time you‟d like to play. HD-116/HD-108 User Manual V0.6(N02)

  • Page 75: Appendix I I-Dvr.net Registration

    If DVR IP has any changes, there are updates “iddns.i-dvr.net” is what the main Here at the same time. Press, “F5: Refresh” server generates And then IP column will update automatically to it’s real IP Address. HD-116/HD-108 User Manual V0.6(N02)
  • Page 76 This part of the information required and the same within the i-dvr.net Step 5.Back to the i-dvr.net, on this page by pressing "F5: Refresh", IP will be automatically updated into the DVR of the real IP location. HD-116/HD-108 User Manual V0.6(N02)

  • Page 77: Appendix Ii Remote Monitoring Ie Activex Control Installation Instruction

    1. When remote monitoring on IE for the first time, an alert message occurs “Install ActiveX control” on the tool bar. 2. Click at this alert message and select “Install ActiveX Control” 3. “Do you want to install this software” alert pops up. Select “Install” HD-116/HD-108 User Manual V0.6(N02)
  • Page 78 5. If message, “Your security Settings do not allow web sites to use ActiveX controls installed on your computer.” pops on when logging in, please follow the next instruction. 6. First select “Tools” on the tool bar and then select “Internet Options” HD-116/HD-108 User Manual V0.6(N02)
  • Page 79 7. Select Security →Trusted Sites → Sites 8. Enter DVR address (This address is only for demonstration. Please use the address depends on the setup of on-site DVR.) into the blanks shown in picture, and then press “add.” HD-116/HD-108 User Manual V0.6(N02)
  • Page 80 9. Newly added website will appear at the trusted web sites list. Press close. 10. Go back to IE window, press refresh button or F5. HD-116/HD-108 User Manual V0.6(N02)
