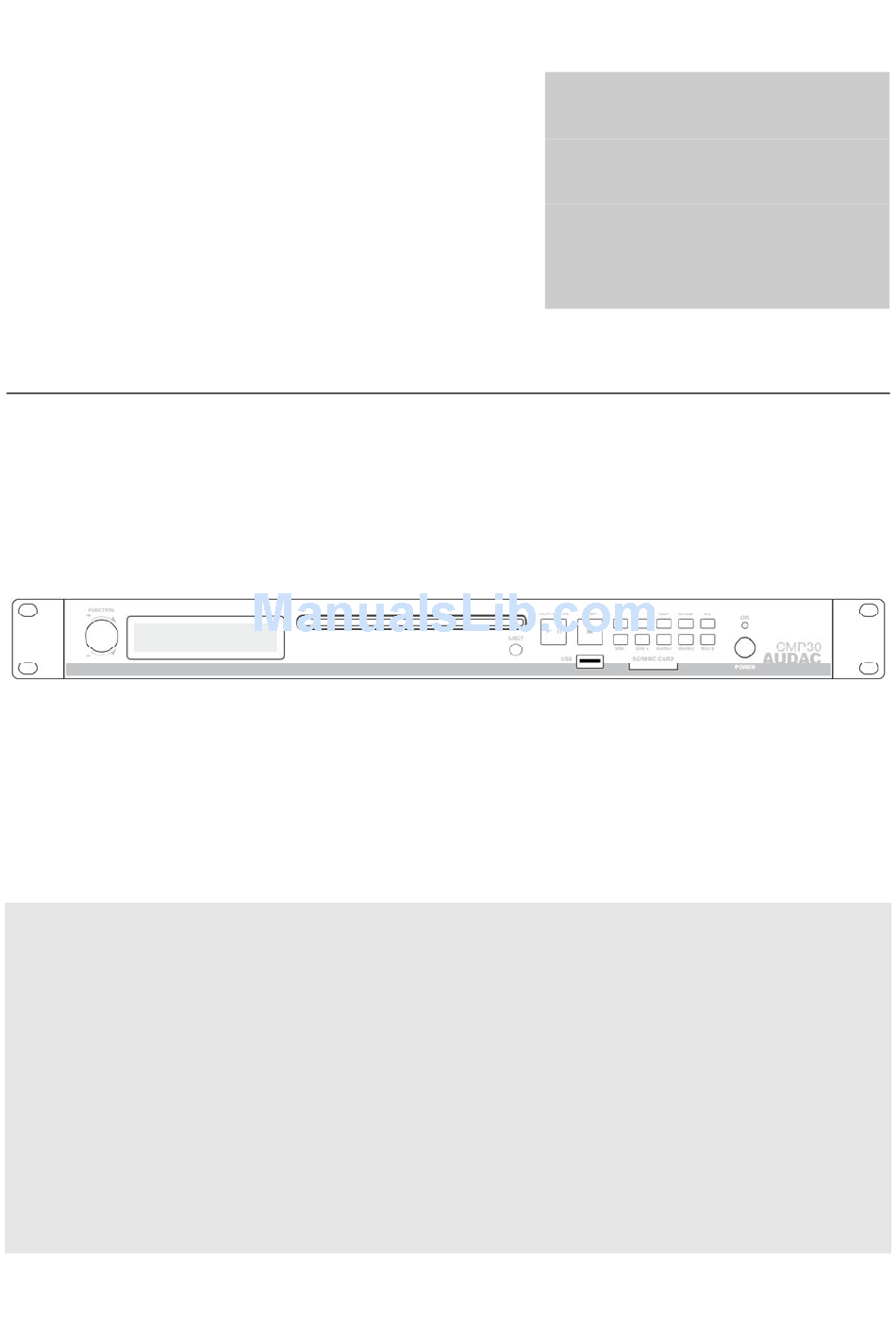

CMP30 Digital Audio Source AUDAC PROFESSIONAL AUDIO EQUIPMENT CMP30 Digital audio source – CD, MP3 & Tuner User Manual & Installation Guide... - Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.eu info@audac.eu...
-
Page 3: Table Of Contents
Index INTRODUCTION ............................................. 3 ENVIRONMENT ............................................4 SAFETY REQUIREMENTS ........................................5 CAUTION – SERVICING ........................................5 OVERVIEW FRONT AND REAR PANEL ..................................6 FRONT PANEL OVERVIEW ........................................ 6 FRONT PANEL DESCRIPTION ......................................6 REAR PANEL OVERVIEW ........................................ 12 REAR PANEL DESCRIPTION ......................................12 GETTING STARTED .......................................... -
Page 4: Introduction

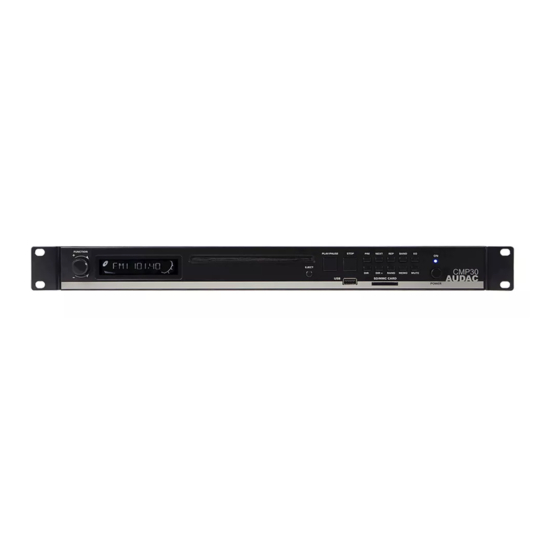

Introduction This section briefly describes the possibilities of the CMP30 Digital Audio Source he CMP30 is an All-In-One audio source device which accommodates three different kinds of audio sources into one single device. It combines a CD-Player, MP3-player and AM/FM tuner into one single rack space 19”... -
Page 5: Environment
Chapter Environment Do not place this unit in an enclosed environment such as a bookshelf or closet. Ensure that there is adequate ventilation to cool the unit. Do not place the unit in environments which contain high levels of dust, heat, moisture or vibration. -
Page 6: Safety Requirements
Safety Requirements Always handle the unit with care. Only use a grounded socket outlet and a power cord with grounding plug to plug in the unit. This unit is not a toy. It should not be operated by children. Do not stick objects through the openings. Do not open the unit (risk for electrical shock). -
Page 7: Overview Front And Rear Panel
Chapter Overview front and rear panel Front panel overview Description 1. Function selection button (FUNCTION): The function selection button is a rotatable push dial. By pressing this button, the device will toggle between Tuner, CD or USB & SD/MMC operation mode. By rotating this button, the volume for the “Variable audio output”... - Page 8 3. CD Slot: Insert CD’s in this slot. The drawer will load the CD automatically when it’s inserted into the slot. Don’t force the CD inside the slot when it doesn’t accept the CD automatically. 4. CD Eject button (EJECT): Press this button to eject the CD.
- Page 9 7. Tuning down / CD-Mp3 Track selection down ( CD, USB & SD/MMC mode: In CD or USB & SD/MMC mode, the playing track can be selected with this button. Press and hold: By pressing and holding this button, you can scan back the track which is currently playing.
- Page 10 10. Band select for the tuner (BAND): Tuner mode: Press this button to select between the different tuner bands. The different tuner bands are FM1 – FM2 – FM3 – MW1 – MW2, and can be cyclically selected in this order by pressing the BAND button.
- Page 11 ‘Position 4’ of the selected Band. 15. Memory for the tuner frequency (MEMO): When pressing this button, the CMP30 will start searching for available radio stations and automatically stores them to the preset memory. The radio stations are stored in order of increasing frequency, starting from Band 1 - Position 1 with subsequently the increasing frequencies on the higher positions.
- Page 12 MP3 tunes stored on your USB storage device. 18. SD/MMC memory card slot Insert your SD / MMC memory card to this card slot, to make the CMP30 play your MP3 tunes stored on your memory card. 19. Power switch By means of the power switch, the device can be turned ON and OFF.
-
Page 13: Rear Panel Overview
(T500mAL/250V) 2. RS232 connection: The RS232 connection can be used to control the CMP30 through external hardware such as an home automation system or a computer. Connect your external control hardware to this port. The complete RS232 command instruction set and configuration information can be downloaded from the AUDAC website. - Page 14 5. Fixed Audio Output Tuner: The signal on this output is dedicated to the sound coming from the Tuner, and has a constant line output level (the volume is not adjustable). This output should be used for advanced audio applications where multiple sources (CD/MP3 and Tuner) are used at the same time (For example, Multi-Zone audio applications).
-
Page 15: Getting Started
Getting started The CMP30 player is designed for installation into a rack (482 mm / 19”) with a height of one single rack space (44.45 mm), but it can also be placed as a desktop unit. Before using the device, the connections of the CMP30 should be made properly. -
Page 16: Additional Information
Chapter Additional Information CMP30 Technical specifications CMP30 Features Inputs Audio Compact disk slot (12 cm) USB Memory Stick Input SD/MMC Memory Card Input Control Front panel RS232 Outputs 2 x Fixed audio output (Tuner & CD/MP3) 1 x Variable audio output (Selectable) -
Page 17: Personal Notes
Personal notes...
