Page 4
Reseting the switching tables ................32 6 The L-Switch XP in a Network ..............33 L-Switch XP as Smart Switch ................33 L-Switch XP as Configured CEA-709 Router ..........34 Wink action ....................... 34 7 Updating the L-Switch XP Firmware ............35 Firmware Update via the Network ..............
Page 5
L-Switch User Manual LOYTEC Abbreviations 100Base-T ......100 Mbps Ethernet network with RJ-45 plug Aggregation ......Collection of several CEA-709 packets into a single CEA-852 packet BOOTP ....... Bootstrap Protocol, RFC 1497 CEA-709 ......Protocol standard for L networks ORKS CEA-852 ......
In addition to the Plug & Play switch mode the L-Switch XP can be operated as a standard configured CEA-709 router. In this operating mode the L-Switch XP is compatible to any standard CEA-709 router and must be commissioned using LonMaker or some other network management tool for CEA-709 networks.
This document covers L-Switch XP devices with firmware version 6.0. See Section 10 for differences between the different L-Switch XP firmware versions. Older versions of the product labled L-Switch (without XP) are not covered by this document. Version 6.0 LOYTEC electronics GmbH...

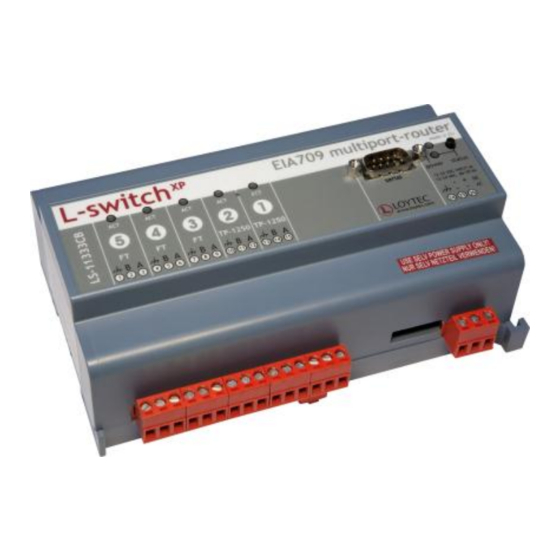

Figure 1: L-Switch XP multi-port enclosure (dimensions in mm [inch]) 2.1.2 L-Switch XP 2-port The L-Switch XP 2-port enclosure is 6 TE (1 TE = 17.5 mm) wide for DIN rail mounting, following DIN 43 880 (see Figure 2). Version 6.0 LOYTEC electronics GmbH...
On the attached label, only the external NIDs (number 1-3 or 1-5) are printed. Since the NIDs are organized in a continuous number block, the internal NIDs can be derived by incrementing the numbers printed on the label (number 4-6 or 6-10, see Figure 5 and Figure Version 6.0 LOYTEC electronics GmbH...
Page 11
LOYTEC Figure 3: Internal assignment of NIDs on LS-xxx00CB. Figure 4: Example of internal NID order on LS-xxx00CB. Figure 5: Internal assignment of NIDs on LS-xxxxxCB. Figure 6: Example of internal NID order on LS-xxxxxCB. Version 6.0 LOYTEC electronics GmbH...
ON, ON: L-Switch XP switch mode ON, ON ON, OFF: L-Switch XP repeater mode OFF, ON: L-Switch XP subnet learning OFF, OFF: Configured CEA-709 router Bit-rate auto detection On/Off (RS-485 version only) Must be OFF Must be OFF Must be OFF...
Do not ground the power supply wire on terminal 26 (LS-xxxxxCB) or terminal 17 (LS-xxCB) as shown in Figure 7! LOYTEC recommends using its LPOW-2415B power supply with the L-Switch XP. 2.6 Connecting Diagrams The L-Switch XP provides screw terminals to connect to the network as well as to the power supply.
L-Switch User Manual LOYTEC 2.6.2 LS-13CB (2-Port) Terminal Function Earth Ground 2, 3 CEA-709 A, B of FT-10 Channel Port 2 Earth Ground 5, 6 CEA-709 A, B of TP-1250 Channel Port 1 Earth Ground 16, 17 Power Supply (do not connect terminal 17 to earth ground) Table 5: L-Switch XP Terminals LS-13CB 2.6.3 LS-11CB (2-Port)
LOYTEC 2.6.4 LS-13300CB (3-Port) Terminal Function Earth Ground 8, 9 CEA-709 A, B of FT-10 Channel Port 3 Earth Ground 11, 12 CEA-709 A, B of FT-10 Channel Port 2 Earth Ground 14, 15 CEA-709 A, B of TP-1250 Channel Port 1...
LOYTEC 2.6.6 LS-13333CB (5-Port) Terminal Function Earth Ground 2, 3 CEA-709 A, B of FT-10 Channel Port 5 Earth Ground 5, 6 CEA-709 A, B of FT-10 Channel Port 4 Earth Ground 8, 9 CEA-709 A, B of FT-10 Channel Port 3...
(see Chapter 3). Important: All used and unused ports must be properly terminated. LOYTEC recommends the use of the LOYTEC L-Term series network terminators (LT-13 or LT-33 respectively). For unused ports, it is recommended to use a 100 Ohm 0.25 W resistor between terminals A and B as termination.
Page 18
L-Switch User Manual LOYTEC Port not in 100 Power Supply Figure 7: Connecting the L-Switch XP (LS-13333CB) Figure 7 shows an L-Switch XP where Port 5 is not used. Version 6.0 LOYTEC electronics GmbH...
The TP-1250 uses transformers for galvanic isolation. The topology of a TP-1250 network is a bus. Thus, both ends of the bus cable need to be terminated. LOYTEC recommends using its L-TERM network terminators for network termination (LT-13). Figure 8 shows an example.
These terminations need to be placed at each end of the bus. LOYTEC recommends using its L-TERM network terminators (LT-13, LT-33 or LT-03) for network termination (see Figure 9). Figure 9: FT-10 Network Termination.
Page 21
RS-485 can only be used in a bus configuration and must be terminated on both ends. The maximum stub length between the main bus and a single node is 0.3 m. LOYTEC recommends using its L-TERM network terminators (LT-04 or LT-B4) for network termination (see Figure 10).
4.1.1 Smart Switch Mode The L-Switch XP can be configured to act as a self-learning switch in an CEA-709 network. In this operation mode the L-Switch XP decides based on the destination address of a message, to which port(s) the message has to be forwarded or whether it has to be forwarded at all.
Figure 12: DIP switch settings to enable repeater mode for an L-Switch XP Firmware versions 2.0 and up allow to disable subnet broadcast flooding. Please contact LOYTEC support if you need to enable this feature! Version 6.0 LOYTEC electronics GmbH...
(e.g. LonMaker): configured router, learning router, bridge and repeater. Since the learning algorithm in the smart switch operating mode (see Section 4.1.1) is superior to the learning router mode of a standard CEA-709 router, the learning router mode is not supported by the L-Switch XP.
LED is used to signal error conditions (red). 5.2.2 Port LEDs Each port on the L-Switch XP has a three color LED (green, red and orange, see Figure 1). Table 11 shows the port different LED patterns and their meaning. Version 6.0 LOYTEC electronics GmbH...
LOYTEC Behavior Description Comment GREEN flashing fast Traffic GREEN flashing at 1 Hz Port unconfigured Configured CEA-709 router mode only (see Section 4.1.3) RED permanent Port damaged RED flashing fast Traffic with high amount of errors (see Section 5.4) RED flashing at 1 Hz...
Bootloader version 2 L-Switch/L-IP Primary Image loading... Firmware version 6.0.0 Type bootshell to enter the boot shell... Mounting file system Passed Detecting CEA-709 port 1 (XF/TP-1250) Passed Detecting CEA-709 port 2 (FT) Passed Detecting CEA-709 port 3 (FT) Passed Detecting CEA-709 port 4 (FT)
3 - System configuration Select this menu item to change system configuration settings. See Section 5.3.3 for details. 4 - CEA-709 configuration Select this menu item to change the CEA-709 configuration settings. See Section 5.3.4 for details. 8 - Reset configuration (factory defaults) This menu item resets the L-Switch XP to factory defaults.
For TP-1250 transceivers it is possible to set the transceiver settings to collision-less backbone mode. Please contact LOYTEC if you think you might need this feature! For RS-485 transceivers it is possible to manually set the bit-rate or choose bit-rate auto- detection.
Table 1) is used to enable or disable the bit-rate auto-detection. If [2] Manual is selected the setting made with Option 1 – 5 is used to enable or disable the bit-rate auto-detection. r - Router configuration This menu item opens the CEA-709 router configuration menu as described in Section 5.3.5. 5.3.5 CEA-709 Router Configuration Menu This menu allows configuring the CEA-709 router mode.
2 – Reset switch configuration to factory defaults Pressing “2” performs a reset identical to pressing the status button longer than 20 seconds (see Section 5.5). Use this menu item if you are moving CEA-709 network nodes between different CEA-709 channels.
For a deeper analysis of the reason of the overload condition it is recommended to use a protocol analyzer (e.g. LOYTEC’s LPA) or a similar tool. The exact reason of the overload condition can also be determined with the LSD Tool (see Section 9).
L-Switch User Manual LOYTEC 6 The L-Switch XP in a Network The L-Switch XP is based on LOYTEC’s powerful L-Core and L-Chip technology. It is designed to be very robust and reliable in high bandwidth applications. 6.1 L-Switch XP as Smart Switch In this operation mode the L-Switch XP behaves completely transparent in a network.
LOYTEC 6.2 L-Switch XP as Configured CEA-709 Router The L-Switch XP is designed to be compatible with standard CEA-709 routers, if operated as configured CEA-709 router. Thus, it requires commissioning via a network management tool (e.g. LonMaker) like any standard CEA-709 router to be fully functional.
To download the firmware via the console the L-Switch XP must be connected to the RS-232 port of a PC via its console interface as described in Section 5.3. You will need the LOYTEC serial upgrade tool (LSU Tool), which can be downloaded from our homepage at www.loytec.com.
Page 36
Figure 27: Successful firmware upgrade. Double check that the new firmware is executed by selecting 1 and pressing Enter in the console window. This will bring up the device information, which shows the current firmware version. Version 6.0 LOYTEC electronics GmbH...
If this does not solve your problem use a protocol analyzer (e.g. LOYTEC’s LPA) and/or a network diagnostics tool (e.g. LOYTEC’s LSD Tool or Echelon’s Nodeutil) to find the source of the problem.
Solution If this problem occurs because a firmware update was attempted (and failed somehow), simply retry downloading the new firmware image. If no firmware update was attempted, please contact LOYTEC support (see Section 8.6). 8.4 LonMaker cannot commission node Problem When adding a new node to a LonMaker project, LonMaker receives the service ping message from that node, but is unable to commission it.
L-Switch User Manual LOYTEC 8.6 Technical Support LOYTEC offers free telephone and e-mail support for our L-Switch XP product series. If none of the above descriptions solves your specific problem please contact us at the following address: LOYTEC electronics GmbH...
Topic AN002E How to use the enhanced statistic features of the L-Switch LSD Tool XP with the LOYTEC system diagnostics tool (LSD tool) AN006E How to use the L-Switch XP with LonMaker and other L-Switch XP and LNS network management tools...
√ √ √ √ Password protection √ √ √ √ Full LSD 2.0 support √ √ √ L-Switch XP support √ √ Commission in smart switch mode Table 13: Available features depending on firmware version Version 6.0 LOYTEC electronics GmbH...
Enclosure: ............Installation enclosure 9 TE (L-Switch XP Multi-port) resp. 6 TE (L-Switch XP 2-Port), DIN 43 880 Environmental Protection: ......IP 40 (enclosure); IP 20 (screw terminals) Installation: ............. DIN rail mounting (EN 50 022) or wall mounting Version 6.0 LOYTEC electronics GmbH...
Added information on firmware update Added information on LSD Tool Added application note on L-Switch XP LonMaker shapes Updated application note on L-Switch XP backbone mode Added application note on using L-Switch XP devices with CEA-709/IP Routers Added firmware feature list DL, JB Updated cover sheet Updates for Firmware version 2.0 (specifically Console Menu, Network...
