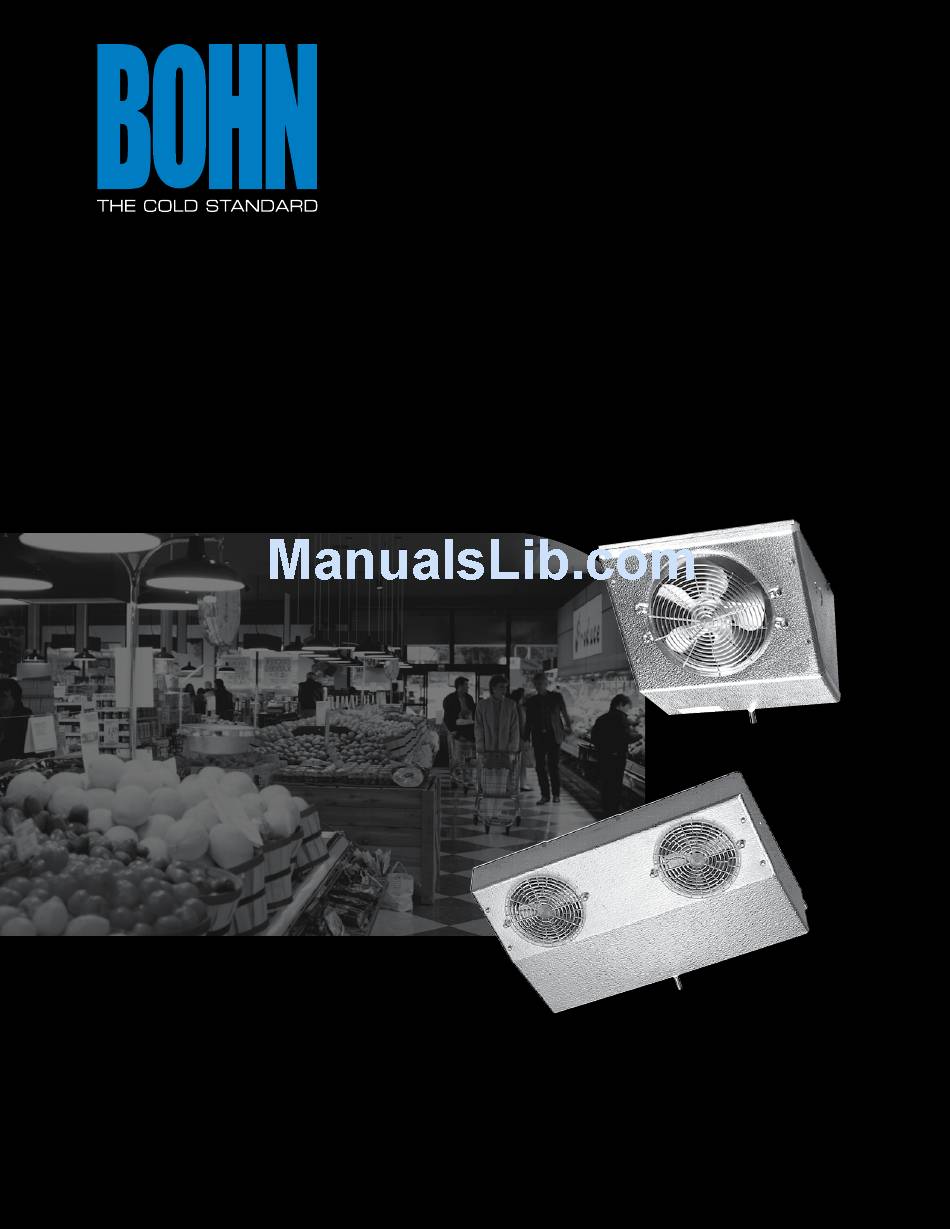

Bohn BBL Technical Manual

Reach-in unit coolers

Advertisement

BN-RITB
January 2004
(Replaces 107.2, 01/04)
Reach-In UnIt cooleRs
Technical Guide
Models TA, TL, C, VA, BBM, BBL, KMK, RAMK, BTO & U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bohn BBL

  • Page 1 BN-RITB January 2004 (Replaces 107.2, 01/04) Reach-In UnIt cooleRs Technical Guide Models TA, TL, C, VA, BBM, BBL, KMK, RAMK, BTO & U...
  • Page 2: Table Of Contents

    Model TL Thin Profile Electric Defrost ... 4 Model C High Profile ... 5 Model VA Vee-Aire ... 6 Models BBM/BBL Back Bar ... 7 Model KMK Kompact Mullion ... 8 Model RAMK Reverse Air Flow Kompact Mullion ... 9 Model BTO Twin Flow ...10...
  • Page 3: Model Ta Thin Profile Air Defrost

    Model ta thin Profile air Defrost Reach-In Unit cooler Features • Textured aluminum cabinet • Molded Lexan® guards and fans • Drain fitting mounted at 45-degree angle so drain can be run through back or bottom of refrigerator • Room for expansion valve inside the unit •...
  • Page 4: Model Tl Thin Profile Electric Defrost

    Profile electric Defrost Reach-In Unit cooler Features • Electric defrost insures positive heat source • Built-in fan delay allows coil to be chilled before returning to the normal cooling cycle • Defrost terminates on coil temperature eliminating excessive defrost period •...
  • Page 5: Model C High Profile

    Model c high Profile Reach-In Unit cooler Features • Textured aluminum cabinet • Molded Lexan® guard • Drain fitting at 45-degree angle so drain can be run through bottom or back of refrigerator • Aluminum hangers automatically space the unit to the correct distance from the back wall •...
  • Page 6: Model Va Vee-Aire

    Model Va Vee-aire Reach-In Unit cooler Features • Textured aluminum cabinet • Molded Lexan® fan guard • Improved drain pan overlaps coil surface to catch all condensate • Stainless steel screws - prevent rust streaks • Plate-type aluminum fins with full collars on expanded copper tubes •...
  • Page 7: Models Bbm/Bbl Back Bar

    10° to 17° TD and 16 hours per day compressor run time. The BBL (low temperature) model is designed for 0° to -10°F fixture temperature, and has automatic electric defrost. The unit is designed to operate at 8° to 15° TD with 18 hours per day compressor runtime.
  • Page 8: Model Kmk Kompact Mullion

    Model KMK The thin line design allows the unit to be mounted behind the mullion with sufficient clearance for tray slides. A down flow fan arrangement is used with air drawn in at the top and discharged at the bottom. This design provides superior air circulation and insures uniform temperature throughout the cabinet.
  • Page 9: Model Ramk Reverse Air Flow Kompact Mullion

    Model RaMK Reverse air Flow Kompact Mullion Reach-In Unit cooler Features • Textured aluminum cabinet • PVC coated fan guard • Stainless steel hardware • Coils have full collar aluminum fins on expanded copper tubes • Bohn-Kote® coated coil for optimum protection in corrosive environments •...
  • Page 10: Model Bto Twin Flow

    • Textured aluminum cabinet • Stainless steel fasteners • Molded Lexan® fan guards • Drain pan and fan panel is easily removed for installation and servicing • Optional Bohn-Kote® coated coil available (Model BTOK) for optimum protection in corrosive environments •...
  • Page 11 Model U Reach-In Unit cooler Features • Textured aluminum cabinet • Full collar aluminum fins on expanded copper tubes • Detachable drain pan that is easy to clean • Molded 3-prong motor connector to save installation time and expense • Motors are thermally protected and permanently lubricated •...
  • Page 12 For more information on Bohn refrigeration products, contact your Sales Representative or visit us at www.thecoldstandard.com. a Brand of heatcraft Refrigeration Products llc 175 West Park Place Blvd. • stone Mountain, Ga • 0087 (800) 57-7775 • FaX (770) 65-5990 www.thecoldstandard.com...
