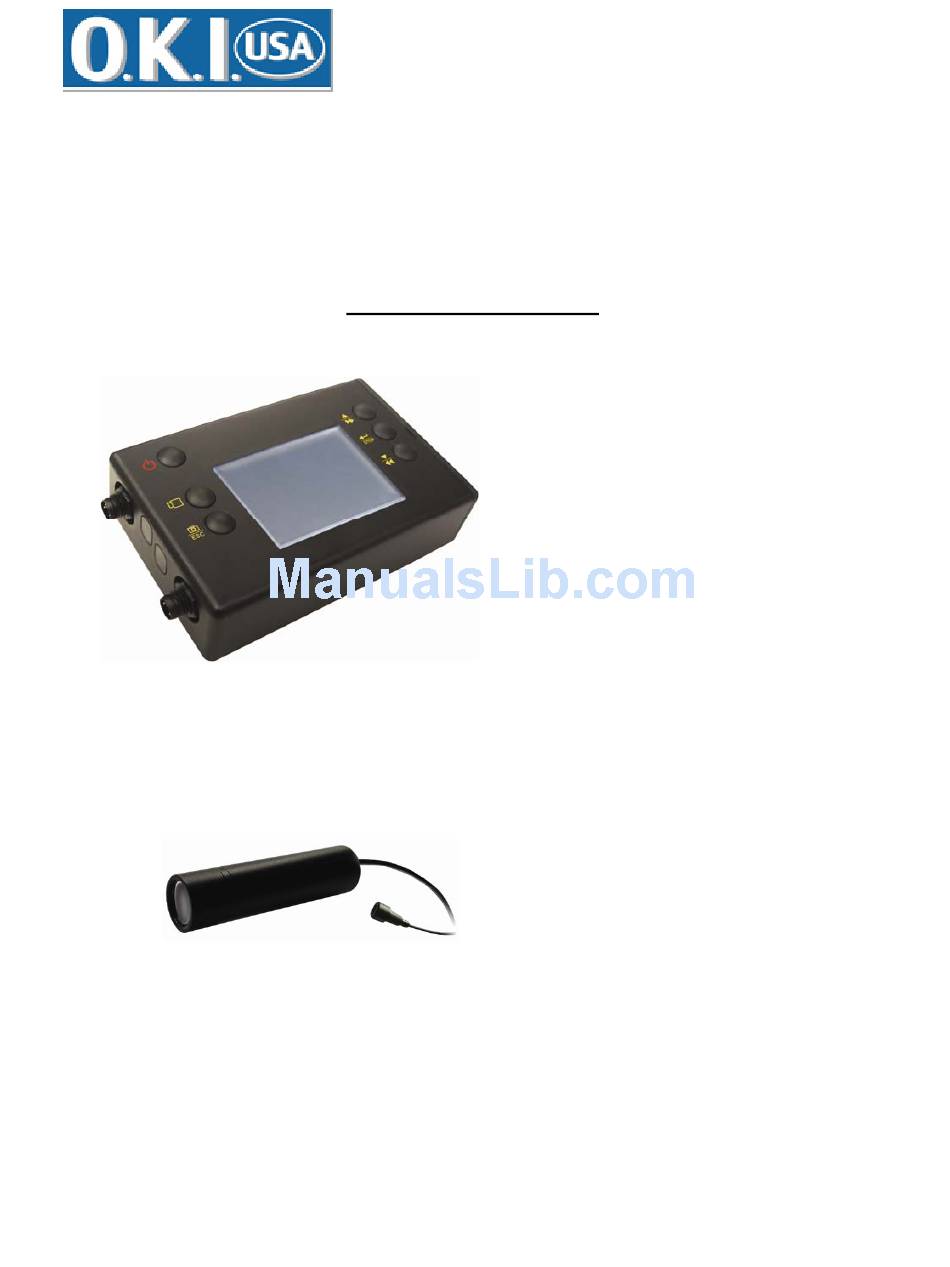

WATER RESISTANT 1-CHANNEL MICRO DVR KIT
WITH CAMERA
(MPD-01A + SSB-F50A-M8)
Operation Manual
MPD-01A
● Built-in 2.5" TFT LCD Monitor
● 1-Channel Video & Audio
● Record to SD Card
● Download from SD Card or USB Port
● Event Trigger by Motion Pre Alarm 30 or 60 sec.
● Post Alarm 10, 20, 30, ... 120 sec.
● Recording Frame Rate: 5/10/15/20/25/30 + PS
● Rechargeable / Removable LZ-Polymer Battery
● 2 Hours of Recording Time / Battery
● 5V Camera Power Source
SSB-F50A-M8
● Sharp 1/3" CCD
● 500 TV Lines
● Built-in Microphone
● 0.5 Lux @ F2.0
● Camera comes with 4 types of lens:
3.6mm Default, 6.0mm, 8.0mm, 12.0mm
● IP66 Rating
● 5~12V DC
Advertisement
Table of Contents
Summary of Contents for O.K.I. usa MPD-01A
-
Page 1: Operation Manual
WATER RESISTANT 1-CHANNEL MICRO DVR KIT WITH CAMERA (MPD-01A + SSB-F50A-M8) Operation Manual MPD-01A ● Built-in 2.5” TFT LCD Monitor ● 1-Channel Video & Audio ● Record to SD Card ● Download from SD Card or USB Port ● Event Trigger by Motion Pre Alarm 30 or 60 sec. -
Page 2: Table Of Contents
Contents Photo of Micro DVR and CCD Camera..............2 Remote Control Description..................3 1. Functions ............................ 5 1.1 Video Audio Input......................... 5 1.2 Video Audio output....................... 5 1.3 Menu UI ............................ 5 1.4 LED Light..........................5 1.5 LCD Display ..........................5 1.6 Screen Display ........................ -
Page 3: Photo Of Micro Dvr And Ccd Camera
Photo of Micro DVR and CCD Camera M8 waterproof connector 1/3’’ Color CCD 2.5” LCD TFT camera display 1. DI/Do connecter (Reserved) Left Panel of Micro DVR 2. 5V adapter. ini USB, A type, connects to PC 3. USB Port: M 4. -
Page 4: Remote Control Description
Remote Control Description Record Snapshot This can turn on/off the LCD when system is power on, Power On/Off (Note: Need to hold the button for 3 sec) Stop/ESC (Stop playing Video or Recording, ESC = Escape) - Page 5 Play /Pause (play the last Video File automatically) Fast Forward. (Speed by X2、X4、X8、X16) Rewind (Back Forward.) (Speed by X2、X4、X8、X16) Forward the video frame by frame Rewind the video frame by frame Cursor Up (Multi Purpose) Cursor Down (Multi Purpose) Access to main menu or to confirm your setup. Volume Up Volume Down PAL or NTSC Switch...
-
Page 6: Functions
1. Functions − 1.1 Video Audio Input Support 1 Video Channel Support 1 Audio Channel − 1.2 Video Audio output Selectable NTSC/PAL output L/R line input and output or 1 Microphone input and output. − 1.3 Menu UI OSD menu presentation Power on/off, Snapshot/ESC, Arrow Up/ FF, Arrow Down/ FB, Enter, operation buttons −... -
Page 7: Screen Display
− 1.6 Screen Display c. Color icon shows the Battery Capacity d. Rec Status b. Storage Status a. Day and Time a. Day and Time MM/DD/YY 05/10/07) HH:MM:SS 14:23:42) b. Available SD storage (in %), i.e. SD:98% SD cars has no space left for recoring C. - Page 8 Red icon indicates it’s running out of battery soon. Blue icon indicates the battery is recharging now. Plug icon indicates the recorder is using an adapter to recharging the battery and as a power supply as well. Recording status Blank indicates recorder is in preview state indicates recorder is in recording state (There are 5 sub-categories under recording, includes “Video/Audio”...
-
Page 9: Menu Functions
2. Menu Functions − 2.1 Main 2.1.1 Play Video Record starting time Recording Duration 、hh:mm:ss) Monthly List (MM/YYYY、 Total # of Records) Record List (Day、hh:mm:ss Video clip of Playback... - Page 10 Playback Video clip of PAUSE during playback Video clip of FF (x2/x4/x8/x16) Video clip of FB (Remind) (x2/x4/x8/x16) Two ways to FF & FB the video: 1. Press STEP_F STEP_B on the remote controller 2. Press button on DVR.
-
Page 11: Play Picture
2.1.2 Play Picture Date List (MM/DD/YYYY、 Total# of Pictures) Picture Storage Path: \JPEG\YYMMDD\ Video clip of Play Picture File Name: A. the 1 picture is named in hh/mm/ss. B. the other pictures are names in hh/mm/ss/xx.JPG Programmable to stamp date/ time Time and date when snapshot was taken on the pictures 2.1.3 CAMERA SETTING... -
Page 12: Record Setting
2.1.4 Record Setting FPS: 30/25/20/15/10/5 RESOLUTION: VGA or HVGA AUDIO: ON/OFF MOTION: ON/OFF LV:0~10 DATE PRINT:ON/OFF Recorded Video Clip Programmable Audio on/off for recording Video Storage Path: \Year\Month\Day\Hour-Minute-Second Support continue recording after power loss Resolution selectable: HVGA (640 x 240) or VGA (640 x 480) Recommend best Recording Frame rate is 30FPS at NTSC and 25FPS at PAL... -
Page 13: Video Loss
2.1.4.3 Video Loss ON: To enable Video Loss. OFF: To disable Video Loss Recording stop after Video loss Video Loss recording enabled 5 seconds later On: will display “VIDEO LOSS” while video signal input is lost After the Video loss is enables for 5 seconds; DVR will automatically stop recording. -
Page 14: Pre/Post Alarm
It will take 10 seconds delay to activate when M.T. is activated. Press twice on the “Stop” button on DVR to enter the menu to disable M.T. or press “stop’ key on the remote 2.1.4.5 Pre/Post Alarm ON: To enable Pre/Post alarm. OFF: To disable Pre/Post Alarm Pre-Alarm: recording duration 30 or 60 Sec before the alarm is... -
Page 15: Date/Time
2.1.5.1 DATE/TIME 3 Formats: MMDDYY/ DDMMYY/ YYMMDD Date/Time has 3 formats: YY/MM/DD, DD/MM/YY and MM/DD/YY 2.1.5.2 STORAGE 2.1.5.2.1 DEVICE DEVICE: SD CARD or onboard Flash (option) WARN LOW:15/10/5 % (warning message when the storage is only 5 or 10 or 15%left) 2.1.5.2.2 STATUS 2.1.5.2.3 WARN LOW Video clip of storage... -
Page 16: Format
2.1.5.2.4 FORMAT 2.1.5.2.5 Default Setting 3. PC Playback Software E-Player 4. Watch Dog Built-in hardware watchdog mechanism 5. Default Setting Camera Setup (Brightness, Contrast, Color, Hue): 50 FPS: 30 Resolution: VGA Audio: ON Motion Detect: OFF Motion Sensitivity: Level 5 Motion Alarm Time: 10 Pre/Post Function: OFF Pre-Alarm Time: 30... -
Page 17: Appendix A Explanation For Buttons On System
Warn Low: 15% Appendix a Explanation for Buttons on System ON/OFF Power Up & FF Record Enter main menu or Stop Down & FB Snapshot & ESC POWER Button(Toggle): Power ON/OFF (must press 2 seconds to active) REC_Button : Condition Action In Preview Mode Start recording... - Page 18 DOWN_Button : Condition Action In Play Mode Toggling as FB In Menu Mode Cursor “Down” key ENTER Button : Condition Action In Preview Mode Enter main menu In Play Mode Stop playing back last movie In Menu Mode Confirm your setup Lock Button (Enable/Disable) : To activate the button LOCK/UNLOCK function In preview mode, press button which it...
-
Page 19: Appendix B Recommend The Different Brand Of Sd Card To Be Used In The Dvr
Appendix b Recommend the different Brand of SD card to be used in the DVR 1. Transcend 1GB 80x, 2G and 4G 150X Kingston 2GB 120x SanDisk 2GB Extreme III...
